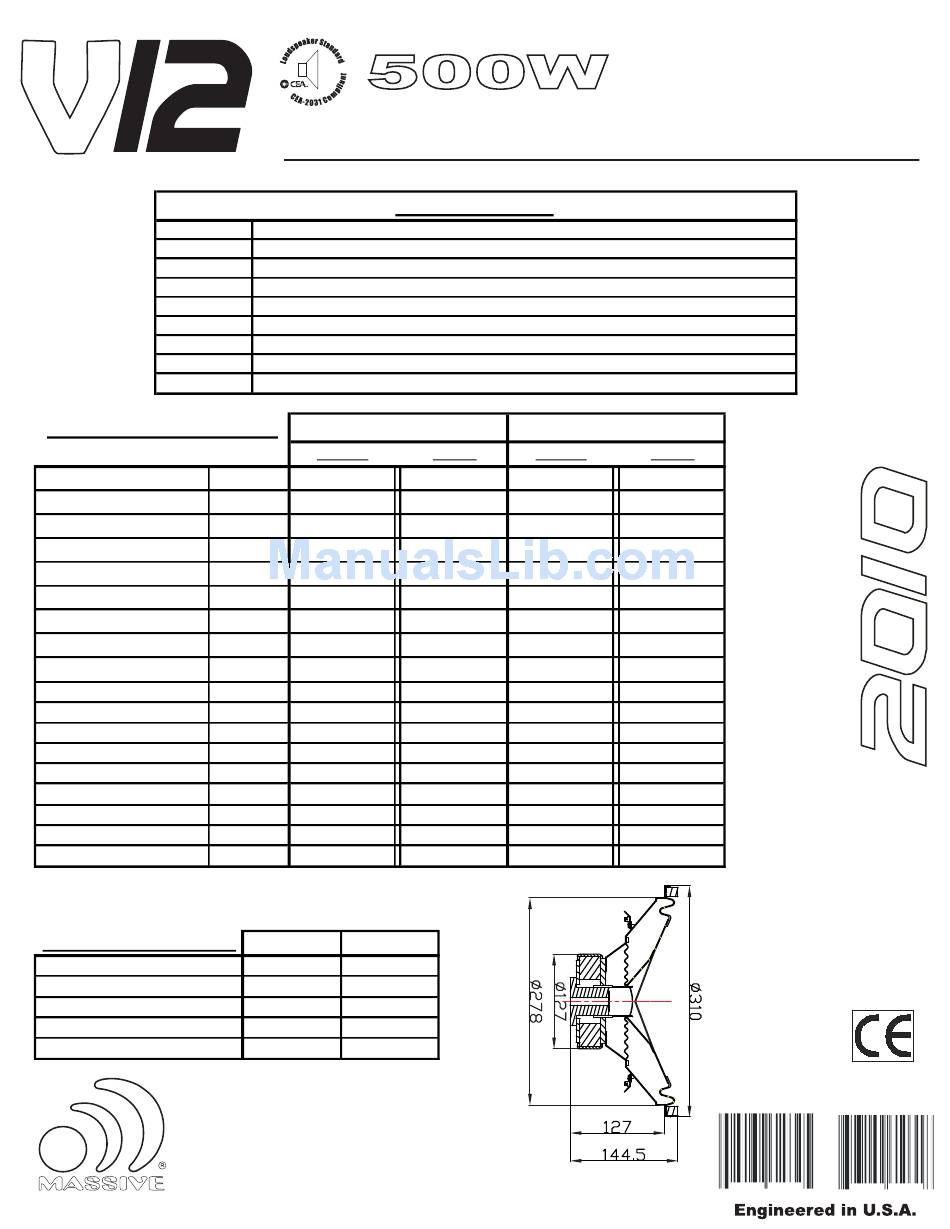

Massive Audio V12 500W Quick Manual

Basket:
Magnet:
Motor:
Cooling:
Cone:
Surround:
Spider:
Voice Coil:
Dust Cap: V-Shape Woven Glass Fiber Dust Cap For Profile Reinforcement

Transducer Parameter

NomZ
Sd
Revc
BL
Vas
Cms
Mms
Fo
Qms
Qes
Qts
no
SPL@1W
SPL@2.83V
Xmax/Over Hang
Xmech/Suspension
Watt@RMS
Watt@PEAK

Physical Measurements

Displacement
Frame Diameter
Mounting Hole Diameter
Mounting Depth
Overall Depth
Massive Audio, Inc. P.O. Box 252004 Los angeles, CA 90025 USA www.massiveaudio.com
Quick Guide Specifications
Design Futures
Custom Design Stamp Steel Tool W/ Heavy Powder Coat Finish
Single 40oz High Intensity Grade Ferrite Ring
FEMM Linear Flux Saturated Motor Design To Reduce Distortion
Black E-Coated Magnetic Plates Draws Heat Away From Voice Coil
Custom Tooled Poly Mica Cone W/ Massive Logo Embossed
1" N-Roll Polyester Foam Surround For Better Suspension Compliant
Poly-Cotton Damper W/ Woven Round Tinsel Lead Wire
1.5" Dual 2 or 4 Ohm Voice Coil On Alum. Former W/ Reinforce Neck Joint
V122 (Dual 2 Ohms)
Parallel
Ohm
1 (2/2)
sqM
0.051
Ohm
2.07
TxM 8.6
Liter 62.5
uM/N
169
Grams
133.4
Hz
33.5
6
0.786
0.695
% 0.288
dB
86.8
dB
92.67
mm
10
mm
15
Watts
250
Watts
500
Metric Standard
2.69 L 0.0952 ft3
310 mm 12.20"
278 mm 10.94"
127 mm 5.00"
144.5 mm 5.69"
V12 (Dual 4 Ohms)
Series Parallel
4 (2+2) 2 (4/4)
0.051 0.051
4.14 1.975
11.48 7.97
62.5 62.5
169 169
133.4 122.2
33.5 35
6 6
0.881 0.836
0.768 0.734
0.257 0.309
86.3 87.1
89.16 93.18
10 10
15 15
250 250
500 500
MAX
Series
8 (4+4)
0.051
7.9
15.19
62.5
169
122.2
35
6
0.92
0.798
0.281
86.68
86.74
10
15
250
500
V122
Dual 2 Ohms
6 2 3 1 6 9 6 1 0 3 2
V12
Dual 4 Ohms
5
6 2 3 1 6 9 6 1 0 3 1 8
