Summary of Contents for Massive Audio QC122

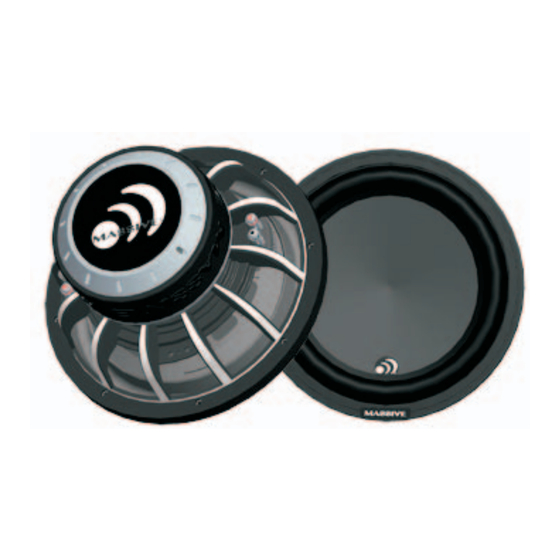

- Page 1 Ultra High Quality Sub-Woofer Massive Audio, Inc. P.O. Box 252004 Los Angeles, CA 90025 U.S.A. www.massiveaudio.com Due to continuing product improvement futures and specifications may change without notice. 2008 Massive Audio, Inc. Ver.1...
- Page 2 Introduction: Congratulations! And thank you fo r purchasing a “Massive Audio” Ultra High Quality (QC) Series Subwoofer for your car audio system. You now own a subwoofer of uncompromising design and engineering incorporating the latest advances in motor structure, voice coil geometric winding and cone structure.
- Page 3 DESIGN FEATURES Heavy powder coated cast aluminum basket: Custom die-cast heavy duty basket made of 6041 high density aviation grade aluminum, to minimize vibration. Heavy power coating to dampen the basket to further minimize vibration and ringing noises. CAUTION! Double stacked 180 oz. Ferrite magnets structures: These high energy Y40 magnets will assure sufficient magnetic force needed for high SPL output.
- Page 4 Wiring Configuration Mono 1 Two Subs 2 Recommended for SPL applications Mono 4 Recommended for SQ Two Subs 0.5 (sound quality) applications Dual 2...
- Page 5 Transducer Parameter QC 12 Ported box for one Sub Configurations Parallel 1 Sereis 4 NomZ BOX DIMENSIONS SLOTED PORT CIRCULAR PORT 0.0497 0.0497 Revc 0.95 Levc 14" 18" 20" 12.5" 1.75 12.5 2 X 4" 12" 10.9 20.75 37.4 Liter 37.4 VOLUME TUNNING FREQUENCY POWER SUBSONICS INPEDENCE...
- Page 6 Transducer Parameter QC 15 Ported box for one Sub Configurations Parallel 1 Sereis 4 NomZ BOX DIMENSIONS SLOTED PORT CIRCULAR PORT 0.0798 0.0798 Revc 0.95 18" 24" 18" 16.5 2.25" 14" 3 x 4" 14" Levc 10.9 20.72 96.5 Liter 96.5 VOLUME TUNNING FREQUENCY POWER SUBSONICS INPEDENCE...
- Page 7 30 days of purchase. Except as provided herein, Massive Audio, Inc. makes no warranties or representations, express or implied, including any warranty implied by law, whether for merchantability or fitness for a particular purpose and shall be effective only for the period that this express warranty is effective.
- Page 8 NOTES QC Series E X P L O D E - V I E W 2 3 1 6 9 6 1 0 2 9 2 3 1 6 9 6 1 0 3 0...
