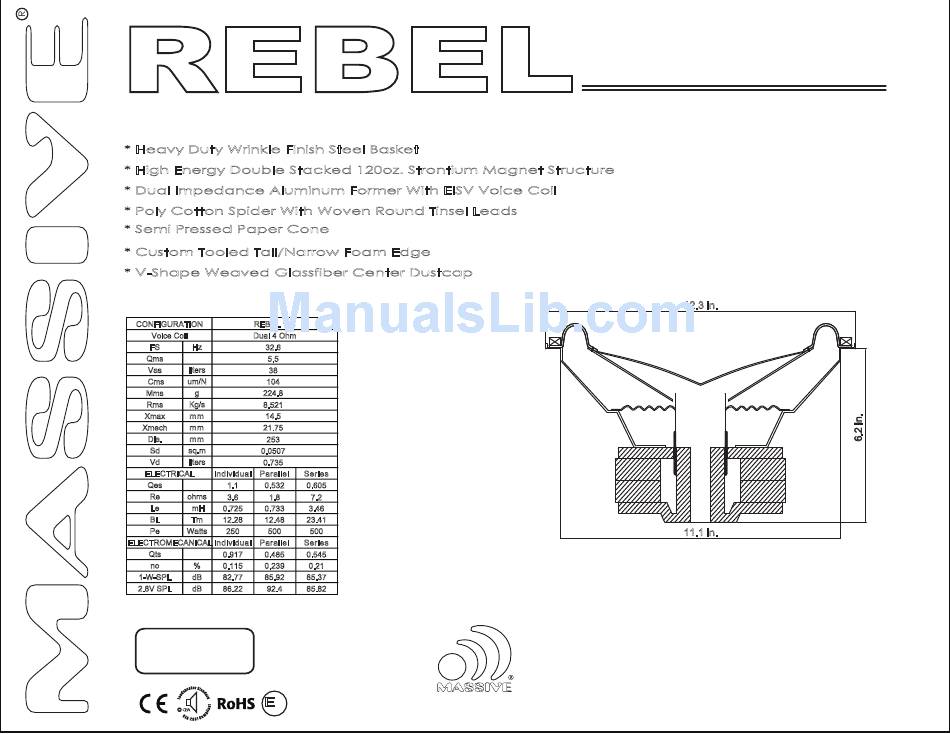

Massive Audio REBEL 124 Specification

General Features

* Heavy Duty Wrinkle Finish Steel Basket
* High Energy Double Stacked 120oz. Strontium Magnet Structure
* Dual Impedance Aluminum Former With EISV Voice Coil
* Poly Cotton Spider With Woven Round Tinsel Leads
* Semi Pressed Paper Cone
* Custom Tooled Tall/Narrow Foam Edge
* V-Shape Weaved Glassfiber Center Dustcap

Specifications

CONFIGURATION REBEL 124
Voice Coil DuaI 4 Ohm
FS Hz 32.6
Qms 5.5
Vas liters 38
um/N
Cms 104
Mms g 224.8
Kg/s
Rms 8.521
Xmax mm 14.5
Xmech mm 21.75
Dia. mm
253
Sd sq.m 0.0507
Vd liters
0.735
ELECTRICAL Individual Parallel Series
Qes 1.1 0.532
Re ohms 3.6 1.8
Le mH
0.725 0.733
BL Tm 12.28 12.48
Pe Watts 250 500
ELECTROMECANICAL Individual Parallel Series
Qts
0.917 0.485
no % 0.115 0.239
1-W-SPL dB 82.77 85.92
2.8V SPL dB 86.22 92.4
1000
PEAK WATTS
E 8
0.605
7.2
3.46
23.41
500
0.545
0.21
85.37
85.82
P.O. Box 252004 Los Angeles, CA 90025 U.S.A.
www.massiveaudio.com
Subwoofers
12.3 in.
11.1 in.
rebel 12
