Summary of Contents for Massive Audio TW10

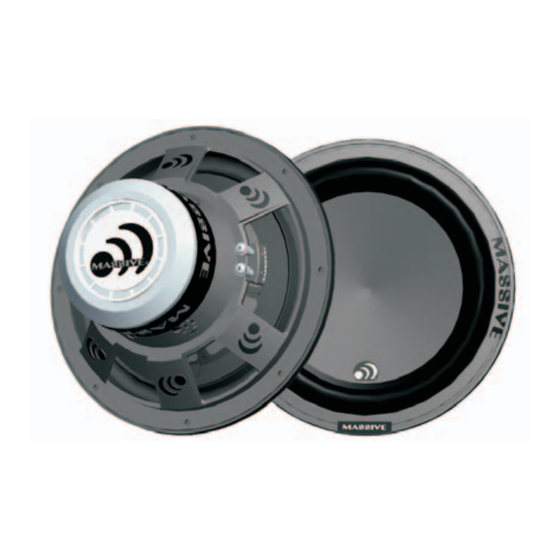

- Page 1 Ultra High Quality Sub-Woofer Massive Audio, Inc. P.O. Box 252004 Los Angeles, CA 90025 U.S.A. www.massiveaudio.com Due to continuing product improvement futures and specifications may change without notice. 2008 Massive Audio, Inc. Ver.1...
- Page 2 Introduction: Congratulations! And thank you for purchasing a “Massive Audio” Ultra High Quality (TW) Series Subwoofer for your car audio system. You now own a subwoofer of uncompromising design and engineering incorporating the latest advances in motor structure, voice coil geometric winding and cone structure.
- Page 3 DESIGN FEATURES Custom tolled steel basket with heavy powder coating: Heavy gauge stamped steel basket, to minimize vibration. Heavy powder coating to dampen the basket, to minimize vibration and ringing noises. CAUTION! Y40 High flux Ferrite magnets: These high energy Y40 magnets will assure sufficient magnetic force needed for high SPL output.
- Page 4 Wiring Configuration Mono 2 Two Subs 4 Recommended for SPL applications Mono 8 Recommended for SQ Two Subs 1 (sound quality) applications Dual 4...
- Page 5 Transducer Parameter TW 10 Ported box for one Sub Configurations Parallel 2 Series 8 NomZ BOX DIMENSIONS SLOTED PORT CIRCULAR PORT 0.01318 0.01318 Revc Levc 12" 16" 16" 4" 3" 12" 4" 12" 10.2 Liter VOLUME TUNNING FREQUENCY POWER SUBSONICS INPEDENCE uM/N 1.28 ft3 44.79 Hz 22 Hz - 250 Hz...
- Page 6 Transducer Parameter TW 12 Ported box for one Sub Configurations Parallel 2 Sereis 8 NomZ BOX DIMENSIONS SLOTED PORT CIRCULAR PORT 0.05047 0.05047 Revc Levc 14" 18" 18" 12.5" 1.5" 12" 4" 6" 10.2 Liter VOLUME TUNNING FREQUENCY POWER SUBSONICS INPEDENCE uM/N 1.97 ft3 44.98 Hz 20 Hz - 250 Hz...
- Page 7 Transducer Parameter TW 15 Ported box for one Sub Configurations Parrellel 2 Series 8 NomZ BOX DIMENSIONS SLOTED PORT CIRCULAR PORT 0.08118 0.08118 Revc 18" 24" 18" 16.5" 2" 12" 2 x 4" 9" Levc 10.2 Liter VOLUME TUNNING FREQUENCY POWER SUBSONICS INPEDENCE uM/N 3.54 ft3...
- Page 8 30 days of purchase. Except as provided herein, Massive Audio, Inc. makes no warranties or representations, express or implied, including any warranty implied by law, whether for merchantability or fitness for a particular purpose and shall be effective only for the period that this express warranty is effective.
