Garland MCO-E-5-C Parts List

Garland MCO-E-5-C Parts List

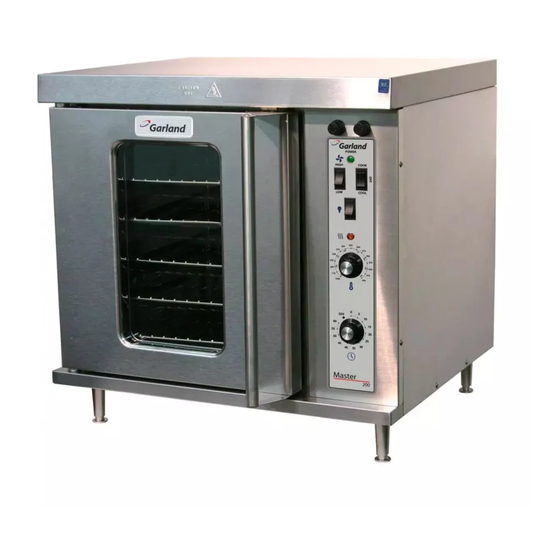

Master half size electric convection oven

Advertisement

Master Half Size

Electric Convection Oven

MCO-E-5-C, MCO-E-25-C
models
SERIAL# 1106230000001 (01-JUNE-11)
from
Phone (US & Canada): 1 800 427 6668
Fax (US & Canada): 1 800 361 7745
http://www.Garland-Group.com
G_EO_PL_CONVECTION_MCOE5C (Rev 1)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MCO-E-5-C and is the answer not in the manual?

Questions and answers

Summary of Contents for Garland MCO-E-5-C

  • Page 1: Electric Convection Oven

    Master Half Size Electric Convection Oven MCO-E-5-C, MCO-E-25-C models SERIAL# 1106230000001 (01-JUNE-11) from Phone (US & Canada): 1 800 427 6668 Fax (US & Canada): 1 800 361 7745 http://www.Garland-Group.com G_EO_PL_CONVECTION_MCOE5C (Rev 1)
  • Page 3: Table Of Contents

    Master Half Size Electric Convection Oven MCO-E-5-C, MCO-E-25-C models SERIAL# 1106230000001 (01-JUNE-11) from Contents Introduction / Model & Serial# Interpretation / Rating Plate Location ....... . 4 Oven Components .
  • Page 4: Introduction / Model & Serial# Interpretation / Rating Plate Location

    Introduction You have purchased the fi nest commercial cooking equipment available. Like any other fi ne, precision built equipment, the Master Series Convection Oven should be given regular care and maintained using the Garland Original Equipment Manufacture (OEM) Parts. This parts list is updated regularly. Please fi nd the most current revision on our website @ www.Garland-Group.com...
  • Page 5 Factory Code Month Year Rating Plate Location RATING PLATE LOCATION LEFT SIDE OF OVEN EXTERIOR G_EO_PL_CONVECTION_MCOE5C (Rev 1) Version “C” Size: 5 (Half Size) or 25 (Half Size-Double Deck) Fuel Type: E (Electric) Convection Oven Garland Master Series Door Page 5...
  • Page 6: Oven Components

    Door Detail see p.16 Control Panel Detail see p.12 Page 6 Master Half Size Electric Convection Oven models MCO-E-5-C, MCO-E-25-C OVEN COMPONENTS Elements Detail see p.14 G_EO_PL_CONVECTION_MCOE5C (Rev 1) 34A / 34B Three Phase see p.10 Oven Components...
  • Page 7 Master Half Size Electric Convection Oven (MCO-E-5-C, MCO-E-25-C) ITEM PART # 1960901 Main Top 1960902 Cover - Micro Switch Access 1960502 Flue Box MCOE5 Side Partition Assembly Note: For components detail, see “Side Partition Assembly”, p. 10. 1671101 Fan - 110MM, 208/240V...
  • Page 8 Master Half Size Electric Convection Oven models MCO-E-5-C, MCO-E-25-C OVEN COMPONENTS (CONTINUED) Legs and Casters Page 8 G_EO_PL_CONVECTION_MCOE5C (Rev 1)
  • Page 9 Master Half Size Electric Convection Oven (MCO-E-5-C, MCO-E-25-C) ITEM PART # Three Phase Option: Three Phase Cord Set 4512340 Note: Includes a plug, a receptable, an 8’ cord, and a BX connector. Three Phase Cord Set - 208/240V 30A Pin & Sleeve CK4529043 Note: Includes an 8’...
  • Page 10: Side Partition Assembly

    Master Half Size Electric Convection Oven models MCO-E-5-C, MCO-E-25-C SIDE PARTITION ASSEMBLY Page 10 G_EO_PL_CONVECTION_MCOE5C (Rev 1)
  • Page 11 Master Half Size Electric Convection Oven (MCO-E-5-C, MCO-E-25-C) ITEM PART # 1961101 Partition Side F600 #10-24 Threaded Hex Insert 1637002 Contactor 240V Coil 4516982 Terminal Block 4 Lug 1962208 Bracket, Terminal Block 8002107 #10 x 1/2” Truss, Pan Head 8003123 #10-24 x 5/8"...
  • Page 12: Master 200 Control Panel & Components

    Master Half Size Electric Convection Oven models MCO-E-5-C, MCO-E-25-C MASTER 200 CONTROL PANEL & COMPONENTS Harnesses 22A - 22D IM200 Control - MCO-E-5-C Page 12 G_EO_PL_CONVECTION_MCOE5C (Rev 1)
  • Page 13 Master Half Size Electric Convection Oven (MCO-E-5-C, MCO-E-25-C) MASTER 200 CONTROL PANEL & COMPONENTS ITEM PART # 113527 Control Panel, MCO-E-5-C IM200 1908528 Overlay, MCO 200 WO/Light 1774101 Fuse Holder 600V 30A HPG 4513157 Fuse - 10 Amp 600V Time Delay...
  • Page 14: Elements & Components

    Master Half Size Electric Convection Oven models MCO-E-5-C, MCO-E-25-C ELEMENTS & COMPONENTS 2 & 5 3 & 6 (If Equipped) 1 & 4 Top View 1 & 4 2 & 5 3 & 6 (If Equipped) Assembly View (Connectors Not Shown) Elements &...
  • Page 15 1765105 Element Holder with Flange 1765106 Element Holder without Flange 300826 Element Harness - from Contactor to Elements on 5.0kW MCO-E-5-C Models 300842 Element Harness - from Contactor to Elements on 7.5kW MCO-E-5-C Models * NOT ILLUSTRATED RECOMMENDED STOCK PARTS GARLAND PARTS IDENTIFICATION ELEMENTS &...
  • Page 16: Door Components & Assemblies

    Master Half Size Electric Convection Oven models MCO-E-5-C, MCO-E-25-C DOOR COMPONENTS & ASSEMBLIES Oven Door with Window Components Oven Door without Window Components Door Components Page 16 G_EO_PL_CONVECTION_MCOE5C (Rev 1)
  • Page 17 Master Half Size Electric Convection Oven (MCO-E-5-C, MCO-E-25-C) ITEM PART # 113540 Door Panel with Window 1962122 Door Liner with Window CK1962198 Door Frame Assembly 1010999 Door Window (3/16” Glass) 113428 Insulation - ATD T5000 113429 Insulation - Fiberglass CK1952098...
  • Page 18: Equipment Stand With Optional Rack Guides And Racks

    Master Half Size Electric Convection Oven models MCO-E-5-C, MCO-E-25-C EQUIPMENT STAND WITH OPTIONAL RACK GUIDES & RACKS Oven Equipment Stand - Page 18 G_EO_PL_CONVECTION_MCOE5C (Rev 1)
  • Page 19 Master Half Size Electric Convection Oven (MCO-E-5-C, MCO-E-25-C) EQUIPMENT STAND WITH OPTIONAL RACK GUIDES & RACKS ITEM PART # 100241 Foot, Adjustable, 1 1/4” Square Tube 100413 Foot, Adjustable, Anchorable 19134 Screw, 3/8-16 x 1”, HH, SST WR50167 Washer, Lock, 3/8, SST...
  • Page 20: Critical & Recommended Stock Parts List

    C = CRITICAL PARTS R = RECOMMENDED STOCK PARTS PART # DESCRIPTION 300826 Element Harness - from Contactor to Elements on 5.0kW MCO-E-5-C Models 300842 Element Harness - from Contactor to Elements on 7.5kW MCO-E-5-C Models 1804741 Harness - Control Panel...
  • Page 21: G_Eo_Pl_Convection_Mcoe5C (Rev

    New Product Parts List Released IM200 Controller 300867 was 1955501. Note: First unit manufactured with controller 300867 has (date) 13-Jan- 2012, (serial#) 1201230000125, (model) MCO-E5-C-0037. Added bulletin info for controller 300867. GARLAND PARTS IDENTIFICATION RELATED BULLETINS SUBJECT REVISION HISTORY NOTES...
