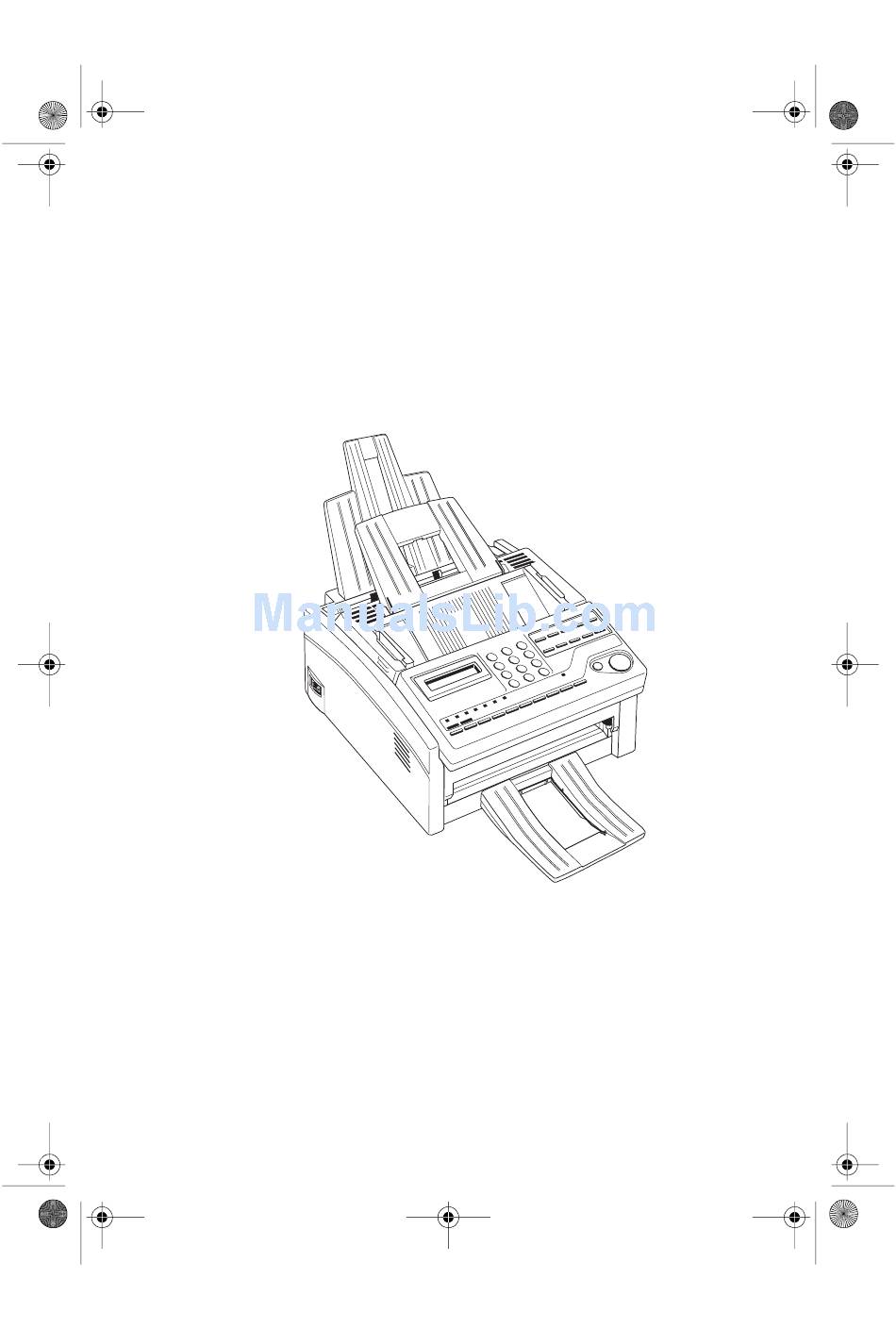

Page 1: Setup Guide
84sugb.fm Page 1 Monday, August 9, 1999 4:05 PM English English Setup Guide OKIOFFICE 44... -
Page 2: Energy Star
This user’s guide is subject to change without notification. Copyright 1999 by Oki. All rights reserved. Written and produced by Oki Europe Ltd. OKI and OKIOFFICE are registered trademarks of Oki Electric Industry Company, Ltd. Energy Star is a trademark of the United States Environmental Protection Agency. -
Page 3: Table Of Contents
Receiving Faxes ......16 Making Copies ......16 OKIOFFICE 44... -
Page 4: Safety
84sugb.fm Page 4 Monday, August 9, 1999 4:05 PM English SAFETY Your machine has been carefully designed to give you years of safe, reliable performance. As with all electrical equipment, however, there are a few basic precautions you should take to avoid hurting yourself or damaging the machine. -
Page 5: Operation & Maintenance
• When relocating your machine, always disconnect the telephone line before disconnecting the power cable. When reconnecting your machine, connect the power cable first, then the telephone line. • This machine is not intended to be used in parallel with any other telephone devices. OKIOFFICE 44... -
Page 6: Installation
Before you begin, make sure that all items listed below are included in your package. Remove the contents from the carton placing them on a sturdy surface. 1 OKIOFFICE 44 2 Toner cartridge 3 Image drum unit (inside unit) 4 Power cable... -
Page 7: Installing Paper Trays & Stackers
2 Insert the document tray into the long horizontal slot on the top of the unit until it locks into place. 3 Slot the tabs of the document stacker into the slots at the front of the machine until the tabs lock into place. OKIOFFICE 44... -
Page 8: Installing Toner Cartridge
84sugb.fm Page 8 Monday, August 9, 1999 4:05 PM English Installing Toner Cartridge 1 Carefully remove the protective sheet from the document feeder. 2 Open the top cover. 3 Grasp the control panel. Pull upward and toward you until the control panel releases, then swing it out of the way. - Page 9 7 Remove the protective plastic cover from the toner well in the image drum unit. WARNING: BE CAREFUL WHEN HANDLING THE TONER CARTRIDGE. DO NOT LET TONER SPILL ONTO YOUR CLOTHING OR OTHER POROUS MATERIALS AS IT MAY STAIN. OKIOFFICE 44...
- Page 10 84sugb.fm Page 10 Monday, August 9, 1999 4:05 PM English 8 Remove the toner cartridge from its package and gently shake it from side to side to distribute the toner. Then carefully peel the white plastic tape from the bottom of the toner cartridge. Caution: Be careful not to insert the toner cartridge backwards into the im- age drum unit.
-
Page 11: Connecting Power Cable
Before connecting power, ensure that the power switch is OFF (“0” is in depressed position) 1 Insert the power cable into the power inlet socket located on the back of the machine. 2 Connect the unattached end of the power cable into an earthed AC power outlet. OKIOFFICE 44... -
Page 12: Connecting Telephone Line
84sugb.fm Page 12 Monday, August 9, 1999 4:05 PM English Connecting Telephone Line 1 Insert one end of the telephone cable into the LINE terminal at the back of the machine. 2 Insert the other end of the telephone cable into your wall telephone socket. -
Page 13: Control Panel
‘Control Panel Keys and Indicators’ section in the User’s Guide on the Setting Answering Mode Your machine has a number of answering modes which determine how it handles incoming calls (both fax and voice). The current answering mode appears on your machine’s stand-by display. OKIOFFICE 44... -
Page 14: Setting Machine Identification
84sugb.fm Page 14 Monday, August 9, 1999 4:05 PM English The answering mode which is best for you will vary depending on how you use your machine and what external telephone devices are connected to it. See the ‘Answering Mode Options’ section in the User’s Guide on the CD to select the mode you require. -
Page 15: Loading Documents
5 If necessary, use the Type of Original or NO key to set the level of contrast in your document. Document Type Contrast to Use Documents with normal contrast NORMAL Documents which are too light LIGHT Documents which are too dark DARK 6 Your documents are now ready for faxing or copying. OKIOFFICE 44... -
Page 16: Sending Faxes
84sugb.fm Page 16 Monday, August 9, 1999 4:05 PM English Sending Faxes 1 Load your documents. 2 Select a location. Refer to the instructions below. To Dial Using Do This One Touch key Press the One Touch key AUTO DIAL number Press the AUTO DIAL key, then enter the two digit AUTO DIAL number on the numeric keypad...
