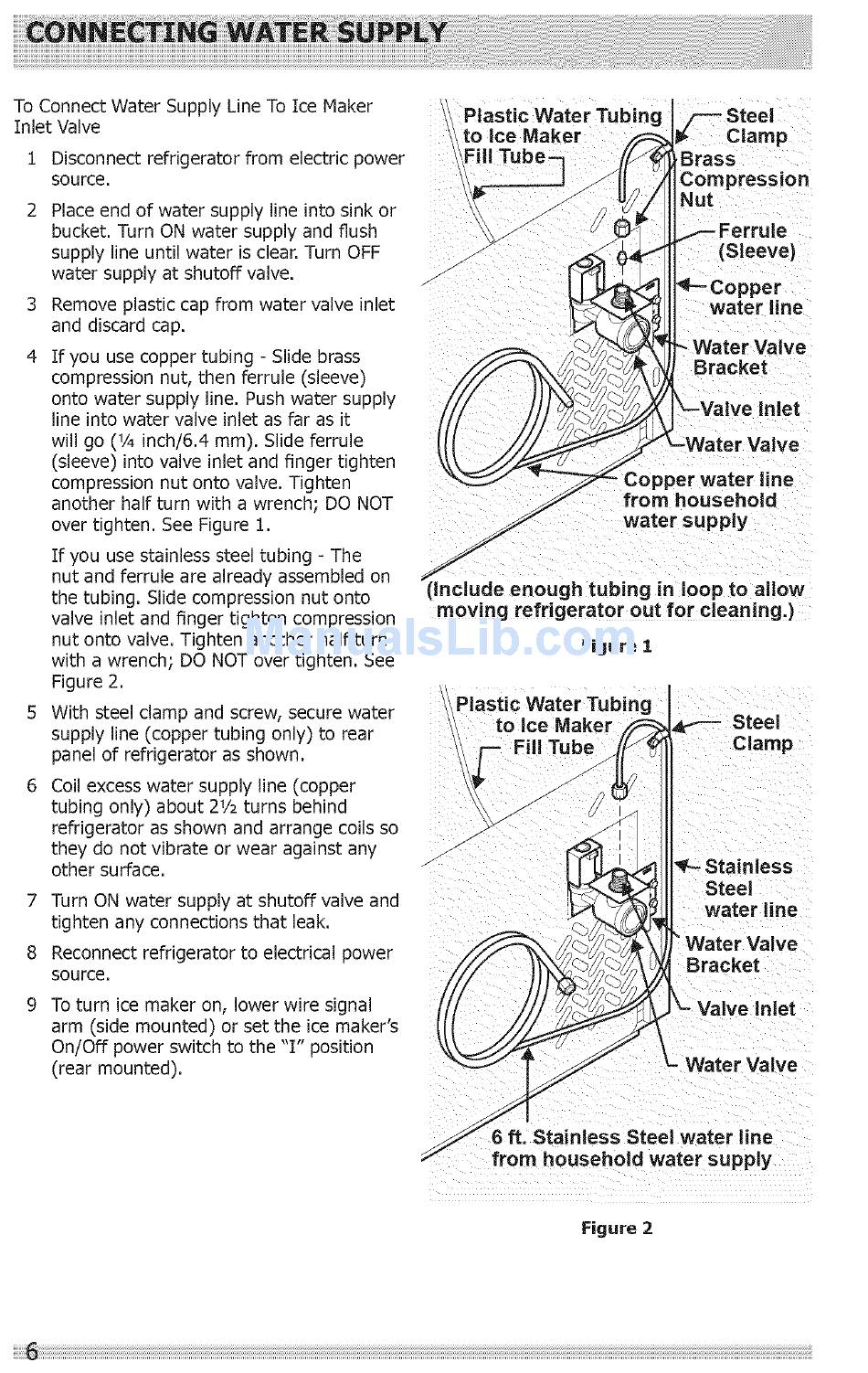

To Connect
Water Supply Line T o Ice Maker
Inlet Valve
1 Disconnect
refrigerator
from electric power
source.
2 Place end ofwater supply line into sink o r
bucket. Turn O N water supply and flush
supply line until water isclear. Turn O FF
water supply atshutoff valve.
3 Remove
plastic cap from water valve i nlet
and discard cap.
Plastic Water Tubing
to Ice Maker
4 If you use copper tubing - Slide brass
compression nut, then ferrule (sleeve)
onto water supply line. Push water supply
line into water valve inlet as far as it
will go (1/4 inch/6.4 mm). Slide ferrule
(sleeve) into valve inlet and finger tighten
compression nut onto valve. Tighten
....
another half turn with a wrench; DO NOT
over tighten. See Figure 1.
If you use stainless steel tubing - The
nut and ferrule are already assembled on
the tubing. Slide compression nut onto
valve inlet and finger tighten compression
nut onto valve. Tighten another half turn
with a wrench; DO NOT over tighten. See
Figure 2.
5 With steel clamp and screw, secure water
supply line (copper tubing only) to rear
panel of refrigerator
as shown.
6 Coil excess water supply line (copper
1
tubing only) about 2/2 turns behind
refrigerator
as shown and arrange coils so
they do not vibrate or wear against any
other surface.
7 Turn ON water supply at shutoff valve and
tighten any connections that leak.
8 Reconnect refrigerator
to electrical power
source.
9 To turn ice maker on, lower wire signal
arm (side mounted)
or set the ice maker's
On/Off power switch to the "I" position
(rear mounted).
,Brass
Compression
Nut
eve)
water
line
Bracket
lye
Copper
water line
from
household
water
supply
(Include enough tubing in loop to allow
moving refrigerator out for cleaningJ
Figure 1
Plastic
Water Tubing
to Ice Maker_
_
Steel
Clamp
Stainless
Steel
water
line
_,',_// _
"Water
Valve
I ',
Bracket
_- Valve
Inlet
_- Water Valve
_.
Stainless
Steel water
line
from
household
water
supply
Figure 2
