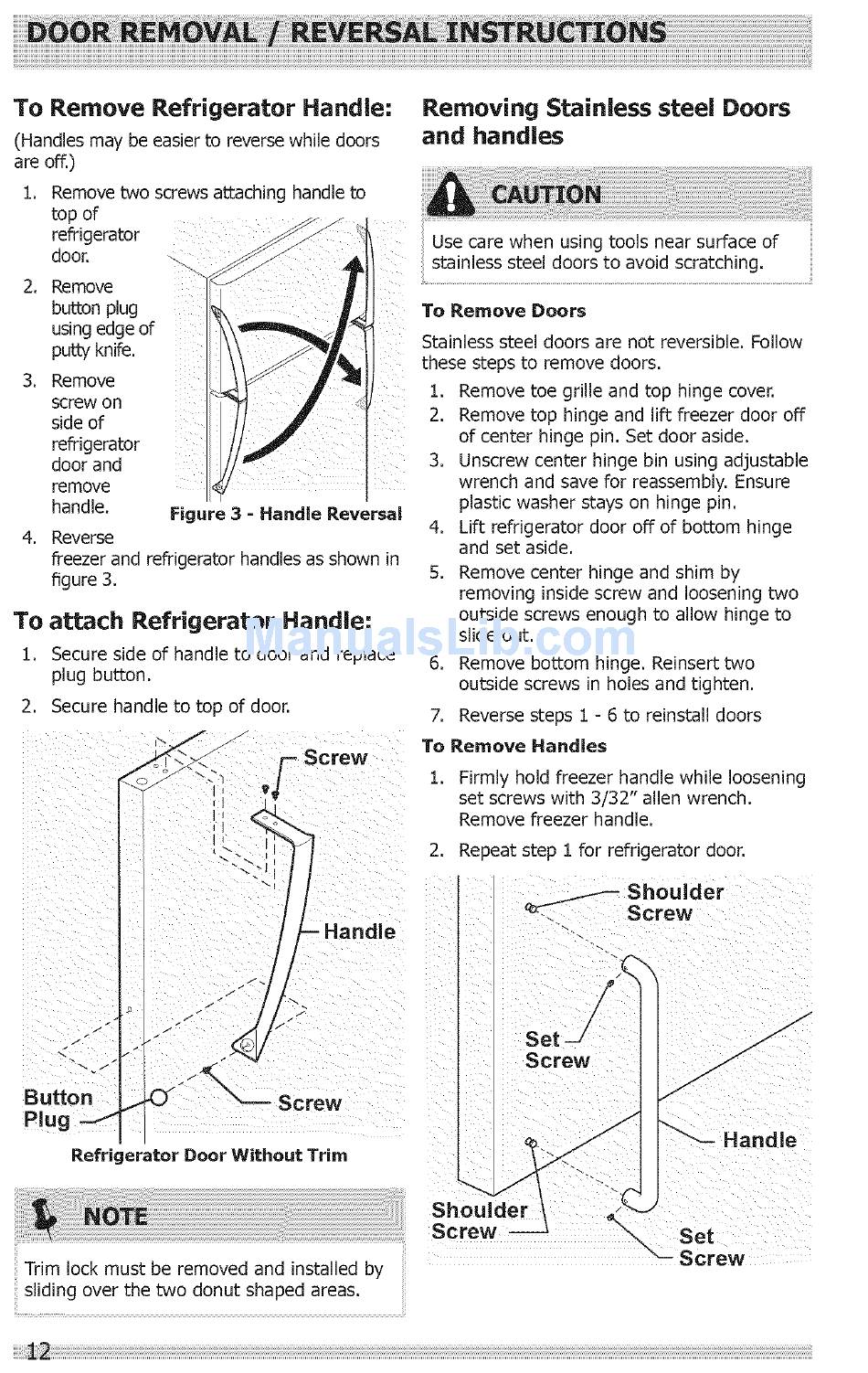

To Remove
Refrigerator
Handle:
(Handles may be easier to reverse while doors
are off.)
1. Remove two screws attaching handle to
2.
3.
top of
refrigerator
door.
Remove
button plug
using edge of
putty knife.
Remove
.........
screw on
side of
refrigerator
door and
remove
handle.
4. Reverse
Figure
3 = Handle
Reversal
freezer and refrigerator handles as shown in
figure 3.
To attach
Refrigerator
Handle:
1. Secureside of handle to door and replace
plug button.
2. Securehandle to top of door.
_- Screw
Button
Pluc
Refrigerator
Door Without
Trim
Removing
Stainless steel Doors
and handles
Use care when using tools near surface of
stainless steel doors to avoid scratching,
Stainless steel doors are not reversible. Follow
these steps to remove doors.
1, Remove toe grille and top hinge cover.
2. Remove top hinge and lift freezer door off
of center hinge pin. Set door aside.
3. Unscrew center hinge bin using adjustable
wrench and save for reassembly. Ensure
plastic washer stays on hinge pin.
4.
Lift refrigerator
door off of bottom hinge
and set aside.
5. Remove center hinge and shim by
removing inside screw and loosening two
outside screws enough to allow hinge to
slide out.
6.
Remove bottom hinge. Reinsert two
outside screws in holes and tighten.
7. Reverse steps 1 - 6 to reinstall doors
To Remove
Handles
Firmly hold freezer handle while loosening
set screws with 3/32" allen wrench.
Remove freezer handle.
2. Repeat step 1 for refrigerator
door,
/
Shoulder
_:-.
Screw
Screw
/
/
/
Handle
NOTE
Trim lock must be removed and installed by
sliding over the two donut shaped areas,
Shoulder
Screw
-..
Set
\
Screw
