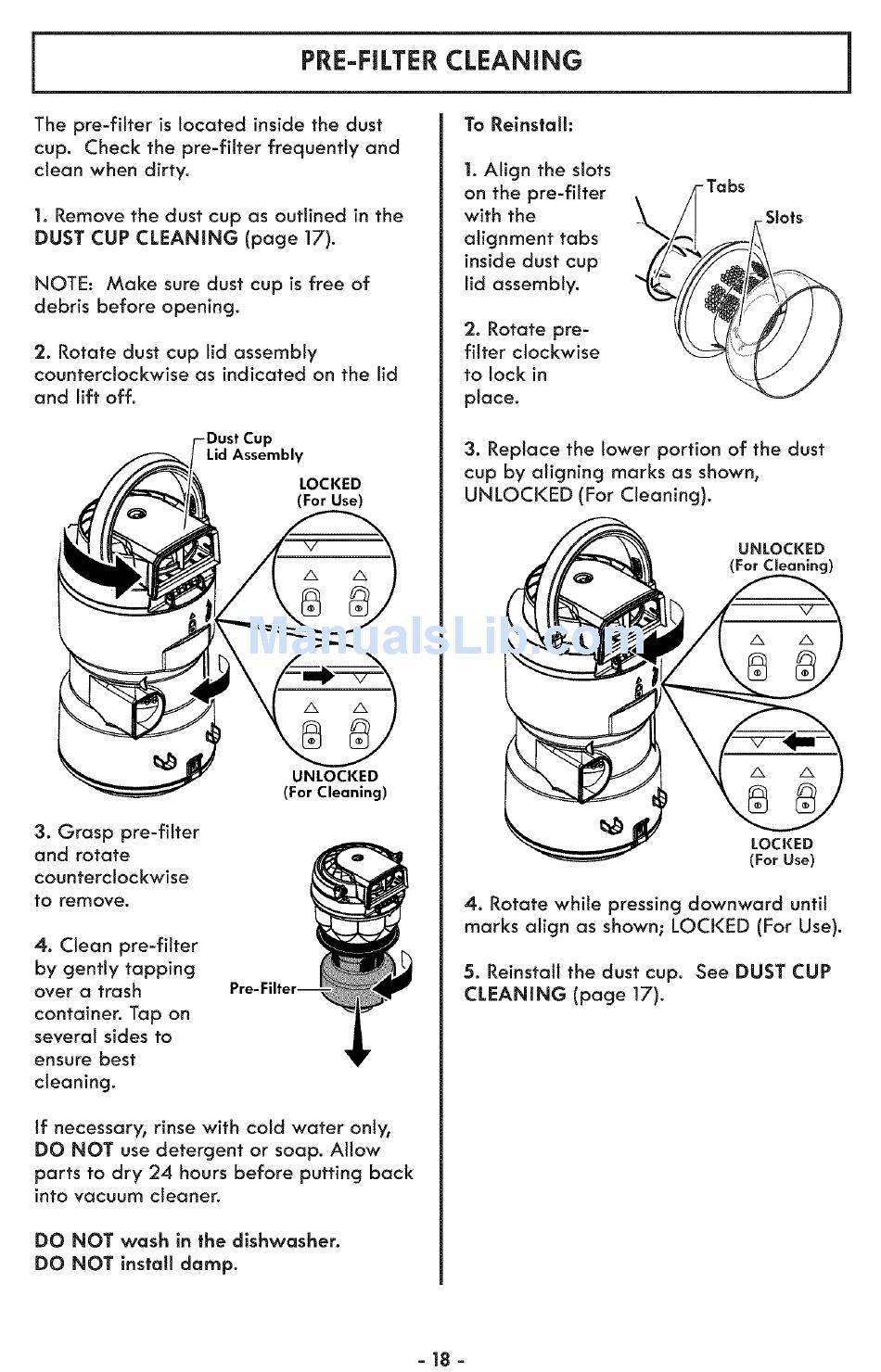

PRE-FILTER CLEANING
To Reinstalh
The pre-filter is located inside the dust
cup. Check the pre-filter frequently and
clean when dirty.
1. Remove the dust cup as outlined in the
DUST CUP CLEANING (page 17).
NOTE: Make sure dust cup is free of
debris before opening.
2. Rotate dust cup lid assembly
counterclockwise as indicated on the lid
and lift off.
Lid Assembly
LOCKED
(For Use)
3. Grasp pre-fitter
and rotate
counterclockwise
to remove.
UNLOCKED
(For Cleaning)
4. Clean pre-fitter
by gently tapping
over a trash
container. Tap on
several sides to
ensure best
cleaning.
If necessary, rinse with cold water only,
DO NOT use detergent or soap. Allow
parts to dry 24 hours before putting back
into vacuum cleaner.
DO NOT wash in the dishwasher.
DO NOT install damp.
1. Align the slots
on the pre-fiiter
with the //.
alignment tabs
inside dust cup ,_/;_
lid assembly.
'2. Rotate pre-
filter clockwise
to lock in
ptace.
-Tabs
. Slots
3. Replace the lower portion of the dust
cup by aligning marks as shown,
UNLOCKED (For Cleaning).
UNLOCKED
(For Cleaning)
LOCKED
(For Use)
4. Rotate while pressing downward until
marks align as shown; LOCKED (For Use).
5. Reinstall the dust cup. See DUST CUP
CLEANING (page 17).
=18=
