LYNXR-2 Series

Security System

User Guide
K15012 7/08 Rev. A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LYNXR-2 Series Security System and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Honeywell LYNXR-2 Series Security System

Summary of Contents for Honeywell LYNXR-2 Series Security System

  • Page 1: Security System

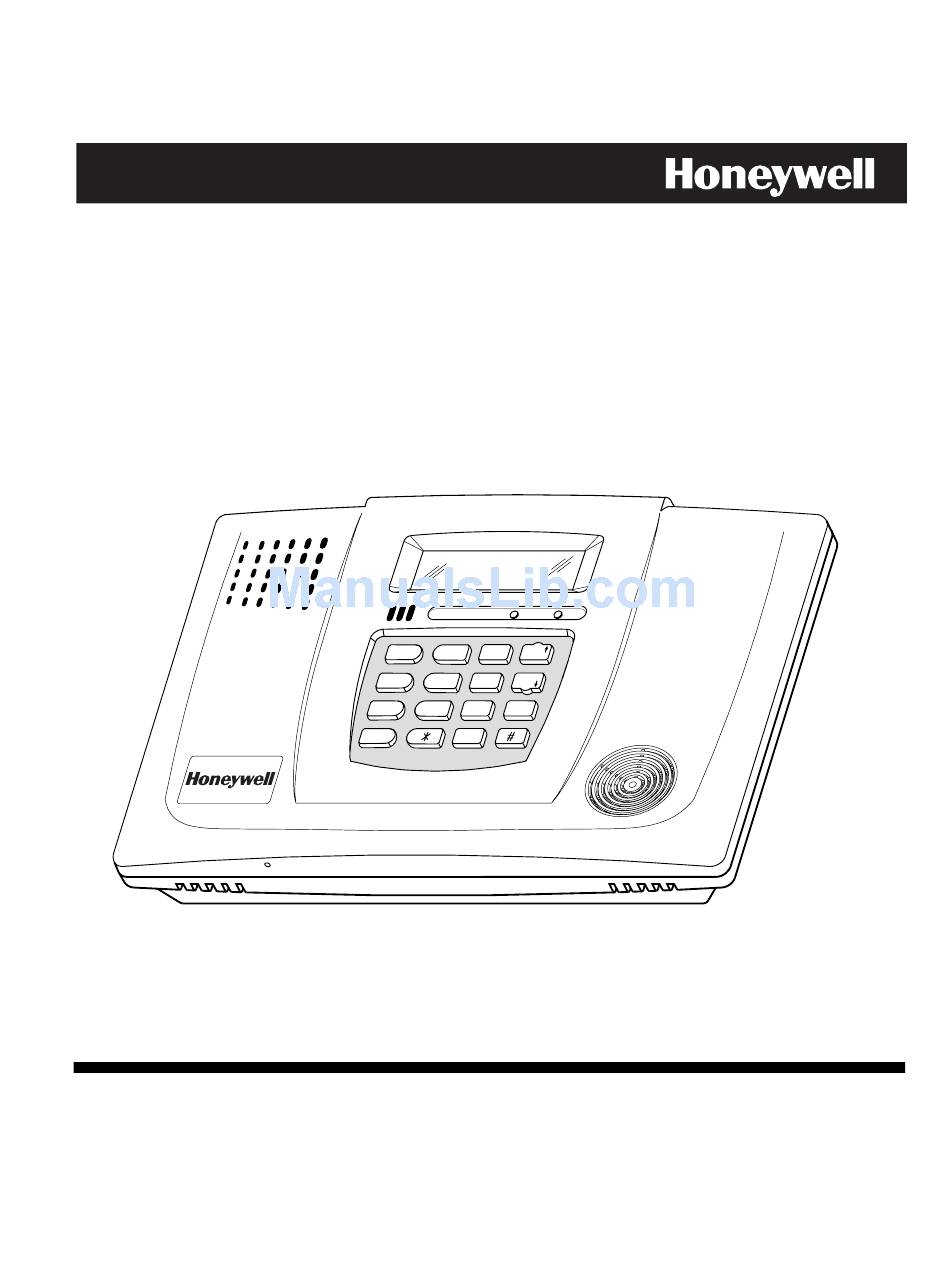

    LYNXR-2 Series Security System User Guide K15012 7/08 Rev. A...
  • Page 2 Your Honeywell security system is designed for use with devices manufactured or approved by Honeywell for use with your security system. Your Honeywell security system is not designed for use with any device that may be attached to your security system's keypad or other communicating bus if Honeywell has not approved such device for use with your security system.

  • Page 3: Table Of Contents

    INDEX ................................61 ONE YEAR WARRANTY ........................63 Congratulations on your ownership of a Honeywell Security System. You have made a wise decision in choosing it, for it represents the latest in security protection technology today. Honeywell is the world's largest manufacturer of security system, and millions of premises are protected by Honeywell products.
  • Page 4 – 4 –...

  • Page 5: System Overview

    SYSTEM OVERVIEW SYSTEM OVERVIEW SYSTEM OVERVIEW SYSTEM OVERVIEW Features General Information This system offers you three forms of protection: burglary, fire, and emergency, depending on the configuration of your system. The system consists of a master keypad for controlling system operation, various wireless sensors that provide perimeter and interior burglary protection, and optional smoke or combustion detectors to provide early fire warning.
  • Page 6 SYSTEM OVERVIEW SYSTEM OVERVIEW SYSTEM OVERVIEW SYSTEM OVERVIEW Features • Scheduling feature: Allows you to schedule the automatic activation or deactivation of X10 devices or program events (e.g. alarm clock, reminder, and latch key). • Two-way voice: Allows the central station to listen, talk to or conduct two-way conversations with individuals on the premises Refer to the TWO-WAY VOICE section for detailed information.

  • Page 7: General Operation

    SYSTEM OVERVIEW SYSTEM OVERVIEW SYSTEM OVERVIEW SYSTEM OVERVIEW General Operation Zones Your system's sensing devices have been assigned to various "zones." For example, the sensing device on your entry/exit door may have been assigned to zone 01, sensing devices on windows in the master bedroom to zone 02, and so on.
  • Page 8 SYSTEM OVERVIEW SYSTEM OVERVIEW SYSTEM OVERVIEW SYSTEM OVERVIEW General Operation LYNXR-2SIA False Alarm Prevention Feature Note that in cases of alarm, the LYNXR-2SIA may disarm as soon as the security code is entered, or you can still enter CODE + OFF. If your system is connected to a central monitoring station, an alarm message will be sent.

  • Page 9: Quick View Of System Functions

    QUICK VIEW OF SYSTEM FUNCTIONS QUICK VIEW OF SYSTEM FUNCTIONS QUICK VIEW OF SYSTEM FUNCTIONS QUICK VIEW OF SYSTEM FUNCTIONS NOTE: = Boxes represent the entering of your 4-digit user code. SECURITY FUNCTIONS STATUS Checking system status: --------------------- * + STAY To arm in STAY mode: ---------------------- (only if programmed * + STAY OR STAY...
  • Page 10 QUICK VIEW OF SYSTEM FUNCTIONS QUICK VIEW OF SYSTEM FUNCTIONS QUICK VIEW OF SYSTEM FUNCTIONS QUICK VIEW OF SYSTEM FUNCTIONS REMOTE PHONE CONTROL OPERATION + [1] To remotely disarm: --------------------------------- + [2] To remotely arm in AWAY mode: -------------- + [3] To remotely arm in STAY mode: --------------- + [2] or [3] + [0] To remotely arm in AWAY or STAY mode with NO DELAY:...

  • Page 11: About The Master Keypad

    SYSTEM OVERVIEW SYSTEM OVERVIEW SYSTEM OVERVIEW SYSTEM OVERVIEW About the Master Keypad General IMPORTANT: If the keypad beeps rapidly upon entering the premises, an alarm has occurred during your absence and an intruder may still be on the premises. LEAVE IMMEDIATELY and CONTACT THE POLICE from a nearby safe location.

  • Page 12: Master Keypad Definitions

    SYSTEM OVERVIEW SYSTEM OVERVIEW SYSTEM OVERVIEW SYSTEM OVERVIEW Master Keypad Definitions 09015-003-V0 IMPORTANT! When you use the keypad to enter codes and commands, press the keys within 2 seconds of one another. If 2 seconds elapse without a key depression, the entry is aborted and must be repeated from its beginning. NOTE: Different timeouts may occur when defining auxiliary functions and setting the real-time clock.
  • Page 13 SYSTEM OVERVIEW SYSTEM OVERVIEW SYSTEM OVERVIEW SYSTEM OVERVIEW Master Keypad Definitions TEST 15. STAY / DELETE KEY: Tests the system and alarm KEY: Arms the perimeter sounder. burglary protection, guarding protected doors, windows and other perimeter protection points, BYPASS KEY: Removes individual protection and sounds an alarm if one is opened.

  • Page 14: About The Display And Indicators

    SYSTEM OVERVIEW SYSTEM OVERVIEW SYSTEM OVERVIEW SYSTEM OVERVIEW About the Display and Indicators AWAY LOW BAT AC CHIME TEST INSTANT Display Definitions (for other displays, see Trouble Messages) STAY REC MESSAGE ALARM FAULT FIRE BYPASS ALARM: Appears when the system is armed and an intrusion has been detected (also appears during a fire alarm or audible emergency alarm).

  • Page 15: Securing The Premises

    SECURING THE PREMISES SECURING THE PREMISES SECURING THE PREMISES SECURING THE PREMISES Checking System Status General Information Before arming your system, all protected doors, windows, and other protection zones must be closed or STATUS bypassed (see the BYPASSING PROTECTION section). Pressing the key will announce all zones that are faulted, as well as any other abnormal system condition, making it easier for you to secure any open zones.

  • Page 16: Arming The System

    SECURING THE PREMISES SECURING THE PREMISES SECURING THE PREMISES SECURING THE PREMISES Arming the System Arming in Stay Mode Use this mode when you are staying home, but expect someone to use the entrance door later. Close all protected perimeter windows and doors before arming. The green READY indicator on the keypad should be lit if the system is ready to be armed.

  • Page 17: Quick Arming

    SECURING THE PREMISES SECURING THE PREMISES SECURING THE PREMISES SECURING THE PREMISES Arming the System Auto Stay Feature If this feature is enabled by installer, the LYNXR-2SIA, when armed AWAY from the control’s keypad or a Wireless Keypad, switches to the STAY mode if the Exit Time expires and no exit has been made. NOTE: If the exit route entry/exit sensor is in a check condition or has been bypassed it will result in a loss of interior protection because the alarm system will arm STAY in this case.

  • Page 18: Entry/Exit Delays

    SECURING THE PREMISES SECURING THE PREMISES SECURING THE PREMISES SECURING THE PREMISES Entry/Exit Delays Exit Delay Exit delay begins immediately after arming the system, and gives you time to leave through the designated exit door without setting off an alarm. A slow beeping will sound throughout the exit delay period, if programmed.

  • Page 19: Disarming The System

    SECURING THE PREMISES SECURING THE PREMISES SECURING THE PREMISES SECURING THE PREMISES Disarming the System NOTE: The control will provide a long confirmation ding when it is disarmed using an RF Key Fob. Use the key to disarm the system and to silence alarm and trouble sounds. See the SUMMARY OF AUDIBLE NOTIFICATION section for information, which will help you to distinguish between fire and burglary alarm sounds.

  • Page 20: Bypassing Protection Zones

    SECURING THE PREMISES SECURING THE PREMISES SECURING THE PREMISES SECURING THE PREMISES Bypassing Protection Zones Bypassing Individual Zones Use the BYPASS key when you want to arm your system with one or more zones intentionally unprotected. Bypassed zones are unprotected and will not cause an alarm when violated while your system is armed.

  • Page 21: Panic Keys / Chime Mode

    SECURING THE PREMISES SECURING THE PREMISES SECURING THE PREMISES SECURING THE PREMISES Panic Keys / Chime Mode Panic Keys Your system may have been programmed to use special keys to manually activate panic functions. The functions that might be programmed are listed below. See your installer for the function(s) that may have been programmed for your system.

  • Page 22: User Functions

    USER FUNCTIONS USER FUNCTIONS USER FUNCTIONS USER FUNCTIONS Paging Feature Automatic Paging If the Paging feature has been programmed for your system, your pager will respond to certain conditions as they occur in your system by displaying a message that indicates the type of condition that has occurred.

  • Page 23: Follow Me" Announcement Feature

    USER FUNCTIONS USER FUNCTIONS USER FUNCTIONS USER FUNCTIONS “Follow Me” Announcement Feature “Follow Me” Reminder and System Announcements If the “Follow Me” Announcement feature has been programmed your system will automatically dial a telephone number and deliver a voice message. The two different types of “Follow Me” messages include system and reminder announcements.
  • Page 24 USER FUNCTIONS USER FUNCTIONS USER FUNCTIONS USER FUNCTIONS “Follow Me” Announcement Feature NOTES: (1) The “Follow Me” announcement will be terminated if any new report needs to be sent or if any key is pressed on the LYNXR-2 Series keypad or a wireless (RF) keypad. The [✻] key on a wireless keypad is ignored by the system when the “Follow me”...

  • Page 25: Using Powerline Carrier Device Commands (Lights On/Lights Off Keys)

    USER FUNCTIONS USER FUNCTIONS USER FUNCTIONS USER FUNCTIONS Using Powerline Carrier Device Commands (Lights On/Lights Off Keys) General Information Powerline Carrier devices (e.g. X10 brand devices) are programmable switches that can be used to perform many different functions. Your system may be set up so that certain lights or other devices can be turned on or off by using the device command from the keypad.

  • Page 26: Message Recording/Playback/Volume Control

    USER FUNCTIONS USER FUNCTIONS USER FUNCTIONS USER FUNCTIONS Message Recording/Playback/Volume Control The LYNXR-2 Series Message Center allows you to record, play and delete messages. The maximum message duration is 85 seconds. NOTES: (1) The Record/playback functions can only be performed from the master keypad. It cannot be performed from any other wireless keypad (ex.

  • Page 27: Adjusting The Volume

    USER FUNCTIONS USER FUNCTIONS USER FUNCTIONS USER FUNCTIONS Message Recording/Playback/Volume Control Adjusting the Volume The volume level of message playback, system announcements, and status beeps can be changed. You can also mute system announcements if desired. See NOTE below if using a wireless keypad. To adjust message playback/system announcement volume: FUNCTION + VOLUME + [3] or [6] †...

  • Page 28: Aux Function

    USER FUNCTIONS USER FUNCTIONS USER FUNCTIONS USER FUNCTIONS AUX Function General Information key may have been programmed to either perform a predefined function or to send a preset message to a pager/”Follow Me” system phone number (see Pager Feature section for pager operation or the Follow Me Announcement Feature section for “Follow Me”...

  • Page 29: Clock/Calendar

    USER FUNCTIONS USER FUNCTIONS USER FUNCTIONS USER FUNCTIONS Clock/Calendar Your system can display the current time (see your installer). The date is not displayed, but has an internal function. The system must be disarmed. + FUNCTION + [63] To set the time and date: Master user code or Installer Code The system will enter the Voice Prompt Calendar Setting mode.
  • Page 30 USER FUNCTIONS USER FUNCTIONS USER FUNCTIONS USER FUNCTIONS Clock/Calendar The system will announce, “Enter two-digit day press ADD to accept, ESCAPE to quit”. 01 (The current day of the month will display.) Enter the 2-digit day of the month (i.e., 01-31). Press [ADD] to accept the entry and continue to the year setting.

  • Page 31: Scheduling User Interface

    USER FUNCTIONS USER FUNCTIONS USER FUNCTIONS USER FUNCTIONS Scheduling User Interface [64] FUNCTION To access the Scheduling User Interface enter: Master user code or Installer Code The following entries will be sequentially prompted to the user. Note that all inputs are checked for validity upon entry and all invalid entries are rejected.

  • Page 32: Event Identifier

    USER FUNCTIONS USER FUNCTIONS USER FUNCTIONS USER FUNCTIONS Scheduling User Interface NOTE: The keypad beeps twice for invalid data entries (e.g.: an hour greater than 12), and the entry will not be accepted. The keypad beeps once for valid entries and four times when a schedule event is programmed successfully.

  • Page 33: Device Number

    USER FUNCTIONS USER FUNCTIONS USER FUNCTIONS USER FUNCTIONS Scheduling User Interface Begin Time (minute) [xx] = begin minute 0 to 59 [*] = continue [#] = return to previous prompt Begin Day • If the value programmed in the Event Identifier is “3”, [xx] = begin day 01 to 17 “4”, or “5”, and the current entry is completed, the [*] = continue...
  • Page 34 USER FUNCTIONS USER FUNCTIONS USER FUNCTIONS USER FUNCTIONS Scheduling User Interface Event Identifier Entries Note: On systems that are is equipped with a Wireless keypad, reminder announcements and the alarm clock will only be broadcast locally by the LYNXR-2 Series keypad. Entry Event Comment...

  • Page 35: Day Of Week Entries

    USER FUNCTIONS USER FUNCTIONS USER FUNCTIONS USER FUNCTIONS Scheduling User Interface Day of Week Entries Entry Invalid day entry Do event on next time match on the next Monday (will remove itself after executing) Do event on next time match on the next Tuesday (will remove itself after executing) Do event on next time match on the next Wednesday (will remove itself after executing) Do event on next time match on the next Thursday (will remove itself after executing) Do event on next time match on the next Friday (will remove itself after executing)

  • Page 36: Remote Phone Control Feature

    USER FUNCTIONS USER FUNCTIONS USER FUNCTIONS USER FUNCTIONS Remote Phone Control Feature The LYNXR-Series is equipped with a remote interactive phone capability that permits access to the security system from any off-site touch-tone telephone using all user codes. If this feature has been programmed, the system will provide the appropriate voice messages and any system beeping sounds indicating the status of the security system over the phone line.
  • Page 37 USER FUNCTIONS USER FUNCTIONS USER FUNCTIONS USER FUNCTIONS Remote Phone Control Feature (within eight seconds) Enter: Your user code Upon entering remote phone control mode the Lynx will announce “System, enter code”. Remote Phone Control Commands + [1] To remotely disarm system: Your user code + [2] To remotely arm in AWAY mode:...

  • Page 38: Speaker Phone Feature

    USER FUNCTIONS USER FUNCTIONS USER FUNCTIONS USER FUNCTIONS Speaker Phone Feature If this feature has been programmed the LYNXR-2 Series is capable of operating as a speaker phone. During speaker phone operation the system will provide the following functions: • All function/event processing will continue to operate, but there will be no announcements.
  • Page 39 USER FUNCTIONS USER FUNCTIONS USER FUNCTIONS USER FUNCTIONS Speaker Phone Feature LYNXR-2 Series Speaker Phone Functions [#] + AUX and dial the desired phone number. To place a call using the Speaker Phone: [#] + AUX NOTE To answer a call using the Speaker Phone: you are using pulse (rotary) To flash (switch between two calls using call waiting): dialing, allow enough time for the...

  • Page 40: Remote Services

    USER FUNCTIONS USER FUNCTIONS USER FUNCTIONS USER FUNCTIONS Remote Services Your security system may be capable of providing a series of web-based services that allow you to communicate with your security system remotely in a number of ways. These services provide the ability to: •...

  • Page 41: Fire Alarm System

    FIRE ALARM SYSTEM FIRE ALARM SYSTEM FIRE ALARM SYSTEM FIRE ALARM SYSTEM (If Installed) General Information LYNXR-2 Series is not intended for UL985 Household Fire applications unless a 24-hour backup battery (P/N LYNXRCHKIT-HC) is installed. General Your fire alarm system (if installed) is active 24 hours a day, providing continuous protection. In the event of an emergency, the installed smoke and heat detectors will automatically activate your security system, triggering a loud, intermittent sound from the keypad.

  • Page 42: National Fire Protection Association's Smoke Detector Recommendations

    FIRE ALARM SYSTEM FIRE ALARM SYSTEM FIRE ALARM SYSTEM FIRE ALARM SYSTEM National Fire Protection Association’s Smoke Detector Recommendations LYNXR-2 Series is not intended for UL985 Household Fire applications unless a 24-hour backup battery (P/N LYNXRCHKIT-HC) is installed. With regard to the number and placement of smoke and heat detectors, we subscribe to the recommendations contained in the National Fire Protection Association's (NFPA) Standard #72 noted below.

  • Page 43: Emergency Evacuation

    FIRE ALARM SYSTEM FIRE ALARM SYSTEM FIRE ALARM SYSTEM FIRE ALARM SYSTEM Emergency Evacuation LYNXR-2 Series is not intended for UL985 Household Fire applications unless a 24-hour backup battery (P/N LYNXRCHKIT-HC) is installed. Establish and regularly practice a plan of escape in the event of fire. The following steps are recommended by the National Fire Protection Association: Position your detector or your interior and/or exterior sounders so that they can be heard by all occupants.

  • Page 44: System Functions

    SYSTEM FUNCTIONS SYSTEM FUNCTIONS SYSTEM FUNCTIONS SYSTEM FUNCTIONS Security Codes General Information For additional security you (the Master User Code) can assign secondary user codes to individual users enabling them to perform specific system functions. These secondary users are identified by "user numbers"...

  • Page 45: Testing The System

    SYSTEM FUNCTIONS SYSTEM FUNCTIONS SYSTEM FUNCTIONS SYSTEM FUNCTIONS Testing the System (to be conducted weekly) Entering Test Mode TEST key puts your system into the Test mode, which allows each protection point to be checked for proper operation. The keypad sounds a single beep every 45 seconds as a reminder that the system is in the Test mode.

  • Page 46: Trouble Messages

    SYSTEM FUNCTIONS SYSTEM FUNCTIONS SYSTEM FUNCTIONS SYSTEM FUNCTIONS Trouble Messages Typical Trouble Condition Displays To silence the beeping sound for fault conditions, press any key. FAULT Indicates that a problem exists with the zone(s) displayed, accompanied by rapid beeping. First, determine if the zone(s) displayed are intact and make them so if they are not. If the zone uses a wireless detector, check that changes in the room (moving furniture, televisions, etc.) are not blocking wireless signals from the detector.

  • Page 47: Maintaining Your System

    SYSTEM FUNCTIONS SYSTEM FUNCTIONS SYSTEM FUNCTIONS SYSTEM FUNCTIONS Maintaining your system The components of your security system are designed to be as maintenance-free as possible. To make sure that your system is in working condition, do the following: 1. Test your system weekly. 2.

  • Page 48: Summary Of Audible Notification

    SUMMARY SUMMARY O O O O F AUDIBLE NOTIFICATION F AUDIBLE NOTIFICATION SUMMARY SUMMARY F AUDIBLE NOTIFICATION F AUDIBLE NOTIFICATION *UPPER CASE indicates announcements after pressing STATUS once. Lower case indicates announcements after pressing STATUS twice. SOUND CAUSE DISPLAY ANNOUNCEMENT* INTERRUPTED FIRE ALARM FIRE ALARM is displayed;...
  • Page 49 SUMMARY SUMMARY O O O O F AUDIBLE N F AUDIBLE NOTIFICATION OTIFICATION SUMMARY SUMMARY F AUDIBLE N F AUDIBLE N OTIFICATION OTIFICATION Additional Announcements: Pressing STATUS key once will announce the following primary messages, depending on the system’s status at the time: Disarmed–Ready to Arm [check system] Disarmed [not ready to arm] Armed [away] [stay] [instant] [check system] [exit now]...

  • Page 50: Fcc Statements

    FCC STATEMENT THIS DEVICE COMPLIES WITH PART 15 OF FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.

  • Page 51: Industry Canada

    Federal Communications Commission (FCC) Part 68 This equipment complies with Part 68 of the FCC rules and the requirements adopted by ACTA. On the front cover of this equipment is a label that contains the FCC registration number and Ringer Equivalence Number (REN).

  • Page 52: In The Event Of Telephone Operational Problems

    IN THE EVENT OF TELEPHONE OPERATIONAL PROBLEMS In the event of telephone operational problems, disconnect the control by removing the plug from the RJ31X (CA38A in Canada) telephone wall jack. We recommend that your certified installer demonstrate disconnecting the phones on installation of the system. Do not disconnect the phone connection inside the control/communicator.

  • Page 53: Servicing Information

    SERVICING INFORMATION Your local Honeywell dealer is the person best qualified to service your alarm system. Arranging some kind of regular service program with him is advisable. Your local Honeywell dealer is: Name: Address: Phone: – 53 –...
  • Page 54 – 54 –...

  • Page 55: Owner's Insurance Premium Credit Request

    OWNER'S INSURANCE PREMIUM CREDIT REQUEST This form should be completed and forwarded to your homeowner's insurance carrier for possible premium credit. A. GENERAL INFORMATION: Insured's Name and Address: Insurance Company: Policy No.: LYNXR-2 Series _______________________________________________ Other Type of Alarm: Burglary Fire Both Installed by:...
  • Page 56 OWNER'S INSURANCE PREMIUM CREDIT REQUEST (cont.) E. SMOKE DETECTOR LOCATIONS Furnace Room Kitchen Bedrooms Attic Basement Living Room Dining Room Hall F. BURGLARY DETECTING DEVICE LOCATIONS: Front Door Basement Door Rear Door All Exterior Doors 1st Floor Windows All Windows Interior Locations All Accessible Openings, Including Skylights, Air Conditioners and Vents G.

  • Page 57: Limitations Of This Alarm System

    WARNING! THE LIMITATIONS OF THIS ALARM SYSTEM While this system is an advanced design security system, it does not offer guaranteed protection against burglary or fire or other emergency. Any alarm system, whether commercial or residential, is subject to compromise or failure to warn for a variety of reasons.
  • Page 58 NOTES – 58 –...
  • Page 59 NOTES – 59 –...
  • Page 60 NOTES – 60 –...

  • Page 61: Index

    INDEX 90 ..............46 EA .............. 18, 46 Emergency evacuation........43 AC..............14 End day ............33 Adjusting the volume........27 End time............33 Alarm .............. 14 Entry delay..........6, 7, 18 Alarm monitoring company......21 Event entries........... 34 Alarms............... 7 Event identifier ..........
  • Page 62 No delay ............9, 17 Schedule number ..........32 Scheduling............31 Security codes.......... 6, 7, 44 Pager ............10, 28 Security functions ..........9 Pager code ............22 Servicing information ........53 Pager feature ..........28 Silence alarm ..........19 Silencing a fire alarm ........

  • Page 63: One Year Warranty

    ONE YEAR LIMITED WARRANTY Honeywell International Inc., acting through its Security & Communications business ("Seller"), 2 Corporate Center Drive, Melville, New York 11747, warrants its security equipment (the "product") to be free from defects in materials and workmanship for one year from date of original purchase, under normal use and service.
  • Page 64 2 Corporate Center Drive, Suite 100 P.O. Box 9040, Melville, NY 11747 Copyright © 2008 Honeywell International Inc. www.honeywell.com/security ÊK15012yŠ K15012 7/08 Rev. A...
