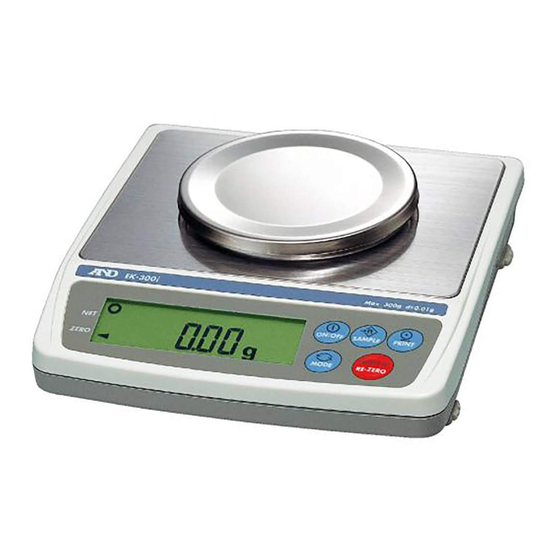

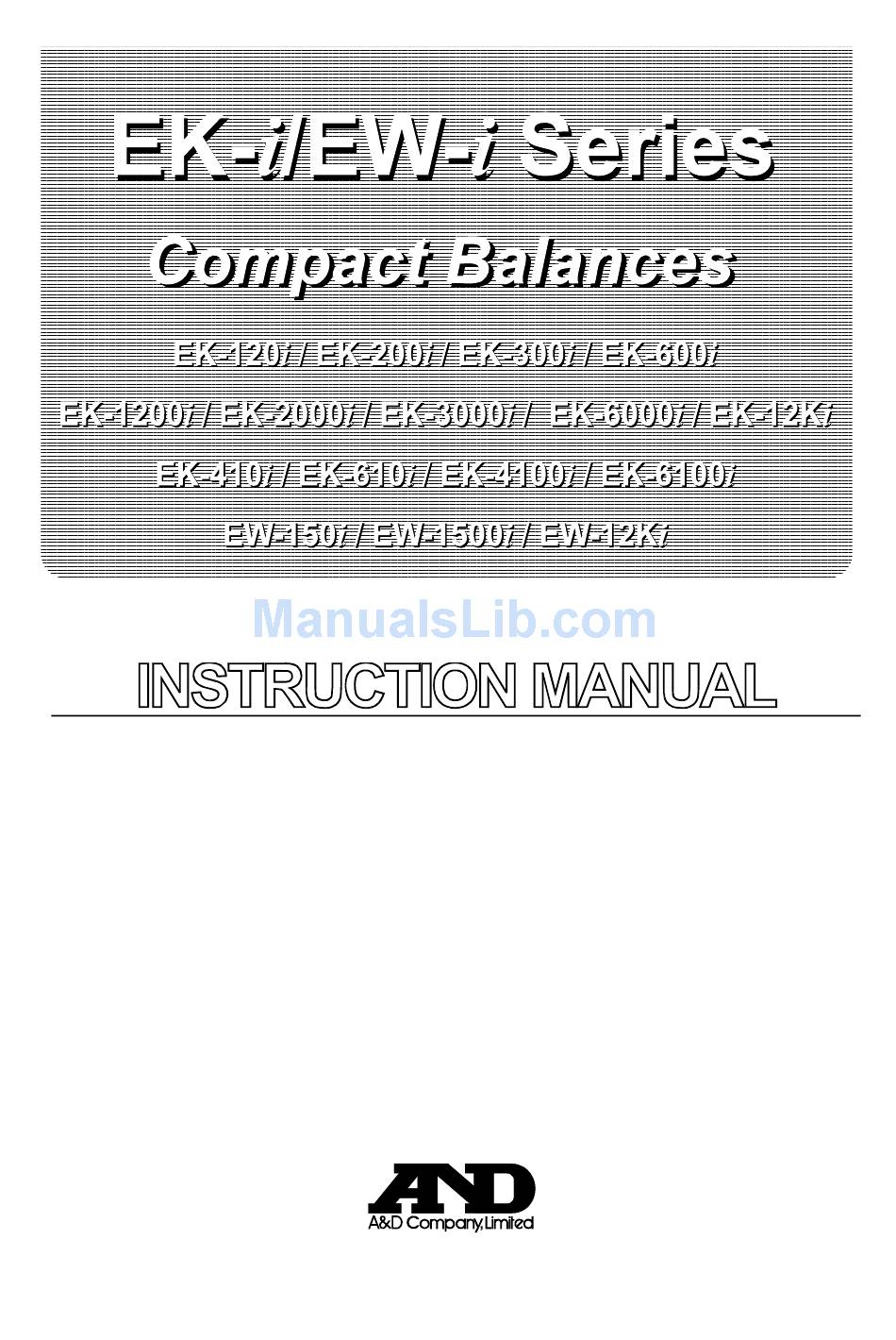

- Page 1 1WMPD4000465B...
- Page 2 © 2011 A&D Company, Limited. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, or translated into any language in any form by any means without the written permission of A&D Company, Limited. The contents of this manual and the specifications of the instrument covered by this manual are subject to change for improvement without notice.
-
Page 3: Table Of Contents
CONTENTS 1. INTRODUCTION ......................3 2. UNPACKING ........................3 3. PART NAMES AND FUNCTIONS ...................4 4. SETTING UP ........................5 4-1. Setting up your balance .........................5 4-2. Power source..........................5 5. OPERATION........................6 5-1. Turning the power ON and OFF.....................6 5-2. LCD backlight ..........................6 5-3. Units ..............................7 5-4. - Page 4 11. OPTIONS........................30 11-1. OP-04 Comparator relay output and buzzer ................30 11-2. OP-07 Underhook assembly ......................31 11-3. OP-09 Rechargeable battery pack (Ni-MH) ................32 11-4. OP-12 Carrying case .........................32 12. MAINTENANCE ......................33 12-1. Notes on maintenance.......................33 12-2. Error codes ..........................33 13. SPECIFICATIONS .......................35 13-1.
-
Page 5: Introduction
Weighing pan Weighing pan Pan support Main unit Main unit EW-150i EW-1500i / EW-12Ki EK-120i / EK-200i / EK-300i EK-600i / EK-1200i / EK-2000i EK-410i / EK-610i EK-3000i / EK-6000i / EK-12Ki EK-4100i / EK-6100i AC adapter Instruction Manual Please confirm that the AC adapter is correct for your local voltage and receptacle type. -
Page 6: Part Names And Functions
3. PART NAMES AND FUNCTIONS Outputs the weight data to Turns the power on or off. a printer or computer, or enters a unit weight, 100% weight or other setting Held down to enter the function values to the balance. setting mode. -
Page 7: Setting Up
4. SETTING UP 4-1. Setting up your balance 1. Place the weighing pan on the main unit as shown on the previous page. 2. Adjust the level of the balance using the leveling feet. Use the spirit level to confirm. The bubble should be in the center of the circle. -
Page 8: Operation
5. OPERATION 5-1. Turning the power ON and OFF 1. Press the ON/OFF key to turn the power ON. All of the symbols are displayed as shown above. (About units: Only the units available will be displayed.) The display turns off except for a weighing unit and the decimal point. The balance waits for the weight data to become stable, and zero will be displayed with the ZERO mark (power-on zero). -
Page 9: Units
5-3. Units The most common unit of weight used around the world is the gram, but there is often a need to shift to alternative units specific to the country where the balance is used or to select modes such as counting or percent. The units and the order they appear in the display are as follows: Pound Ounce (avoir) -
Page 10: Selecting A Weighing Unit
5-4. Selecting a weighing unit Press the MODE key to select a unit. The following sections are a description of the Each pressing switches the three common units: g (gram mode), pcs (counting units available in the order described on the previous mode), and % (percent mode). -
Page 11: Weighing Range For The Ew-I Series
5-6. Weighing range for the EW-i series The EW-i series have three weighing ranges, and the display shows which range the weight value belongs to with the mark R1, R2 or R3. There is a function setting to select how the weighing range changes. Select from automatic range (rng 1), manual range (rng 0) or fixed range (rng 2 to 4). -
Page 12: Counting Mode (Pcs)
5-7. Counting mode (pcs) Determines the number of objects in a sample. Calculates the reading, using the basic sample unit weight, and determines how many pieces are contained. Selecting the counting mode 1. Press the MODE key to select :pieces) Storing the sample unit 2. -
Page 13: Percent Mode (%)
8. After setting the unit weight at step 6, add a few more samples on the pan. Then, the ACAI mark will turn on. (Add more than three pieces. The mark will not turn on for the number of samples beyond the ACAI range.) 9. -
Page 14: Comparator
6. COMPARATOR The results of the comparison are indicated by HI, OK or LO on the display. The comparison is as follows: LO < Lower limit value ≤ OK ≤ Upper limit value < HI Operating conditions (see the function setting “Cp”): No comparison (comparator function disabled). - Page 15 Entering the upper and lower limit values Cp Hi 6. With Cp Hi displayed, press the PRINT key. Enter the upper limit value using the following keys. SAMPLE key To select the digit blinking to change. RE-ZERO key To set the value of the digit 000000 selected.
-
Page 16: Calibration
7. CALIBRATION This function adjusts the balance for accurate weighing. Perform calibration in the following cases. When the balance is first used. When the balance has been moved. When the ambient environment has changed. For regular calibration. 7-1. Calibration using a weight Prepare a calibration weight (optional) before start. - Page 17 5. At step 3, pressing the PRINT key weighs the zero-point value. Do not touch the pan during Weighing pan weighing. When the zero calibration is completed, the display shows the calibration weight value. With nothing To perform the zero calibration only and finish the on the pan procedure, press the MODE key.
-
Page 18: Gravity Acceleration Correction
7-2. Gravity acceleration correction When the balance is first used or has been moved to a different place, it should be calibrated using a calibration weight. But if the calibration weight cannot be prepared, the gravity acceleration correction will compensate the balance. Change the gravity acceleration value of the balance to the value of the area where the balance will be used. -
Page 19: Functions
8. FUNCTIONS 8-1. Key operation Cancels the operation and turns off the balance. Item key Selects a class and an item. In the weighing mode, press and hold the key to enter the function setting mode. Enter key Proceeds to the selected class. Stores the settings per class and goes to the next class. -
Page 20: Setting Example
8-3. Setting example To set auto power-off function to “Enabled”, and the ACAI function to “Disabled”. 1. Press and hold the SAMPLE key to display Press and hold func func 2. Press the PRINT key. The balance displays poff 0 . poff 0 Each pressing 3. -
Page 21: Storing Weighing Units
8-4. Storing weighing units It is possible to store the weighing units that will be actually used from the units available. For the units available, see “5-3. Units” Select and store the weighing units as described below: Press and hold 1. -
Page 22: Function List
8-5. Function list Param- Class Item Description eter func poff Auto power-off disabled Automatically power off Auto power-off Auto power-off enabled Manual range change Range change setting for EW-i Range Automatic range change series Fixed to the lowest range Fixed to the middle range Fixed to the highest range Cond Fast / sensitive... - Page 23 Param- Class Item Description eter func btpr 7 bits, even parity Data and parity 7 bits, odd parity 8 bits, non parity aCai ACAI disabled If “0” is set, no additional samples ACAI function ACAI enabled required. Umin d = the minimum display division Minimum unit 1/8 d...
-
Page 24: Rs-232C Serial Interface
9. RS-232C SERIAL INTERFACE This interface allows the EK/EW-i series to be connected with a multifunction printer or a personal computer. The RS-232C interface has the following four modes. Stream mode Outputs data continuously. Key mode Outputs data by pressing the PRINT key. Auto-print mode Outputs data which meets the conditions of auto-print. -
Page 25: Data Format
9-2. Data format Header Data Unit Terminator (“ ” shows a space.) Separator There are four types of headers: ST : Stable weight data (including % data) QT : Stable counting data US : Unstable weight data (including count and %) OL : Out of weighing range (Over) The data is normally 9 digits including a decimal point and a sign. -
Page 26: Command Mode
Key mode Set the function “prt 1, 2 or 3”. When the PRINT key is pressed while the weight data is stable (the stability mark is on), the balance transmits the data. When the data is transmitted, the display will blink one time. -
Page 27: Id Number And Glp
10. ID NUMBER AND GLP The ID number is used to identify the balance when Good Laboratory Practice (GLP) is used. The following GLP data is transmitted to an AD-8121 printer or a computer using the RS-232C interface. The result of calibration (“Calibration report”) The result of calibration test (“Calibration test report”) The “Start block”... -
Page 28: Glp Report
10-2. GLP report To print the GLP report to the AD-8121B, select the function setting “info 1” and “pUse 1” for the balance, and use MODE 3 of the printer. To transmit the GLP report to a personal computer, select the function setting “info 2”... - Page 29 Calibration test report The calibration test mode is used to compare a calibration test weight with the calibration test data weighed by the balance. This test does not perform calibration and this mode is available even after sealing the calibration (CAL) switch. 1.
- Page 30 AD-8121 format “info 1” General format “info 2” Manufacturer ~~~~~~~~~~~A~&~D<CRLF> A & D Model MODEL~~~EK-1200i<CRLF> MODEL EK-1200i S/N~~~~~Q1234567<CRLF> Serial number Q1234567 ID number ID~~~~~~~~ABCDEF<CRLF> ABCDEF Date DATE<CRLF> DATE 2011/11/14 <CRLF> Time TIME 03:15:40 TIME<CRLF> Calibration CAL.TEST(EXT.) test <CRLF> ACTUAL CAL.TEST(EXT.)<CRLF> Zero value ACTUAL<CRLF>...
- Page 31 End block 3. Press and hold the PRINT key. Release the Press and hold PRINT key when recend is displayed. The balance outputs the “End block”. recend To output appears. Press the MODE key to “End block” return to the weighing mode. Returns to the weighing mode Title...
-
Page 32: Options
11. OPTIONS The following options are available for the EK/EW-i series: OP-04 Comparator relay output and buzzer OP-07 Underhook assembly for the EK-6000i, EK-12Ki, EK-4100i, EK-6100i and EW-12Ki OP-09 Rechargeable battery pack (Ni-MH) OP-12 Carrying case 11-1. OP-04 Comparator relay output and buzzer Allows output of the HI, OK or LO signal results to an external device as a solid state relay output. -
Page 33: Underhook Assembly
OP-04 Installation 1. Remove the cover of the option slot on the rear of balance by pressing and lowering it down. 2. Insert the option into the slot and secure it with the screws attached. 11-2. OP-07 Underhook assembly By attaching the underhook assembly to the bottom of the balance, large objects that are difficult to load on the weighing pan can be weighed in suspension, and the specific gravity of objects may be measured. -
Page 34: Rechargeable Battery Pack (Ni-Mh)
11-3. OP-09 Rechargeable battery pack (Ni-MH) By installing the rechargeable battery pack (Ni-MH) into the balance, cordless operation can be carried out for approximately 9 hours (used with the LCD backlight off). OP-09 cannot be used together with OP-04. The battery life will vary depending on how the balance is used, ambient temperature and so on. -
Page 35: Maintenance
12. MAINTENANCE 12-1. Notes on maintenance Do not disassemble the balance. Contact your local A&D dealer if your balance needs service or repair. Please use the original package for transportation. Do not use organic solvents to clean the balance. Use a lint free cloth dampened with a mild detergent. - Page 36 CAL errors Warning to indicate that calibration has been canceled Cal e because the calibration weight is too heavy. Warning to indicate that calibration has been canceled -Cal e because the calibration weight is too light. Check the weighing pan and the calibration weight. To return to the weighing mode, press the MODE key.
-
Page 37: Specifications
13. SPECIFICATIONS 13-1. EK-i series MODEL EK-120i EK-200i EK-300i EK-600i Weight capacity 120 g 200 g 300 g 600 g Min. display “d” 0.01 g 0.01 g 0.01 g 0.1 g No. of samples 5, 10, 25, 50 or 100 pieces Max. -
Page 38: Ew-I Series
MODEL EK-410i EK-610i EK-4100i EK-6100i Weight capacity 400 g 600 g 4000 g 6000 g Min. display “d” 0.01 g 0.01 g 0.1 g 0.1 g No. of samples 5, 10, 25, 50 or 100 pieces Max. count *) 40,000 pcs 60,000 pcs 40,000 pcs 60,000 pcs... -
Page 39: Other Weighing Units
13-3. Other weighing units MODEL EK-120i EK-200i EK-300i EK-600i EK-12Ki 1200i 2000i 3000i 6000i Capacity 4.2330 7.0550 10.5820 21.165 42.330 70.550 105.820 211.65 423.30 Min. display 0.0005 0.0005 0.0005 0.005 0.005 0.005 0.005 0.05 0.05 Capacity ----- ----- ----- 1.3230 2.6455... -
Page 40: Dimensions
13-4. Dimensions EK-120i / EK-200i / EK-300i EK-600i / EK-1200i / EK-2000i EK-3000i / EK-6000i / EK-12Ki EK-410i / EK-610i EK-4100i / EK-6100i EW-150i EW-1500i / EW-12Ki... -
Page 41: Gravity Acceleration Map
GRAVITY ACCELERATION MAP Values of gravity at various locations Amsterdam 9.813 m/s Manila 9.784 m/s Athens 9.800 m/s Melbourne 9.800 m/s Auckland NZ 9.799 m/s Mexico City 9.786 m/s Bangkok 9.783 m/s Milan 9.807 m/s Birmingham 9.813 m/s Moscow 9.816 m/s Brussels 9.811 m/s New York... - Page 42 World map...
- Page 43 3-23-14 Higashi-Ikebukuro, Toshima-ku, Tokyo 170-0013 JAPAN Telephone: [81] (3) 5391-6132 Fax: [81] (3) 5391-6148 A&D ENGINEERING, INC. 1756 Automation Parkway, San Jose, California 95131 U.S.A. Telephone: [1] (408) 263-5333 Fax: [1] (408)263-0119 A&D INSTRUMENTS LIMITED <UK Office> Unit 24/26 Blacklands Way, Abingdon Business Park, Abingdon, Oxfordshire OX14 1DY United Kingdom Telephone: [44] (1235) 550420 Fax: [44] (1235) 550485 A&D INSTRUMENTS LIMITED...
