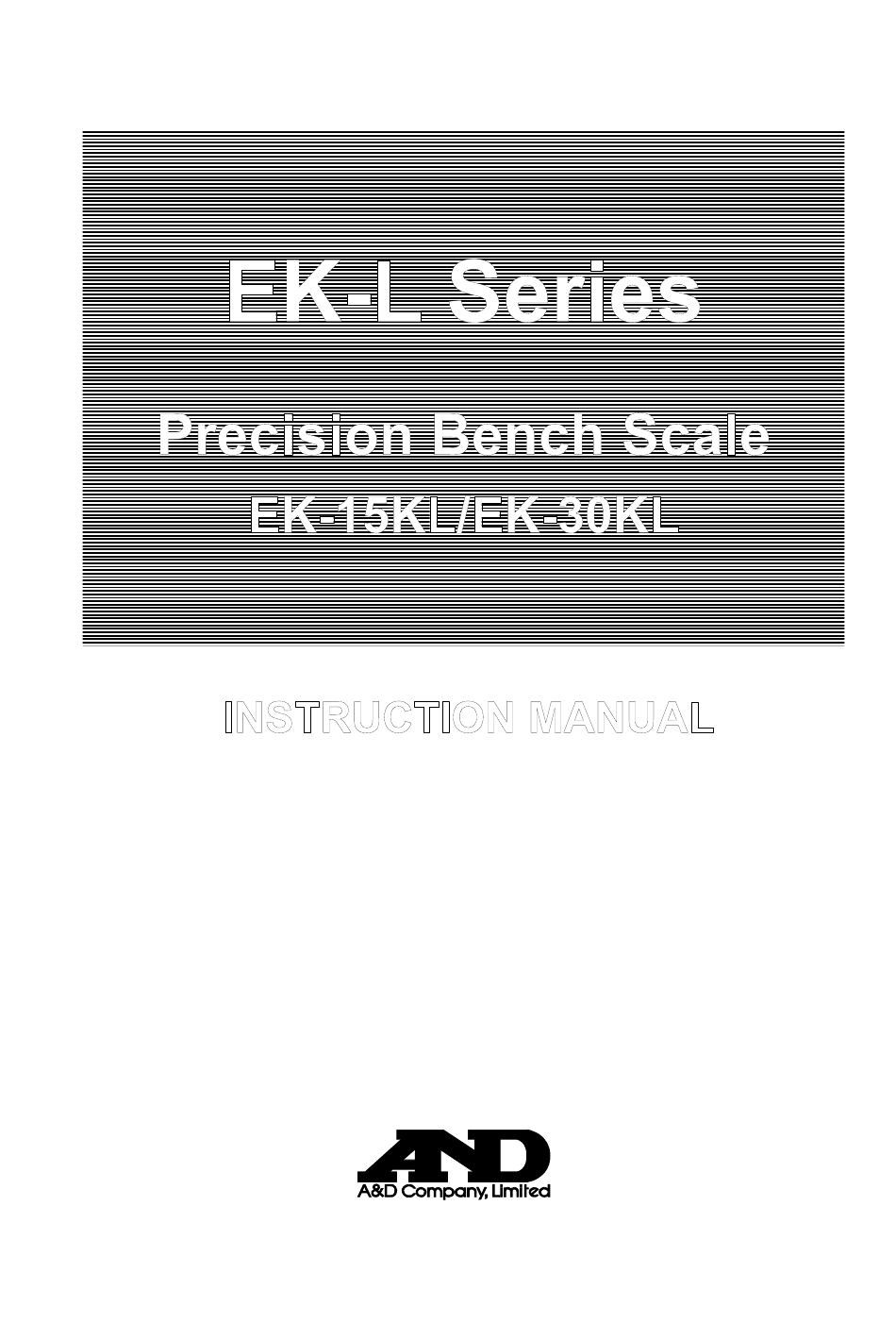

- Page 1 EK-L Series Precision Bench Scale EK-15KL/EK-30KL INSTRUCTION MANUAL 1WMPD4002971...
- Page 2 © 2014 A&D Company, Limited. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, or translated into any language in any form by any means without the written permission of A&D Company, Limited. The contents of this manual and the specifications of the instrument covered by this manual are subject to change for improvement without notice.
-
Page 3: Table Of Contents
CONTENTS 1. INTRODUCTION ......................3 2. UNPACKING ........................3 3. PART NAMES AND FUNCTIONS ...................4 4. SETTING UP ........................6 4-1. Setting up your scale ....................6 4-2. Power source......................7 5. OPERATION........................9 5-1. Turning the power ON and OFF ................9 5-2. Weighing units ......................10 5-3. - Page 4 10. ID NUMBER AND GLP....................30 10-1. Setting the ID number....................30 10-2. GLP report ......................31 11. MAINTENANCE ......................35 11-1. Notes on maintenance ...................35 11-2. Error codes ......................35 12. SPECIFICATIONS .......................37 12-1. Specifications......................37 12-2. Other weighing units ....................37 12-3. Option........................37 12-4. External dimensions ....................38 GRAVITY ACCELERATION MAP ..................39...
-
Page 5: Introduction
1. INTRODUCTION This manual describes how the EK-L series scale works and how to get the most out of it in terms of performance. The EK-L series scales have the following features: The EK-15KL is a high resolution electronic scale having a resolution of 1/150,000. -
Page 6: Part Names And Functions
3. PART NAMES AND FUNCTIONS Weighing pan Battery cover Display Security slot Bubble spirit level A security cable is not provided and must be prepared by the user. Leveling foot Calibration switch cover The CAL switch is inside. Grounding terminal Leveling foot AC adapter jack RS232C terminal... - Page 7 Weighing range Comparator results ACAI indicator Battery indicator indicators STABLE indicator HOLD indicator NET indicator ZERO indicator Weighing units Indicator Description STABLE indicator Turns on when the weight value is stable and is ready to be read. Turns on while the display lock is being performed. HOLD indicator Does not turn on when the display lock function is disabled.
-
Page 8: Setting Up
4. SETTING UP 4-1. Setting up your scale 1. Adjust the level of the scale using the leveling feet. Use the bubble spirit level to confirm. The bubble should be in the center of the circle. 2. Calibrate the scale before use. See “7. -
Page 9: Power Source
4-2. Power source As the power source, the AC adapter or lead-acid battery is available. The scale remains powered while the AC adapter is connected, even if nothing is shown in the display. To ensure stable weighing, keep the scale connected to the power supply using the AC adapter whenever possible. - Page 10 1. Remove the AC adapter plug from the AC adapter jack. 2. Loosen the M3 screws that secure the battery cover and remove the battery cover. 3. Connect the cables in the battery compartment to the battery, the red cable to the + terminal and the black cable to the - terminal. ...
-
Page 11: Operation
5. OPERATION 5-1. Turning the power ON and OFF 1. Press the ON/OFF key to turn the power ON. All the display symbols appear as shown above. (As for weighing units: Only the units stored in memory are displayed.) The display turns off except a weighing unit and a decimal point. The scale waits for the weight value to become stable, and zero is displayed with the ZERO indicator (power-on zero). -
Page 12: Weighing Units
5-2. Weighing units The most common unit of weight used around the world is the gram, but there is often a need to shift to alternative units specific to the country where the scale is used or to select modes such as counting or percent. The units and the order they appear in the display are as follows: Percent mode Counting mode... -
Page 13: Basic Operation
5-4. Basic operation Container 1. Select a weighing unit. 2. When the display doesn’t show zero, press the RE-ZERO key to set the display to zero. Weighing pan 3. When using a tare (container), place the container on the weighing pan, and press the RE-ZERO key to set the display to zero. -
Page 14: Weighing Range
5-5. Weighing range Function setting Description Fixed range rng 0 Fixed to 1/30,000. (R2 range for the EK-30KL) Automatic range function (Only for the EK-30KL) The EK-30KL has two weighing ranges when the automatic range function is selected. The indicator turns on to indicate which range the weight value belongs to. -
Page 15: Counting Mode (Pcs)
5-6. Counting mode (pcs) The counting mode determines the number of objects in a sample, using the basic sample unit mass. Selecting the counting mode 1. Press the MODE key to select ( : pieces) Press and hold Storing the sample unit mass 2. - Page 16 When a unit mass is too light to store, appears in the display for a moment and returns to the former display. When the sample mass is light and the counting error could become large, the scale prompts you to use a larger number of samples.
-
Page 17: Percent Mode (%)
5-7. Percent mode (%) The percent mode displays the weight value in percentage compared with the 100% reference mass. Selecting the percent mode 1. Press the MODE key to select % . (%: percent) Press and hold Storing the 100% reference mass 2. -
Page 18: Comparator
6. COMPARATOR The results of the comparison are indicated by in the display. The comparison is as follows: Lower limit value Upper limit value Comparison mode (see “Cp” in “8-5. Function list”): No comparison (comparator function disabled). ... - Page 19 Entering the upper and lower limit values Cp Hi 6. With displayed, press the PRINT key. Enter the upper limit value using the following keys. MODE key To select the digit to change the value. The selected digit blinks. RE-ZERO key To change the value of the selected digit.
-
Page 20: Calibration
7. CALIBRATION This function adjusts the scale for accurate weighing. Perform calibration in the following cases. When the scale is first used. When the scale has been moved. When the ambient environment Loosen the screws has changed. to remove the cover ... -
Page 21: Zero Calibration
7-2. Zero calibration 5. With nothing on the pan, press the RE-ZERO key to calibrate the zero point. Do not touch the pan during zero calibration. When the zero calibration is complete, the calibration With nothing on the pan weight value appears in the display. ... -
Page 22: Gravity Acceleration Correction
7-4. Gravity acceleration correction When the scale is first used or has been moved to a different place, it should be calibrated using a calibration weight. But if a calibration weight is not available, the gravity acceleration correction will compensate the scale. Change the gravity acceleration value of the scale to the value of the area where the scale will be used. -
Page 23: Functions
8. FUNCTIONS 8-1. Key operation Description 1ON/OFF key Cancels the operation and turns the power OFF. 1MODE key Selects a class and an item. 1PRINT key Proceeds to the selected class. Stores the settings per class and goes to the next class. 1RE-ZERO key Selects a parameter. -
Page 24: Setting Example
8-3. Setting example To set the auto power-off function to “Enabled” and the ACAI function to “Disabled.” 1. With the power turned OFF, press and hold the RE-ZERO key and press the ON/OFF key to turn the power ON and enter the function setting mode. func appears. -
Page 25: Storing Weighing Units
8-4. Storing weighing units It is possible to store the weighing units that will be actually used from the units available. For the units available, see “5-2. Weighing units.” Select and store the weighing units as described below: 1. With the power turned OFF, press and hold the RE-ZERO key and press the ON/OFF key to turn the power ON and enter the function setting mode. -
Page 26: Function List
8-5. Function list Class Item Description Parameter func poff 0 Disabled Turns the power OFF automatically Auto power-off function Enabled Switches the range Fixed to 1/30,000 1 Weighing range Automatic range function (EK-30KL only) Hold Disabled Locks the display temporarily Display lock function Enabled... - Page 27 Class Item Description Parameter func pUse 0 No pause (general equipment) Interval between continuous data Data output pause 1.6 seconds (for the AD-8121) info 0 No output GLP output format GLP output AD-8121 format General format aCai If “0” is set, Disabled no additional samples ACAI function...
-
Page 28: Rs-232C Serial Interface
9. RS-232C SERIAL INTERFACE The scale is a data circuit-terminating equipment (DCE). Connect the scale to a data terminal equipment (DTE) such as a personal computer and external devices using a D-Sub 9-pin straight through cable. The RS-232C serial interface has the following four modes. Stream mode Outputs data continuously. - Page 29 Pin assignments Direction Signal name Pin No. Description DCE-DTE – – N.C. → Transmit data ← Receive data – – N.C. – Signal ground → Data set ready ← Request to send → Clear to send – – Used internally Signal names of the scale side are the same as the DTE side with TxD and RxD reversed Scale (DCE)
-
Page 30: Data Format
9-2. Data format Header Data Unit Terminator (“ ” : space) Separator A header of two characters indicates the scale condition: ST : Stable weight data (including percentage data) QT : Stable counting data US : Unstable weight data (including counting and percentage data) OL : Out of the weighing range (overloaded) ... -
Page 31: Data Output Mode
9-3. Data output mode Stream mode Set the data output mode of the function list to “prt 0.” The scale outputs the weight data currently displayed at each display update. The scale does not output data while it is in the setting mode. Key mode Set the data output mode of the function list to “prt 1, 2 or 3.”... -
Page 32: Id Number And Glp
10. ID NUMBER AND GLP The ID number is used to identify the scale when Good Laboratory Practice (GLP) is used. The following GLP data is output to an AD-8121 printer or a personal computer using the RS-232C interface. The results of calibration (“Calibration report”) ... -
Page 33: Glp Report
10-2. GLP report To print the GLP report to an AD-8121B printer, select the function setting “info 1” and “pUse 1” and use MODE 3 of the printer. To output the GLP report to a personal computer, select the function setting “info 2”... - Page 34 Calibration test report The calibration test mode is used to compare a calibration weight with the calibration test data weighed by the scale. This test does not perform calibration. 1. In the weighing mode, press and hold the MODE and PRINT keys until CC appears, and release the keys.
- Page 35 AD-8121 format “info 1” General format “info 2” ~~~~~~~~~~~A~&~D<CRLF> Manufacturer MODEL~~~ EK-15KL<CRLF> Model S/N~~~~6A6123456<CRLF> Serial number ID~~~~~~~~ABCDEF<CRLF> ID number DATE<CRLF> Date <CRLF> Time TIME<CRLF> Calibration test <CRLF> CAL.TEST(EXT.)<CRLF> Zero value ACTUAL<CRLF> Actual weight value ~~~~~~~~~~0.0~~ <CRLF> ~~~~~+15000.1~~ <CRLF> Calibration weight TARGET<CRLF>...
- Page 36 End block 3. Press and hold the PRINT key until Press and hold recend appears, and release the key. The scale outputs the “End block.” 4. The scale returns to the weighing mode after end . To output “End block” Title AD-8121 format “info 1”...
-
Page 37: Maintenance
11. MAINTENANCE 11-1. Notes on maintenance Do not disassemble the scale. Contact your local A&D dealer if your scale needs service or repair. Use the original package for transportation. Do not use organic solvents to clean the scale. Use a lint free cloth lightly moistened with a mild detergent. - Page 38 CAL error Calibration has been canceled because the calibration weight is too heavy. Calibration has been canceled because the calibration weight is too light. Check the weighing pan and the calibration weight. Press the ON/OFF key to turn the power OFF or press the CAL switch to return to the weighing mode.
-
Page 39: Specifications
12. SPECIFICATIONS 12-1. Specifications MODEL EK-15KL EK-30KL Weighing capacity 15 kg 3 kg 30 kg Minimum display ”d” 0.1 g 0.1 g Number of samples 5, 10, 25, 50 or 100 pieces Maximum count *) 150,000 pieces 300,000 pieces Minimum unit mass *) 0.1 g 0.1 g Minimum % display... -
Page 40: External Dimensions
12-4. External dimensions Unit: mm... -
Page 41: Gravity Acceleration Map
GRAVITY ACCELERATION MAP Values of gravity at various locations Amsterdam 9.813 m/s Manila 9.784 m/s Athens 9.800 m/s Melbourne 9.800 m/s Auckland NZ 9.799 m/s Mexico City 9.786 m/s Bangkok 9.783 m/s Milan 9.807 m/s Birmingham 9.813 m/s Moscow 9.816 m/s Brussels 9.811 m/s New York... - Page 42 World map...
- Page 44 3-23-14 Higashi-Ikebukuro, Toshima-ku, Tokyo 170-0013, JAPAN Telephone: [81] (3) 5391-6132 Fax: [81] (3) 5391-6148 A&D ENGINEERING, INC. 1756 Automation Parkway, San Jose, California 95131, U.S.A. Telephone: [1] (408) 263-5333 Fax: [1] (408)263-0119 A&D INSTRUMENTS LIMITED Unit 24/26 Blacklands Way, Abingdon Business Park, Abingdon, Oxfordshire OX14 1DY United Kingdom Telephone: [44] (1235) 550420 Fax: [44] (1235) 550485 A&D AUSTRALASIA PTY LTD...
