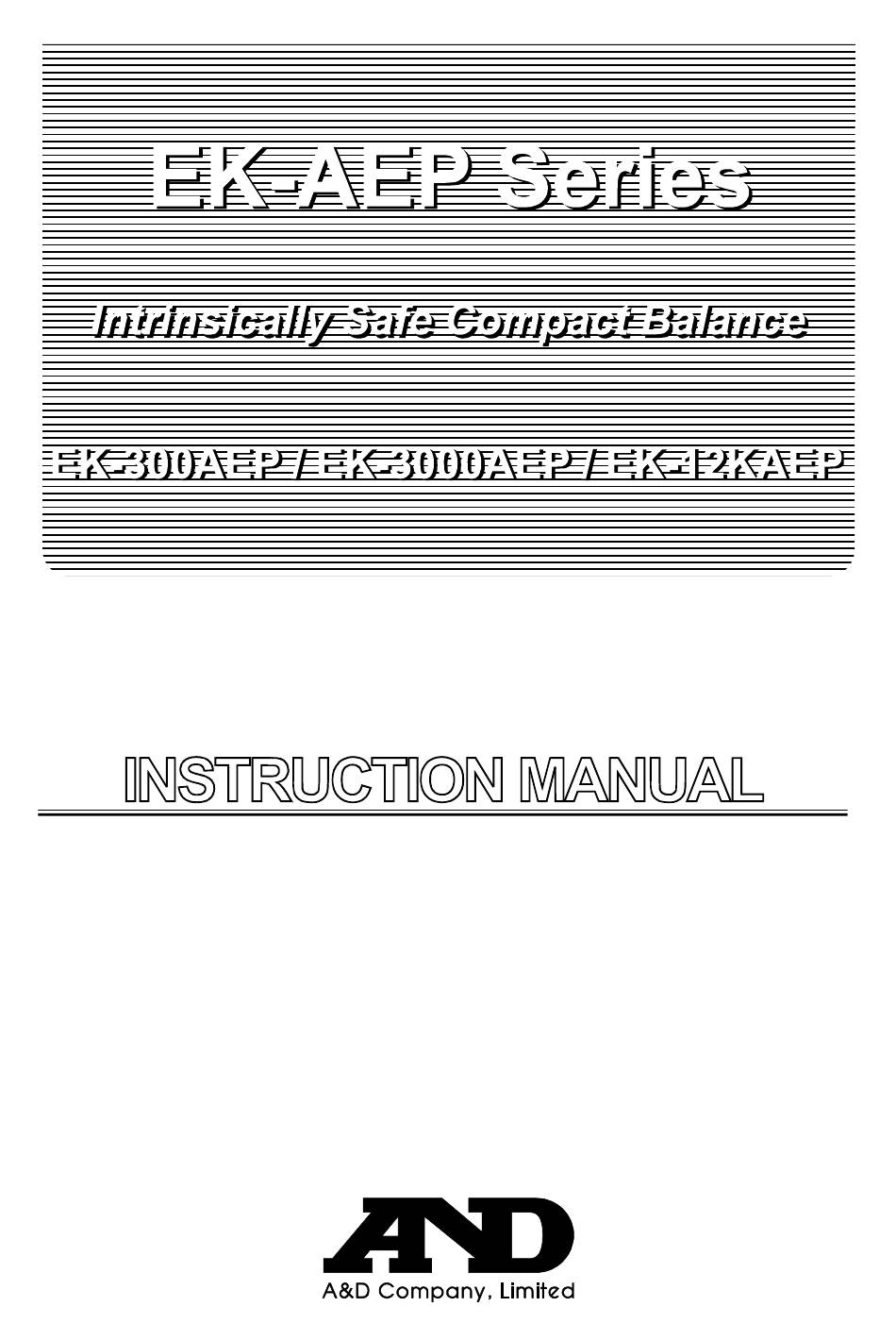

- Page 1 1WMPD4003520A 2019.03.27...
- Page 2 This Manual and Marks All safety messages are identified by the following, “DANGER”, “WARNING” or “CAUTION”, of ANSI Z535.4 (American National Standard Institute: Product Safety Signs and Labels). The meanings are as follows: An imminently hazardous situation which, if not avoided, will result in death or serious injury.
-
Page 3: Table Of Contents
CONTENTS 1. INTRODUCTION ......................3 2. UNPACKING ........................3 3. SAFETY INSTRUCTIONS AND PRECAUTIONS ............4 3-1. Safety Instructions on Intrinsically Safe Structure............4 3-2. Precautions on Installation..................4 3-2. Precautions on Power Source ...................5 4. SETTING UP ........................6 4-1. Setting up Your Balance ....................6 4-2. - Page 4 12. ID NUMBER AND GLP....................30 12-1. Setting the ID Number ...................30 12-2. Output Example.....................31 12-3. Calibration Test Using a Weight................32 13. OPTION ........................34 14. MAINTENANCE ......................35 14-1. Notes on Maintenance...................35 14-2. Error Codes ......................35 15. SPECIFICATIONS .......................37 15-1. Specifications......................37 15-2. Option........................37 15-3.
-
Page 5: Introduction
The EK-AEP series are intrinsically safe electronic balances complying with international standards such as IECEx and ATEX or FM requirements. The EK-AEP series balances can be used in areas where explosive atmospheres are present. (For details on the intrinsically safe structure, refer to “5. -
Page 6: Safety Instructions And Precautions
3. SAFETY INSTRUCTIONS AND PRECAUTIONS 3-1. Safety Instructions on Intrinsically Safe Structure Do not disassemble or modify the balance. When determining the installation site, take the following into consideration. Will explosive gases be generated? How often will they be generated? Refer to “5. -
Page 7: Precautions On Power Source
As a power source, only the four “AA”, “LR6” or “AM3” alkaline 1.5 V batteries listed below can be used. DURACELL MN1500, ENERGIZER E91, Panasonic LR6(XJ) The intrinsically safe performance of the EK-AEP series balance is guaranteed by using the batteries described above. Do not use other types of batteries or rechargeable batteries. -
Page 8: Setting Up
4. SETTING UP Read “3. SAFETY INSTRUCTIONS AND PRECAUTIONS” carefully and install the balance as described below. 4-1. Setting up Your Balance 1. Set up the balance as shown below. EK-300AEP: Install the pan support and the weighing pan on the main unit. EK-3000AEP/EK-12KAEP: Install the weighing pan on the main unit. -
Page 9: When Weighing Objects That Are Prone To Static Electricity
Four batteries (AA, LR6 or AM3 size) Battery cover Battery cover securing screws 4. Attach the battery cover and secure it to the balance using the battery cover securing screws. During use, the battery indicator changes as the battery voltage decreases, as shown below. -
Page 10: Conforming Standards
5. CONFORMING STANDARDS 5-1. IECEx Ex ia op is ΙΙB T3 Ga Tamb -25°C to +40°C (IECEx FMG 17.0033X) Ex Component Type of Protection Gas Classification Temperature Class Equipment Protection Level 5-2. ATEX ΙΙ 1G Ex ia op is ΙΙB T3 Ga Tamb -25°C to +40°C (FM17ATEX0096X) Ex Component... - Page 11 Hazardous location labels on the balance For IECEx/ATEX Ⅱ 1G Ex ia op is ⅡB T3 Ga FM17ATEX0096X Ex ia op is ⅡB T3 Ga IECEx FMG 17.0033X Tamb -25℃ to +40℃ 2809 Refer to the instruction manual 1WMPD4003520A 1-243 Asahi, Kitamoto-shi, Saitama, Japan For FM/FMc Class Ⅰ, Zone 0 , AEx / Ex ia op is ⅡB T3 FM17US0317X...
-
Page 12: Part Names And Functions
6. PART NAMES AND FUNCTIONS Weighing pan SAMPLE key (EK-300AEP: round pan) Bubble spirit level ZERO ON:OFF Serial number label MODE key Battery compartment Bubble spirit level TARE key Leveling foot PRINT key Calibration switch Optical cover Grounding screw hole connector Battery indicator ACAI indicator Comparator results... -
Page 13: Operation
7. OPERATION 7-1. Turn the Power ON and OFF Place nothing on the weighing pan. 1. Press the ZERO/ON:OFF key to turn the power ON. STABLE Weighing units ZERO All of the symbols are displayed as shown above. (About units: Only the available units will be displayed.) The display turns off except for a weighing unit and the decimal point. -
Page 14: Units
7-3. Units The most common unit of weight used around the world is the gram, but there is often a need to shift to alternative units specific to the country where the balance is used or to select modes such as counting or percent. The units and the order they appear in the display are as follows: Pound Ounce (avoir) -
Page 15: Selecting A Weighing Unit
7-4. Selecting a Weighing Unit Press the MODE key to select a unit. Each pressing switches the units available in the order The following sections are a description of the described on the previous page. three common units: g (gram mode), pcs (counting mode), and % (percent mode). -
Page 16: Counting Mode (Pcs)
7-6. Counting Mode (pcs) The balance weighs the sample pieces and calculates the unit weight. Using the sample unit weight, the balance counts the number of objects in the sample. As for the minimum unit weight acceptable, refer to the function setting “Umin” of “10-5. - Page 17 If the balance judges that the sample weight is too light to acquire accurate weighing data, it 50 - displays an error prompting the addition of more samples to the specified number. The displayed number Add the specified number of samples and press will be stored as the the PRINT key.
-
Page 18: Percent Mode (%)
7-7. Percent Mode (%) Displays the weight value in percentage compared to the 100% reference weight. Selecting the percent mode 0. 0 1. Press the MODE key to select %. (%: percent) Storing the 100% reference weight 2. Press the SAMPLE key to enter the 100% reference weight storing mode. -
Page 19: Comparator
8. COMPARATOR The results of the comparison are indicated by HI, OK or LO in the display. The comparison is as follows: Lower limit value Upper limit value Comparison mode (Refer to the function setting “Cp”): No comparison (comparator function disabled). Compares all data. - Page 20 4. Press the TARE key several times to display 5. Press the PRINT key to store the setting. Cp Hi appears after end Entering the upper and lower limit values To store 6. With Cp Hi displayed, press the PRINT key. Enter the upper limit value using the following keys.
-
Page 21: Calibration
9. CALIBRATION This function adjusts the balance for accurate weighing. Perform calibration in the following cases. When the balance is first used. When the balance has been moved. When the ambient environment has changed. For regular calibration. Press and slide the calibration Calibration (CAL) switch cover down. - Page 22 Weighing 5. With Cal 0 displayed, press the PRINT key to calibrate the zero point. Do not touch the pan during zero calibration. When zero calibration has been completed, the balance displays the calibration weight value. With nothing on the pan If span calibration is not to be performed, press the MODE key or CAL switch to return to the...
-
Page 23: Gravity Acceleration Correction
9-2. Gravity Acceleration Correction When the balance is first used or has been moved to a different place, it should be calibrated using a calibration weight. But if a calibration weight is not available, the gravity acceleration correction will compensate the balance. Change the gravity acceleration value of the balance to the value of the area where the balance will be used. -
Page 24: Functions
10. FUNCTIONS 10-1. Key Operation Cancels the operation and turns the balance OFF. Item key Selects a class and an item. In the weighing mode, press and hold the key to enter the function setting mode. Print key Proceeds to the selected class. Stores the settings per class and proceeds to the next class. -
Page 25: Setting Example
10-3. Setting Example To set the auto power-off function to “Disabled”, and the ACAI function to “Disabled.” 1. Press and hold the SAMPLE key to display func Press and hold func 2. Press the PRINT key to display poff 1 . poff 1 3. -
Page 26: Storing Weighing Units
10-4. Storing Weighing Units It is possible to store the weighing units that will actually be used from the units available. For the units available, Refer to “7-3. Units.” Select and store the weighing units as described below: 1. Press and hold the SAMPLE key to display func Press and hold func... -
Page 27: Function List
10-5. Function List Param- Class Item Description eter func poff Automatically Auto power-off disabled power off Auto power-off Auto power-off enabled Cond Fast / sensitive Software filtering Response Slow / stable st-b Stable when within ± 0.5d/0.5 s Conditions to turn on the Stability band Stable when within ±... - Page 28 Param- Class Item Description eter func aCai ACAI disabled If “0” is set, no additional samples ACAI function ACAI enabled required. Umin d = the readability (scale interval or Minimum unit 1/10d weight “division”) Total sample weight 5d smpl 10 pcs The number of samples shown Sample number...
-
Page 29: Data Output Via Optical Signal
11. DATA OUTPUT VIA OPTICAL SIGNAL The EK-AEP series is equipped with an optical connector from which it can output weighing results to a device in a distant safe area via optical fiber cable and an AD-1611 optical communication adapter (both sold separately). - Page 30 Data format Header Data Unit Terminator (“ ” shows a space.) Separator There are four types of headers: ST : Stable weighing data (including % data) QT : Stable counting data US : Unstable weighing data (including counting and % data) OL : Out of weighing range (Over) The data is normally 9 digits including a decimal point and a sign.
- Page 31 Key mode Set the function to “prt 1, 2 or 3”. When the PRINT key is pressed while the weight data is stable (the STABLE indicator is on), the balance transmits the data. When the data is transmitted, the display will blink one time. Auto-print mode A Set the function to “prt 2”.
-
Page 32: Id Number And Glp
12. ID NUMBER AND GLP The ID number is used to identify the balance when Good Laboratory Practice (GLP) is used. The ID number is stored in memory even if power to the balance is turned OFF. The following GLP data is transmitted to a printer or a computer using the optional RS-232C serial interface. -
Page 33: Output Example
12-2. Output Example To print the GLP report, set the function to “info 1” and set the AD-8121B printer to MODE 3. To output the GLP report to a personal computer, set the function to “info 2”. Data format for “calibration report” Perform calibration using a weight. -
Page 34: Calibration Test Using A Weight
“Title block” and “End block” When weight values are recorded as GLP data, a “Title block” and an “End block” are added to the weight values for the GLP report. To output the GLP report to the AD-8121B printer, set the printer to MODE 3. 1. - Page 35 CC 0 2. CC 0 is displayed. 3. If it is necessary to change the target weight value that is used for calibration test, press the SAMPLE key and change the value using the following keys. SAMPLE key To select the digit to change the value (blinking). TARE key To change the value of the blinking digit.
- Page 36 13. OPTION As an option, a carrying case (EJ-12) is available for carrying the balance by hand. Please note that the balances are precision equipment and they, even placed in the case, will not be able to withstand excessive shock, such as being dropped. Therefore, use much care when carrying the balance.
-
Page 37: Maintenance
14. MAINTENANCE 14-1. Notes on Maintenance Do not disassemble the balance. . Use the original packing material for transportation. Do not use organic solvents to clean the balance. Use a lint free cloth moistened with warm water and a mild detergent. 14-2. - Page 38 CAL errors Calibration has been canceled because the calibration Cal e weight is too heavy. Calibration has been canceled because the calibration -Cal e weight is too light. Check the weighing pan and the calibration weight. To return to the weighing mode, press the MODE key. Low battery error The batteries are exhausted.
-
Page 39: Specifications
15. SPECIFICATIONS 15-1. Specifications MODEL EK-300AEP EK-3000AEP EK-12KAEP Intrinsically safe structure Ex ia op is IIB T3 Ambient temperature range -25°C to 40°C / -13°F to 104°F Weighing capacity 300 g 3000 g 12 kg Readability 0.01 g 0.1 g Repeatability 0.01 g 0.1 g... -
Page 40: Other Weighing Units
15-4. Other Weighing Units MODEL EK-300AEP EK-3000AEP EK-12KAEP Weighing capacity 10.935 109.35 423.3 Readability 0.001 0.01 Weighing capacity 0.6834 6.834 26.46 Readability 0.0001 0.001 0.01 Weighing capacity 9.967 99.67 385.8 Readability 0.001 0.01 Weighing capacity 1500.00 Readability 0.05 Weighing capacity 82.665 826.65 3200... -
Page 41: Gravity Acceleration Map
GRAVITY ACCELERATION MAP Values of Gravity at Various Locations Amsterdam 9.813 m/s Manila 9.784 m/s Athens 9.807 m/s Melbourne 9.800 m/s Auckland NZ 9.799 m/s Mexico City 9.779 m/s Bangkok 9.783 m/s Milan 9.806 m/s Birmingham 9.813 m/s New York 9.802 m/s Brussels 9.811 m/s... - Page 42 World Map...
- Page 44 3-23-14 Higashi-Ikebukuro, Toshima-ku, Tokyo 170-0013, JAPAN Telephone: [81] (3) 5391-6132 Fax: [81] (3) 5391-1566 A&D ENGINEERING, INC. 1756 Automation Parkway, San Jose, California 95131, U.S.A. Telephone: [1] (408) 263-5333 Fax: [1] (408)263-0119 A&D INSTRUMENTS LIMITED Unit 24/26 Blacklands Way, Abingdon Business Park, Abingdon, Oxfordshire OX14 1DY United Kingdom Telephone: [44] (1235) 550420 Fax: [44] (1235) 550485 A&D AUSTRALASIA PTY LTD...
