Kenmore 3979092 Owner's Manual

27-inch wide gas dryers
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

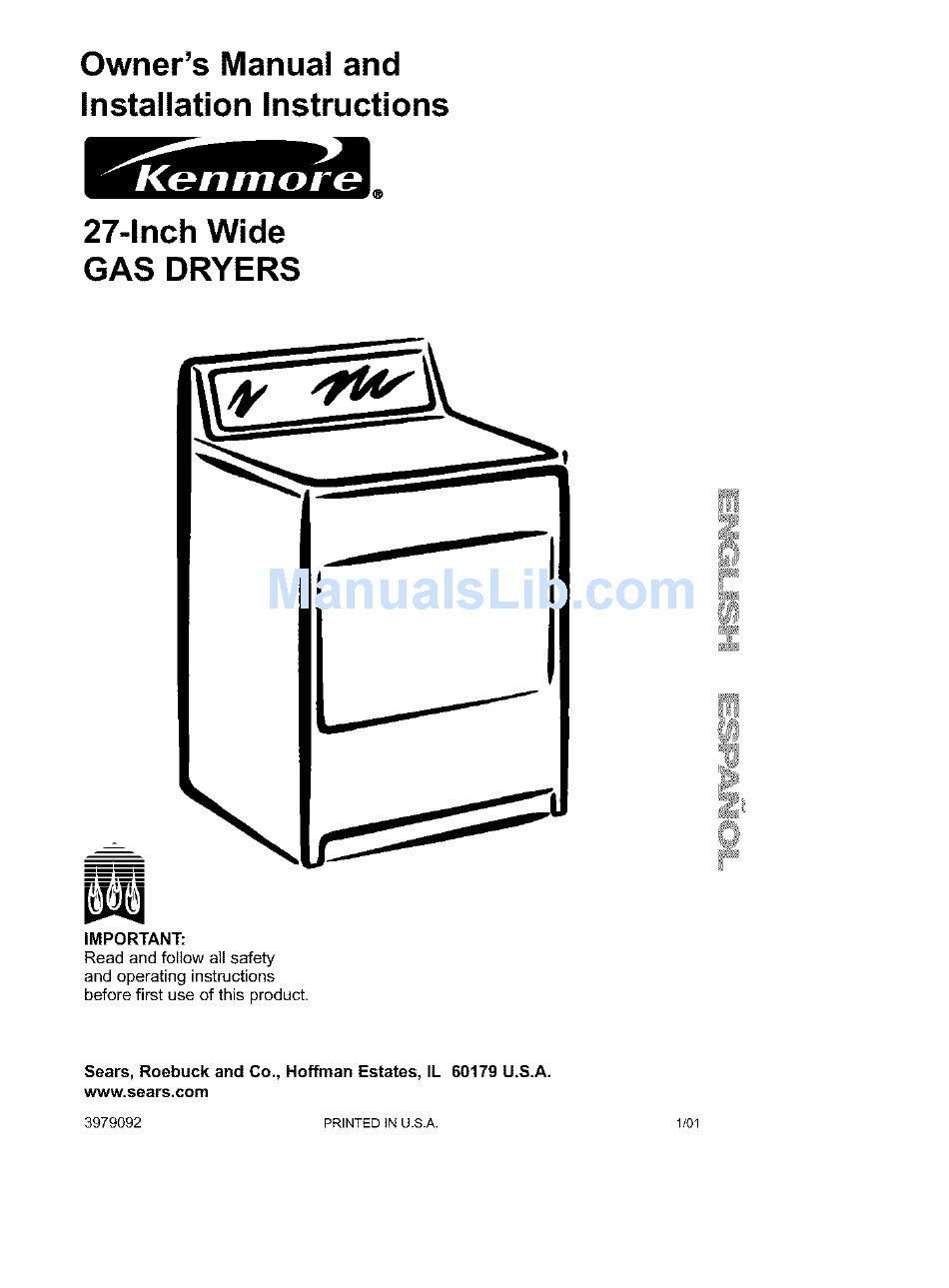

Owner's Manual and
Installation Instructions
27-Inch Wide
GAS DRYERS
ml
m,lwl
m
IMPORTANT:
Read and follow all safety
and operating instructions
before first use of this product.
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U,S,A.
www, sears.com
3979092
PRINTED IN U.S.A.
1/01

Advertisement

Table of Contents
loading

Related Manuals for Kenmore 3979092

Summary of Contents for Kenmore 3979092

  • Page 1 Owner's Manual and Installation Instructions 27-Inch Wide GAS DRYERS m,lwl IMPORTANT: Read and follow all safety and operating instructions before first use of this product. Sears, Roebuck and Co., Hoffman Estates, IL 60179 U,S,A. www, sears.com 3979092 PRINTED IN U.S.A. 1/01...

  • Page 2: What To Do If You Smell Gas

    WARNING: For your safety the information in this manual must be followed to minimize the risk of fire or explosion or to prevent property damage, personal injury, or death. -Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

  • Page 3: Troubleshooting

    Please read this manual. It will help Use the space below to record the model you install and operate your new number and serial number of your new Kenmore dryer in the most economical Kenmore dryer. way. Model No. If you need more information about the care and operation of Kenmore appliances call your nearest Sears store.
  • Page 4 Full One Year Warranty on Warranty Service Mechanical and Electrical Parts Warranty service is available by contacting your nearest Sears Service Center in the For one year from the date of purchase, United States. if this dryer is installed and operated according to the instructions in this This warranty applies only while this dryer manual, Sears will repair or replace any...
  • Page 5 Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages. This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others.

  • Page 6: Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS WARNING To reduce the risk of fire, electric shock, or injury to persons when using the dryer, follow basic precautions, including the following: • Read all instructions before using • Do not repair or replace any part of the dryer.

  • Page 7: Tools And Parts

    Tools and Parts Location Requirements Check that you have everything neces- sary for correct installation, Proper installation is your responsibility. • 8 or 10 in, pipe wrench • 8 or 10 in. adjustable wrench (for gas connections) • flat-blade screwdriver Explosion Hazard •...
  • Page 8 Installation Clearances Most installations require a minimum 5_/2in, _t 3 . (14 cm) clearance behind the dryer for the exhaust vent with elbow, See "Venting 48"z (310_±)- Requirements." The location must be large enough to fully open the dryer door. Recommended/Minimum Clearances Recessed...

  • Page 9: Gas Supply Requirements

    Electrical Requirements Gas Supply Requirements Explosion Hazard Electrical Shock Hazard Use a new AGA or CSA approved Plug into a grounded 3 prong outlet. gas supply line. Do not remove ground prong. Install a shut-off valve. Do not use an adapter. Do not use an extension cord.
  • Page 10 Gas Supply Line: NOTE: Pipe joint compounds that resist the action of L.P. gas must be used. Do in. IPS pipe is recommended. • not use TEFLON _' tape. • 3/8 in. approved tubing is acceptable for lengths under 20 ft (6.1 m) if local Dryer Gas Pipe codes and gas supplier permit.

  • Page 11: Venting Requirements

    Flexible metal vent must be fully extend- Venting Requirements ed and supported when the dryer is in its final position. Remove excess flexible metal vent to avoid sagging and kinking that may result in reduced airflow. An exhaust hood should cap the vent to prevent rodents and insects from entering the home.

  • Page 12: Determine Vent Length

    1, Select the route that will provide the Determine Vent Length straightest and most direct path out- Typical installations vent the dryer from doors. Plan the installation to use the the rear of the dryer. Other installations fewest number of elbows and turns. are possible.
  • Page 13 Side and bottom installations Do not use vent runs longer than those specified in Vent Length Charts. This dryer can be converted to exhaust out the right side, left side, or through Exhaust systems longer than those the bottom. specified will: •...

  • Page 14: Install Vent System

    For mobile home use Install Vent System Gas dryers must be securely fastened to 1. (Optional) Put on safety glasses and the floor. gloves, 2. Install exhaust hood, Use caulking compound to seal exterior wall open- ing around exhaust hood. 3.

  • Page 15: Make Gas Connection

    Make Gas Connection Complete Installation 1. Remove the red cap from the gas 1. Check to be sure all parts are now pipe. Move the dryer to its final installed. If there is an extra part, go position. back through the steps to see which step was skipped.

  • Page 16: Stopping/Restarting Your Dryer

    Fire Hazard Explosion Hazard Keep flammable materials and No washer can completely remove oil. vapors, such as gasoline, away from dryer. Do not dry anything that has ever had Do not dry anything that has ever had any type of oil on it (including cooking anything flammable on it (even after oils).
  • Page 17 CYCLE DESCRIPTIONS • If you do not unload the dryer, it goes into WRINKLE GUARD ®, see "USING WRINKLE GUARD ®'. NOTE: On some models, WRINKLE GUARD ® is selected by an option The automatic cycles save you time by switch.
  • Page 18 FABRIC/TEMPERATURE CONTROL FABRIC 11_MRERAI1BRE Proper use of this control helps ensure that fabrics are dried at the _JiT I NORMAL / right temperature for maximum life. C/_UAL FtERM PRESS MEmUM MEDIUM HIGH Use this control to select the drying temperature that matches the fabrics in your load.
  • Page 19 USING AIR DRY/AIR FLUFF To use AIR FLUFF: • Set Cycle Selector Control for the number of minutes you want in the TIMED DRY Cycle. Using these cycles gives you all the • Set FABRiC/Temperature Control to AIR FLUFR benefits of hang drying with a shorter drying time.
  • Page 20 END OF CYCLE SIGNAL CONTROL PUSH TO START BUTTON Use this control to start the dryer. Be sure the dryer door is closed. Opening the door stops the dryer. It Your dryer sounds a signal when will not start again until you close the a drying cycle is finished.
  • Page 21 EVENHEAT WITHAUTO MOISTURE USING WRINKLE GUARD ® SENSING PLUS I:] 1 J[llq, WRINKLE GUARD ® helps keep your EVENHEAT TM with AUTO MOISTURE permanent press items wrinkle free SENSING PLUS is the only system that when you don't unload the dryer uses 2 different sensors to "under- promptly at the end of the automatic stand"...
  • Page 22 HEATED TUMBLE FREE DRYER RACK STEP 3. Place wet items on top of the rack. Allow space around items for air to Your dryer may include a dryer rack. If circulate. The rack does not move, but your dryer does not have a dryer rack, the drum will rotate, Make sure items do you can purchase one by calling Sears not hang over the edges or between rack...

  • Page 23: Sorting Clothes

    CHOOSING LOAD SIZES • Mix large items with small items, Load the dryer by the amount of space Follow these recommendations to help items take up, not by their weight. Do save on utility bills and prolong the life not overload the dryer, Overcrowding of your garments.

  • Page 24: Drying Tips

    DRYING TIPS USING DRYER FABRIC SOFTENERS Dryer fabric softeners are recommended for reducing static cling. Always follow package instructions carefully. • Put one fabric softener sheet on top of the load before starting the dryer. De not add a fabric softener sheet after the drying cycle has started.

  • Page 25: Cleaning Your Dryer

    CLEANING YOUR DRYER To clean dryer drum: STEP 1. Make a paste with detergent and very warm water and apply to a soft cloth. Proper care of your dryer can extend its life and help you avoid costly STEP 2. Scrub area until all excess dye is removed.

  • Page 26: Cleaning The Lint Screen

    CLEANING THE LINT SCREEN Wash Lint Screen As Needed Laundry detergents and fabric soft- Remove Lint Before Every Load eners can cause a residue buildup on The lint screen is located in the door the lint screen. opening. Remove lint before starting Wash the lint secreen with a nylon every load.

  • Page 27: Moving Care

    REMOVING ACCUMULATED LINT MOVING CARE • Disconnect power. To remove accumulated lint from exhaust vent: • Close shut*off valve in gas supply line. • Disconnect gas supply line pipe and STEP 1. Disconnect exhaust vent from remove fittings attached to dryer pipe. the dryer.

  • Page 28: To Change The Drum Light

    TO CHANGE DRUM LIGHT The dryer light automatically turns on inside the dryer drum when you open the door. To change the drum light STEP 1. Unplug dryer or disconnect power. STEP 2, Open the dryer door. Locate the light bulb cover on the back wall of the dryer, Remove the screw located in the lower right corner of the cover.
  • Page 29 Most laundering problems are easily solved if you understand the cause. Using the charts below will save you time and money by helping you avoid unneces- sary service calls, Problem Possible Cause Solution Not Drying Lint screen is clogged with lint. Clean lint screen.
  • Page 30 Problem Possible Cause Solution Dryer Will Using a regular fuse. Replace with a time-delay fuse. Not Run Dryer door not firmly closed. Close dryer door tightly. (cont'd) PUSH TO START Button Press PUSH TO START Button again. net firmlypressed. Controls net set in an Reset controls in an ON position.
  • Page 31 We Service What We Sell. Sears Maintenance Agreements Your Kenmore appliance is designed, manufactured and tested to provide years of dependable operation. Yet any major appliance may require service from time to time. The Sears Maintenance Agreement offers you an outstanding service program, affordably priced.
  • Page 33 Forrepairof majorbrandappliancesin your own home... no matterwho made it, no matterwho soldit] 1-800-4-MY-HOME _ /_idm__,or n_ht (1-800.469-4663) (U.S.A. and Canada) II_INW,,laMLI=om II_II_W, S UlIlt_8 For repair of camj-inproducts likevacuums, lawn equipment,and electronics, c allfor the nearest Sears Parts and Repair Center. 1-800-488-1222 /_/ane, day orright (U.S.A.
