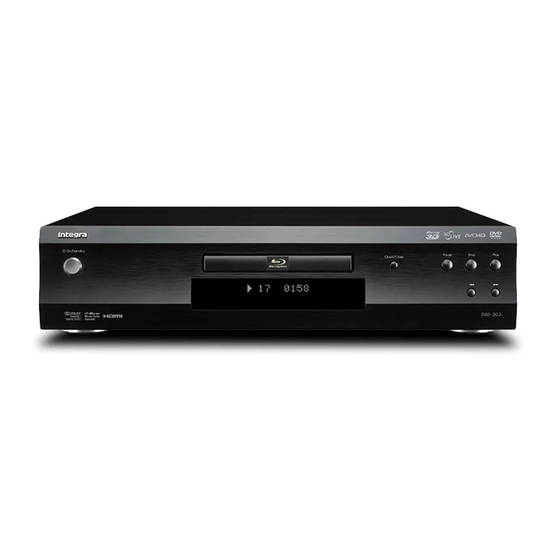

BLU-RAY DISC™ PLAYER
DBS-30.3
Instruction Manual

Advertisement

Table of Contents
loading

Related Manuals for Integra DBS-30.3

Summary of Contents for Integra DBS-30.3

  • Page 1 BLU-RAY DISC™ PLAYER DBS-30.3 Instruction Manual...

  • Page 2: Important Safety Instructions

    Important Safety Instructions CAUTION AVIS WARNING: RISK OF ELECTRIC SHOCK RISQUE DE CHOC ELECTRIQUE TO REDUCE THE RISK OF FIRE OR DO NOT OPEN NE PAS OUVRIR ELECTRIC SHOCK, DO NOT EXPOSE THIS The lightning flash with arrowhead symbol, APPARATUS TO RAIN OR MOISTURE. within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage”...
  • Page 3 17. Batteries 5. Preventing Hearing Loss Always consider the environmental issues and follow Caution local regulations when disposing of batteries. Excessive sound pressure from earphones and headphones can cause hearing loss. 18. If you install the apparatus in a built-in installation, 6.
  • Page 4 11. Moisture Condensation 1. This unit is a CLASS 1 LASER PRODUCT and employs Moisture condensation may damage this unit. a laser inside the cabinet. Read the following carefully: 2. To prevent the laser from being exposed, do not Moisture may condense on the lens of the optical remove the cover.

  • Page 5: Consignes De Sécurité Importantes

    Consignes de sécurité importantes CAUTION AVIS MISE EN GARDE: POUR RÉDUIRE LE RISQUE D'INCENDIE OU RISK OF ELECTRIC SHOCK RISQUE DE CHOC ELECTRIQUE DO NOT OPEN NE PAS OUVRIR DE CHOC ÉLECTRIQUE, NE PAS EXPOSER CET APPAREIL À LA PLUIE OU À L'HUMIDITÉ. Le symbole représentant un éclair terminé...
  • Page 6 17. Piles 5. Prévention de la perte d'acuité auditive Attention Prenez toujours en considération les aspects Une pression acoustique excessive provenant des environnementaux, et respectez les règlements locaux oreillettes et des écouteurs peut causer une perte lorsque vous mettez les piles au rebut. d'acuité...
  • Page 7 11. Condensation de l'humidité 1. Cet appareil est un PRODUIT LASER DE CLASSE 1, La condensation de l'humidité peut et utilise un laser à l'intérieur du boîtier. endommager cet appareil. 2. Pour empêcher toute exposition du laser, ne retirez Lisez attentivement ce qui suit : pas le couvercle.

  • Page 8: Supplied Accessories

    Introduction SUPPLIED ACCESSORIES Copyright • It is forbidden by law to copy, broadcast, show, broadcast on cable, play in public, or rent copyrighted • Remote Control material without permission. Commercial BD-video/ • Batteries (AA, 1.5V × 2) DVD-video discs are copy-protected, and any •...

  • Page 9: Trademark Information

    TRADEMARK INFORMATION DLNA ® , the DLNA Logo and DLNA CERTIFIED ® trademarks, service marks, or certification marks of the Digital Living Network Alliance. Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories. Windows Media and the Windows logo are trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries.
  • Page 10 Blu-ray Disc™, Blu-ray™, Blu-ray 3D™, BD-Live™, BONUSVIEW™, and the logos are trademarks of the Blu-ray Disc Association. is a trademark of DVD Format/Logo Licensing Corporation.

  • Page 11: Table Of Contents

    CONTENTS Important Safety Instructions ........2 9. SPECIAL PLAYBACK ..........32 Fast Forward / Fast Reverse ......... 32 Slow Forward Playback .......... 32 Consignes de sécurité importantes ......5 Step by Step Playback ..........32 Repeat Playback ............33 A-B Repeat ..............33 1.

  • Page 12: Features

    FEATURES HDMI CEC (Consumer Electronics Control) This unit supports HDMI CEC, which allows integrated system control over HDMI and is part of the HDMI Features standard. This function may not work properly on some devices. Blu-ray Disc™ PiP (BONUSVIEW™) You can enjoy Blu-ray Disc™ which is capable of storing Some BD-videos have the PiP function which enables you to five times more data than a conventional DVD.

  • Page 13: Symbols Used In This Manual

    Description refers to music files in the DLNA streamed instantly from Netflix via the Internet. In order home server to use this feature, you must visit netflix.com/Integra on your PC and become a Netflix member. Description refers to photo files in the DLNA (This feature is available only in the United States.)

  • Page 14: Functional Overview

    FUNCTIONAL OVERVIEW Remote Control Front Panel 6 7 8* The unit can also be turned on by pressing these buttons. 1. . On / Standby button 2. Infrared sensor window 3. Disc tray 4. Display 5. Open / Close button* 6.
  • Page 15 10. ¢ (reverse) button 26. Ê (stop) button • During playback, press to fast reverse the playback. • Press to stop playback. 11. Æ B (play) button* 27. G (skip) button • Press to start playback or resume playback. • During playback, press to skip to the next chapter, track or file.

  • Page 16: Front Panel Display

    Front Panel Display Using the Remote Control Remote Control Usage Guidelines: • Make sure that there are no obstacles between the remote control and the infrared sensor window on the unit. • Remote operation may become unreliable if strong Brightness of the display can be adjusted. Refer to sunlight or fluorescent light is shining on the infrared “Panel Display”...

  • Page 17: Guide To On-Screen Display

    Guide to On-Screen Display Home Menu When you turn on the unit, home menu will appear automatically. Otherwise, press [Home Disc Dis s c : Initiates playback of inserted disc, displays a list “Disc” of tracks / files or the media filter menu : Displays a list of tracks / files on the connected “USB”...

  • Page 18: Connections

    Connections CONNECTIONS Standard Video + Standard Audio Connection (Supports only 480i resolution.) Video cable (supplied) VIDEO IN Your TV AUDIO IN Audio cable (supplied) • Connect this unit directly to the TV. If the audio / video cables are connected to a VCR then the pictures may be distorted due to the copyright protection system.

  • Page 19: Hdmi Video / Audio Connection

    HDMI Video / Audio Connection (Supports up to 1080i (*1) , 1080p (*2) , 1080p/24 (*3) resolution.) Your TV ✔ HDMI cable (not supplied) HDMI IN No analog audio connection required. (*1) 1080i : Outputs video data with a frame rate of 30 frames per second. (*2) 1080p : Outputs video data with a frame rate of 60 frames per second.
  • Page 20 Audio Output from AUDIO OUTPUT (DIGITAL OPTICAL / COAXIAL) jacks “Digital Output” “Bitstream” “LPCM” setting “BD Audio Mode” “HD Audio Output” “Mix Audio Output” “HD Audio Output” “Mix Audio Output” setting Media Audio Source Which audio format can be output depends on the compatibility of the connected device.
  • Page 21 Audio Output from HDMI OUT jack “Audio Output” “Bitstream” “LPCM” “Off” setting “BD Audio Mode” “HD Audio Output” “Mix Audio Output” “HD Audio Output” “Mix Audio Output” Regardless setting Media Audio Source Which audio format can be output depends on the compatibility of the connected device.
  • Page 22 Controlling AV Components that are Out-of-Range You can use the following multi-room kits to control this unit when it’s out of range of the remote controller: • Multiroom kits such as those made by Niles and Xantech. Controlling Other Out-of-Range AV Components If another AV component is out of range of its remote controller, you can use a commercially available IR emitter to retransmit the remote controller signals received at this unit's IR IN jack, as shown below.

  • Page 23: Connection To The Network

    Connection to the Network By connecting this unit to the Internet, you can update the software via the Internet, play contents stored on DLNA home media servers or access BD-Live™, Netflix, Film Fresh, Blockbuster and VUDU services. – For more information about a software update, refer to “Network Update” on page 47. –...

  • Page 24: Before You Start

    BEFORE YOU START Finding the Viewing Channel / Source on Your TV After you have completed all the connections, you must find the viewing channel (external input source) on your 1. After you have made all the necessary connections, press [. (on/standby)] to turn on the unit. 2.

  • Page 25: Information On Playback

    Playback INFORMATION ON Recommended Specifications PLAYBACK AVCHD This unit cannot play back standalone AVCHD files (*.m2ts, *.mts or *.m2t) written to a DVD. The DVD Information on Playback containing AVCHD files must have a proper file and folder structure meeting AVCHD format specifications. Playable Discs and Files Please use AVCHD compliant device / software to burn or copy AVCHD files to DVD.
  • Page 26 D Note Region Codes • This unit supports USB flash drive with FAT16 / This unit has been designed to play back BD-video FAT32 file system. BD-video with region “A” and DVD- • This unit does not support NTFS file system. video with region “1”...

  • Page 27: Guide To File List

    Guide to File List How to Navigate through the Track / File List • Use [Î / ï] to move the highlight up and down in the list. Video / Music File List • To access the files in a group (folder), select the e.g.) MP3 mode desired group (folder), then press [Enter].

  • Page 28: Basic Playback

    BASIC PLAYBACK Resume-On-Stop Mode Blu-ray Disc™ / DVD / AVCHD: When you press [B (play)] next time, the playback will start from the point where it has been stopped. Playing Back a Disc Audio CD: Playback will start from the point where it is stopped next time you press [B (play)].

  • Page 29: Playing Back A Blu-Ray 3D™ Disc

    Playing Back a Blu-ray 3D™ Disc D Note • For more information, refer to the 3D TV’s manual. • When “3D Output” is set to “Auto (XX)” and your This unit can play back Blu-ray 3D™ discs which contain TV is not 3D capable, playback of Blu-ray 3D™ discs stereoscopic 3D video.

  • Page 30: Playing Back Movie / Music / Photo From Dlna Certified Home Media Servers

    Playing Back Movie / Music / Photo C Caution from DLNA Certified Home Media • Do not remove the USB flash drive or switch the unit to the standby mode while the contents of the drive Servers are being accessed. It may result in malfunction or loss of the drive’s data.

  • Page 31: Using The Title / Disc / Pop-Up Menu

    Using the Title / Disc / Pop-up Menu To control the playback, use following buttons. Button Action G (skip) For movie files, playback will be step by Some BD-videos, DVD-videos or AVCHD files may step in pause mode. contain a title menu which describes the contents of During playback, press to fast reverse/ ∫...

  • Page 32: Special Playback

    SPECIAL PLAYBACK Slow Forward Playback 1. During playback, press [Δ (pause)]. Then press Fast Forward / Fast Reverse [∫ (forward)]. Every time you press [∫ (forward)], the playback speed changes in 3 different levels. 2. Press [B (play)] to return to normal playback. 1.

  • Page 33: Repeat Playback

    Repeat Playback A-B Repeat Available repeat function varies depending on the discs. 1. During playback, press [Repeat]. You can play back the specific part (between point A and point B) repeatedly. 2. Use [Î / ï] to select the desired repeat mode. 1.

  • Page 34: Pip (Bonusview™) Setting

    PiP (BONUSVIEW™) Setting D Note • You must connect the unit to the Internet and set up necessary settings in order to use BD-Live™. Some BD-videos have the PiP function which enables you • For the network connection, refer to “Connection to to display the secondary video in the primary video.

  • Page 35: Title / Chapter Search

    Title / Chapter Search 9.10 Track Search 1. During playback, press [ (skip)] to skip the current track or file and move to the next. Using [H (skip)] / [G (skip)] The track / file will move forward one at a time. To go 1.

  • Page 36: Switching Subtitles

    9.12 Switching Subtitles 9.13 Switching Audio Soundtrack When playing back video material recorded with two Some video materials may have subtitles in one or more or more soundtracks (these are often in different audio languages. For commercially available discs, the supported languages or audio formats), you can switch them during languages can be found on the disc case.

  • Page 37: Switching Camera Angles

    9.14 Switching Camera Angles Item Description Adjustment range Adjusts the difference between Contrast -7 to +7 (0*) Some BD-videos and DVD-videos contain scenes which the bright and dark have been shot simultaneously from various angles. You parts of the picture. can change the camera angle when appears on the Adjusts the...

  • Page 38: Network Services

    10. NETWORK SERVICES 10.1 Before Using Network Services Please follow the instructions below before using network features. 1. Connect this unit to the Internet. • Refer to “Connection Test” on page 42. 2. Set up the necessary network connection settings. •...

  • Page 39: List Of Settings

    Function Setup 11. LIST OF SETTINGS In the setup menu, you can customize various kinds of settings as you prefer. Refer to the following instructions to navigate through the setup menu. 1. Press [Home ] to access the home menu. 2.
  • Page 40 Category Menus / Options HDMI Output3d Auto Video Resolution Auto 480i 480p 720p 1080i 1080p 1080p/24 Source Direct Deep Color Auto Audio Output Bitstream LPCM HDMI CEC Playback Player Menupm Auto Español English Français Audio Original Bulgarian Italian Chinese Japanese Czech Korean Danish...
  • Page 41 Category Menus / Options Playback Disc Menu Bulgarian Italian Chinese Japanese Czech Korean Danish Norwegian Dutch Polish English Portuguese Finnish Romanian French Russian German Slovak Greek Spanish Hungarian Swedish Icelandic Turkish Irish Other BD Rating Level Age Setting DVD Rating Level 4 [PG-13] 8 [Adult] 3 [PG]...

  • Page 42: Setups

    12. SETUPS Auto Select “Auto” to set the network setting automatically. 1. Follow steps 1 to 3 in “Connection Test” on page 42. 12.1 Network Connection 2. Use [Î / ï] to select “Start”, then press [Enter]. 3. Use [Î / ï] to select “Auto”, then press [Enter]. [Home “Settings”...
  • Page 43 6. Select “Subnet Mask”, “Default Gateway”, [Î / ï / Í / Æ] : Move the highlight. “Primary DNS” and “Secondary DNS” in turn, and enter each address number with cursor buttons and [the Number buttons] : Enter number. number buttons, then press [Enter]. [Enter] : Enter the highlighted •...

  • Page 44: Hdmi Cec

    12.2 HDMI CEC D Note for “IP Address”, “Subnet Mask”, “Default Gateway”, “Primary DNS” and “Secondary DNS” [Home “Settings” “HDMI” “HDMI CEC” • The range of input numbers is between 0 and 255. HDMI CEC allows integrated system control over HDMI •...

  • Page 45: Video Resolution

    12.3 Video Resolution D Note • You can also change the resolution of the video signal being output from the HDMI OUT jack by pressing [Home “Settings” “HDMI” “Video Resolution” [Resolution] repeatedly. Set the resolution of the video signal being output from •...

  • Page 46: Parental

    Copyright protection system DVD Rating Level To play back the digital video images of a BD-video or [Home “Settings” “Playback” “DVD Rating Level” DVD-video via an HDMI connection, it is necessary that both the player and the display device (or an AV receiver 1.

  • Page 47: Software Update

    12.5 Software Update Network Update You can update the software by connecting the unit to the [Home “Settings” “Others” “Software Update” Internet. 1. Follow steps 1 to 3 in “Disc / USB Update” on page 47. This unit lets you update the software yourself using a 2.

  • Page 48: Initialize

    12.6 Initialize [Home “Settings” “Others” “Initialize” Menus to reset player settings, format USB flash drive, local storage and clear network settings. 1. Use [Î / ï / Í / Æ] to select “Settings” in the home menu, then press [Enter]. 2.

  • Page 49: Troubleshooting

    Others 13. TROUBLESHOOTING Problem No power. Check if the AC cord is properly connected. Unplug the AC cord once, and wait for 5-10 seconds and then plug it in again. No sound or picture. Check if the connected TV is turned on. Check if the connections are made securely and correctly.
  • Page 50 Problem Cannot play back a disc. Make sure that the product supports the disc. Check the region code of the disc. This unit supports the following region codes. - Blu-ray Disc™ “A” - DVD “ALL” or “1” Clean the disc. USB flash drive cannot be read.
  • Page 51 Cannot use Netflix feature. Netflix is available only in the United States. Check if the network connection is properly made. Visit netflix.com/Integra on your PC and become a Netflix member. Cannot add movies or TV episodes to the Visit netflix.com on your PC.
  • Page 52 Problem Streaming movie (Netflix, Film Fresh or Contact your Internet service provider. Blockbuster) often stops or starts buffering (You may need to improve the broadband speed.) during playback. Cannot use Film Fresh / Blockbuster feature. Film Fresh / Blockbuster is available only in the United States. Check if the network connection is properly made.

  • Page 53: Glossary

    14. GLOSSARY Digital Audio An indirect representation of sound by numbers. During Analog Audio recording, the sound is measured at discrete intervals (44,100 times a second for CD audio) by an analog- An electrical signal that directly represents sound. to-digital converter, generating a stream of numbers. Compare this to digital audio which can be an electrical On playback, a digital-to-analog converter generates an signal, but is an indirect representation of sound.
  • Page 54 HDMI (High-Definition Multimedia Interface) Region Code A digital interface between audio and video source. It can Regions associate discs and players with particular areas transmit component video, audio, and control signal with of the world. This unit will only play back discs that have one cable connection.

  • Page 55: Language Code List

    15. LANGUAGE CODE LIST Language Code Language Code Language Code Language Code French [FRE] 5264 Macedonian 5957 Siswat 6565 Abkhazian 4748 Frisian 5271 Malagasy 5953 Slovak [SLO] 6557 Afar 4747 Galician 5358 Malay 5965 Slovenian 6558 Afrikaans 4752 Georgian 5747 Malayalam 5958 Somali...

  • Page 56: Specifications

    16. SPECIFICATIONS General Signal system NTSC Color Power requirements AC120 V, 60 Hz Power consumption 20 W (standby: 0.5 W) Dimensions (width x height x depth) 17-1/8 x 4-1/8 x 12-3/16 inches (435 x 104 x 309 mm) Weight 8.6 lbs (3.9 kg) Operating temperature 41 F°(5 °C) to 104 F°(40 °C) Operating humidity...

  • Page 57: Important Health And Safety Information For 3D Televisions

    17. IMPORTANT HEALTH AND SAFETY INFORMATION FOR 3D TELEVISIONS Read the following information before viewing 3D television images. CAUTION NOTICE: 1. Ambient fluorescent lighting may cause a flickering effect and direct sunlight may adversely affect the operation of your 3D glasses. 2.

  • Page 58: Open Source License

    OPEN SOURCE LICENSE way, to print or display an announcement including an appropriate copyright notice and a notice that there is no warranty (or else, saying that you provide a warranty) and that users may redistribute the program under these conditions, This product uses some open source software: and telling the user how to view a copy of this License.
  • Page 59 who places the Program under this License may add an explicit geographical LGPL GNU LESSER GENERAL PUBLIC LICENSE distribution limitation excluding those countries, so that distribution is permitted Version 2.1, February 1999 only in or among countries not thus excluded. In such case, this License Copyright (C) 1991, 1999 Free Software Foundation, Inc.
  • Page 60 to be conveniently linked with application programs (which use some of those even though the source code is not. Whether this is true is especially significant if functions and data) to form executables. the work can be linked without the Library, or if the work is itself a library. The The "Library", below, refers to any such software library or work which has been threshold for this to be true is not precisely defined by law.
  • Page 61 under this License and any other pertinent obligations, then as a consequence Yoyodyne, Inc., hereby disclaims all copyright interest in the library `Frob' (a you may not distribute the Library at all. For example, if a patent license would library for tweaking knobs) written by James Random Hacker. not permit royalty-free redistribution of the Library by all those who receive <signature of Ty Coon>, 1 April 1990 copies directly or indirectly through you, then the only way you could satisfy...
  • Page 62 Free Type can be left out if the rouines from the library being used are not cryptographic related :-). Portions of this software are copyright (c) 2001, 2002, 2003, 2004, 2006 The 4. If you include any Windows specific code (or a derivative thereof) from the FreeType Project (www.freetype.org).
  • Page 63 derived from this software without specific prior written permission. THIS SOFTWARE IS PROVIDED BY THE AUTHOR AND CONTRIBUTORS ``AS IS'' AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE AUTHOR OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF...
  • Page 64 OPEN SOURCE LICENSE Integra Division of 18 park Way, Upper Saddle River, N.J. 07458, U.S.A. Tel: 800-225-1946, 201-818-9200 Fax: 201-785-2650 http://www.integrahometheater.com Integra Division of Liegnitzerstrasse 6, 82194 Groebenzell, GERMANY Tel: +49-8142-4401-0 Fax: +49-8142-4401-555 http://www.eu.onkyo.com/ Integra Division of Printed in China DBS-30.3(B)CDD1AN...
