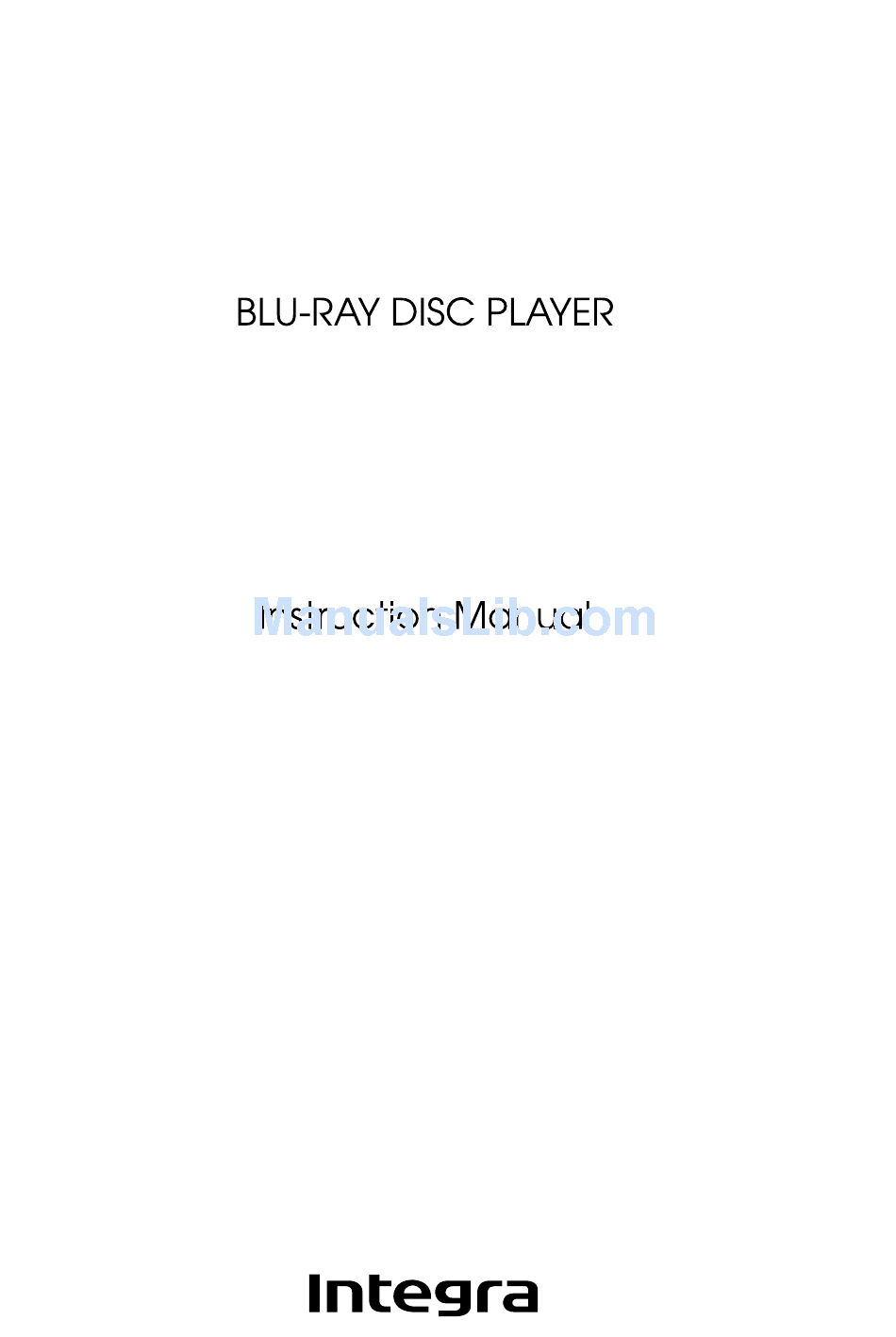

  • Page 1 DBS-30.2...

  • Page 2: Important Safety Instructions

    WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

  • Page 3: Precautions

    Do not place the unit on the furniture that is capable of being tilted by a child and an adult leaning, pulling, standing or climbing on it. A falling unit can cause serious injury or even death. 1. Recording Copyright—Unless it’s for personal use only, recording copyrighted material is illegal without the permission of the copyright holder.
  • Page 4 • Do not use this unit when there’s the possibility of moisture condensation occurring. Doing so may damage your discs and certain parts inside this unit. If condensation does occur, remove all discs and leave this unit turned on for two to three hours. By this time, the unit will have warmed up and any condensation will have evaporated.

  • Page 5: Maintenance

    Supplied Accessories Remote Control with RCA audio / video cables AA (1.5 V) battery x 2 AC cord Instruction Manual Netflix Box-insert Instruction Manual Note about Recycling • This unit’s packaging materials are recyclable and can be reused. Please dispose of any materials in accordance with your local recycling regulations.

  • Page 6: Trademark Information

    Trademark Information HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

  • Page 7: Table Of Contents

    Introduction PRECAUTIONS ........3 FEATURES ........8 Features .

  • Page 8: Features

    With this unit, you can enjoy movies and TV episodes streamed instantly from Netflix via the Internet. In order to use this feature, you must visit netflix.com/Integra on your PC and become a Netflix member. (This feature is available only in the United States.)

  • Page 9: Symbols Used In This Manual

    Symbols Used in this Manual To specify for which media type each function is, we put the following symbols at the beginning of each item to operate. Symbol Description Description refers to BD-video and BD-V BD-RE (ver. 2.1) / BD-R (ver. 1.1 / 1.2 / 1.3) recorded in BDMV format DVD-V Description refers to DVD-video...

  • Page 10: Functional Overview

    FUNCTIONAL OVERVIEW Front Panel The unit can also be turned on by pressing these buttons. 1. I / y y On / Standby button • Press to turn on the unit, or to turn the unit into the standby mode. (To completely shut down the unit, you must unplug the AC power cord) 2.

  • Page 11: Remote Control

    Remote Control The unit can also be turned on by pressing these buttons. 1. Display button • Press to display the on-screen display menu. 2. On / Standby I / y y button • Press to turn on the unit, or to turn the unit into the standby mode.

  • Page 12: Insert Batteries

    In stop mode and “Mode Select“ is set to “Network“, opening screen is displayed. “NETFLIX“: “CinemaNow“: “BLOCKBUSTER“: To access the Blockbuster menu screen “Home Network“: To access the list of DLNA home server DBS-30.2 30˚ 30˚ Home Network To access the Netflix screen To access the CinemaNow menu screen...

  • Page 13: Front Panel Display

    Front Panel Display • Brightness of the display can be adjusted. Refer to “Panel Display” in “FUNCTION SETUP” on page 50. 1. Displays playback status icon. Refer to the table below. 2. Displays various kinds of information such as title number, elapsed time, repeat mode, etc. Playback status icon Disc SD Memory Card...

  • Page 14: Connections

    Connection to the TV • Make one of the following connections, depending on the capabilities of your existing device. AUDIO CONNECTION standard audio AUDIO IN audio cable this unit AUDIO OUTPUT (ANALOG L / R) This unit is compatible with the progressive scan system. The feature provides you with the higher quality pictures than traditional output system does.
  • Page 15 HDMI Output Mode and Actual Output Signals Press [Resolution] to change the resolution of the video signal being output from HDMI OUT jack. The video resolution changes as follows every time [Resolution] is pressed. Front Panel Display ► HDMI Video Resolution Progressive Progressive...
  • Page 16 ■ Audio signals output from HDMI OUT jack “HDMI Audio Out” setting “BD Audio Mode” setting Media Audio Source Dolby Digital Dolby Digital Plus Dolby TrueHD BD-video DTS® DTS-HD® LPCM Dolby Digital DVD-video DTS® LPCM Audio CD DTS-CD DTS® Dolby Digital AVCHD LPCM Dolby Digital...

  • Page 17: Connection To An Audio System

    Connection to an Audio System • When you change the connections, all devices should be turned off. • Refer to the manual accompanying external devices for more information. 2-Channel Analog Audio Connection audio this unit Digital Audio Connection AV receiver / amplifier audio this unit Supplied cables used in this connection are as follows:...
  • Page 18 ■ Audio signals output from AUDIO OUTPUT (DIGITAL OPTICAL / COAXIAL) jacks For the settings in the “Digital Out” to take effect, “HDMI Audio Out” should be set to “Audio Mute”. Otherwise, the settings made in the “HDMI Audio Out” will have a priority, and the same signal as being output from the HDMI OUT jack will be output from the AUDIO OUTPUT (DIGITAL OPTICAL / COAXIAL) jacks as well.

  • Page 19: Connecting The Ac Cord

    Connecting the AC Cord After you made all necessary connections, connect the AC cord to the AC INLET. Then connect the AC cord to the AC outlet. Insert the plugs securely. Incomplete connections will result in the generation of noise. AC outlet AC 120V, 60 Hz Supplied cables used in this connection are as follows:...

  • Page 20: Controlling Av Components That Are Out Of Range

    Note • After connecting to the Internet, set up necessary network settings. • Do not insert any cable other than a LAN cable to the ETHERNET terminal to avoid damaging the unit. • If your telecommunications equipment (modem, etc.) does not have broadband router functions, connect a broadband router.

  • Page 21: Information On Playback

    INFORMATION ON PLAYBACK Before you start playing back a disc, read the following information. Playable Discs and Files This unit is compatible to play back the following discs / files. To play back a disc / file, make sure that it meets the requirements for region codes and color systems as described below. You can play back discs that have the following logos.
  • Page 22 INFORMATION ON PLAYBACK Unplayable Discs and Files The following discs will not be played back in this unit. • CD-ROM • CD-I (compact disc-interactive) • DVD-RAM • VSD (video single disc) • DVD-audio • video CD • HD DVD • SVCD •...

  • Page 23: Disc Information

    INFORMATION ON PLAYBACK ■ Chapter information <Title / Chapter information for BD and AVCHD> 1 / 10 <Chapter information for DVD> CHAPTER 3 / 5 0 : 01 : 02 Current title number Current chapter number / Total number of chapters Current repeat setting (Only when repeat setting is active)

  • Page 24: Basic Playback

    Playing Back a BD, DVD or a Disc with AVCHD Files BD-V DVD-V AVCHD Note • may appear at the top-right on the TV screen when the operation is prohibited by the disc or this unit. • During the playback of 2-layered disc, pictures may stop for a moment.

  • Page 25: Operations Using Title Menu, Disc Menu

    Operations Using Title Menu, Disc Menu, and Pop-up Menu BD-V DVD-V AVCHD Many of BD-video and DVD-video disc contains title menu (BD-video / DVD-video / AVCHD), disc menu (DVD-video) or pop-up menu (BD-video) which guides you through the available functions in the disc. The contents of the menus may differ depending on the discs.

  • Page 26: Reading The Sd Memory Card

    Media icon and file name: : Folder : MP3 file : JPEG file It is recommended that files to be played back in this unit are recorded under the following specifications: MP3 / WMA • Sampling frequency: 32 kHz, 44.1 kHz or 48 kHz •...
  • Page 27 Use [K / L] to select “SD Card”, then press [Enter]. Quick Mode Select Disc SD Card Network • This will set the unit to “SD Card” mode. To play back the contents in any discs, exit “SD Card” mode by selecting “Disc”. Press [Setup] to exit.

  • Page 28: Playing Video / Music / Photo Files From Dlna Certified Home Media Servers

    Playing Video / Music / Photo Files from DLNA Certified Home Media Servers On this unit, you can play video, music and photo files stored on DLNA certified home media servers (version 1.5) connected to your home network. In order to use this feature, you must connect this unit to the Internet.
  • Page 29 DLNA Client (DMP) Our Planning Specification Items DLNA version System Stream MPEG1 Video file MPEG2-PS MPEG2-TS/TTS Audio Codec type LPCM MP3 (MPEG1 Layer3) Audio file MP3 (MPEG2 Layer3) MP3 (MPEG2.5 Layer3) Image file JPEG DLNA Playback Format Items MPEG1 MPEG2-PS Video file MPEG2-TS/TTS LPCM...

  • Page 30: Special Playback

    SPECIAL PLAYBACK Fast Forward / Fast Reverse BD-V DVD-V AVCHD During playback, press [Fwd D] repeatedly for fast forward. During playback, press [Rev E] repeatedly for fast reverse. Every time you press [Fwd D] or [Rev E], the playback speed will change. Press [Play B] to return to normal playback.

  • Page 31: A-B Repeat

    A-B Repeat BD-V DVD-V AVCHD You can play back the specific part (between point A and point B) repeatedly. During playback, press [A-B] at the desired starting point A. During playback, press [A-B] at the desired ending point B. As soon as you set the point B, the part between point A and point B will start playback repeatedly.

  • Page 32: Random Playback

    Press [Play B ] to start program playback. • Program playback will start. To exit from the program playback mode: • Press [Return] in stop mode. Note • During program playback, press [Stop C ] once to set the resume point, and then press [Play B ] to resume program playback from where [Stop C ] was pressed (audio CD) or from beginning of the file where [Stop C ] was pressed (MP3 / WMA / JPEG).

  • Page 33: Rapid Playback

    Rapid Playback BD-V DVD-V AVCHD This function plays back approximately at 1.3 times the normal playback while keeping the sound output. This function is available only on discs recorded in the Dolby Digital format. During playback, press [Mode] repeatedly until the Rapid playback setting appears.

  • Page 34: Search

    Using [Skip H / G ] During playback, press [Skip G] to move to the next track. Press it repeatedly to skip to subsequent tracks. Press [Skip H ] once to go back to the beginning of the current track. Press it repeatedly to go to the previous tracks.

  • Page 35: Special Settings

    SPECIAL SETTINGS You can select the format of audio and video as you prefer depending on the contents of the disc you are playing back. Switching Subtitles Some video materials may have subtitles in 1 or more languages. For commercially available discs, the supported languages can be found on the disc case.

  • Page 36: Setting The Bd Audio Mode

    Setting the BD Audio Mode BD-V There are 2 ways to set “BD Audio Mode” setting; whether to output the secondary and interactive audio accompanied by the primary audio or only the primary audio. Depending on the setting of the mode, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS, or DTS-HD output changes between multi LPCM and Bitstream.

  • Page 37: Netflix Operations

    In order to use this feature, you must visit the following website on your PC and become a Netflix member. netflix.com/Integra Before Activating the Connection to Netflix After creating a Netflix account at netflix.com/Integra follow the following procedure before activating the connection to Netflix. Connect this unit to the Internet.

  • Page 38: Cinemanow / Blockbuster Operations

    • Take a note of the activation code which appears on the PC. - For CinemaNow, visit www.cinemanow.com/activate - For Blockbuster, visit www.blockbuster.com/Integra On this unit, press [B] or [C] while opening screen is displayed. • For opening screen, refer to page 12.

  • Page 39: Renting Or Purchasing Movies / Tv Episodes

    CINEMANOW / BLOCKBUSTER OPERATIONS Renting or Purchasing Movies / TV Episodes After you set up the connection to CinemaNow / Blockbuster, you can rent or purchase movies / TV episodes and watch directly on your TV. Press [B] or [C] while opening screen is displayed.

  • Page 40: Function Setup

    FUNCTION SETUP Using the Setup Menu In the setup menu you can change the setting for audio, video, language, etc. You cannot change the setting during playback. Setting items displayed in gray indicates they are not available under the conditions at the time. Quick “Quick”...
  • Page 41 FUNCTION SETUP Custom “Custom” menu contains all the setting items. In stop mode, press [Setup]. Use [K / L] to select [Enter]. Use [K / L] to select your desired setting category, then press [Enter]. : Language : Video : Audio : Parental : Others •...
  • Page 42 ■ Language Language Audio Subtitle Disc Menu Player Menu • For how to select the setting items and options, refer to “Custom” on page 41. Setting items Audio Sets the language for audio. Subtitle Sets the language for subtitle. Disc Menu Sets the language for disc menu or pop-up menu.
  • Page 43 ■ Video Video TV Aspect HDMI Video Resolution HDMI Deep Color Component Output Progressive Mode Still Mode • For how to select the setting items and options, refer to “Custom” on page 41. Setting items TV Aspect Sets the picture size according to aspect ratio of the connected TV.
  • Page 44 Setting items Progressive Mode Sets the optimum progressive mode for the image material output from HDMI OUT jack and VIDEO OUTPUT (COMPONENT) jacks. Depending on the video material, image quality may get degraded due to the wrong Progressive Mode setting. In such case, change the setting.
  • Page 45 ■ Audio Audio BD Audio Mode HDMI Audio Out Down Sampling • For how to select the setting items and options, refer to “Custom” on page 41. Setting items BD Audio Mode For BD, selects whether to output the secondary and interactive audio with primary audio if it is available or only the primary audio.

  • Page 46: Speaker Setting

    ■ Digital out setting When “Audio Mute” is selected in “HDMI Audio Out” setting, HDMI audio signal will be muted and the audio signals output from AUDIO OUTPUT (DIGITAL OPTICAL / COAXIAL) jacks change depending on “Digital Out” setting. Quick HDMI Audio Out Bitstream*: When playing back discs recorded in Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS®...
  • Page 47 How to navigate through “HDMI Multi(LPCM)”. Use [K / L] to select your desired menu item then press [Enter]. Use [K / L] to select your setting items. • Press [Return] to go back to the previous screen. Use [s / B] to select desired options. (Except for “Test Tone”, “Default” and setting options in “Speaker Size”...
  • Page 48 Menu Delay Time This is a parameter for optimizing the timing at which the sound is output from the speakers according to their distance from the listening position. *) Settings with (*) are the default. • For “Speaker Size” setting, the settings of each speaker size may be adjusted automatically corresponding to each setting.
  • Page 49 ■ Parental Ratings control allows you to set a limit, which prevents your children from viewing inappropriate materials. Playback will be stopped if the ratings exceed the levels you set, and it will require you to enter a password before playing back the disc.
  • Page 50 ■ Others Others Angle Icon Auto Power Off Panel Display HDMI CEC Mode Select Network Connection Software Update For how to select the setting items and options, refer to “Custom” on page 41. Setting items Angle Icon On*: The angle icon appears on the TV screen when playing back the scene with various angle.
  • Page 51 *) Settings with (*) are the default. • HDMI CEC allows integrated system control over HDMI and is part of the HDMI standard. In addition to Integra / Onkyo AV components, it allows interoperability with CEC-compatible AV components and TVs made by other manufacturers.

  • Page 52: Network Connection

    Network Connection Set up the network connection settings in order to use BD-Live, DLNA home media server, Netflix / CinemaNow / Blockbuster feature or network update function. Connection Test After you enable a network connection or change the network settings, always perform the connection test to check if the connection is correctly made.
  • Page 53 If you select “Manual”, follow the following instruction to set the IP address and DNS. 3-a) Use [K / L] to select “IP Address”, “Subnet Mask” or “Default Gateway”, then press [Enter]. IP address setting screen will appear. Enter IP address, subnet mask and default gateway with cursor buttons and number buttons.
  • Page 54 3-a) Use [K / L] to select “Proxy Address”, then press [Enter]. Proxy address setting screen will appear. Enter proxy address. • The keyboard screen will appear. Others Proxy Address Clear All Clear [K / L / s / B] : Move the highlight. [the Number buttons] : Enter number.

  • Page 55: Software Update

    Disable Deactivate all the network connection and settings. Follow steps 1 to 4 in “Connection Test” on page 52. Use [K / L] to select “Disable”, then press [Enter]. Press [Return] to go back to the previous screen, or press [Setup] to exit. Note •...
  • Page 56 FUNCTION SETUP Initialize Initialize the setting, SD Memory Card, network setting or deactivate Netflix. In stop mode, press [Setup]. Use [K / L] to select [Enter]. Use [K / L] to select a desired option, then press [Enter]. “Setup”: Resets the setup menu to the default. “Format SD Card”...

  • Page 57: Troubleshooting

    TROUBLESHOOTING If the unit does not perform properly when operated as instructed in this manual, check the unit, consulting the following checklist. Problem No power. No sound or picture. No audio / video signal on the display device via HDMI cable. Distorted picture.
  • Page 58 - Check the network connection and settings. - Netflix is available only in the United States. - Check if the network connection is properly made. - Visit netflix.com/Integra on your PC and become a Netflix member. - Visit netflix.com on your PC.

  • Page 59: Glossary

    Analog Audio An electrical signal that directly represents sound. Compare this to digital audio which can be an electrical signal, but is an indirect representation of sound. See also “Digital Audio”. Aspect Ratio The width of a TV screen relative to its height. Conventional TVs are 4:3 (in other words, the TV screen is almost square);...
  • Page 60 JPEG (Joint Photographic Experts Group) JPEG is a method of compressing still picture files. You can copy JPEG files on BD-RE/-R, DVD-RW/-R, CD-RW/-R, SD Memory Card or DLNA home server from a computer and play back the files on this unit. LAN (Local Area Network) A group of computer networks covering a small area like a company, school or home.

  • Page 61: Language Code

    LANGUAGE CODE Language Code French [FRE] Abkhazian 4748 Frisian Afar 4747 Galician Afrikaans 4752 Georgian Albanian 6563 German [GER] Amharic 4759 Greek [GRE] Arabic 4764 Greenlandic Armenian 5471 Guarani Assamese 4765 Gujarati Aymara 4771 Hausa Azerbaijani 4772 Hebrew Bashkir 4847 Hindi Basque 5167...

  • Page 62: Specifications

    General Signal system Power requirements Power consumption Dimensions (width x height x depth) Weight Operating temperature Operating humidity Audio BD Linear Audio DVD Linear Audio Audio CD Signal to Noise Ratio Audio Dynamic Range THD (Total Harmonic Distortion) Terminals Audio output (Analog) RCA jack x 2 Video output RCA jack x 1...

  • Page 63: Network Service Disclaimer

    NETWORK SERVICE DISCLAIMER Network Service Disclaimer Content and services made available through this product are transmitted by third parties by means of networks and transmission facilities over which Company has no control and third party services may be terminated or interrupted at any time, and Company makes no representation or warranty that any content or service will remain available for any period of time.
  • Page 64 Integra Division of ONKYO U.S.A. CORPORATION 18 park Way, Upper Saddle River, N.J. 07458, U.S.A. Tel: 800-225-1946, 201-818-9200 Fax: 201-785-2650 http://www.integrahometheater.com Integra Division of ONKYO CORPORATION Printed in China Sales & Product Planning Div.: 2-1, Nisshin-cho, Neyagawa-shi, OSAKA 572-8540, JAPAN E5SF1UD / 1VMN29753 ★★★★★...
