Summary of Contents for Integra DBS-50.2

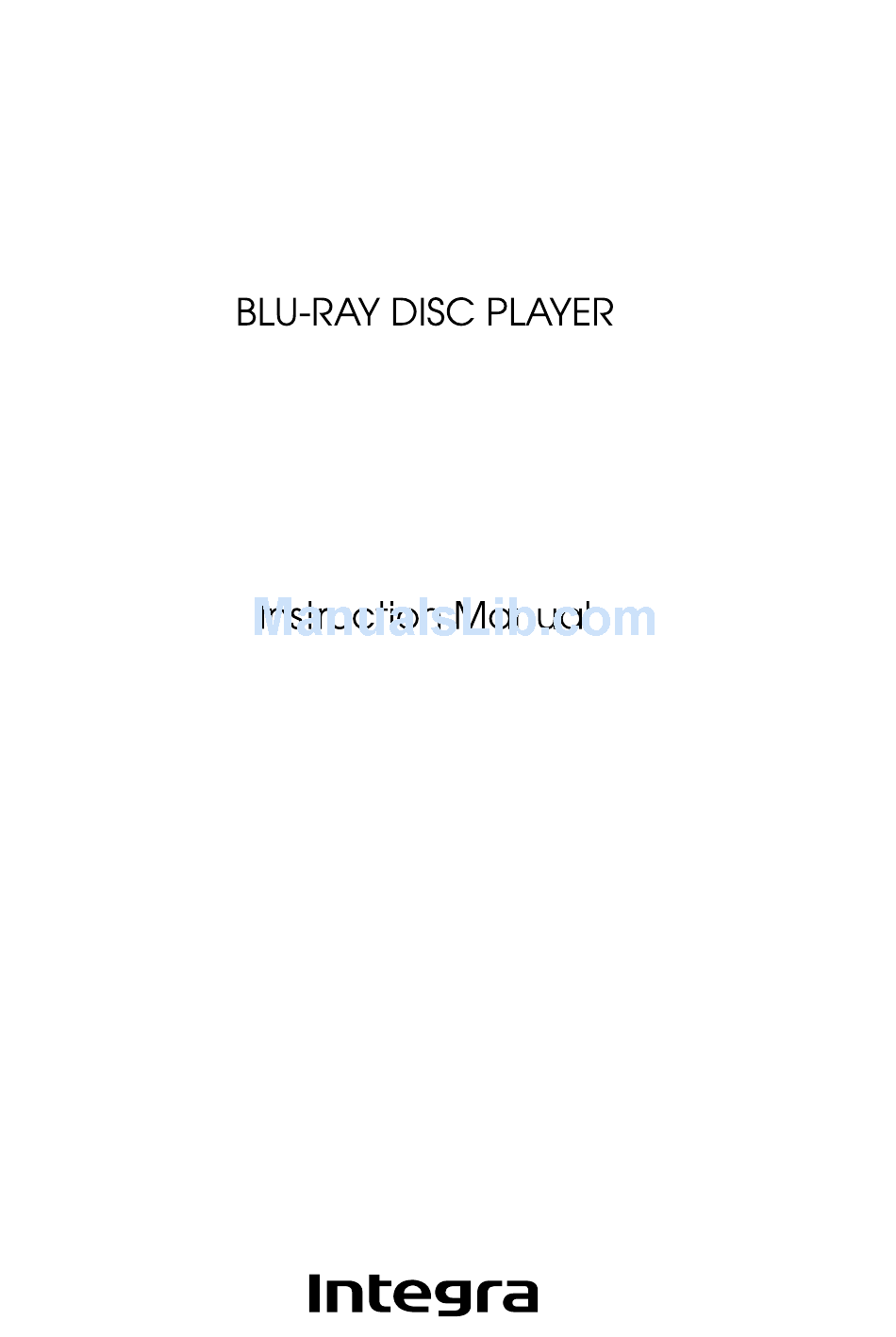

  • Page 1 DBS-50.2...

  • Page 2: Important Safety Instructions

    WARNING AVIS WARNING: RISK OF ELECTRIC SHOCK RISQUE DE CHOC ELECTRIQUE TO REDUCE THE RISK OF FIRE OR ELECTRIC DO NOT OPEN NE PAS OUVRIR SHOCK, DO NOT EXPOSE THIS APPARATUS The lightning flash with arrowhead symbol, within an equilateral TO RAIN OR MOISTURE.

  • Page 3: Precautions

    PRECAUTIONS Do not place the unit on the furniture that is capable of being tilted by a child and an adult leaning, pulling, standing or climbing on it. A falling unit can cause serious injury or even death. • This unit’s top and rear panels may get warm 1.
  • Page 4 PRECAUTIONS • Do not use this unit when there’s the possibility For U.S. Models of moisture condensation occurring. Doing so FCC Information for User may damage your discs and certain parts inside this unit. CAUTION: If condensation does occur, remove all discs and The user changes or modifications not expressly leave this unit turned on for two to three hours.
  • Page 5 PRECAUTIONS IR signal check Supplied Accessories • If the remote control is not working properly, you can use Remote Control with RCA audio / video cables a digital camera (including a cellular phone with built-in AA (1.5 V) battery x 2 camera) to see if it is sending out an infrared signal.
  • Page 6 PRECAUTIONS “AVCHD” and the “AVCHD” Trademark Information logo are trademarks of Panasonic Corporation and Sony Corporation. HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or “BONUSVIEW” is trademark registered trademarks of HDMI of Blu-ray Disc Association. Licensing LLC in the United States and other countries.

  • Page 7: Table Of Contents

    CONTENTS Introduction NETFLIX OPERATIONS ......38 Before Activating the Connection to Netflix ..38 PRECAUTIONS .

  • Page 8: Features

    [PIP] streamed instantly from Netflix via the Internet. In order to use this feature, you must visit netflix.com/Integra whenever the scene contains the secondary video. on your PC and become a Netflix member.

  • Page 9: Symbols Used In This Manual

    FEATURES Symbols Used in this Manual To specify for which media type each function is, we put the following symbols at the beginning of each item to operate. Symbol Description Description refers to BD-video and BD-V BD-RE (ver. 2.1) / BD-R (ver. 1.1 / 1.2 / 1.3) recorded in BDMV format DVD-V Description refers to DVD-video...

  • Page 10: Functional Overview

    FUNCTIONAL OVERVIEW Front Panel 6* 7 8 9 10* 11 The unit can also be turned on by pressing these buttons. 1. I / y y On / Standby button 6. Open / Close A button* • Press to turn on the unit, or to turn the unit into the •...

  • Page 11: Remote Control

    FUNCTIONAL OVERVIEW Remote Control 12. Skip H button • During playback, press once to return to the beginning of the current title, chapter, track or file. • During playback, press twice to return to the previous title, chapter, track or file. •...

  • Page 12: Opening Screen

    • The maximum operable ranges from the unit are as follows. Infrared sensor window Remote control sensor Remote control sens Remote control sens DBS-50.2 Make sure to match + and - on the batteries to the 30˚ marks indicated in the battery compartment. 30˚ Close the cover.

  • Page 13: Front Panel Display

    FUNCTIONAL OVERVIEW Front Panel Display • Brightness of the display can be adjusted. Refer to “Panel Display” in “FUNCTION SETUP” on page 50. 1. Displays playback status icon. Refer to the table below. 2. Displays various kinds of information such as title number, elapsed time, repeat mode, etc. Playback status icon Mode Disc...

  • Page 14: Connections

    CONNECTIONS Connection to the TV • Make one of the following connections, depending on the capabilities of your existing device. AUDIO CONNECTION AUDIO / VIDEO VIDEO CONNECTION CONNECTION Method 2 * 1, 2 Method 1 Method 3 standard audio standard picture better picture best audio / picture AUDIO IN...
  • Page 15 CONNECTIONS HDMI Output Mode and Actual Output Signals Press [Resolution] to change the resolution of the video signal being output from HDMI OUT jack. The video resolution changes as follows every time [Resolution] is pressed. Front Panel Display ► ► ►...
  • Page 16 CONNECTIONS ■ Audio signals output from HDMI OUT jack “HDMI Audio Out” setting “HDMI Multi (Normal)” “HDMI Multi (LPCM)” “HDMI 2ch” “BD Audio Mode” “HD Audio “Mix Audio “HD Audio “Mix Audio “HD Audio “Mix Audio setting Output” Output” Output” Output”...

  • Page 17: Connection To An Audio System

    CONNECTIONS Connection to an Audio System • When you change the connections, all devices should be turned off. • Refer to the manual accompanying external devices for more information. 2-Channel Analog Audio Connection stereo system AUDIO IN audio analog audio input jacks RCA audio cable this unit AUDIO OUTPUT (DOWN MIX L / R)
  • Page 18 CONNECTIONS ■ Audio signals output from AUDIO OUTPUT (DIGITAL OPTICAL / COAXIAL) jacks For the settings in the “Digital Out” to take effect, “HDMI Audio Out” should be set to “Audio Mute”. Otherwise, the settings made in the “HDMI Audio Out” will have a priority, and the same signal as being output from the HDMI OUT jack will be output from the AUDIO OUTPUT (DIGITAL OPTICAL / COAXIAL) jacks as well.

  • Page 19: Controlling Av Components That Are Out Of Range

    CONNECTIONS Surround Connections to a Device with 7.1/5.1-channels of Analog Audio Inputs Analog 7.1ch/5.1ch audio signals can be output from AUDIO OUT (ANALOG 7.1ch) jacks. AV amplifier amplifier this unit audio FRONT CENTER SUB- WOOFER SURROUND SURROUND BACK Supplied cables used in this connection are as follows: •...

  • Page 20: Network Connection With Lan

    CONNECTIONS Network Connection with LAN • By connecting this unit to the Internet, you can update the software via the Internet, play contents stored on DLNA home media servers or access BD-Live, Netflix, CinemaNow and Blockbuster services. - For more information about software update, refer to “Network Update” on page 55. - For more information about DLNA, refer to “Playing Video / Music / Photo Files from DLNA Certified Home Media Servers”...

  • Page 21: Information On Playback

    INFORMATION ON PLAYBACK Before you start playing back a disc, read the following information. Playable Discs and Files This unit is compatible to play back the following discs / files. To play back a disc / file, make sure that it meets the requirements for region codes and color systems as described below. You can play back discs that have the following logos.
  • Page 22 INFORMATION ON PLAYBACK Audio CDs are divided into tracks. Unplayable Discs and Files audio CD The following discs will not be played back in this unit. track 1 track 2 track 3 track 4 track 5 • CD-ROM • CD-I (compact disc-interactive) •...

  • Page 23: Disc Information

    INFORMATION ON PLAYBACK ■ Chapter information ■ Disc information <Title / Chapter information for BD and AVCHD> 1 / 14 0 : 00: 51 1 / 10 Current track number / Total number of tracks Elapsed time (or remaining time) of the current <Chapter information for DVD>...

  • Page 24: Basic Playback

    BASIC PLAYBACK Playing Back a BD, DVD or a Disc with AVCHD Files Press [On / Standby I / y y ]. BD-V DVD-V AVCHD Turn on the TV and select the appropriate input on the TV to which the unit is connected. Press [Open / Close A ] to open the disc tray.

  • Page 25: Operations Using Title Menu, Disc Menu, And Pop-Up Menu

    BASIC PLAYBACK Operations Using Title Menu, Playing Back an Audio CD or a Disc with Disc Menu, and Pop-up Menu MP3 / WMA / JPEG Files Before you begin, make sure the correct media mode is BD-V DVD-V AVCHD selected. Set “Mode Select” to “Disc”. Many of BD-video and DVD-video disc contains title menu (BD-video / DVD-video / AVCHD), disc menu (DVD-video) Insert an audio CD or a disc with MP3 /...

  • Page 26: Reading The Sd Memory Card

    BASIC PLAYBACK Media icon and file name: Note for JPEG Playback : Folder : audio CD track • Every press on [Angle] will turn the image clockwise by 90 degrees when an image is displayed. : MP3 file : WMA file •...
  • Page 27 BASIC PLAYBACK Use [K / L] to select “SD Card”, then Compatible Cards: press [Enter]. - SD Memory Card (8MB - 2GB) - SDHC Memory Card (4GB - 8GB) Quick - miniSD Card (8MB - 2GB) Mode Select - microSD Card (8MB - 2GB) Disc •...

  • Page 28: Playing Video / Music / Photo Files From Dlna Certified Home Media Servers

    BASIC PLAYBACK • To control the playback, use following buttons. Playing Video / Music / Photo Files from Button Action DLNA Certified Home Media Servers Skip j / i Skip to the previous / next file during playback or in pause mode Pause F Pause the playback On this unit, you can play video, music and photo files...
  • Page 29 BASIC PLAYBACK DLNA Client (DMP) Our Planning Specification Items Description DLNA version System Stream Video Codec type Audio Codec type MPEG1 MPEG1-Video MPEG Video file MPEG2-PS MPEG2 MP@ML(SD) LPCM/Dolby - AC3/MPEG MPEG2 MP@HL(HD) MPEG2-TS/TTS Dolby - AC3 MPEG2 MP@ML(SD) Audio Codec type Sampling Frequency Bit rate LPCM...

  • Page 30: Special Playback

    SPECIAL PLAYBACK Fast Forward / Fast Reverse Step by Step Playback BD-V DVD-V AVCHD BD-V DVD-V AVCHD In pause mode, press [Pause F] repeatedly. Every time you press [Pause F], playback will During playback, press [Fwd D] advance one step at a time. repeatedly for fast forward.

  • Page 31: A-B Repeat

    SPECIAL PLAYBACK A-B Repeat Program Playback BD-V DVD-V AVCHD You can play back the specific part (between point A and You can play back the disc in your desired order. point B) repeatedly. In stop mode, press [Mode]. During playback, press [A-B] at the •...

  • Page 32: Random Playback

    SPECIAL PLAYBACK Press [Play B ] to start program Random Playback playback. • Program playback will start. To exit from the program playback mode: This function shuffles the playback order of tracks / files. • Press [Return] in stop mode. In stop mode, press [Mode] twice.

  • Page 33: Rapid Playback

    SPECIAL PLAYBACK Rapid Playback Enjoying BD-Live Discs with Internet BD-V DVD-V AVCHD BD-V You can enjoy BD-Live which enables you to use interactive This function plays back approximately at 1.3 times the features when the unit is connected to the Internet. (For normal playback while keeping the sound output.

  • Page 34: Search

    SEARCH Using [Skip H / G ] Using [the Number buttons] (Direct Search) During playback, press [Skip G] to Title Search move to the next track. Press it In stop mode, enter the title number you repeatedly to skip to subsequent tracks. want to search using [the Number buttons].

  • Page 35: Special Settings

    SPECIAL SETTINGS You can select the format of audio and video as you prefer depending on the contents of the disc you are playing back. Switching Subtitles Switching Audio Soundtrack Some video materials may have subtitles in 1 or more When playing back video material recorded with 2 or languages.

  • Page 36: Setting The Bd Audio Mode

    SPECIAL SETTINGS Setting the BD Audio Mode BD-V There are 2 ways to set “BD Audio Mode” setting; whether to output the secondary and interactive audio accompanied by the primary audio or only the primary audio. Depending on the setting of the mode, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS, or DTS-HD output changes between multi LPCM and Bitstream.

  • Page 37: Adjusting The Picture

    SPECIAL SETTINGS Adjusting the Picture BD-V DVD-V AVCHD You can adjust the picture quality and store the setting you have adjusted on memory 1-5. During playback, press [Mode] repeatedly to select "HD Picture Control" or "SD Picture Control", then press [Enter]. “HD Picture Control”: Effective for the video signal of VIDEO OUTPUT (COMPONENT) jacks (480p, 720p and 1080i) and HDMI OUT jack.

  • Page 38: Netflix Operations

    • Netflix is available only in the United States. • You cannot create a Netflix account on this unit. After creating a Netflix account at netflix.com/Integra • If newer version of software is required, software follow the following procedure before activating the update screen may appear after selecting “NETFLIX”...

  • Page 39: Cinemanow / Blockbuster Operations

    • Take a note of the activation code which appears on the PC. - For CinemaNow, visit www.cinemanow.com/activate POWERED BY - For Blockbuster, visit www.blockbuster.com/Integra On this unit, press [B] or [C] while Blockbuster opening screen is displayed. • For opening screen, refer to page 12.

  • Page 40: Renting Or Purchasing Movies / Tv Episodes

    CINEMANOW / BLOCKBUSTER OPERATIONS Renting or Purchasing Movies / TV Searching Movies / TV Episodes Episodes From the search screen, you can search for movies / TV Episodes by entering search words. After you set up the connection to CinemaNow / Blockbuster, you can rent or purchase Follow step 1 in “Renting or Purchasing movies / TV episodes and watch directly on your TV.

  • Page 41: Function Setup

    FUNCTION SETUP Custom Using the Setup Menu “Custom” menu contains all the setting items. In the setup menu you can change the setting for audio, video, language, etc. You cannot change the setting during playback. In stop mode, press [Setup]. Setting items displayed in gray indicates they are not available under the conditions at the time.
  • Page 42 FUNCTION SETUP ■ Language Language Audio Original Subtitle Disc Menu English Player Menu English • For how to select the setting items and options, refer to “Custom” on page 41. Setting items Options Audio Original* / English / French / Spanish / German / Italian / Swedish / Dutch / Russian / Chinese / Japanese / Korean / Danish / Finnish / Norwegian / Sets the language for audio.
  • Page 43 FUNCTION SETUP ■ Video Video TV Aspect 16:9 Wide HDMI Select YCbCr HDMI RGB Setting Normal HDMI Auto Format HDMI Video Resolution Auto HDMI Deep Color Auto Component Output 480i • For how to select the setting items and options, refer to “Custom” on page 41. Setting items Options TV Aspect...
  • Page 44 FUNCTION SETUP Setting items Options Still Mode* Auto*: Adjusts picture resolution and Automatically selects the best resolution setting (“Frame” or “Field”) based quality in still mode. on the data characteristics of the pictures. Field: Stabilizes the pictures, although the picture quality may become coarse due to the limited amount of data.
  • Page 45 FUNCTION SETUP ■ Audio Audio BD Audio Mode HD Audio Output HDMI Audio Out HDMI Multi (Normal) 7.1ch Audio Out Multi Channel Down Sampling Auto • For how to select the setting items and options, refer to “Custom” on page 41. Setting items Options BD Audio Mode...

  • Page 46: Speaker Setting

    FUNCTION SETUP ■ Digital out setting When “Audio Mute” is selected in “HDMI Audio Out” setting, HDMI audio signal will be muted and the audio signals output from AUDIO OUTPUT (DIGITAL OPTICAL / COAXIAL) jacks change depending on “Digital Out” setting. Quick HDMI Audio Out Audio Mute...
  • Page 47 FUNCTION SETUP How to navigate through “HDMI Multi(LPCM)” and “Multi Channel” setting. Use [K / L] to select your desired menu item then press [Enter]. Use [K / L] to select your setting items. • Press [Return] to go back to the previous screen. Use [s / B] to select desired options.
  • Page 48 FUNCTION SETUP Menu Setting items Options Descriptions Delay Time Distance Feet* Set the desired measure system. This measure system will be used for This is a parameter for Meters optimizing the timing at “Delay Time” setting. Press [Enter] (or which the sound is [s / B]) to switch the settings.
  • Page 49 FUNCTION SETUP ■ Parental Ratings control allows you to set a limit, which prevents your children from viewing inappropriate materials. Playback will be stopped if the ratings exceed the levels you set, and it will require you to enter a password before playing back the disc.
  • Page 50 FUNCTION SETUP ■ Others Others Angle Icon Auto Power Off Panel Display Auto HDMI CEC Mode Select Disc Network Connection Enable(Easy) Software Update For how to select the setting items and options, refer to “Custom” on page 41. Setting items Options Angle Icon On*:...
  • Page 51 *) Settings with (*) are the default. • HDMI CEC allows integrated system control over HDMI and is part of the HDMI standard. In addition to Integra / Onkyo AV components, it allows interoperability with CEC-compatible AV components and TVs made by other manufacturers.

  • Page 52: Network Connection

    FUNCTION SETUP Enable(Easy) Network Connection Network settings are set to the following settings initially. Set up the network connection settings in order to use (In most cases, you can connect to the Internet without BD-Live, DLNA home media server, Netflix / CinemaNow / making any changes to the default settings.) Blockbuster feature or network update function.
  • Page 53 FUNCTION SETUP 3-d) After you enter all correctly, press [Enter]. If you select “Manual”, follow the following • Confirmation message will appear. Select “Yes” to instruction to set the IP address and DNS. complete the settings. 3-a) Use [K / L] to select “IP Address”, “Subnet Mask” or “Default Gateway”, then press [Enter].
  • Page 54 FUNCTION SETUP 3-a) Use [K / L] to select “Proxy Address”, then press • Connection Speed [Enter]. Proxy address setting screen will appear. You can set connection speed as your preference. (The Enter proxy address. default setting is “Auto”.) • The keyboard screen will appear. Follow steps 1 to 4 in “Connection Test”...

  • Page 55: Software Update

    FUNCTION SETUP After completing loading disc, Disable confirmation message will appear. Deactivate all the network connection and settings. Select “Yes” and press [Enter] to start Follow steps 1 to 4 in “Connection Test” updating. on page 52. • It may take a while to complete the updating. Use [K / L] to select “Disable”, then press (Please wait until “100%”...
  • Page 56 FUNCTION SETUP Initialize Initialize the setting, SD Memory Card, network setting or deactivate Netflix. In stop mode, press [Setup]. Use [K / L] to select , then press [Enter]. Use [K / L] to select a desired option, then press [Enter]. “Setup”: Resets the setup menu to the default.

  • Page 57: Troubleshooting

    TROUBLESHOOTING If the unit does not perform properly when operated as instructed in this manual, check the unit, consulting the following checklist. Problem Solution No power. - Check if the AC cord is properly connected. - Unplug the AC cord once, and wait for 5-10 seconds and then plug it in again. No sound or picture.
  • Page 58 Cannot use Netflix feature. - Netflix is available only in the United States. - Check if the network connection is properly made. - Visit netflix.com/Integra on your PC and become a Netflix member. - Visit netflix.com on your PC. Cannot add movies or TV episodes to the instant Queue.

  • Page 59: Glossary

    GLOSSARY Analog Audio Digital Audio An electrical signal that directly represents sound. An indirect representation of sound by numbers. During Compare this to digital audio which can be an electrical recording, the sound is measured at discrete intervals signal, but is an indirect representation of sound. See also (44,100 times a second for CD audio) by an analog-to- “Digital Audio”.
  • Page 60 GLOSSARY JPEG (Joint Photographic Experts Group) Router JPEG is a method of compressing still picture files. You can A networking device which distinguishes the IP address copy JPEG files on BD-RE/-R, DVD-RW/-R, CD-RW/-R, SD assigned to each device and routing and forwarding Memory Card or DLNA home server from a computer and information in the computer network.

  • Page 61: Language Code

    LANGUAGE CODE Language Code Language Code Language Code Language Code French [FRE] 5264 Macedonian 5957 Siswat 6565 Abkhazian 4748 Frisian 5271 Malagasy 5953 Slovak [SLO] 6557 Afar 4747 Galician 5358 Malay 5965 Slovenian 6558 Afrikaans 4752 Georgian 5747 Malayalam 5958 Somali 6561 Albanian...

  • Page 62: Specifications

    SPECIFICATIONS General Signal system NTSC color Power requirements 120V AC, 60Hz Power consumption 25W (standby: 0.6W) Dimensions (width x height x depth) x 4- x 12- inches (435 x 108 x 309mm) Weight 10.9 lbs ( 4.9kg ) Operating temperature 41°F (5°C) to 104°F (40°C) Operating humidity Less than 80% (no condensation)

  • Page 63: Network Service Disclaimer

    NETWORK SERVICE DISCLAIMER Network Service Disclaimer Content and services made available through this product are transmitted by third parties by means of networks and transmission facilities over which Company has no control and third party services may be terminated or interrupted at any time, and Company makes no representation or warranty that any content or service will remain available for any period of time.
  • Page 64 Integra Division of ONKYO U.S.A. CORPORATION 18 park Way, Upper Saddle River, N.J. 07458, U.S.A. Tel: 800-225-1946, 201-818-9200 Fax: 201-785-2650 http://www.integrahometheater.com Integra Division of ONKYO CORPORATION Printed in China Sales & Product Planning Div.: 2-1, Nisshin-cho, Neyagawa-shi, OSAKA 572-8540, JAPAN E5SF0UD / 1VMN29853A ★★★★...
