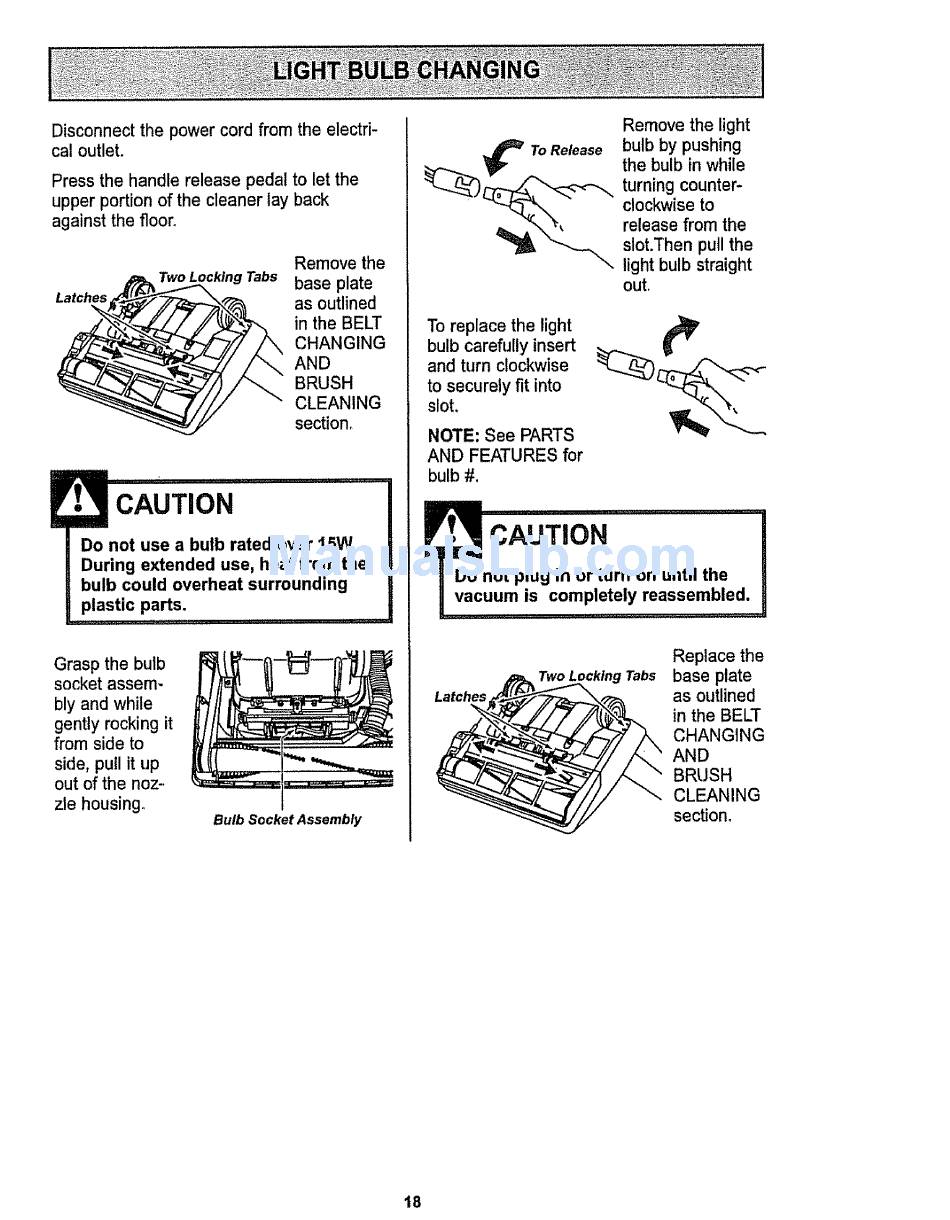

Disconnect the power cord from the electri-
cal outlet.
Press the handle release pedal to let the
upper portion of the cleaner lay back
against the floor°
Latches
Two Locking Tabs
Remove the
base plate
as outlined
in the BELT
CHANGING
AND
BRUSH
CLEANING
section_
CAUTION
Do not use a bulb rated over t5W.
During extended use, heat from the
bulb could overheat surrounding
plastic parts.
................ •..:........,........
Grasp the bulb
socket assem-
bly and while
gently rocking it
from side to
side, pull it up
out of the noz-
zle housing.
/!
Ft_
Bulb Socket Assembly
Remove the light
To Release
bulb by pushing
the bulb in while
__ turning counter-
clockwise to
release from the
slot.Then pull the
light bulb straight
out.
To replace the light
bulb carefully insert
and turn clockwise
to securely fit into
slot,
NOTE: See PARTS
AND FEATURES for
bulb #.
Latches
Two Locking Tabs
Replace the
base plate
as outlined
in the BELT
CHANGING
AND
BRUSH
CLEANING
section_
