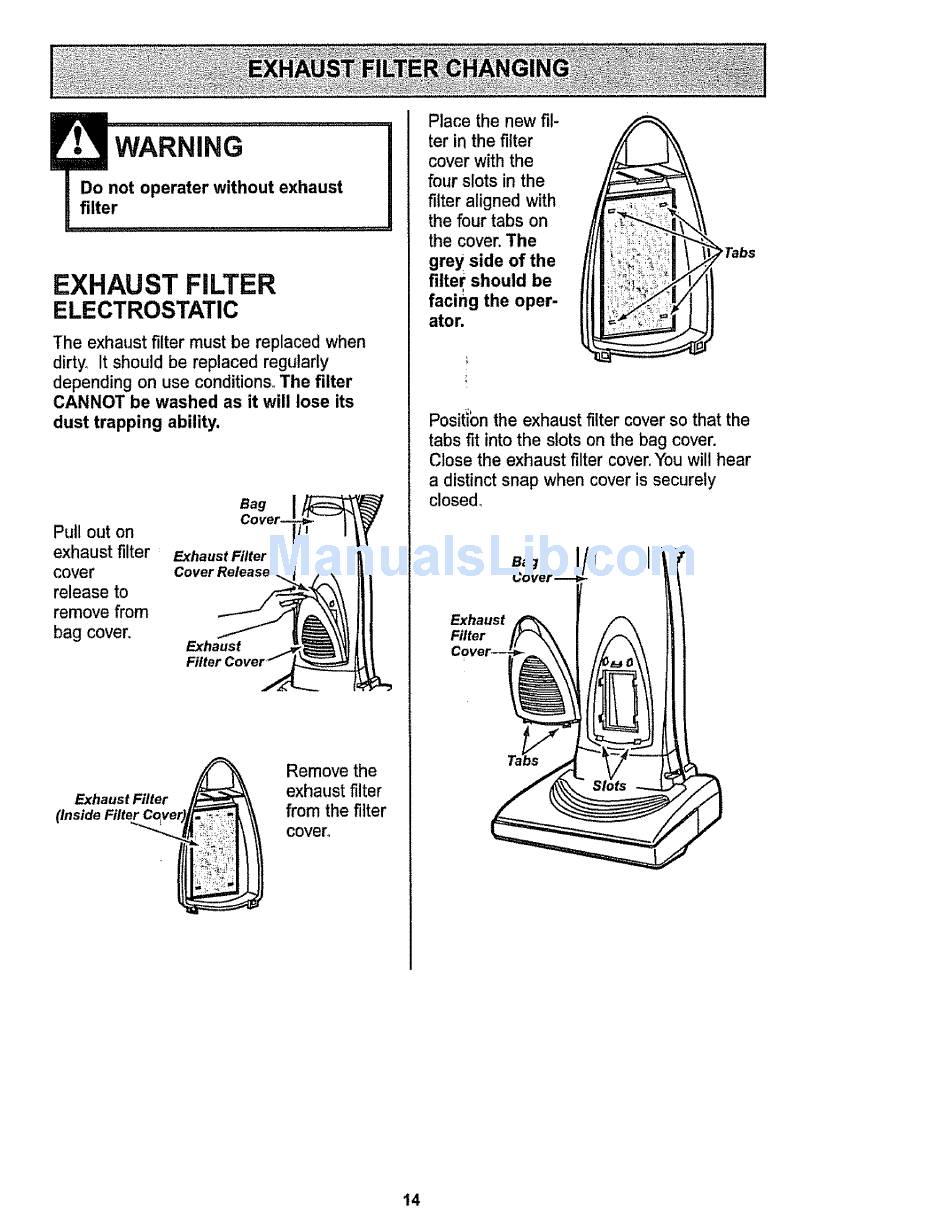

Exhaust Filter Changing - Sears Kenmore Vacuum Cleaner Owner's Manual

EXHAUST FILTER
ELECTROSTATIC
The exhaust filter must be replaced when
dirty_ It should be replaced regularly
depending on use conditions. The filter
CANNOT be washed as it will lose its
dust trapping ability,
Pull out on
exhaust filter
cover
release to
remove from
bag cover.
Bag
Cover--
Exhaust Filter
Cover Release
Exhaust
Filter Cover /
Exhaust Filter
(Inside
Remove the
exhaust filter
from the filter
cover°
Place the new fil-
ter in the filter
cover with the
four slots in the
filter aligned with
the four tabs on
the cover. The
grey side of the
filter should be
facing the oper-
ator.
i Tabs
Positibn the exhaust filter cover so that the
tabs fit into the slots on the bag cover.
Close the exhaust filter cover. "Youwill hear
a distinct snap when cover is securely
closed.
Exhaust
Filter
I
!
!
t4
