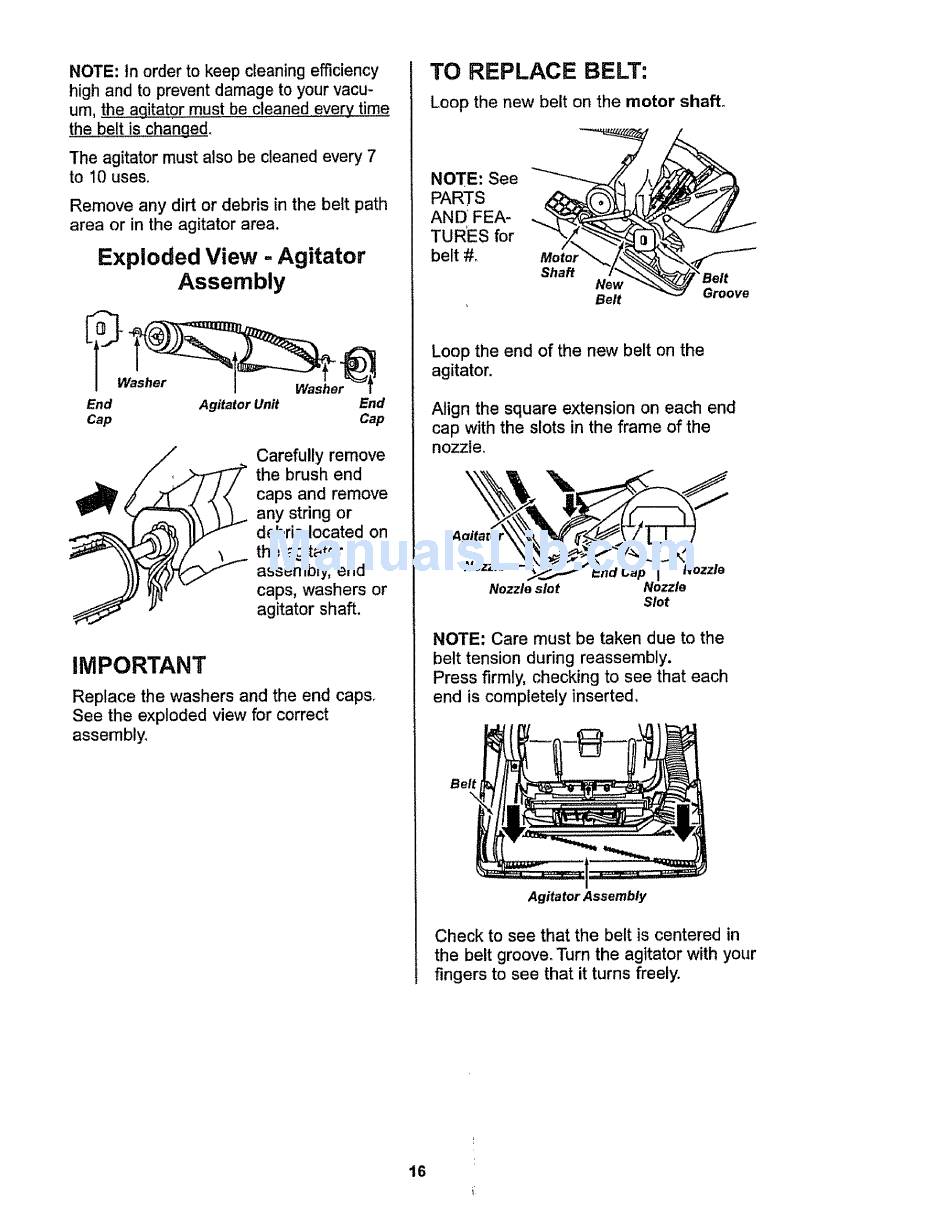

Sears Kenmore Vacuum Cleaner Owner's Manual page 16

NOTE: tn order to keep cleaning efficiency
high and to prevent damage to your vacu-
um, the agitator must be cleaned even/time
the belt is change&
The agitator must also be cleaned every 7
to 10 uses,
Remove any dirt or debris in the belt path
area or in the agitator area.
Exploded View = Agitator
Assembly
__Washer Washer_
End Agitator Unit End
Cap Cap
/" Carefully remove
the brush end
caps and remove
any string or
_ debris located on
the agitator
assembly, end
caps, washers or
agitator shaft.
IMPORTANT
Replace the washers and the end caps_
See the exploded view for correct
assembly,
TO REPLACE BELT:
Loop the new belt on the motor shaft°
NOTE: See
PARTS
AND FEA-
TURES for
belt #o
Motor
Shaft
New
Belt
Groove
Loop the end of the new belt on the
agitator.
Align the square extension on each end
cap with the slots in the frame of the
nozzle_
Nozzlre__
Nozzle slot
Slot
NOTE: Care must be taken due to the
belt tension during reassembly.
Press firmly, checking to see that each
end is completely inserted,
Belt
X
FJ
Agitator Assembly
Check to see that the beet is centered in
the belt groove. Turn the agitator with your
fingers to see that it turns freely.
z
