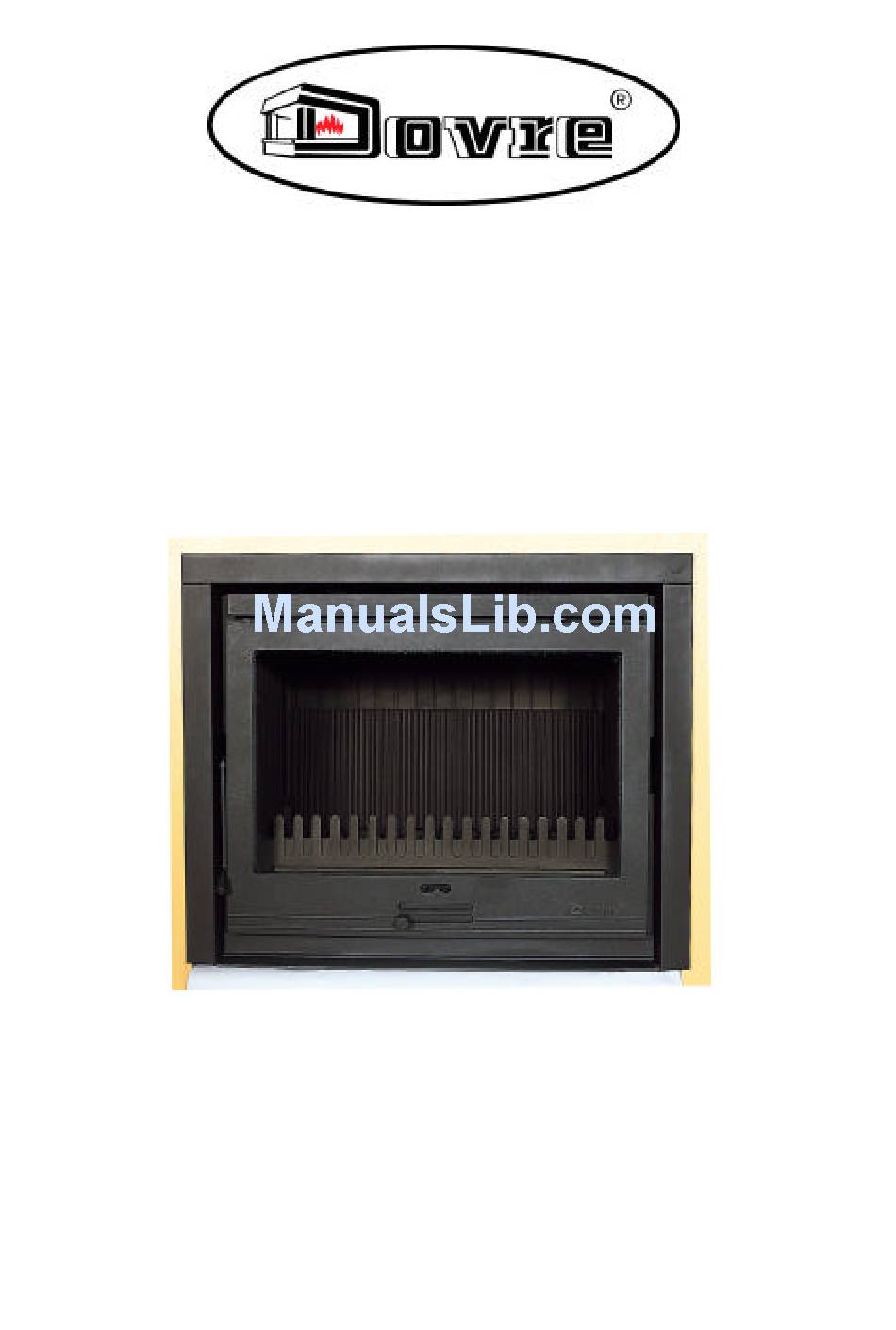

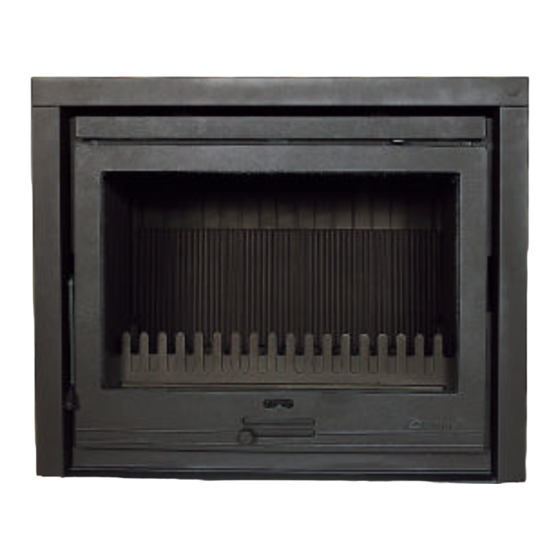

- Page 1 FIREPLACE 2020/2220/2520/2210/2510/2200/2500 INSTALLATION INSTRUCTIONS AND OPERATING MANUAL 2020/2220/2520/2210/2510/2200/2500 03.27883.100...
-
Page 2: Table Of Contents
Table of contents page Foreword Introduction ........................3 Safety ..........................3 Principle ..........................4 Installation guideline ......................5 4.1. Preparatory measures .....................5 4.1.1. The chimney ......................5 4.1.2. Ventilation ......................6 4.1.3. Floor, walls ......................7 4.1.4. Combustible material round the fireplace ..............8 4.2. Preparation ........................8 4.2.1. Changing the direction of the door-opening ..............8 4.2.2. -
Page 3: Introduction
Save this booklet and pass to any subsequent user who can also profit by it. Introduction Your DOVRE purchase has made you the owner of a high quality product that sy m - bolizes a new generation of energy -saving and ecologically safe heaters, producing convection heat as well as radiant heat with optimum efficiency. -
Page 4: Principle
Principle The Dovre model is designed to provide a fireplace convection system without the need to construct a masonry convection chamber. The principle of operation is that the cooler air from the lower part of the room is drawn under the base of the inner cast iron unit. -
Page 5: Installation Guideline
Installation guideline 4.1. Preparatory measures The fireplace should be hermetically connected to a well-functioning chimney, suffi- ciently enclosed to keep combustible materials (floor and walls) at a distance, and should be installed in a room with sufficient ventilation. Please inform about national or local norms and regulations concerning this subject. Your distributor will give y ou the necessary advice. -
Page 6: Ventilation
This precaution is particularly necessary in well-insulated rooms with mechanical ventilation. The DOVRE fireplace has been designed to produce most heat by means of convec- tion. Heat is mainly transmitted through the back panel, the lateral panels, and the smoke dome. -
Page 7: Floor, Walls
Convection air may be led to arrive from both the room and outside (other room, cellar, exterior) to the bottom side of the fireplace. In case convection air is supplied (directly or indirectly) from outside, it may also be useful as a supply of fresh air for combustion. -
Page 8: Combustible Material Round The Fireplace
4.1.4. Combustible material round the fireplace Within the radiation area of the fireplace Assure a distance of at least 80 cm between the opening of the fireplace and com - bustible material. That distance may be reduced to 40 cm if the combustible mate- rial is sufficiently shielded and well ventilated. -
Page 9: Fitting Frame Surround
4.2.3. Fitting frame surround The decorative frames, 3 and 4 sides versions are fitted to the applaice after installa- tion. Ensure that sufficient space is allowed to both sides of the recess. 2020/2220/2520/2210/2510/2200/2500 03.27883.100... -
Page 10: Assembling The "Cold Handle
4.2.4. Assembling the “cold handle” Assemble the different parts of the handle, I.e. a screw M8x50, a wooden handle and a nut, as indicated on the s- ketch. 4.2.5. Electrical connection For protection, the unit must always be connected to power. The appliance is sup- plied with a speed control to vary the running speed of the fans. -
Page 11: Installation
4.3. Installation The appliance is designed to be built into a new or existing chimney breast installa- tion to provide space heating by radiant an convected heat. 4.3.1. To be built into a new chimney Build the new fire place around the appliance ensuring that no materials are built onto the appliance. -
Page 12: Finishing
4.4. Finishing When the appliance is installed in the right place, its connection with the chim- ney made airtight, and the masonry mantle completely mounted, all loose parts are installed in the appliance. Your fireplace is now ready to be used. Depending on the materials used for mounting, it is recommended to wait for some time until all masonry is dry before lighting a fire. - Page 13 Chimney Combustible ceiling Refractory Opening against cement or spe- eventual pressure cial connector buildup Isolation (min Extra opening 5 cm) for ventilation fireplace Fireproff wall min 10 cm Stainless steel pipe Insulation (if necessary) Combustible wall Canvection air outlet Convection air (min 15 mm) Convection air inlet...
- Page 14 Existant chimney Extra opening for ventilation firepalce Refractory cement or special connector Existant fire- place Opening against eventual pressure builup Convection air outlet Ventilation: min 15 mm) Convection air inlet Example of installation in an existante fireplace 2020/2220/2520/2210/2510/2200/2500 03.27883.100...
-
Page 15: Instructions For Use
Instructions for use 5.1. Fuel The only suitable fuels for this stove are wood, brown coal briquettes and charcoal (when you use a coal-basket). No other fuels are allowed to be burnt, as they can inflict serious damage to your stove. Do not burn any tre ated wood either, such as scrap wood, dyed wood, impregnated or preserved wood, plywood or chipboard. -
Page 16: Burning Wood
glowing enough, you can put the logs, the charcoal or the brown coal briquettes on the fire. 5.3. Burning wood Always keep the stove doors tightly closed. Never let the doors open when the fire is burning. Add extra fuel when necessary. Never add too much fuel. It is best to fill the stove for one third and to top it up on a regular basis. -
Page 17: Ash Removal
Before adding some extra coals, use the shaker grate or the supplied shovel, and shake till the glowing parts fall into the ash plate; then add the coals. After a few minutes, add some more coals until you can only see the glow of the previous filling. -
Page 18: Maintenance
Maintenance It takes only little effort to keep your appliance in good condition. Regularly check whether the sealing cord still closes the doors tightly enough. Minor paint damage can be touched up with a can of spray paint. Your dealer can supply you with the correct spray product. -
Page 19: Annex 1 : Technical Data Sheet
2020/2220/2520/2210/2510/2200/2500 03.27883.100... -
Page 20: Annex 2 : Dimensions
Annex 2 : Dimensions 2500 2200 2020/2220/2520/2210/2510/2200/2500 03.27883.100... - Page 21 2210S 2510S 2220 2520S 2020/2220/2520/2210/2510/2200/2500 03.27883.100...
- Page 22 2510D 2020S 2520S/2/3 2020/2220/2520/2210/2510/2200/2500 03.27883.100...
- Page 23 Notified body: 1625 Wij, Nous, Wir, Dovre nv Nijverheidsstraat 18 B2381 Weelde verklaren bij deze dat de inzithaarden 2020; 2220; 2520;2210;2510; 2200; 2500 conform zijn volgens de EN 13229. déclarons que les foyers 2020; 2220; 2520;2210;2510; 2200, 2500 sont con- forme au norme EN 13229.
