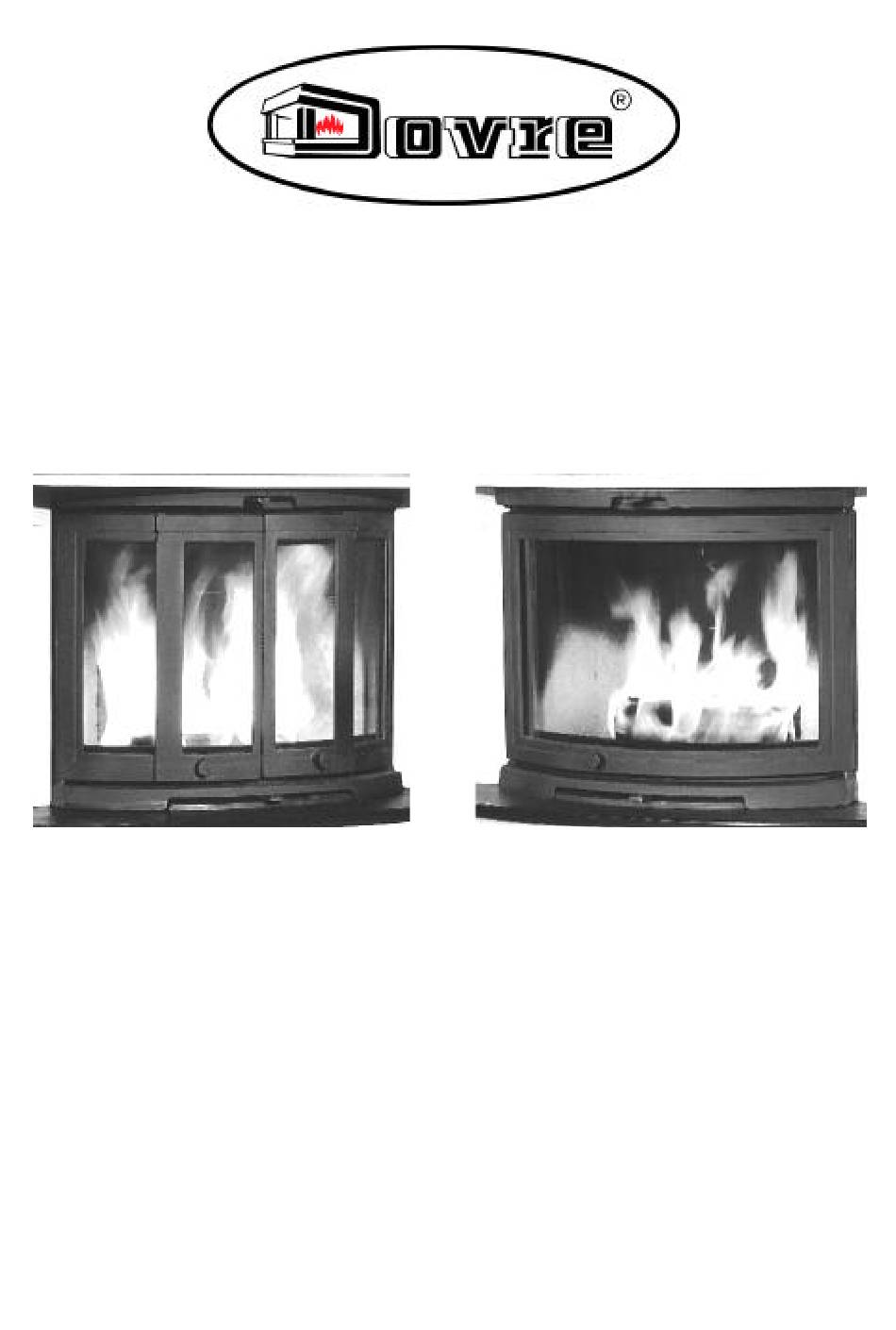

- Page 1 INBOUWHAARD / FOYER FIREPLACE / KAMINEINSATZ 2000CBGL 2000CBBS INSTALLATIEVOORSCHRIFTEN EN GEBRUIKSAANWIJZING INSTALLATION ET MODE D’EMPLOI INSTALLATION INSTRUCTIONS AND OPERATING MANUAL EINBAUANLEITUNG UND GEBRAUCHSANWEISUNG 2000CB 03.27997.000...
-
Page 2: Table Of Contents
Table of contents Foreword ..........................28 Introduction ........................28 Safety ..........................28 Installation guideline ...................... 29 3.1. Preparatory measures ....................29 3.1.1. The chimney ....................29 3.1.2. Ventilation ...................... 30 3.1.3. Floor, walls ..................... 31 3.1.4. Combustible material round the fireplace ............32 3.2. -
Page 3: Foreword
Save this booklet and pass to any subsequent user who can also profit by it. Introduction Your DOVRE purchase has made you the owner of a high quality product that sy m - bolizes a new generation of energy -saving and ecologically safe heaters, producing convection heat as well as radiant heat with optimum efficiency. -
Page 4: Installation Guideline
Installation guideline 3.1. Preparatory measures The fireplace should be hermetically connected to a well-functioning chimney, suffi- ciently enclosed to keep combustible materials (floor and walls) at a distance, and should be installed in a room with sufficient ventilation. Please inform about national or local norms and regulations concerning this subject. Your distributor will give y ou the necessary advice. -
Page 5: Ventilation
This precaution is particularly necessary in well-insulated rooms with mechanical ventilation. The DOVRE fireplace has been designed to produce most heat by means of convec- tion. Heat is mainly transmitted through the back panel, the lateral panels, and the smoke dome. -
Page 6: Floor, Walls
Convection air may be led to arrive from both the room and outside (other room, cellar, exte- rior) to the bottom side of the fireplace. In case convection air is supplied (directly or indirectly) from outside, it may also be useful as a supply of fresh air for combustion. -
Page 7: Combustible Material Round The Fireplace
3.1.4. Combustible material round the fireplace Within the radiation area of the fireplace Assure a distance of at least 80 cm between the opening of the fireplace and com - bustible material. That distance may be reduced to 40 cm if the combustible mate- rial is sufficiently shielded and well ventilated. -
Page 8: Assembly Of The Smoke Dome And The Flue Collar
3.2.2. Assembly of the smoke dome and of the flue collar The smoke dome must be fixed to the top of the device and attached by means of the clamps supplied. A ssure proper sealing by means of the kit or paste supplied. It is recommended to install the smoke dome with its exhaust bac k-... -
Page 9: Installation Of The Fireplace
3.3. Installation of the fireplace 3.3.1. Positioning and connection Put the fireplace at proper height. Make sure that it is stable and level and that the side panels are perpendic ular to the bottom plate. Put the fireplace far enough from the walls, so that minimum 10 cm of free air passage re- mains between the back of... -
Page 10: Finishing
Convection chamber: The convection chamber topside must be airtight. For that purpose, you can use a cover of steel, concrete, or any other fire-resistant material, and put extra insulation on top of it. Make sure that the cover is well horizontally placed. The cover must be installed at 30 cm at least above the smoke dome. - Page 11 Chimney Fireproof Combusti- ceiling ble ceiling Refractory c e- ment or special connector Opening against Cover plate eventual pressu- re buildup Insulation (min 10 cm) Convection Air outlet Fireproof wall Stainless steel min 10 cm pipe Insulation (if necessary) Combustible wall Convection area Convection...
-
Page 12: Instructions For Use
Instructions for use 4.1. Opening and closing the door(s) The door can be opened and closed by means of the cold handle supplied. 4.2. Fuel The only suitable fuel for this stove is wood. No other fuels are allowed to be burnt, as they can inflict serious damage to your stove. -
Page 13: Burning Wood
4.4. Burning wood The best way to control the fire is to completely close the lower air slide, which you use to get the fire started, and to regulate the air supply with the upper air slide only. In case the air supply through the upper slide seems insufficient, or if you would like to fan the fire, you can partially open the lower air slide for a while. -
Page 14: Weather Conditions
4.7. Weather conditions Attention! Mist and heavy fog will block the chimney's smoke outlet and may lead to smoke emissions into the living room. It is best not to use the fireplace under these weather conditions. Maintenance It takes only little effort to keep your appliance in good condition. Regularly check whether the sealing cord still closes the doors tightly enough. -
Page 15: Vorwort
Bijlage 1 : technische gegevens Annexe 1 : données techniques Annex 1 technical data sheet Anlage 1 : technischen Daten Model / Modèle / Modell 2000CB/GL-BS Nominaal vermogen Puissance nominale 8 kW (10 kW max) Nominal heat output Nominalleistung Aanbevolen brandstoffen Hout Combustibles conseillés Bois... -
Page 16: Montagevorschrift
2000CB 03.27997.000... -
Page 17: Lüftung Des Räumes
2000CB 03.27997.000... -
Page 18: Fussboden, Wände
Notified body: 1641 Wij, Nous, Wir, Dovre nv Nijverheidsstraat 18 B2381 Weelde verklaren bij deze dat de inbouwhaard 2000CB conform is volgens de EN 13229. déclarons que le foyer 2000CB est conforme au norme EN 13229. declare that the fireplace 2000CB is in conformity with the EN 13229. -
Page 20: Montage Der Rauchglocke Und Des Anschlusskragen
E & O E...
