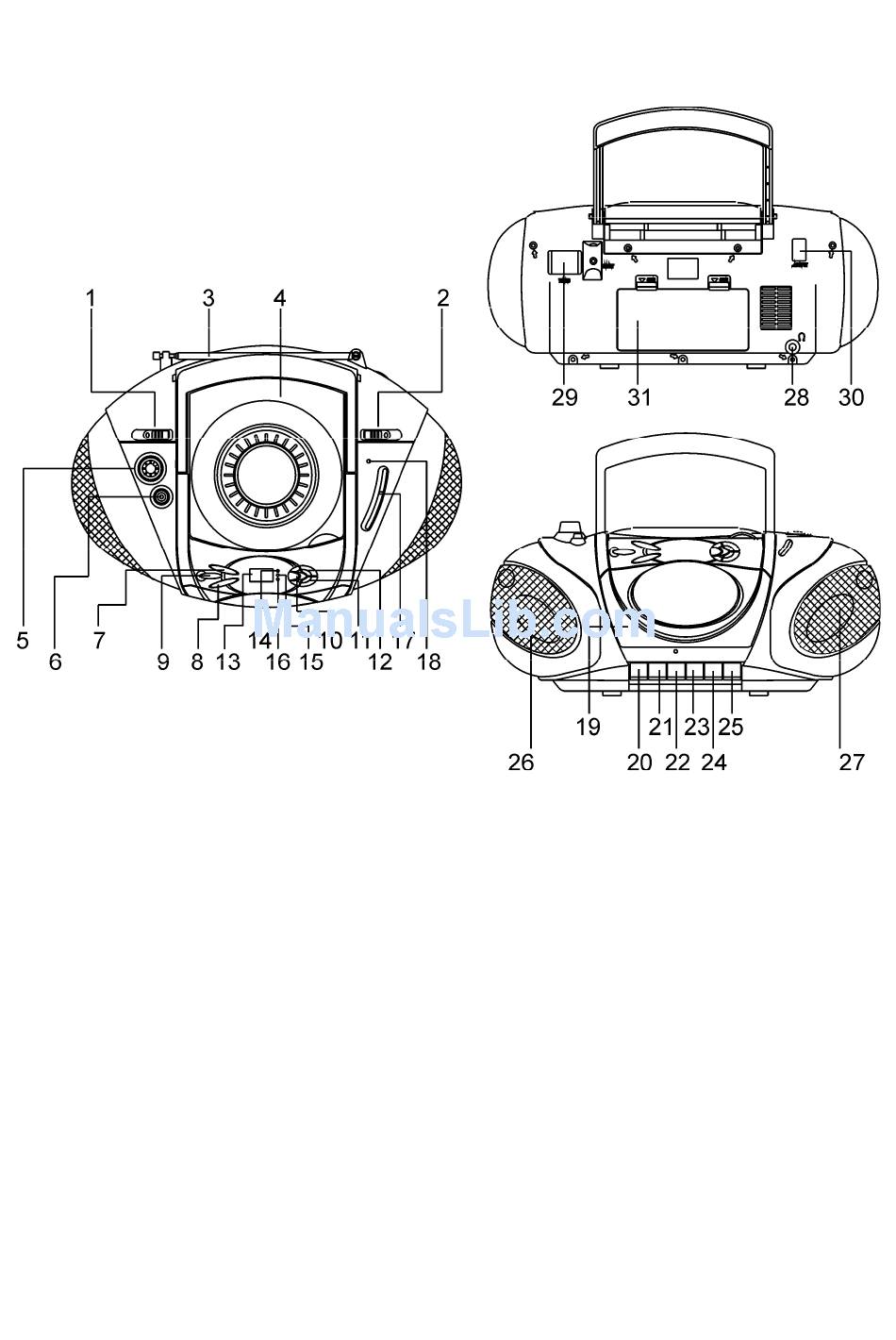

Location of controls

(1) FUNCTION SWITCH (TAPE/RADIO/CD)
(2) BAND SWITCH
(3) FM ANTENNA
(4) CD DOOR
(5) VOLUME CONTROL KNOB
(6) BASS BOOST BUTTON
(7) CD SKIP/SEARCH FORWARD BUTTON
(8) CD SKIP/SEARCH BACKWARD BUTTON
(9) CD PROGRAM BUTTON
(10) CD REPEAT BUTTON
(11) CD STOP BUTTON
(12) CD PLAY/PAUSE BUTTON
(13) CD LED DISPLAY
(14) CD PLAY/PAUSE LED INDICATOR
(15) CD REPEAT LED INDICATOR
(16) CD PROGRAM LED INDICATOR
INSTRUCTION MANUAL
(17) DIAL POINTER
(18) FM STEREO LED INDICATOR
(19) CASSETTE COMPARTMENT
(20) CASSETTE RECORD BUTTON
(21) CASSETTE PLAY BUTTON
(22) CASSETTE REWIND BUTTON
(23) CASSETTE FAST FORWARD BUTTON
(24) CASSETTE STOP/EJECT BUTTON
(25) CASSETTE PAUSE BUTTON
(26) SPEAKER LEFT
(27) SPEAKER RIGHT
(28) STEREO HEADPHONE JACK
(29) TUNING KNOB
(30) AC SOCKET
(31) BATTERY DOOR
English - 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TCD-47 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Denver TCD-47

Summary of Contents for Denver TCD-47

  • Page 1: Location Of Controls

    INSTRUCTION MANUAL Location of controls (1) FUNCTION SWITCH (TAPE/RADIO/CD) (17) DIAL POINTER (2) BAND SWITCH (18) FM STEREO LED INDICATOR (3) FM ANTENNA (19) CASSETTE COMPARTMENT (4) CD DOOR (20) CASSETTE RECORD BUTTON (5) VOLUME CONTROL KNOB (21) CASSETTE PLAY BUTTON (6) BASS BOOST BUTTON (22) CASSETTE REWIND BUTTON (7) CD SKIP/SEARCH FORWARD BUTTON...
  • Page 2 AC OPERATION Before operation please be sure that the VOLTAGE on the set corresponds to the VOLTAGE of your local area. Unravel the AC Line Cord, insert one end into the AC jack on the set, and the other end into a standard AC outlet.
  • Page 3 Auto Stop System When the tape runs to its end during playback or recording, the cassette operation will be stopped automatically. CAUTION To avoid damage to the cassette mechanism or to the cassette tapes, always depress the STOP/EJECT Button between each operation! RECORDING FROM THE RADIO 1.
  • Page 4 REPEAT MODE 1. REPEAT 1: When the REPEAT BUTTON is pressed once, the REPEAT LED INDICATOR will light and flash continuously. This single track of music will be repeated. 2. REPEAT ALL: When the REPEAT BUTTON is pressed twice, the REPEAT LED INDICATOR will stay lit. The whole disc can be played continuously.
  • Page 5 5. Activate the CD player, playing in a desired TRACK as described in the COMPACT DISC PLAYER OPERATION section. Release the PAUSE BUTTON of the cassette deck to start recording. 6. To stop recording temporarily, press the PAUSE BUTTON. To continue recording, press the PAUSE BUTTON again.
