Denver TCD-30 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

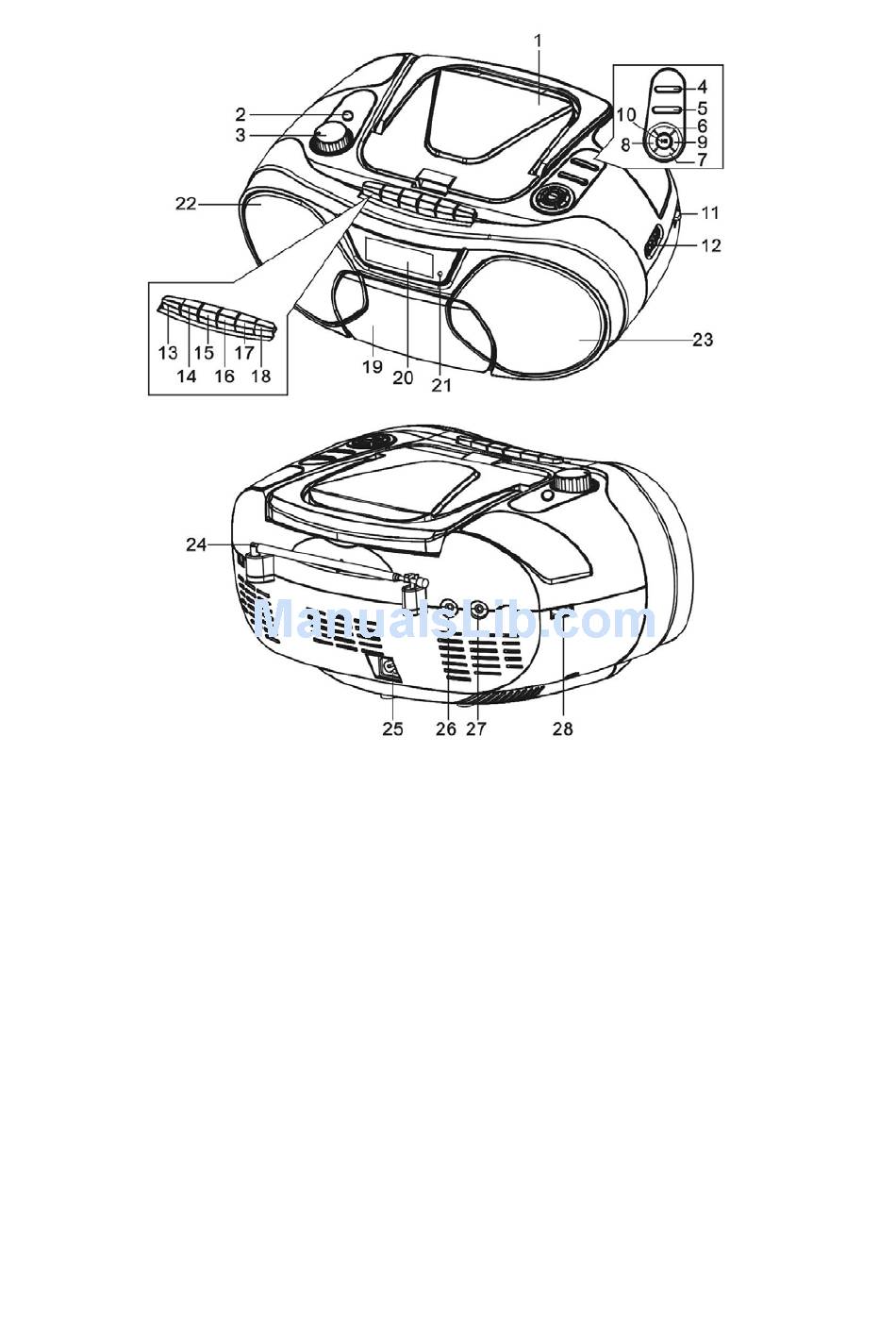

LOCATION OF CONTROL

1. CD DOOR
Bass Boost BUTTON
2.
VOLUME CONTROL KNOB
3.
4. REPEAT BUTTON
5. PROGRAM BUTTON
6. RANDOM BUTTON
CD STOP BUTTON
7.
SKIP/SEARCH BACKWARD "- "
8.
BUTTON
SKIP/SEARCH FORWARD "+"
9.
BUTTON
CD PLAY/PAUSE BUTTON
10.
11. BAND SWITCH
12. TUNING KNOB
13. CASSETTE PAUSE BUTTON
CASSETTE STOP/EJECT BUTTON
14.
CASSETTE F. FORWARD BUTTON
15.
16. CASSETTE REWIND BUTTON
17. CASSETTE PLAY BUTTON
18. CASSETTE RECORD BUTTON
CASSETTE DOOR
19.
21. FM STEREO LED INDICATOR
22. LEFT SPEAKER
23. RIGHT SPEAKER
24. FM ANTENNA
25. AC SOCKET
26. AUX IN JACK
27.
28. FUNCTION SWITCH
English - 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TCD-30 and is the answer not in the manual?

Questions and answers

Related Manuals for Denver TCD-30

Summary of Contents for Denver TCD-30

  • Page 1 LOCATION OF CONTROL 1. CD DOOR CASSETTE STOP/EJECT BUTTON BASS BOOST BUTTON CASSETTE F. FORWARD BUTTON VOLUME CONTROL KNOB 16. CASSETTE REWIND BUTTON 4. REPEAT BUTTON 17. CASSETTE PLAY BUTTON 5. PROGRAM BUTTON 18. CASSETTE RECORD BUTTON 6. RANDOM BUTTON CASSETTE DOOR CD STOP BUTTON 20.

  • Page 2: Radio Operation

    AC OPERATION Before operation please ensure that the voltage on the set corresponds to the voltage of your local area. Unravel the AC Line Cord; insert one end into AC socket on the unit and the other end into a standard AC outlet. Remarks: 1) In case of malfunction due to electrostatic discharge (ESD), reset the unit by re-connecting the AC cord again to resume to normal operation.
  • Page 3 STEREO HEADPHONE JACK (Earphone/Headphone is not included) For private listening, insert the plug of a Stereo Headphone into the STEREO HEADPHONE JACK and adjust the VOLUME CONTROL KNOB accordingly. Be sure that your headphone has a 3.5mm diameter stereo plug with an impedance of 32 ohms.

  • Page 4: Recording From The Radio

    Recording from the radio Tune to a desired radio program as described in the “RADIO OPERATION” section. 2. Insert a blank cassette tape into the cassette compartment. 3. Press the PAUSE BUTTON. Press the RECORD BUTTON. The PLAY BUTTON is engaged simultaneously to start recording.

  • Page 5: Repeat Mode

    Play/Pause Mode When the PLAY/PAUSE BUTTON is pressed during CD stop mode, the first track will be played. The “PLAY” Indicator and the specific track number will be shown on the LCD DISPLAY. For interruption while CD is playing, press CD PLAY/PAUSE BUTTON once. The “PLAY”...
  • Page 6 Random Play Mode This feature allows the track on the disc to be played in a random order. During the CD stop mode, press the RANDOM BUTTON, the “ ” indicator will be shown on the LCD DISPLAY. Press the CD PLAY/PAUSE BUTTON and all music will be played in random order automatically.
  • Page 7 Press RECORD BUTTON and PLAY BUTTON simultaneously for recording stand-by. With the built-in ALC, the best recording quality is adjusted automatically. Activate the CD player by playing a desired track as described in the COMPACT DISC PLAYER OPERATION section. Release the PAUSE BUTTON of the cassette deck to start recording.
