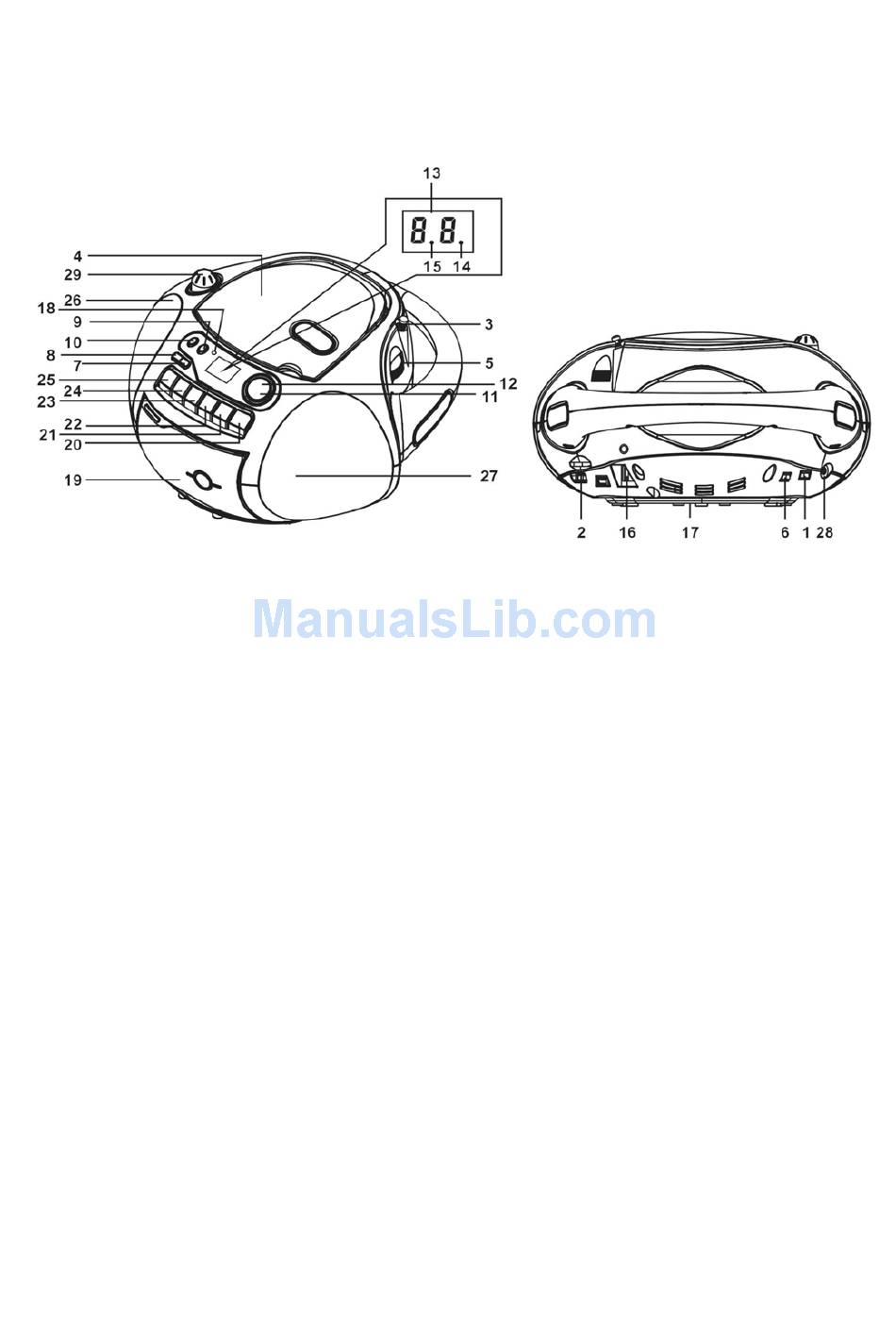

Location of controls
(1) FUNCTION SWITCH
(RADIO,TAPE/OFF,CD)
BAND SWITCH
(2) FM ANTENNA
(3) CD DOOR
(4) TUNING KNOB
BASS BOOST SWITCH
(5) CD SKIP/SEARCH FORWARD
BUTTON
(6) CD SKIP/SEARCH BACKWARD
BUTTON
(7) CD PROGRAM BUTTON
(8) CD REPEAT BUTTON
(9) CD STOP BUTTON
(10) CD PLAY/PAUSE BUTTON
(11) CD LED DISPLAY
(12) CD PLAY/PROGRAM LED
INDICATOR
INSTRUCTION MANUAL
(13) CD REPEAT LED INDICATOR
(14) AC SOCKET
BATTERY DOOR
FM STEREO LED INDICATOR
(15) CASSETTE COMPARTMENT
(16) CASSETTE RECORD BUTTON
(17) CASSETTE PLAY BUTTON
CASSETTE REWIND BUTTON
(18) CASSETTE FAST FORWARD
(19) CASSETTE STOP/EJECT
(20) CASSETTE PAUSE BUTTON
(21) SPEAKER LEFT
(22) SPEAKER RIGHT
(23) STEREO HEADPHONE JACK
(24) VOLUME CONTROL KNOB
English - 1
BUTTON
BUTTON
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Denver TCD-29
Summary of Contents for Denver TCD-29
- Page 1 INSTRUCTION MANUAL Location of controls (1) FUNCTION SWITCH (13) CD REPEAT LED INDICATOR (RADIO,TAPE/OFF,CD) (14) AC SOCKET BAND SWITCH BATTERY DOOR (2) FM ANTENNA FM STEREO LED INDICATOR (3) CD DOOR (15) CASSETTE COMPARTMENT (4) TUNING KNOB (16) CASSETTE RECORD BUTTON BASS BOOST SWITCH (17) CASSETTE PLAY BUTTON (5) CD SKIP/SEARCH FORWARD...
-
Page 2: Battery Operation
AC OPERATION Before operation please make sure that the voltage on the set corresponds to the voltage of your local area. Unravel the AC line cord, insert one end into the AC jack on the set and the other end into a standard AC outlet. Remarks: 1. -
Page 3: Cassette Operation
CASSETTE OPERATION Tape Playback Depress the STOP/EJECT BUTTON to open the cassette door. Insert a cassette tape into the CASSETTE COMPARTMENT and push the cassette door to close. Slide the FUNCTION SWITCH to TAPE position. Depress the PLAY BUTTON. Adjust the VOLUME CONTROL KNOB to your desired listening level. To stop the tape, depress the STOP/EJECT BUTTON. - Page 4 7. When the tape runs to its end, the cassette operation will be stopped automatically. CD OPERATION (CD-R/RW PLAYBACK COMPATIBLE) Playing Compact Disc : Should skipping of tracks occur during CD playing, try turning the Note volume down. When CD is playing, do not open the CD Door. 1.
- Page 5 4. To stop the CD, press the CD STOP BUTTON once whether the CD is in Play or Pause mode. Repeat Mode REPEAT 1: When the REPEAT BUTTON is pressed once, the REPEAT LED INDICATOR will light and flash continuously. This single track of music will be repeated.
-
Page 6: Stereo Headphone Jack
while the track number will blink continuously. To check the program you have stored after co mplete programming, press PROGRAM BUTTON once and all programmed tracks will be shown one by one. Note: While the PLAY/PROG. LED INDICATOR is flashing, never press the CD STOP BUTTON otherwise all programmed memory will be cancelled automatically. - Page 7 PLACE. NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Instructions on environment protection Do not dispose of this product in the usual household garbage at the end of its lifecycle; hand it over at a collection point for the recycling of electrical and electronic appliances.
