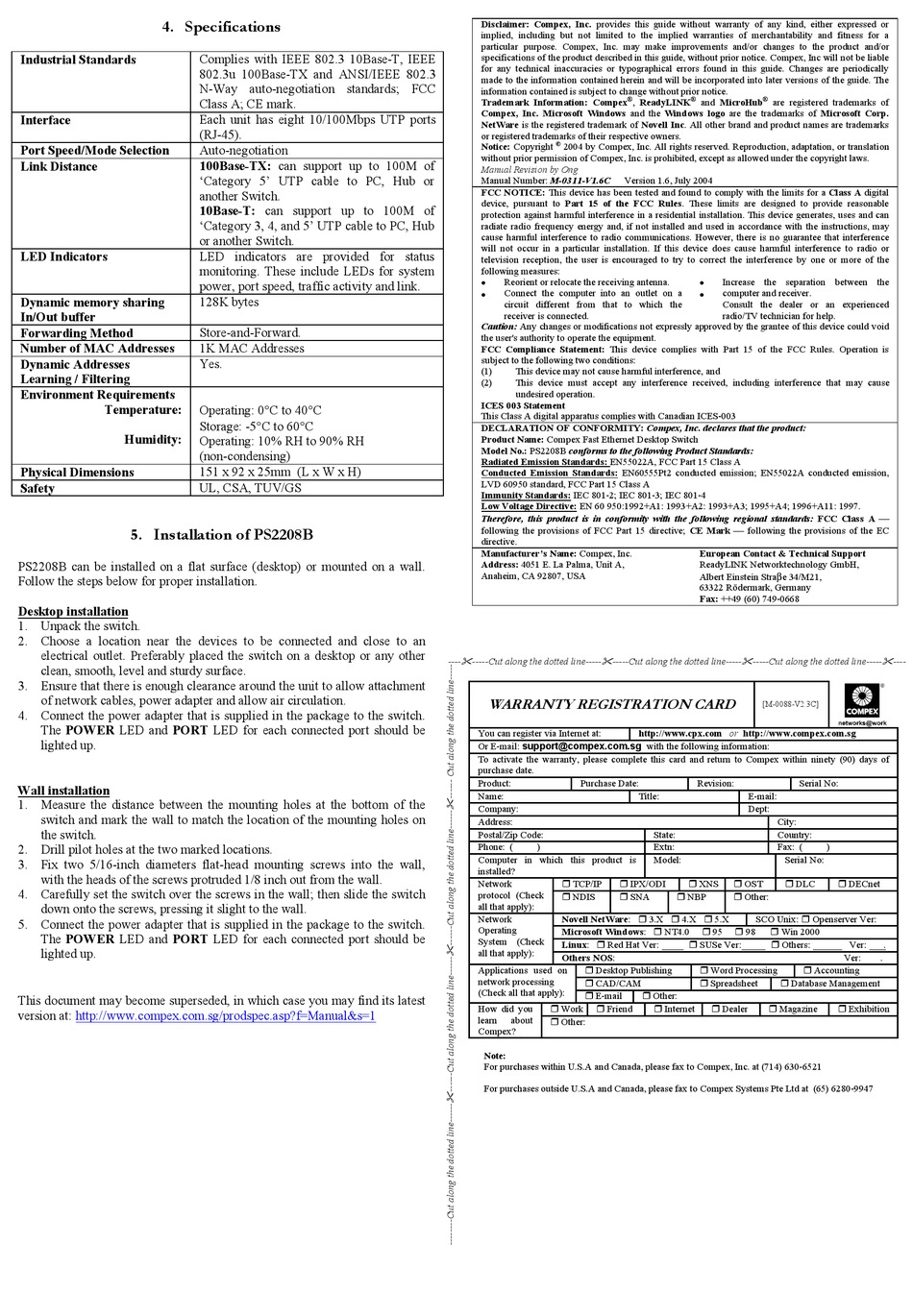

Specifications - Compex ReadyLink PS2208B Quick Install Manual

4. Specifications

Industrial Standards
Interface
Port Speed/Mode Selection
Link Distance
LED Indicators
Dynamic memory sharing
In/Out buffer
Forwarding Method
Number of MAC Addresses
Dynamic Addresses
Learning / Filtering
Environment Requirements
Temperature:
Humidity:
Physical Dimensions
Safety
5. Installation of PS2208B
PS2208B can be installed on a flat surface (desktop) or mounted on a wall.
Follow the steps below for proper installation.
Desktop installation
1. Unpack the switch.
2. Choose a location near the devices to be connected and close to an
electrical outlet. Preferably placed the switch on a desktop or any other
clean, smooth, level and sturdy surface.
3. Ensure that there is enough clearance around the unit to allow attachment
of network cables, power adapter and allow air circulation.
4. Connect the power adapter that is supplied in the package to the switch.
The POWER LED and PORT LED for each connected port should be
lighted up.
Wall installation
1. Measure the distance between the mounting holes at the bottom of the
switch and mark the wall to match the location of the mounting holes on
the switch.
2. Drill pilot holes at the two marked locations.
3. Fix two 5/16-inch diameters flat-head mounting screws into the wall,
with the heads of the screws protruded 1/8 inch out from the wall.
4. Carefully set the switch over the screws in the wall; then slide the switch
down onto the screws, pressing it slight to the wall.
5. Connect the power adapter that is supplied in the package to the switch.
The POWER LED and PORT LED for each connected port should be
lighted up.
This document may become superseded, in which case you may find its latest
version at: http://www.compex.com.sg/prodspec.asp?f=Manual&s=1
Complies with IEEE 802.3 10Base-T, IEEE
802.3u 100Base-TX and ANSI/IEEE 802.3
N-Way auto-negotiation standards; FCC
Class A; CE mark.
Each unit has eight 10/100Mbps UTP ports
(RJ-45).
Auto-negotiation
100Base-TX: can support up to 100M of
'Category 5' UTP cable to PC, Hub or
another Switch.
10Base-T: can support up to 100M of
'Category 3, 4, and 5' UTP cable to PC, Hub
or another Switch.
LED indicators are provided for status
monitoring. These include LEDs for system
power, port speed, traffic activity and link.
128K bytes
Store-and-Forward.
1K MAC Addresses
Yes.
Operating: 0°C to 40°C
Storage: -5°C to 60°C
Operating: 10% RH to 90% RH
(non-condensing)
151 x 92 x 25mm (L x W x H)
UL, CSA, TUV/GS
Disclaimer: Compex, Inc. provides this guide without warranty of any kind, either expressed or
implied, including but not limited to the implied warranties of merchantability and fitness for a
particular purpose. Compex, Inc. may make improvements and/or changes to the product and/or
specifications of the product described in this guide, without prior notice. Compex, Inc will not be liable
for any technical inaccuracies or typographical errors found in this guide. Changes are periodically
made to the information contained herein and will be incorporated into later versions of the guide. The
information contained is subject to change without prior notice.
Trademark Information: Compex
Compex, Inc. Microsoft Windows and the Windows logo are the trademarks of Microsoft Corp.
NetWare is the registered trademark of Novell Inc. All other brand and product names are trademarks
or registered trademarks of their respective owners.
©
Notice: Copyright 2004 by Compex, Inc. All rights reserved. Reproduction, adaptation, or translation
without prior permission of Compex, Inc. is prohibited, except as allowed under the copyright laws.
Manual Revision by Ong
Manual Number: M-0311-V1.6C
FCC NOTICE: This device has been tested and found to comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This device generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this device does cause harmful interference to radio or
television reception, the user is encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
Connect the computer into an outlet on a
•
circuit different from that to which the
receiver is connected.
Caution: Any changes or modifications not expressly approved by the grantee of this device could void
the user's authority to operate the equipment.
FCC Compliance Statement: This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause
undesired operation.
ICES 003 Statement
This Class A digital apparatus complies with Canadian ICES-003
DECLARATION OF CONFORMITY: Compex, Inc. declares that the product:
Product Name: Compex Fast Ethernet Desktop Switch
Model No.: PS2208B conforms to the following Product Standards:
Radiated Emission Standards: EN55022A, FCC Part 15 Class A
Conducted Emission Standards: EN60555Pt2 conducted emission; EN55022A conducted emission,
LVD 60950 standard, FCC Part 15 Class A
Immunity Standards: IEC 801-2; IEC 801-3; IEC 801-4
Low Voltage Directive: EN 60 950:1992+A1: 1993+A2: 1993+A3; 1995+A4; 1996+A11: 1997.
Therefore, this product is in conformity with the following regional standards: FCC Class A 
following the provisions of FCC Part 15 directive; CE Mark  following the provisions of the EC
directive.
Manufacturer's Name: Compex, Inc.
Address: 4051 E. La Palma, Unit A,
Anaheim, CA 92807, USA
