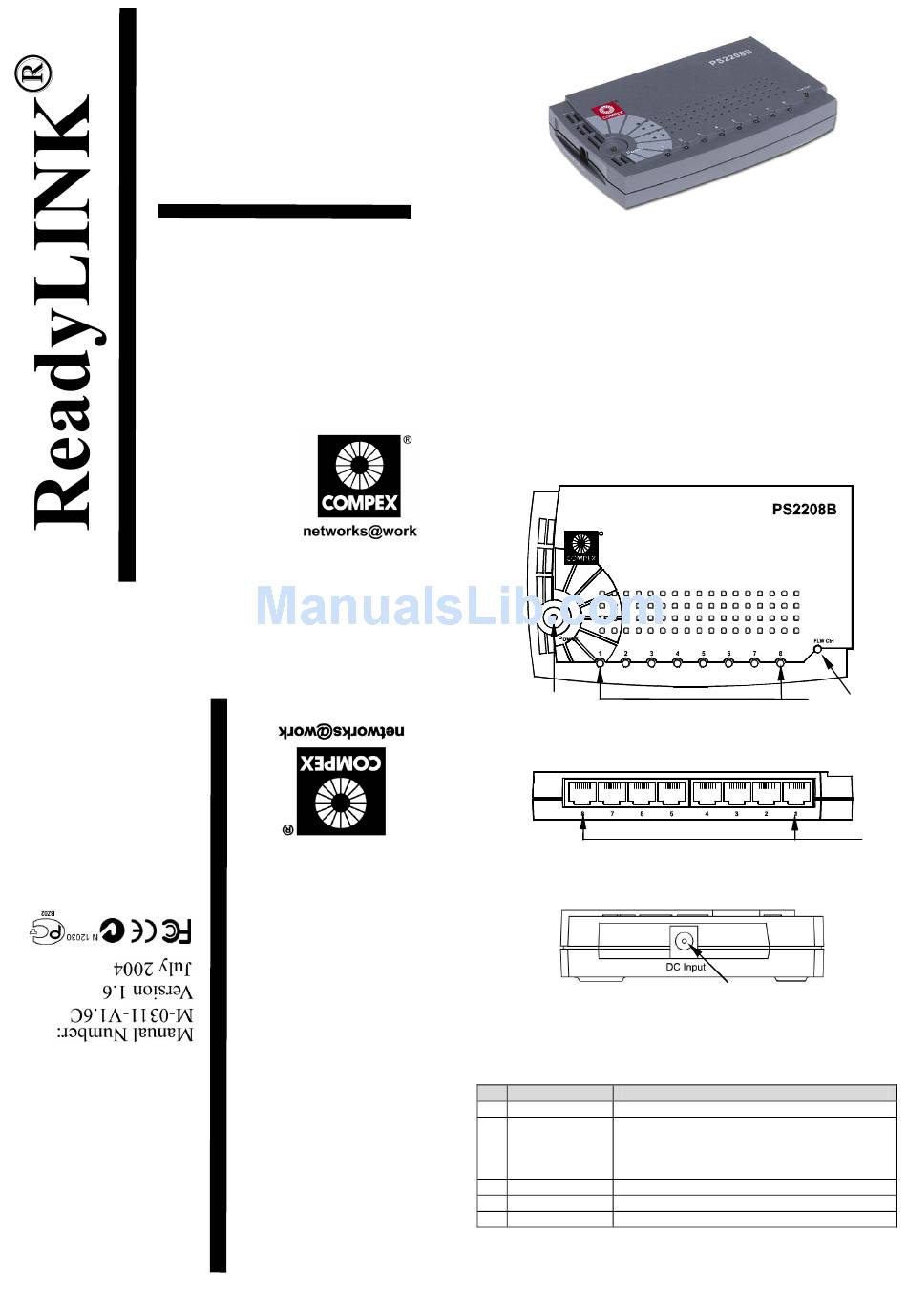

Compex ReadyLink PS2208B Quick Install Manual

Quick Install Guide

Compex Fast
Ethernet Desktop
Switch
PS2208B
Version 1.6
1. Introduction
Figure 1

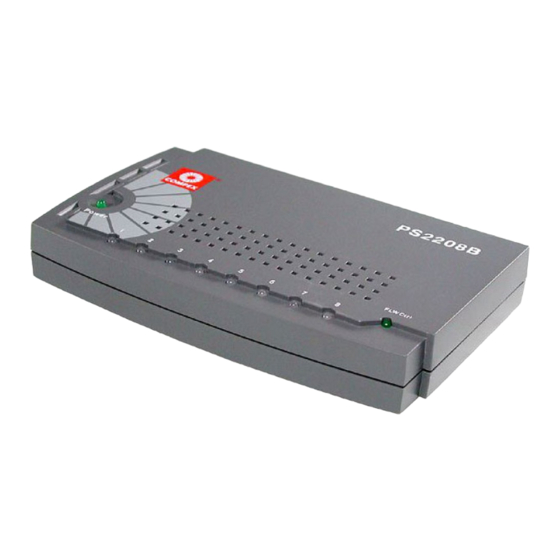

Compex's PS2208B is a Fast Ethernet Desktop Switch ideal for small and
home office networks. It comes with 8 10/100Mbps ports capable of full or
half duplex transmission with flow control. In addition, PS2208B supports
full auto-negotiation that self-configures for the highest possible operation
mode between two nodes. Unlike Hubs or Repeaters of which the 100Mbps
bandwidth is shared among the ports, PS2208B is designed with a backplane
of 1.6Gbps, allowing all 8 nodes to perform at full performance. Moreover,
PS2208B forwards the incoming packets only to the related ports, avoiding
collisions commonly seen in a Hub or Repeater.
2. Panel Views
R
1
Figure 2
Figure 3
Figure 4
3. Panel Descriptions
Indicator
1 Power LED On indicates switch is receiving power.
2 Port LED Steady Amber: 10M Link
Blink Amber: 10M Activity
Steady Green: 100M Link
Blink Green: 100M Activity
3 8 RJ-45 Ports 8 UTP ports
4 FLW/Ctrl LED Not in used.
5 DC Power Jack Supply power from the adapter to the unit
PS2208B
2
Front View of PS2208B
Back Panel View of PS2208B
5
Side View of PS2208B
Description
4
3
