Summary of Contents for Legacy Sconce
- Page 2 Registration 3. Owners Record 4. The Cabinetry / Our Commitment Setup 5. Unpacking Your Speakers 6. Speaker Installation 12. Hook up Cables 13. Amplification Technology 14. Designer’s Note 15. Specifications...
- Page 3 The model and serial numbers are located on the rear of the unit. Record these numbers in the spaces provided below. Refer to them when calling upon your dealer regarding this product. Model No. _______________________________ Serial No. _______________________________ Date of purchase: _________________________ Thank you for selecting a Legacy Loudspeaker System.
- Page 4 Handcrafted Each Sconce cabinet is impeccably finished with select veneers. The exquisite finish is hand-rubbed several times to assure a patina at home with the most elegant decor. Our Commitment A great deal of forethought, love and satisfaction is instilled in each piece of Legacy workmanship.
- Page 5 Your new speaker system has been very carefully packaged to insure that it travels to you safely. A double-wall outer carton protects each speaker with heavy V-board corner protectors. Custom foam end caps are used to protect the elegant cabinetry, and a plastic liner is provided as waterproofing.
- Page 6 Precautions If you have any doubts about your ability to properly install in-wall loudspeakers, you should use the services of a custom installer.
- Page 7 Installing the Sconce On-Wall Loudspeakers Packing List Sconce Speaker with pre-attached mounting keys Wall Plate Installation Manual Tools Required Pencil Level Phillips Screwdriver Tape Measure...
- Page 8 Legacy Audio recommends the use of up to 16-gauge wire for the Sconce speaker system. If installing in the wall be sure that the wire meets local electrical code.
- Page 9 Head Screws, making sure that the proper side of the wall plate is placed against the wall. Note that the Sconce speaker has two pre-attached diamond shaped keys mounted to the back panel. These keys will align with the corresponding diamond shaped keyholes in the wall plate.
- Page 10 2. Using at least two people, lift the Sconce speaker close to the back plate and make necessary wire connections insuring correct wire polarity. 3. Place the Sconce speaker onto the back plate aligning the metal keys into the keyhole areas of the wall plate.
- Page 11 Fig. 1.
- Page 12 Note: Before you purchase loudspeaker wire, check local building codes to make sure that the wire is rated to comply with applicable local safety codes such as UL or CL-2. When pulling wire, take care not to pull the wire too fast to prevent stretching the wire or damaging the insulation from friction.
- Page 13 How much power will your new speakers need? That ultimately depends on your listening environment and musical tastes. As little as five watts per channel should drive them to a level satisfactory for background music. To obtain maximum performance from your Sconce speakers, 100-150 watts per channel are recommended.

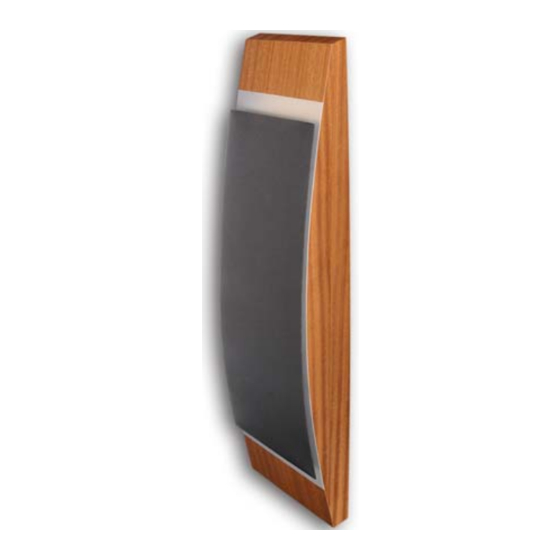

- Page 14 Similar to modern bridges, the curved fronts of the Sconce™ cabinets are braced and tensioned to control vibrations. Wall mounting is straightforward and sturdy. The uniquely beautiful cabinetry is worthy of the Legacy hallmark, and is...
- Page 15 System Type: 3 drivers, 2 way Tweeter: Spiral Ribbon, Neodymium Motor Woofer: 2 x 5.25” Cast Frame Silver/Graphite Frequency Response: 59-22kHz Impedance: 4 Ohms Sensitivity: 90 dB Recommended Amplification: 15-150 Watts Crossover Frequency: 3.2k Dimensions (H x W x D): 36 x 7 x 7 Weight: 37 pounds...
- Page 16 Notes:...
- Page 17 © 2004 Legacy Audio 150 Locust Street. Macungie, PA 18062 Phone: 610 965 0494 Fax: 610 965 4915...
