Table of Contents Page Registration Owners Record The Cabinetry / Our Commitment Warranty Setup Unpacking Your Speakers Speaker Installation Hooking Up Cables Amplification 10-12 Foot Installation 13-16 Speaker Connections 17-21 Fine Tuning Technology Continuing the Pursuit of Perfection 23-24 Specifications...

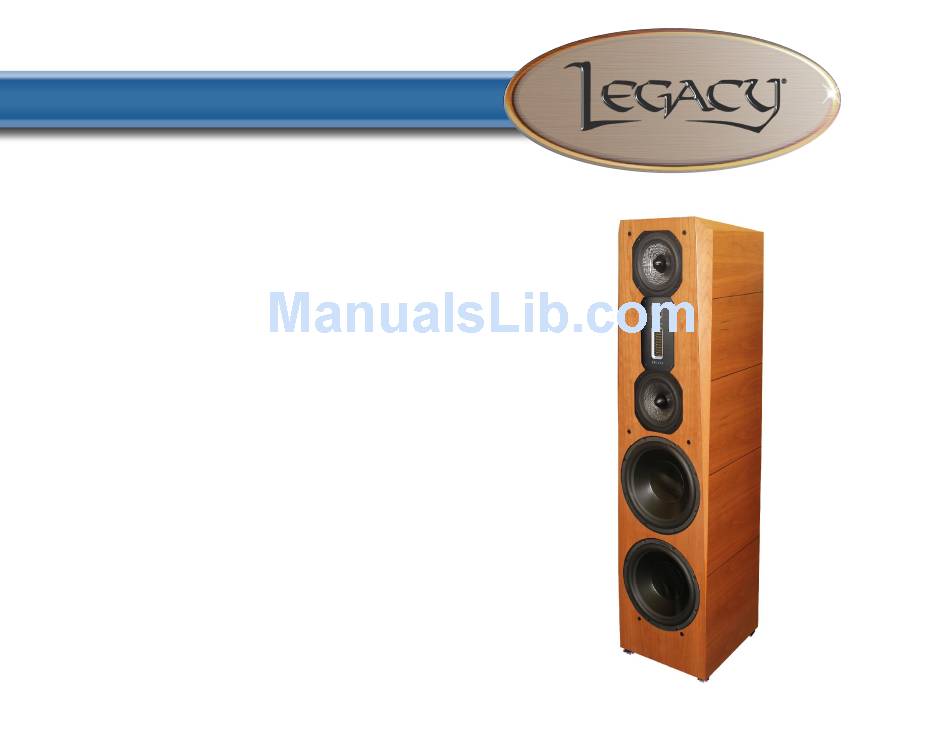

Refer to this when calling your dealer regarding this product. Model: FOCUS SE Serial No: _________________________ Date of purchase: ___________________ Thank you for selecting a Legacy Loudspeaker System. These hand- crafted instruments will provide you with many years of listening en- joyment.
Our Commitment A great deal of forethought, love and satisfaction is instilled in each piece of Legacy workmanship. We take pride in getting to know many of our customers on a first name basis. Your purchase of this product is backed by the renowned “Legacy...
Warranty Legacy Audio supports its customers and products with pride. We cheerfully warrant our loud- speaker products we manufacture from defects in materials and workmanship for a period of seven (7) years. Electronic components such as internal amplifiers and digital processors are covered for three (3)years.
V-board corner protectors. Molded foam end caps are used to protect the elegant cabinetry, and a plastic liner is provided as waterproofing. Please save this packing for future transportation. If cartons become damaged or misplaced, new ones can be purchased from Legacy Audio.
The amount of recommended "toe-in" is a function of the lis- tening angle. As the overall listening angle increases from 40 degrees, the amount of toe-in should increase. Your Legacy speaker is optimized for a flat response in the far field. Best results are obtained vertically with the lis- tener's ear at tweeter level with the loudspeakers gently toed in toward the listener.
Hooking Up Cables The ideal conductor would have negligible resistance, inductance and capacitance. The table below shows how a few actual speaker cables measure up. Cable s/ft pF/ft µH/ft 12 ga. 0.0033 0.21 14 ga. 0.0048 0.13 16 ga. 0.0079 0.18 18 ga.
Page 9
Hooking Up Cables What about phase shift due to frequency dependent travel times down the speaker cable? Measurements show that 100 Hz waves will be delayed about 20 billionths of a second behind 10 kHz waves when traveling to the end of a 10 foot speaker cable. Since the cilia of the ear requires 25,000 times longer than this just to transmit phase information, phase shifting is obviously not the primary concern when considering speaker cables.
For this reason, extensive measures have been taken to ensure that each Legacy speaker system represents a smooth, non-reactive load to virtually any amplifier. Often there is much confusion regarding amplification and loudness levels. It should be under- stood that the role of the amplifier goes beyond that of driving loudspeakers to a given sound pressure level.
Page 11
Some audiophiles feel that 200 watts per channel is the bare minimum to avoid audible clipping distortion when reproducing music at “live” playback levels. Your Legacy speakers are designed to take advan- tage of “high-powered” amplifiers, so don’t be afraid to put them through their paces.
Page 12
Amplification When an amplifier is unable to fulfill your loudspeakers demands, a damaging harmonic spike may be leaked to the high frequency drivers. Another important point regarding loudness is that the dB scale is a logarithmic one. This means that a 150 Watt amplifier will potentially sound only twice as loud as a 15 Watt amplifier.
Foot Installation Step 1- Carefully place your speakers on their sides Step 2 - Locate the cone feet set. It will be inside the foam pieces that held the speaker in the box.
Page 14
Foot Installation Step 3- Place the insert adapter into the rubber cone. Step 4 - Thread the cone insert into the cabinet.
Page 15
Foot Installation Step 5- Tighten the cone insert. If you do not want the spikes, you may stop here. Step 6 - Place the leveling washer onto the cone.
Page 16
Foot Installation Step 7- Install the washer and cone onto the speaker. Adjust the cone until your speaker is level.
Speaker Connections The Terminal Plate At the rear of each of your loudspeakers you will find a terminal plate housing two rows of jumpered binding posts. The upper row is the input to the "satellite" portion of the speaker. The lower row is the input to the "subwoofer"...
Page 18
Speaker Connections Biwiring Biwiring allows one to minimize the cable losses between the amplifier and the loud- speaker. This is accomplished with a single stereo amplifier by running separate sets of cables to the satellite section and the subwoofer section from the same channel of amplification.
Speaker Connections 1. Vertical Biamping Vertical biamplification requires the dedication of a single stereo amplifier for the left speaker, and another stereo amplifier for the right speaker. This configuration im- proves channel separation and can improve imaging slightly. If your preamp does not have two sets of left/right outputs, you will need a pair of Y-adapters or a signal split- ter, such as a dual amp balancer, which will also allow adjustment of subwoofer/ satellite input levels.
Page 20
Speaker Connections NOTE: This only applies to loudspeak- either the subwoofer or satellite binding posts. ers that incorporate the subwoofer and satellite section in a single enclosure. It does not apply towards the separate powered subwoofer/satellite configuration. You must always observe the polarity when connecting the speaker wire to a powered sub- woofer.
Page 21
Speaker Connections Also helpful is bass equalization and subsonic filtering. When cascading active filters with the existing passive filters within the speaker system, be sure to allow for ade- quate frequency overlap. For instance, if the passive crossover is set at 500 Hz, select a low pass corner frequency of 600 Hz and a high pass corner frequency of 450 Hz to prevent a suck out in the response at 500 Hz.
Fine Tuning To facilitate proper set-up of your speakers in a variety of room situations, we have included several heavy duty toggle switches on the terminal plate, located on the back of the loudspeaker. All switches in the “up” position represent the “anechoic flat”...
Continuing the Pursuit of Perfection (Legacy Air Motion Ribbons) LEGACY Audio has been benefiting from low mass ribbon and leaf drivers since 1984. I have a col- lection of ribbon tweeters from the world over and always loved the way good ribbons reproduced the swishing sound of brushes on a snare- and the simple honesty in the reproduction of strings without imparting an edgy ringing effect found in most tweeters.
Page 24
It has offered moments of both humility and glory, but most gratifying is the reward of continual, stair- stepped successes even after 30 years. I sense that this is a never ending staircase to be followed for generations as we asymptotically approach unattainable perfection. Bill Dudleston, Chief Designer, Founder of Legacy Audio...

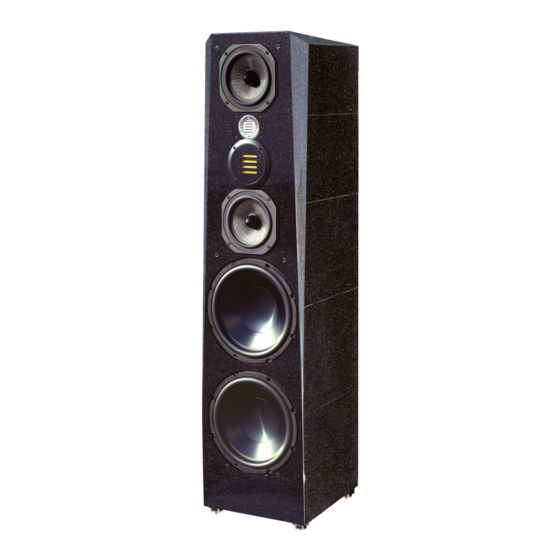

Specifications System Type: 6 driver, 4 way Tweeter: Dual Air Motion Tweeter System- 1" AMT super tweeter, Kimber silver HF wire Midrange: Dual Air Motion Tweeter System- 4" AMT tweeter Midwoofer: 2 x 7” Silver Graphite, cast frame Woofer: 2 x 12" spun aluminum diaphragm, rubber surround, total enclosed neo motor, long throw suspension, with cast frame Low Frequency Alignment:...
Page 26
Legacy Audio Distributor in Low Voltage Directive 2006/95/EC your country. A listing of Legacy EMC Directive 2004/108/EC Audio Distributors can be found on the Legacy Audio website www.legacyaudio.com or by contacting Legacy Audio at: 3023 E.
