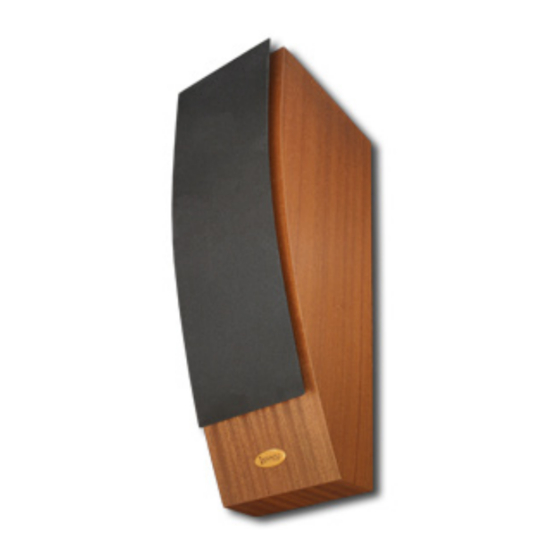

Summary of Contents for Legacy Sconce Surround
- Page 2 Registration 3. Owners Record 4. The Cabinetry / Our Commitment Setup 5. Unpacking Your Speakers 6. Speaker Installation 10. Hook up Cables 11. Amplification Technology 12. Designer’s Note 13. Specifications...
- Page 3 The model and serial numbers are located on the rear of the unit. Record these numbers in the spaces provided below. Refer to them when calling upon your dealer regarding this product. Model No. _______________________________ Serial No. _______________________________ Date of purchase: _________________________ Thank you for selecting a Legacy Loudspeaker System.
- Page 4 Handcrafted Each Sconce cabinet is impeccably finished with select veneers. The exquisite finish is hand-rubbed several times to assure a patina at home with the most elegant decor. Our Commitment A great deal of forethought, love and satisfaction is instilled in each piece of Legacy workmanship.
- Page 5 Your new speaker system has been very carefully packaged to insure that it travels to you safely. A double-wall outer carton protects each speaker with heavy V-board corner protectors. Custom foam end caps are used to protect the elegant cabinetry, and a plastic liner is provided as waterproofing.
- Page 6 Precautions If you have any doubts about your ability to properly install in-wall loudspeakers, you should use the services of a custom installer.
- Page 7 Installing the Sconce On-Wall Loudspeakers Packing List Sconce Speaker with pre-attached mounting keys Installation Manual Tools Required Pencil Level Phillips Screwdriver Tape Measure...
- Page 8 Sconce speakers may be installed either horizontally or vertically. Sconce Surround speakers can only be installed in the vertical position. Consider the location of pipes, wires or other materials that may be affected by drilling or installing fasteners into the wall.
- Page 9 1/8" protruding from the wall. 5. Using at least two people, lift the Sconce Surround speaker close to the mounting screw and make necessary wire connections insuring correct wire polarity. Place the Sconce Surround speaker onto the screw head using the corresponding keyhole on the rear of the speaker.
- Page 10 Note: Before you purchase loudspeaker wire, check local building codes to make sure that the wire is rated to comply with applicable local safety codes such as UL or CL-2. When pulling wire, take care not to pull the wire too fast to prevent stretching the wire or damaging the insulation from friction.
- Page 11 Ideally the loudspeaker would be among the first components selected when assembling a playback system. This would allow the user to choose an amplifier capable of delivering adequate amounts of current into the frequency dependent load presented by the loudspeaker. However, when upgrading a system, audiophiles may find themselves matching their new loudspeakers to their existing amplification.
- Page 12 Legacy Audio developed two high performance drivers specifically for the Sconce™ system. Our new 1” Spiral Neo ribbon tweeter provides the ‘air’ and definition found only in the finest audiophile speakers, yet with dispersion specially optimized for wall placement. The dual 5.25”...
- Page 13 System Type: 3 drivers, 3 way, bipolar Top firing array Tweeter: Spiral Ribbon Neodymium Motor Woofer: 2 x5.25” Cast Frame Silver/Graphite Frequency Response: 67-22kHz Impedance: 4 Ohms Sensitivity: 90 dB Recommended Amplification: 15-150 Watts Crossover Frequency: 1.5, 3.2k Dimensions (H x W x D): 21 x 7 x 7 Weight: 27 pounds...
- Page 14 Notes:...
- Page 15 © 2004 Legacy Audio 150 Locust Street. Macungie, PA 18062 Phone: 610 965 0494 Fax: 610 965 4915...
