Removal and Replacement Procedures
5. Position the notebook so the front faces forward and open the
notebook.
6. Disconnect the display video 1 and display inverter 2 cables
from the system board (Figure 5-19).
7. Remove the two PM2.0 × 10.0 screws 3 that secure the
display hinges to the base enclosure.
8. Lift the display straight up 4 and remove it from the base
enclosure.

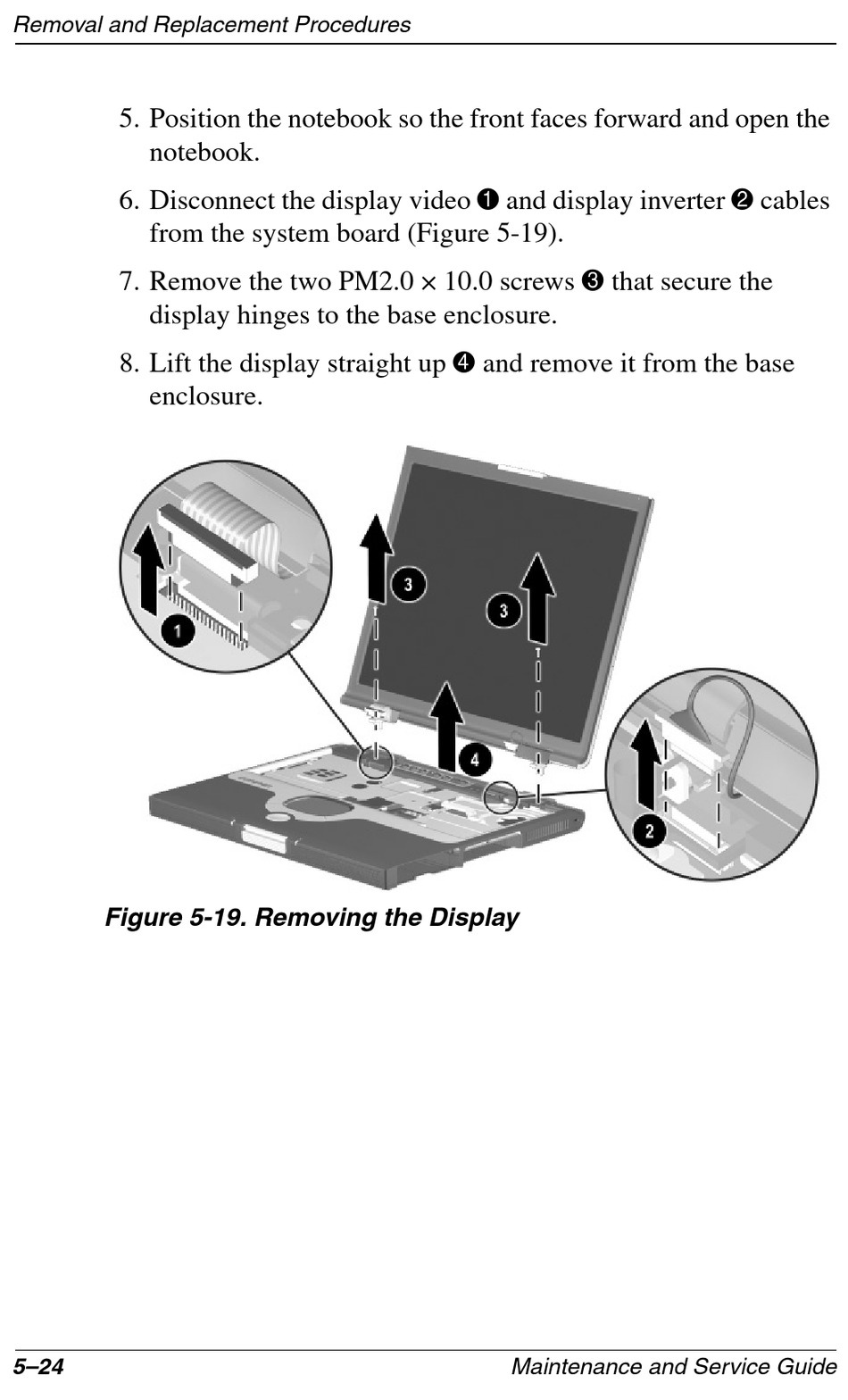

Figure 5-19. Removing the Display
5–24 Maintenance and Service Guide
