Removal and Replacement Procedures
1. Prepare the notebook for disassembly (Section 5.3).
2. Remove the LED cover (Section 5.8).
3. Lift the back edge of the keyboard 1 (Figure 5-15).
4. Slide the keyboard toward the back of the notebook 2.
5. Lift the back edge of the keyboard and swing it forward 3
until it rests on the palm rest.

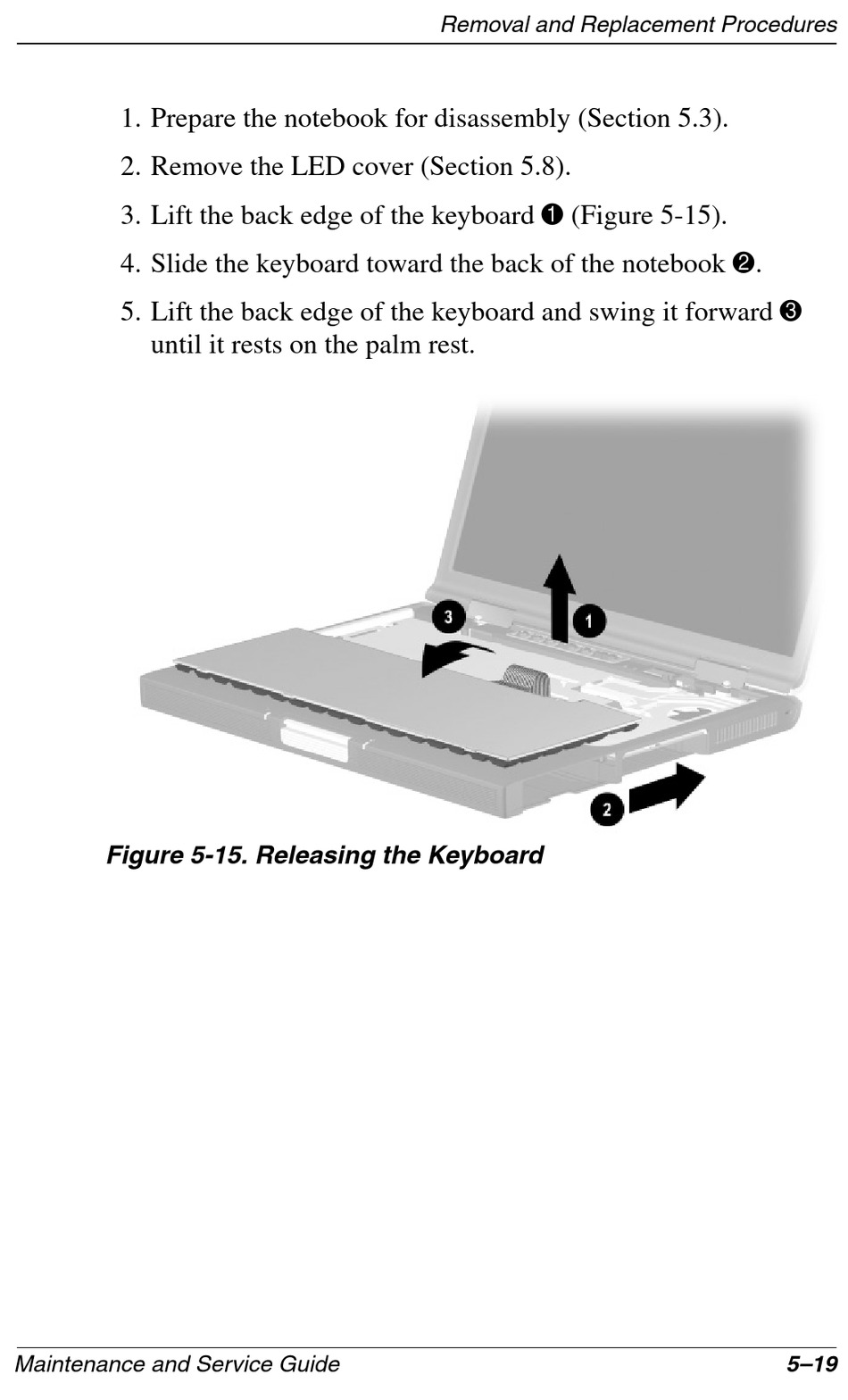

Figure 5-15. Releasing the Keyboard
Maintenance and Service Guide 5–19
