Compaq ProLiant DL580 Quick Specification

Hide thumbs Also See for ProLiant DL580:

Advertisement

Quick Links

Download this manual See also: Maintenance and Service Manual
QuickSpecs

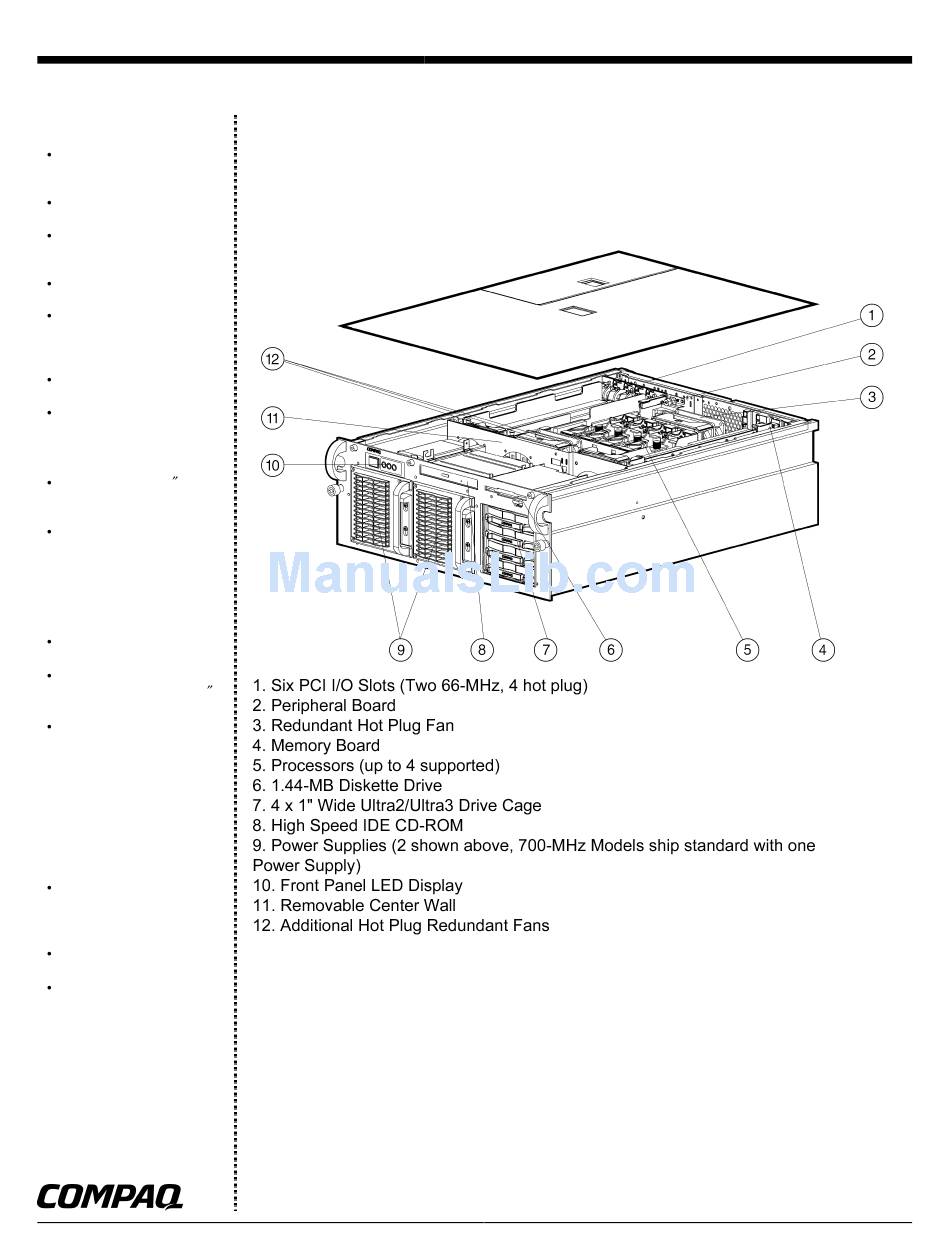

Overview
W h a t ' s N ew
®
Intel Pentium
III Xeon
700
TM
MHz Processors (up to 4) with
1-MB, or 2-MB L2 Cache
ServerWorks Enterprise
ServerSet
III HE chipset
TM
512 MB PC100 Advanced ECC
SDRAM Memory standard,
expandable to 16 GB
Integrated Smart Array Controller
(Embedded on system board)
Integraged Compaq NC3134 Fast
Ethernet NIC 64 PCI Dual Base
10/100 in a slot (upgradable to
Gigabit)
64-bit/66-MHz slots for 64-bit/
66-MHz expansion card support
Improved Serviceability and
Intelligent Manageability
A t A G l a n c e
Rack optimized (4U = 7 ) 4-way
computing power for your data
center or ISP/ASP environments
Six PCI slots, 4 Hot Pluggable:
Two 64-bit/66-MHz Hot Plug
Two 64-bit/33-MHz Hot Plug
One 64-bit/33-MHz Non-Hot
Plug
One 32-bit/33-MHz Non-Hot
Plug
Standard Wide Ultra2/Ultra3-
ready Drive Cage (4 x 1")
Internal Hot Plug Drive Storage of
up to 145.6 GB with 36.4-GB 1
Wide Ultra2/Ultra3 hard drives
Uncompromising reliability
features:
Industry-Standard PCI Hot Plug
with push button functionality
7 x 24 cooling provided by 8
Hot Plug Redundant System
Fans
Hot Plug 450-Watt Power
Supply with optional redundant
hot plug power supplies
Automatic Server Recovery 2
(ASR-2 ), Integrated Remote
Console (IRC), Compaq Insight
Manager and SmartStart
Toolless internal design for easy
access to system components
Protected by Compaq Services,
including a limited three-year
parts, labor and on-site warranty
with optional four-hour response.
Pre-Failure Warranty and Compaq
Service and Support Programs
available on a Worldwide basis —
Certain restrictions and exclusions
apply. Consult the Compaq
Customer Support Center at 1-
800-345-1518 for details.
DA-10635
North America — Version 13 — December 18, 2000
Compaq ProLiant DL580
1

Advertisement

loading

Related Manuals for Compaq ProLiant DL580

Summary of Contents for Compaq ProLiant DL580

  • Page 1 QuickSpecs Compaq ProLiant DL580 Overview W h a t ' s N ew ® Intel Pentium III Xeon MHz Processors (up to 4) with 1-MB, or 2-MB L2 Cache ServerWorks Enterprise ServerSet III HE chipset 512 MB PC100 Advanced ECC...

  • Page 2: Standard Features

    Embedded in the chipset design, this feature allows the use of Industry-Standard Registered DIMMs. Integraged Compaq NC3134 Fast Ethernet NIC 64 PCI Dual Base 10/100 in a slot (upgradable to Gigabit) N e t w o r k C o n t r o l l e r...
  • Page 3 One 450-Watt Hot Plug Power Supply (optional Redundant Hot Plug Power Supply Option Kit) P o w e r S u p p l y For required cabling information, refer to the Compaq Web site at R e q u i r e d C a b l i n g http://www.compaq.com/products/servers/proliantDL580/.
  • Page 4 Note: For a more complete and up-to-date listing of supported OSs and versions, please visit our OS Support Matrix at: ftp://ftp.compaq.com/pub/products/servers/os-support-matrix-310.pdf. Note: For an up-to-date listing of the latest drivers available for the Compaq ProLiant DL580, please see: http://www.compaq.com/support/files/server/us/index.html. Compaq Services provides a wide range of service offerings, including a three-year, limited warranty that is fully...
  • Page 5 2-MB Level 2 writeback cache per processor 155618-001 512 MB (Standard ) to 16 GB (Maximum) Memory Network Controller Integrated Compaq NC3134 Fast Ethernet NIC 64 PCI Dual Base 10/100 in a slot Storage Controller Integrated Smart Array Controller Hard Drive None Internal Storage 145.6 GB maximum...

  • Page 6: Storage Controllers

    142257-004 Compaq High Voltage PDU Right Angled Cable Kit (IEC13-IEC14) Note: The 10-Amp AC cord which ships standard with the Compaq ProLiant DL580 utilizes a right angle plug on the server side (the side that plugs into the server) to avoid interference with the Cable Management Arm.

  • Page 7: Management Options

    Compaq NC3122 Fast Ethernet NIC PCI Dual 10/100 138603-B21 Compaq NC3134 Fast Ethernet NIC 64 PCI Dual Port 10/100 138604-B21 Compaq NC3135 Fast Ethernet Module Dual 10/100 Upgrade Module for NC3134 and NC3131 Compaq NC6132 Gigabit Module 1000 SX Upgrade Module for NC3134 and NC3131 338456-B23...

  • Page 8: External Tape Drives

    Note: Please see the Compaq 20/40-GB DAT Drive, Compaq 20/40-GB DAT DDS-4 8 Cassette Autoloader, Compaq 40/80-GB DLT Drive, Compaq 20/40-GB DLT Drive, Compaq AIT 50-GB Tape Drive, Compaq AIT 35-GB LVD, or the Compaq AIT 35-GB Tape Drive QuickSpecs for a listing of the latest O/S Support details http://www.compaq.com/products/quickspecs/North_America/10233_na.html Please note that all Web sites are available in English only.
  • Page 9 AIT Cleaning Cassette 402374-B21 175199-B21 Tabletop to Rackmount Upgrade Kit for SSL2020 AIT Library, Compaq Rack 175199-B22 Tabletop to Rackmount Upgrade Kit for SSL2020 AIT Library, RETMA racks Note: Please see the AIT Automated DLT Tape Library Solution QuickSpecs for additional information including Upgrade Kits, Accessories, and SCSI Cable Kits and additional options needed for a complete solution at: http://www.compaq.com/products/quickspecs/North_America/10233_na.html...
  • Page 10 Note: Available for the DLT Tape Array III Model. Note: Please see the Compaq TA1000 AIT Tape Array, Compaq DLT Tape Array III, or the Compaq DLT Tape Array II QuickSpecs for additional information including Tape Drives, Cartridges, Controllers, and SCSI Cables and additional options needed for a complete solution at: http://www.compaq.com/products/quickspecs/North_America/10233_na.html...
  • Page 11 400700-B21 Expansion Cabinet 24-slot 380568-B21 Note: Please see the Compaq StorageWorks Fibre Channel RAID Array 8000, ESA12000 QuickSpecs for FC Hubs, FC switches, platform software, host adapters, disks and options for complete solutions at: http://www.compaq.com/products/quickspecs/North_America/10418_na.html Please note that all Web sites are available in English only.
  • Page 12 400559-002 Expansion enclosure 48 slots, 60 Hz (Opal) 380640-002 Note: Please see the Compaq StorageWorks Fibre Channel RAID Array 8000, ESA12000 QuickSpecs for FC Hubs, FC switches, platform software, host adapters, disks and options for complete solutions at: http://www.compaq.com/products/quickspecs/North_America/10418_na.html Please note that all Web sites are available in English only.
  • Page 13 Uninterruptible Power Systems – 388643-B21 Rack (continued) Multi-Server UPS Card 123508-B21 Scalable UPS Card 123509-B21 Compaq Rack Builder for configuration assistance at www.compaq.com/products/storageworks/rack_accessories/rackbuilderpro2.html. Compaq Rack 9142 (42U) – Pallet Compaq Rack 9000 Series (Opal) 120663-B21 Compaq Rack 9142 (42U) – Shock Pallet 120663-B22 Compaq Rack 9142 (42U) –...
  • Page 14 Compaq High Voltage PDU Right Angled Cable Kit (IEC13-IEC14) 142257-004 Note: The 10-Amp AC cord which ships standard with the Compaq ProLiant DL580 utilizes a right angle plug on the server side (the side that plugs into the server) to avoid interference with the Cable Management Arm.
  • Page 15 QuickSpecs Compaq ProLiant DL580 Options CarePaqs (continued) 4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years (2-5-2 Part Number FP-MI724-36 for Canada) 4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years (6-3 Part Number for 401782-002 U.S.) 4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years (6-3 Part Number for...
  • Page 16 155341-122 Proactive Management Review, named S/w rep, Three Years (6-3 Part Number for Canada) Note: For more information, customer/resellers can contact www.Compaq.com/services. Please note this web site is available in English only. DA-10635 North America — Version 13 — December 18, 2000...
  • Page 17 1024 MB 1024 MB 1024 MB 1024 MB 1024 MB 1024 MB 1024 MB 1024 MB 1024 MB 1024 MB 1024 MB 1024 MB 1024 MB 1024 MB 1024 MB 1024 MB Following are memory options available from Compaq: 4096-MB PC100-MHz Advanced ECC SDRAM Memory Option Kit (4 x 1024 MB)
  • Page 18 QuickSpecs Compaq ProLiant DL580 Storage Hot Plug Power Supplies 3.5 inch Diskette Drive High Speed IDE CD-ROM Wide Ultra2/Ultra3 Drive Cage (4 x 1 ) R I V E U P P O R T Quantity Position Supported Supported Controller Removable Media 1.44-MB Diskette Drive...
  • Page 19 QuickSpecs Compaq ProLiant DL580 Storage R I V E U P P O R T (continued) Maximum Internal Hot Plug Storage Capacity – (SCSI Attached) Internal 145.6 GB (4 x 36.4-GB Wide Ultra3 SCSI 1 Drives) External 4.368 TB (10 ProLiant Storage Systems, each with 12 x 36.4-GB 1 hard drives) Total 4.513 TB...

  • Page 20: Technical Specifications

    QuickSpecs Compaq ProLiant DL580 Technical Specifications System Unit Tower Dimensions (HxWxD) 6.94 x 19 x 28.3 in/ 17.6 x 48.3 x 71.9 cm Chassis Footprint (HxWxD) 6.94 x 19 x 25 in/17.6 x 48.3 x 63.5 cm 66 lbs/29.9 kg...
  • Page 21 QuickSpecs Compaq ProLiant DL580 Technical Specifications Hot Plug Wide Ultra3 SCSI 36.4 GB 10K Capacity 36400 MB Hard Drives 176496-B22 Height 1 in/25.4 mm Width 3.5 in/88.9 mm Interface Wide Ultra3 SCSI Transfer Rate Synchronous 160 MB/s (Maximum) Seek Time Single Track 0.8 ms...
  • Page 22 QuickSpecs Compaq ProLiant DL580 Technical Specifications Hot Plug Wide Ultra3 SCSI 9.1 GB 15K Capacity 9100.0 MB Hard Drives (continued) 188120-B22 Height 1 in/25.4 mm Width 3.5 in/88.9 mm Wide Ultra3 SCSI Interface Transfer Rate Synchronous 160 MB/s (Maximum) Seek Time Single Track 0.8 ms...
  • Page 23 QuickSpecs Compaq ProLiant DL580 Technical Specifications 24X Max (or higher) IDE Disk Applicable Disk CD-ROM (Mode 1 and 2) CD-ROM Drive Slim Line CD-DA, CD-XA (Mode 2, Form 1 and 2) Photo CD (Single and Multi-session) Mixed Mode (Audio and Data combined)
  • Page 24 QuickSpecs Compaq ProLiant DL580 Technical Specifications Integrated Smart Array Data Compatible with all Smart Array Controllers Controller Instant Upgrades to other Smart Array Controllers Consistent Software Manageability Tools PCI Bus 32-bit, 33 MHz (integrated on server board) PCI Peak Data Transfer Rate...
  • Page 25 SCSI Peak Data Transfer Rate 160 MB/s Channels SCSI Ports (external/internal) Drives Supported (maximum) Note: Drives Supported (maximum) is based on use of Compaq StorageWorks Enclosure 4200/4300 family (14 hard disk drive enclosure). Cache 16-MB cache engine RAID Support 0, 1, 0+1 5...
  • Page 26 320 MB/s total, 80 MB/s per channel Channels SCSI Ports (external/internal) Drives Supported (maximum) Note: Drives Supported (maximum) is based on use of Compaq StorageWorks Enclosure 4200/4300 family (14 hard disk drive enclosure). Cache 64-MB battery backed read-write RAID Support...
  • Page 27 SCSI Ports (external/internal) 2 channel model: 2/2 4 channel model: 4/2 Drives Supported (maximum) Note: Drives Supported (maximum) is based on use of Compaq StorageWorks Enclosure 4200 family. (14 hard disk drive enclosure) Cache 128, 64 or 32 MB battery backed read-write...
  • Page 28 QuickSpecs Compaq ProLiant DL580 Technical Specifications 64-bit/66-MHz Single Drives Supported Up to 14 SCSI devices Channel Wide Ultra3 Storage Capacity 254.8 GB SCSI Adapter Data Transfer Method 64-bit/66-MHz PCI bus-master Maximum SCSI Channel Transfer Rate 160 MB/s per channel Maximum Transfer Rate per PCI Bus (peak)
