W
'
N
H A T
S
E W
®
Intel Pentium
III Xeon
700
TM
MHz Processors (up to 4) with
1-MB, or 2-MB L2 Cache
ServerWorks Enterprise
ServerSet
III HE chipset
TM
512 MB PC100 Advanced ECC
SDRAM Memory standard,
expandable to 16 GB (Advanced
ECC Memory Technology – data
protection in the event of an
SDRAM component failure)
Integrated Smart Array Controller
Compaq NC3134 Fast Ethernet
NIC 64 PCI Dual Base 10/100
(upgradable to Gigabit)
64-bit/66-MHz slots for 64-bit/
66-MHz expansion card support
Improved Serviceability and
Intelligent Manageability
A
A G
T
L A N C E
Rack optimized (4U = 7 ) 4-way
computing power for your data
center or ISP/ASP environments
Six PCI slots, 4 Hot Pluggable:
2 64-bit/66-MHz Hot Plug
2 64-bit/33-MHz Hot Plug
1 64-bit/33-MHz Non-Hot Plug
1 32-bit/33-MHz Non-Hot Plug
Standard Wide Ultra2/Ultra3-
ready Drive Cage (4 x 1")
Internal Hot Plug Drive Storage of
up to 145.6 GB with 36.4-GB 1
Wide Ultra2/Ultra3 hard drives
Uncompromising reliability
features:
Industry-Standard PCI Hot
Plug with push button
functionality
7 x 24 cooling provided by 8
Hot Plug Redundant System
Fans
Hot Plug 450-Watt Power
Supply with optional redundant
hot plug power supplies
Automatic Server Recovery 2
(ASR-2 ), Integrated Remote
Console (IRC), Compaq Insight
Manager and SmartStart
Toolless internal design for easy
access to system components
Protected by Compaq Services,
including a limited three-year
parts, labor and on-site warranty
with optional four hour response.
Pre-Failure Warranty and
Compaq Service and Support
Programs available on a
Worldwide basis — Certain
restrictions and exclusions apply.
Consult the Compaq Customer
Support Center at 1-800-345-
1518 for details. In Canada,
consult the Product Information
Center at 1-800-567-1616 for
details.
Q
S
UICK
PECS

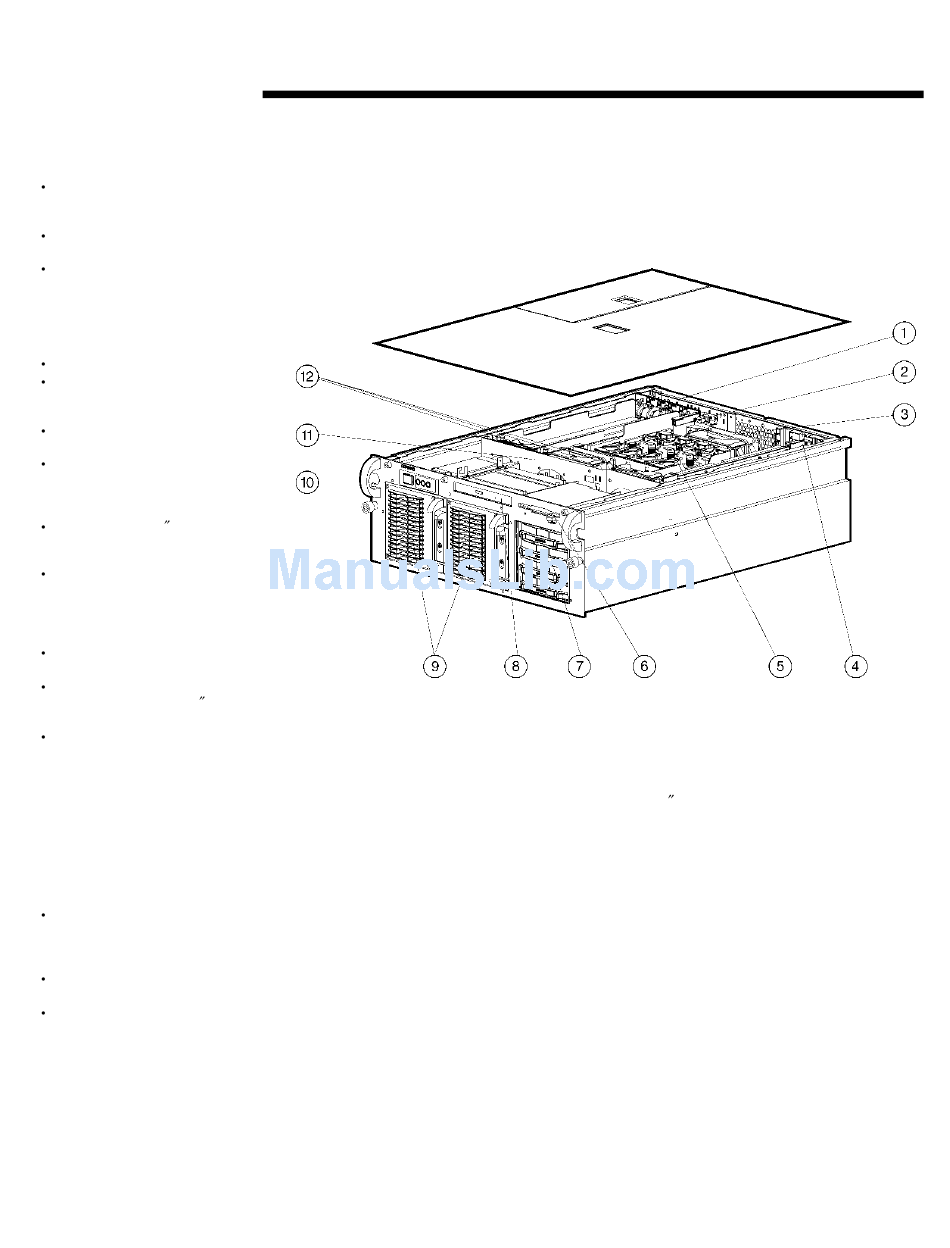

Overview
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
1.
Six PCI I/O Slots (Two 66-MHz, 4 hot
. .
. .
plug)
. .
. .
2.
Peripheral Board
. .
. .
3.
Redundant Hot Plug Fan
. .
. .
4.
Memory Board
. .
. .
5.
Processors (up to 4 supported)
. .
. .
. .
6.
1.44-MB Diskette Drive
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
1
DA-10635-01-008 — 09.13.2000
Compaq ProLiant DL580
4 x 1 Wide Ultra2/Ultra3 Drive Cage
7.
8.
High Speed IDE CD-ROM
9.
Power Supplies (2 shown above, 700-MHz
Models ship standard with one Power Supply)
10. Front Panel LED Display
11. Removable Center Wall
12. Additional Hot Plug Redundant Fans

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ProLiant DL580 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Compaq ProLiant DL580

Summary of Contents for Compaq ProLiant DL580

  • Page 1 16 GB (Advanced ECC Memory Technology – data protection in the event of an SDRAM component failure) Integrated Smart Array Controller Compaq NC3134 Fast Ethernet NIC 64 PCI Dual Base 10/100 (upgradable to Gigabit) 64-bit/66-MHz slots for 64-bit/ 66-MHz expansion card support...

  • Page 2: Standard Features

    Note: Advanced ECC Memory Technology protects the data even in the event of an entire SDRAM component failure. Embedded in the chipset design, this feature allows the use of Industry-Standard Registered DIMMs. Network Controller Compaq NC3134 Fast Ethernet NIC 64 PCI Dual Base 10/100 (upgradable to Gigabit) Expansion Slots I/O (Total)
  • Page 3 The comprehensive system management tool that monitors the operation of Compaq servers, workstations and clients  Compaq SmartStart The server configuration and software integration tool from Compaq Array Configuration Utility Same easy to use yet powerful graphical user interface (GUI) configuration utility (ACU) with Smart Array...
  • Page 4 Note: For a more complete and up-to-date listing of supported OS’s and versions, please visit our OS Support Matrix ftp://ftp.compaq.com/pub/products/servers/os-support-matrix-310.pdf. Note: For an up-to-date listing of the latest drivers available for the Compaq ProLiant DL580, please see: http://www.compaq.com/support/files/server/us/index.html. Please note these web sites are available in English only.
  • Page 5 D L 5 8 0 R 0 1 X 7 0 0 - 2 M B , Processor(s) (2) Intel Pentium III Xeon 700 MHz Network Controller Compaq NC3134 Fast Ethernet NIC 5 1 2 M B ( 2 P ) processors 64 PCI Dual Base 10/100...

  • Page 6: Storage Controllers

    (22U)) provides enhanced airflow for maximum cooling, allowing these racks to be fully loaded with servers using the latest processors. When installing a server with Pentium III Xeon processors running at speeds of 550 MHz or greater in Compaq Rack 7000 series racks (165753-xx1 (42U), and 163747-xx1 (22U)), the new processor technology requires the installation of Compaq’s new High Airflow Rack Door Insert (327281-B21 (42U) or 157847-B21 (22U)).

  • Page 7: Management Options

    ServerNet II 5-meter Copper Serial Cable Kit 174737-B21 ServerNet II 10-meter Copper Serial Cable Kit 174738-B22 Redundant Options Compaq Hot Plug Redundant Power Supply Option Kit 105739-001 Management Options Compaq Remote Insight (PCI) LAN + NA Modem 294013-002 Compaq Remote Insight Board (PCI) LAN/Serial without modem...

  • Page 8: External Tape Drives

    Note: Please see the Compaq 20/40-GB DAT Drive, Compaq 20/40-GB DAT DDS-4 8 Cassette Autoloader, Compaq 40/80-GB DLT Drive, Compaq 35/70-GB DLT Drive, Compaq 20/40-GB DLT Drive, Compaq AIT 50-GB Tape Drive, or the Compaq AIT 35-GB Tape Drive for an up-to-date listing of the latest O/S Support details, please see the following: http://www.compaq.com/products/quickspecs/North_America/10233_na.html...
  • Page 9 Compaq StorageWorks Enclosure Model 4314R (rack-mountable) 190209-001 Compaq StorageWorks Enclosure Model 4354R (rack-mountable) 190211-001 Note: The Compaq StorageWorks Enclosure 4200/4300 Family support the Wide Ultra2/Ultra3 1 Hot Plug Hard Drives. Rack-Mountable SCSI Storage Expander II 332607-001 Rack-Mountable ProLiant Storage System Model UE...
  • Page 10 MiniLibrary Table Top to Rack Mount Conversion Kit, Metric/RETMA racks 120882-B21 Note: Available for TL881, TL891 DLT Libraries only. MiniLibrary Table Top to Rack Mount Conversion Kit, Compaq racks 120883-B21 Note: Available for TL881, TL891 DLT Libraries only. Note: Please see the TL881, TL891, or the TL895 Automated DLT Tape Library Solution QuickSpecs for additional...
  • Page 11 Note: Available for the DLT Tape Array III Model. Note: Please see the Compaq TA1000 AIT Tape Array, Compaq DLT Tape Array III, or the Compaq DLT Tape Array II QuickSpecs for additional information including Tape Drives, Cartridges, Controllers, and SCSI Cables and additional options needed for a complete solution at: http://www.compaq.com/products/quickspecs/North_America/10233_na.html...
  • Page 12 DLT IV Data Cartridges (7 pack) 295192-B21 DLT Cleaning Cartridge 199704-001 Note: Please see the Compaq StorageWorks Enterprise Backup Solution QuickSpecs for additional information including Tape Drives, Cartridges, Controllers, and SCSI Cables and additional options needed for a complete solution at: http://www.compaq.com/products/quickspecs/North_America/10233_na.html Please note this web site is available in English only.
  • Page 13 400700-B21 Expansion Cabinet 24-slot 380568-B21 Note: Please see the Compaq StorageWorks Fibre Channel RAID Array 8000, ESA12000 QuickSpecs for FC Hubs, FC switches, platform software, host adapters, disks and options for complete solutions at: http://www.compaq.com/products/quickspecs/North_America/10418_na.html Please note this web site is available in English only.
  • Page 14 Note: Options include controller, solution kits, ACS. MA8000/EMA12000 includes controller shelf, drive shelves and cabinet. Packaging upgrade to RA8000/ESA12000. Note: Please see the Compaq StorageWorks MA8000/EMA12000 QuickSpecs for FC Hubs, FC switches, platform software, host adapters, disks and options for complete solutions at: http://www.compaq.com/products/quickspecs/North_America/10418_na.html...
  • Page 15 UICK PECS Compaq ProLiant DL580 Options Compaq Rack 9000 Series (Opal) (continued) Compaq Rack 9122 (22U) – Shock Pallet 120665-B22 Compaq Rack 9122 (22U) – Crated 120665-B23 Note: -B22 part numbers are used to ship configured racks (by custom systems, VARs and Channels)
  • Page 16 Compaq High Voltage PDU Right Angled Cable Kit (IEC13-IEC14) 142257-004 Note: The 10-Amp AC cord which ships standard with the Compaq ProLiant DL580 utilizes a right angle plug on the server side (the side that plugs into the server) to avoid interference with the Cable Management Arm. Compaq High Voltage PDUs ship standard with 15-Amp AC cords that incorporate straight plugs on the server side.
  • Page 17 UICK PECS Compaq ProLiant DL580 Options Service Upgrades (CarePaqs) Hardware Services 4-Hour On-site Service 4-Hour On-site Service, 5-Day x 9-Hour Coverage, 3 Years (2-5-2 Part Number for U.S.) FM-MI4HR-36 4-Hour On-site Service, 5-Day x 9-Hour Coverage, 3 Years (2-5-2 Part Number for Canada) FP-MI4HR-36 4-Hour On-site Service, 5-Day x 9-Hour Coverage, 3 Years (6-3 Part Number for U.S.)
  • Page 18 7 x 24 2-hour H/W, 7 x 24 30-minute O/S (NT & NetWare), SPS Account Review, Proactive 155341-122 Management Review, named S/w rep, Three Years (6-3 Part Number for Canada) Note: For more information, customer/resellers can contact www.Compaq.com/services. Please note this web site is available in English only. DA-10635-01-008 — 09.13.2000...
  • Page 19 Note: Memory must be added in banks of four DIMMS. This chart does not represent all possible memory configurations. Following memory options are available from Compaq: 4096-MB PC100-MHz Advanced ECC SDRAM Memory Option Kit (4 x 1024 MB) 189083-B21 2048-MB PC100-MHz Advanced ECC SDRAM Memory Option Kit (4 x 512 MB)
  • Page 20 UICK PECS Compaq ProLiant DL580 Storage R I V E U P P O R T Quantity Position Supported Supported Controller Removable Media 1.44-MB Diskette Drive Up to 1 Integrated IDE CD-ROM Drive Up to 1 Integrated IDE Hard Drives...
  • Page 21 UICK PECS Compaq ProLiant DL580 Storage R I V E U P P O R T (continued) Maximum Internal Hot Plug Storage Capacity – (SCSI Attached) Internal 145.6 GB (4 x 36.4-GB Wide Ultra3 SCSI 1 Drives) External 4.368 TB (10 ProLiant Storage Systems, each with 12 x 36.4-GB 1 hard drives) Total 4.513 TB...

  • Page 22: Technical Specifications

    UICK PECS Compaq ProLiant DL580 Technical Specifications Dimensions (HxWxD) Overall (with front handles) 6.94 x 19 x 28.3 in/ 17.6 x 48.3 x 71.9 cm System Unit Chassis Footprint (HxWxD) 6.94 x 19 x 25 in/17.6 x 48.3 x 63.5 cm...
  • Page 23 UICK PECS Compaq ProLiant DL580 Technical Specifications Hot Plug Seek Time (typical reads, including settling) Capacity 36400 MB 36.4 GB Height 1 in/25.4 mm Single Track 0.8 ms Width 3.5 in/88.9 mm Average 5.2 ms Interface Wide Ultra3 SCSI Full-Stroke...

  • Page 24: Hot Plug Wide Ultra2 Scsi Hard Drives

    UICK PECS Compaq ProLiant DL580 Technical Specifications Hot Plug Seek Time (typical reads, including settling) Capacity 18209.3 MB 18.2 GB Wide Ultra2 SCSI Height 1 in/25.4 mm Single Track 0.8 ms Hard Drives Width 3.5 in/88.9 mm Average 7.0 ms...
  • Page 25 UICK PECS Compaq ProLiant DL580 Technical Specifications Disk 24X Max (or higher) IDE CD-ROM Drive Slim Line CD-ROM (Mode 1 and 2) Applicable Disk CD-DA, CD-XA (Mode 2, Form 1 and 2) Photo CD (Single and Multi-session) Mixed Mode (Audio and Data combined)

  • Page 26: Integrated Smart Array Controller

    UICK PECS Compaq ProLiant DL580 Technical Specifications Data Compatible with all Smart Array Controllers Integrated Smart Array Controller Instant Upgrades to other Smart Array Controllers Consistent Software Manageability Tools PCI Bus 32-bit, 33 MHz (integrated on server board) PCI Peak Data Transfer Rate...
  • Page 27 SCSI Peak Data Transfer Rate 160 MB/s Channels SCSI Ports (external/internal) Drives Supported (maximum) Note: Drives Supported (maximum) is based on use of Compaq StorageWorks Enclosure 4200/4300 family (14 hard disk drive enclosure). Cache 16-MB cache engine RAID Support 0, 1, 0+1 5...

  • Page 28: Smart Array 3200 Controller

    160 MB/s total, 80 MB/s per channel Channels SCSI Ports (external/internal) Drives Supported (maximum) Note: Drives Supported (maximum) is based on use of Compaq StorageWorks Enclosure 4200/4300 family (14 hard disk drive enclosure). Cache 64-MB battery backed read-write RAID Support...

  • Page 29: Smart Array 4200 Controller

    320 MB/s total, 80 MB/s per channel Channels SCSI Ports (external/internal) Drives Supported (maximum) Note: Drives Supported (maximum) is based on use of Compaq StorageWorks Enclosure 4200/4300 family (14 hard disk drive enclosure). Cache 64-MB battery backed read-write RAID Support...
  • Page 30 SCSI Ports (external/internal) 2 channel model: 2/2 4 channel model: 4/2 Drives Supported (maximum) Note: Drives Supported (maximum) is based on use of Compaq StorageWorks Enclosure 4200 family. (14 hard disk drive enclosure) Cache 128, 64 or 32 MB battery backed read-write...
  • Page 31 UICK PECS Compaq ProLiant DL580 Technical Specifications Drives Supported Up to 28 SCSI devices (14 per channel) 64-bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter Maximum Transfer Rate per PCI Bus (peak) 532 MB/s per channel SCSI Protocols Wide Ultra3 SCSI...
  • Page 32 UICK PECS Compaq ProLiant DL580 Technical Specifications Dimensions Total Cabinet Shipping Color Compaq Rack 9142 (42U) Height 78.7 in/2,000 mm 83.38 in/2,168.65 mm (optional) Depth 35.8 in/909 mm 48 in/1219.2 mm Opal Width 23.7 in/603 mm 32 in/812.8 mm Weight 253 lbs/114.84 kg...
