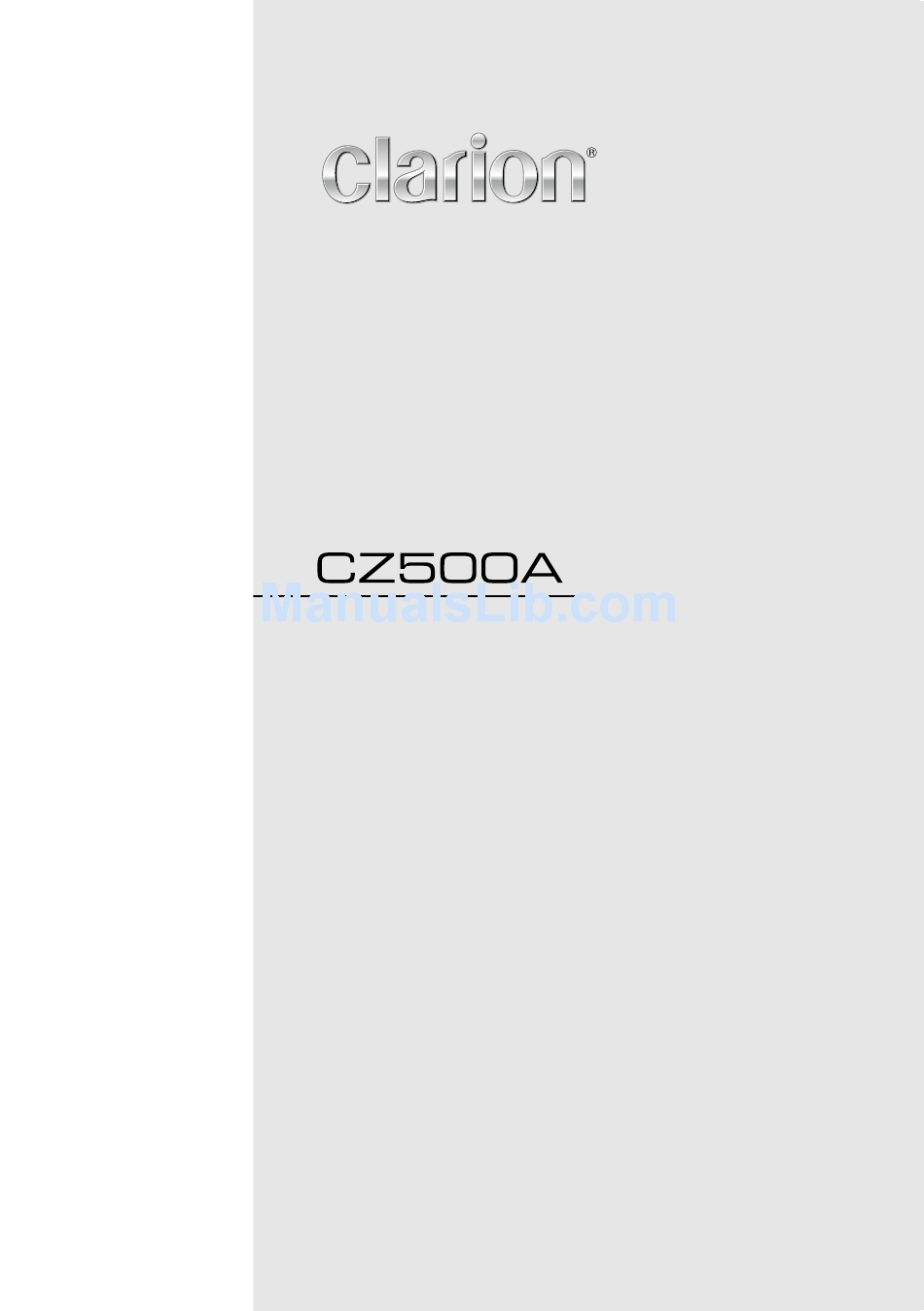

- Page 1 Owner’s manual & Installation manual 使用说明书&安装手册 사용설명서 및 설치설명서 Bluetooth CD/USB/MP3/WMA RECEIVER ® ® 蓝牙 CD/USB/MP3/WMA接收机 Bluetooth CD/USB/MP3/WMA 수신기 ®...
-
Page 2: Table Of Contents
Contents Thank you for purchasing this Clarion product. Please fully read this owner’s manual before operating this equipment. 1. FEATURES ......................... 3 Expanding Systems ......................3 2. PRECAUTIONS ........................4 Front Panel ........................5 USB Port ..........................5 Remove the DCP ....................... 6 Re-attach the DCP ...................... -
Page 3: Features
1. FEATURES • Compatible with iPod /iPhone via USB ® ™ • 6ch/4V RCA Output with Subwoofer Control and BEAT-EQ with 3 Band Parametric Equalizer • MP3/WMA compatible with ID3-TAG display • Built in Bluetooth handsfree (HFP) and audio streaming (A2DP & AVRCP) • Rear USB • IR remote controller included • OEM Steering Wheel Remote Ready Expanding Systems Expanding audio features 4-channel amplifier iPod/iPhone USB memory Portable player Bluetooth ® (Connect by AUX IN jack) cellular phone Note: Items outside of the frames are commercially available. -
Page 4: Precautions
Apple Inc. 5. The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Clarion Co., Ltd. is under license. Other trademarks and trade names are those of their respective... -
Page 5: Front Panel
Some models may not Doing so may damage or deform the body. operate correctly. • If a problem should occur, have the set Clarion will not be held liable in the inspected at your store of purchase. unlikely event of loss of or damage to • The remote control unit may not work if the memorized data. -
Page 6: Remove The Dcp
Remove the DCP The control panel can be detached to prevent theft. When detaching the control panel, store it in the DCP (DETACHABLE CONTROL PANEL) case to prevent scratches. We recommend taking the DCP with you when leaving the car. ] button (2 sec.) to turn off 1. Press the [ the power. 2. Depress the [OPEN] button to unlock the DCP. 3. Grab the edge that pops out and remove the DCP. Re-attach the DCP 1. Hold the DCP and ensure that the panel faces towards you. -
Page 7: Controls
3. CONTROLS Operational Panel Disc slot [BAND/ ] [MENU/ [PS/AS] [SOUND] [ISR] [1~6] AUX jack [OPEN] [POWER/SRC] [VOLUME] Names of Buttons [ISR] button / SRC] button • Recall ISR station stored in memory and • Power/Toggle the audio source store current station in ISR memory (long press) [BAND / ] button... -
Page 8: Remote Control
Remote Control [POWER/SRC] button [RPT] button • Power/Toggle the audio source • Repeat play ] button • Previous (Next)/Search [MUTE] button • Mute audio output [POWER/ [SCN/PS/AS] button [BND/TOP] • Scan play/Preset scan/Auto SRC] memory store [BND/TOP] button • Select tuner band/Top play ] button • Volume up/down [ISR] ] button [DISP]... -
Page 9: Cautions On Handling
4. CAUTIONS ON HANDLING Handling Discs Handling Cleaning • New discs may have some roughness • To remove fingermarks and dust, use a soft around the edges. If such discs are used, cloth and wipe in a straight line from the the player may not work or the sound may center of the disc to the outer edge. -
Page 10: Operations
5. OPERATIONS Basic Operations Note: Mute Be sure to read this chapter referring to the Press the [MUTE] button on the remote chapter “3. CONTROLS.” control to mute the volume from the unit. Note: CAUTION Pressing the [MUTE] button again or adjusting volume will release muting. -
Page 11: Radio Operations
2. The unit has four bands: FM1, FM2, FM3 and AM. FM3 and AM can store by AS function. Each bands can store six stations, CZ500A can store 24 stations in total. Manual store While tuned into a desired radio station, press and hold number button 1–6 to store it in the... -
Page 12: Cd/Mp3/Wma Operations
CD/MP3/WMA Operations This unit can play back MP3/ (including an extension). WMA files 3. Do not affix a name to a file inside a folder having the same name. Note: If you play a file with DRM (Digital Rights Folder structure Management) for WMA remaining ON, no A disc with a folder having more than eight audio is output (The WMA indicator blinks). -
Page 13: Folder Select
CD/MP3/WMA Operations Fast-forward/Fast-reverse • Discs not bearing the mark TEXT Fast-forward and CD-ROMs cannot be played by this TEXT Press and hold the [ ] button. unit. Fast-reverse • Some CDs recorded in CD-R/CD-RW Press and hold the [ ] button. mode may not be usable. -
Page 14: Usb Operations
CD/MP3/WMA Operations Press the [RDM] button to perform random play. Random play starts with the next played track when Random function is on. USB Operations 1. Insert a USB device into the USB connector. When connecting a USB device, the unit will read the files automatically. -
Page 15: Bluetooth Operations
3. Search for new Buetooth devices. 1. Rotate the knob to select “SIM PHONE 4. Select CZ500A from the pairing list on the BOOK”, “MEMORY PHONE BOOK” or mobile phone. “TELEPHONE BOOK” . 5. Enter “0000” as the password. -
Page 16: Selecting A Track
Please When A2DP device is disconnected, “BT consult your nearest Clarion dealer for more DISCONNECT” will be shown on the display information on wireless audio streaming and return to previously selected audio transmitter products offered. -
Page 17: Audio Setup
Audio Setup Press the [SOUND] button to enter sound BALANCE: LEFT 1-7→ CENTER → RIGHT effect setting mode. First press shows current EQ. Rotate the [VOLUME] knob to change FADER: LEFT 1-7→ CENTER → RIGHT 1-7 the options in the following order: OFF → M-BEX: ON/OFF B-BOOST →... -
Page 18: Troubleshooting
6. TROUBLESHOOTING General Problem Cause Measure Unit does not turn Unit fuse blown. Install new fuse with correct rating. Car battery fuse blown. Install new fuse with correct rating. Unit does not turn Illegal operation. Turn off the power and open the operation panel. Press the Reset button with a thin rod. -
Page 19: Error Display
USB devices Problem Cause Measure The USB device has been inserted Reversing the connection direction of the USB USB device cannot be with wrong direction. device, try it again. inserted. The USB connector is broken. Replace with a new USB device. The USB device is damaged. -
Page 20: Specifications
8. SPECIFICATIONS FM tuner Input Frequency range: 87.5-108.0 MHz Audio input sensitivity: Usable sensitivity: 8 dBμ High: 320 mV (at 2V output) Frequency response: 30 Hz-15 kHz Mid: 650 mV (at 2V output) Stereo separation: 30 dB(1 kHz) Low: 1.3 V (at 2V output) Signal/noise ratio: >55 dB (input impedance 10 kΩ... -
Page 21: Installation / Wire Connection Guide
Never use a rough cloth, thinner, drop anything into the unit during benzine, or alcohol. For tough dirt, installation, consult your dealer or an apply a little cold or warm water to a authorized Clarion service center. soft cloth and wipe off the dirt gently. -
Page 22: Cautions On Installation
Notes: 1. Some car models require special mounting kits for proper installation. Consult your Clarion dealer for details. 2. Fasten the front stopper securely to prevent the source unit from coming loose. • Console opening dimensions 182 mm... -
Page 23: Notes On Installation
Notes on installation 6. To prevent electric spark, connect the positive pole first and then the negative 1. Before installation, please make sure that pole. all connections have been properly made 7. DO NOT block the cooling fan exit to and the unit operates normally. -
Page 24: Removing The Source Unit
6) Removing the Source Unit Method B Disassemble trim ring 1. Push the trim ring upward and pull out the upper part. M5×6 2. Push the trim ring downward and pull out the lower part. Disassemble the unit 1. Switch off the power. Dashboard Mounting frame 2. -
Page 25: Wiring And Connections
7) Wiring and Connections Purple Subwoofer output 1 White Left Rear audio output Right terminal Purple Black Subwoofer output 2 White Left Front audio output Black Black Right terminal Steering wheel control Gray terminal Black Black Microphone 4-channel amplifier USB connector Refer to the next page. Fuse 15 A ANTENNA (Black) -
Page 26: Connecting The Accessories
16-pin connector extension lead (attached to the source unit) Gray Front right Gray/Black White Front left Yellow wire (Memory back-up lead) Connect directly to battery White/Black Purple Rear right Red wire (Power lead) Purple/Black Accessory 12 V Green Rear left Green/Black Blue/White wire (Amplifier turn-on lead) 4-speaker system... - Page 27 Clarion Co., Ltd. All Rights Reserved. Copyright © 2010: Clarion Co., Ltd. Printed in China / Imprimé en Chine / Impreso en China PN:127075002530...
