2. DISPLAY THE XRX FEATURE ON THE MAP

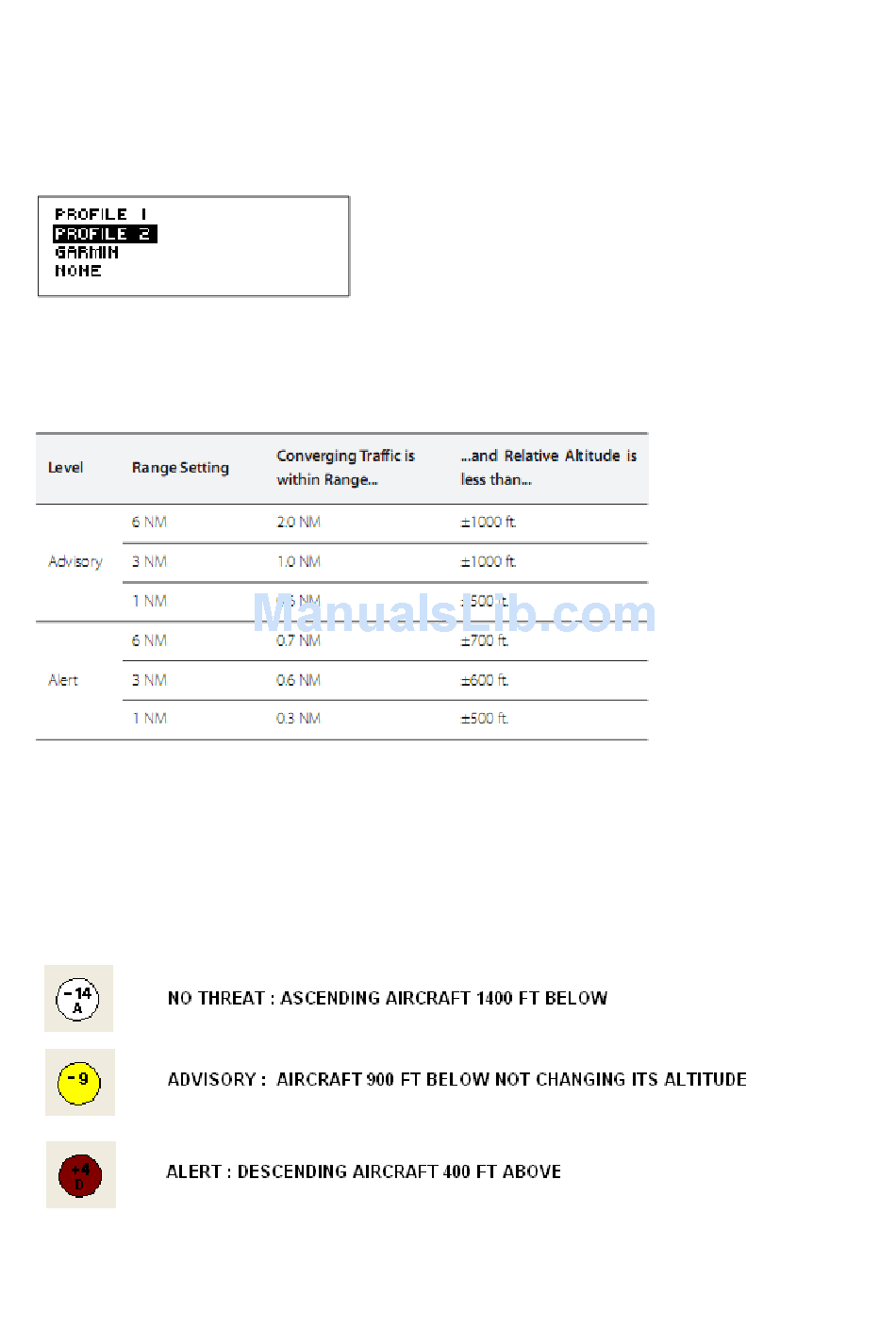

Set the XRX in communication PROFILE 2 mode in order to enable the device to send data through

the serial port.

As soon as "PROFILE 2 appears on the main page of the XRX LCD, turn DATA RECEPTION to

ON in the PCS XRX setup menu of the navigator, then select the Range Alert Radius (6Nm, 3 Nm

or 1 Nm). The logic applied to Range Alert Radius is the same as is used in the XRX.

Once the function is turned ON and the devices are correctly connected, when the XRX detects

traffic, one to three circles relative to the nearest aircraft will appear on the screen. Colors are

related to Range Alert Radius rating : White (No Threat), Yellow (Advisory) and Red (alert).

Each circle includes the aircraft's relative altitude information in hundreds of feet, with a "+"

symbol if above and a "-" if below. In case the aircraft is Ascending or descending an "A" or "D"

letter will be showed as well. For example :

NOTE. Circles are shown on the screen only in case of GPS reception.
