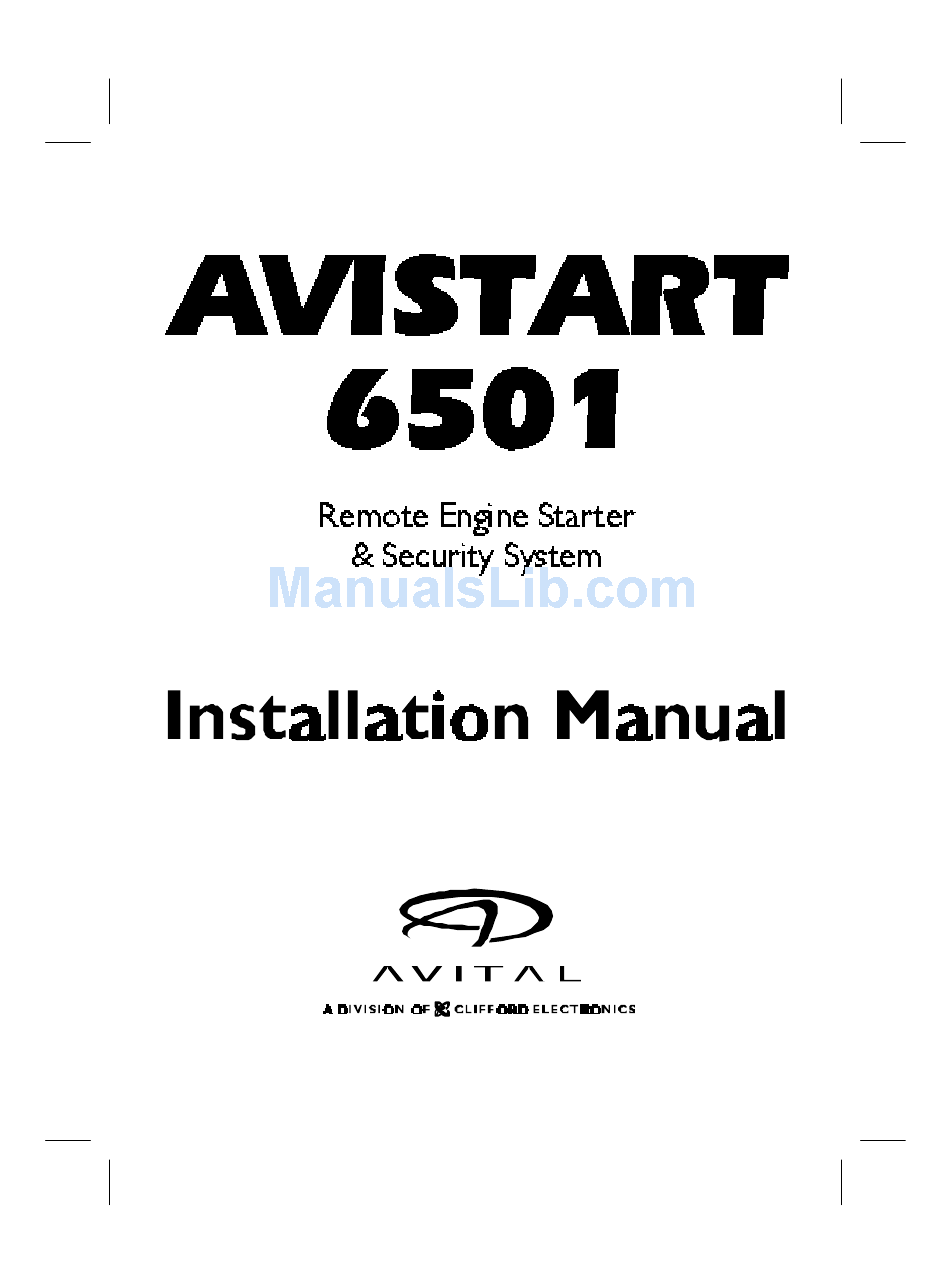

  • Page 1 AviStart 6501 Installation Manual...
  • Page 2 Keep the AviStart remote controls out of the reach of children. Whenever the vehicle is being serviced or valet parked, the system should be placed in Protected Valet Mode to prevent accidental or unauthorized remote starting. AviStart 6501 Installation Manual...
  • Page 3: Table Of Contents

    Programming Table for System Features ....2 5 Programming Table for Remote Controls ....2 6 AviStart 6501 Installation Manual...
  • Page 4: Important Information

    7 . Turn off dome light or remove dome light fuse to prevent battery drain. This device complies with Part 15 of the FCC rules. Any changes or modifications made to the system without the express approval of Avital Technologies, Inc. could void the user’s authority to operate this equipment.
  • Page 5: Main Wiring Diagram - 16 Pin

    Main Wiring Diagram - 16 Pin AviStart 6501 Installation Manual...
  • Page 6: Main Wiring Diagram - 14 Pin

    Main Wiring Diagram - 14 Pin AviStart 6501 Installation Manual...
  • Page 7: Satellite Relay Module Diagram

    Satellite Relay Module Diagram AviStart 6501 Installation Manual...
  • Page 8: Pin Connectors

    Glow Plug Light (+) Input 6 Pin Connector Pin Number Wire Color Description YELLOW Starter Interrupt Switch Side GRAY Heater / AC Output VIOLET Starter Interrupt Starter Side PINK Ignition Output Battery (+) PINK/BLACK Selectable 2nd Ignition/Heater Output AviStart 6501 Installation Manual...
  • Page 9: Installation Procedures

    4. Sleeve these wires with vinyl tubing or electrical tape and route them through an existing rubber grommet into the engine compartment. 5 . If an existing grommet is not available, drill a hole and install a snap grommet. AviStart 6501 Installation Manual...
  • Page 10: Led Indicator

    The GRAY wire will provide a continual 300 M.A. output whenever the alarm is armed. This output can be used for voice modules, window roll-up modules and any other optional accessory that requires a (-) output when the alarm is armed. AviStart 6501 Installation Manual...
  • Page 11: Brake Lights (Mandatory)

    2 . Turn the ignition key to the "ON" position and adjust the gear shift selector to "Reverse." 3 . Use a voltmeter to find the wire that will show +12 volts in "Reverse" and 0 volts in "Park." 4. Connect the YELLOW/BLACK wire to the vehicle’s reverse light wire. AviStart 6501 Installation Manual...
  • Page 12: Interior Light Illumination

    Factory Alarm Disarm (-) Output The GRAY/WHITE wire will provide a 0.75 second ground output when the START button is pressed. 1 . Arm the vehicle factory alarm system. Con tin ued on next page. AviStart 6501 Installation Manual...
  • Page 13: Factory Alarm Rearm

    1 . Simply connect to the interior lights and door locks as indicated in the manual. Accessory Remote Start (-) Input The BLUE/ORANGE wire will accept a (-) input pulse to activate the remote start. AviStart 6501 Installation Manual...
  • Page 14: Glow Plug Light Input

    PINK wire to prevent a short circuit. The main control module has an 18 ga PINK wire that must be connected to the vehicle ignition wire with one of the satellite module 14 ga wires. AviStart 6501 Installation Manual...
  • Page 15 • Open the satellite relay module (2 screws). • Locate the jumper pin labeled "JP1" to the left of the 5 pin white connector. • Remove the jumper terminal from "IGN2" terminal. • Insert the jumper terminal to the "ACC2" terminal. AviStart 6501 Installation Manual...
  • Page 16: Tach Wire (Rpm Monitoring)

    On most vehicles, the tach wire is easily accessible. If the tach wire is not accessible, there are several alternative choices. Contact Avital Technical Support Department for alternate choices. The following procedure for testing the vehicle tach wire is not exact and may vary with different vehicle make, model and year.
  • Page 17: Remote Engine Start Neutral Safety Switch Bulletin

    Currently, the only vehicles with the combined neutral safety switch that Avital is aware of are General Motors trucks, GM sport utility vehicles, GM column shift passenger cars and Dodge Dakota pickup trucks. There may be additional vehicles with the combined neutral safety switch that require the additional relay.
  • Page 18 The wire color codes are subject to change. Check all wires with a volt/ohmmeter. If you have any questions, please contact the Technical Support Department at 1-800-444-4667. AviStart 6501 Installation Manual...
  • Page 19 Gen eral Mo tors Sport Util ity Ve hi cles, Trucks and Col umn Shift Pas sen ger Ve hi cles Dodge Da kota Pickup Trucks AviStart 6501 Installation Manual...
  • Page 20 AviStart 6501 Installation Manual...
  • Page 21 AviStart 6501 Installation Manual...
  • Page 22 AviStart 6501 Installation Manual...
  • Page 23 AviStart 6501 Installation Manual...
  • Page 24: Hood Switch (Mandatory)

    1 . Connect the 18 ga RED wire to one end of a supplied 20 amp fuse assembly. 2. If the vehicle parking lights are positive trigger, connect the RED/WHITE wire to one end of the other supplied 20 amp fuse assembly. Con tin ued on next pge. AviStart 6501 Installation Manual...
  • Page 25: Mandatory Rpm Programming

    5 . Press and hold the remote START button. 6. The parking lights will flash two times to confirm the RPMs have been memorized. 7 . Release the START button. 8 . Turn the engine off. AviStart 6501 Installation Manual...
  • Page 26: Programmable Features

    6 . Follow the "Secondary Action." You will hear a number of chirps to confirm that you have changed the setting of that feature. 7 . Turn the ignition key "OFF." 8 . Repeat steps 1-7 for any other feature you wish to program. AviStart 6501 Installation Manual...
  • Page 27: Programming Table For System Features

    -7°F (-20°C) or -22°F Wait 3 seconds, the siren will chirp once (-30°C) for -7°F (-20°C), twice for -22° (-30°C). Wait 3 seconds, the siren will chirp once Security Start Lock for OFF, twice for ON. AviStart 6501 Installation Manual...
  • Page 28: Programming Table For Remote Controls

    Press A Button, the siren will chirp 1 time. Code Learning Instant Remote Control Wait 3 seconds, the siren will chirp twice, Code Deletion all codes are erased out of memory. © 1999 Avital Technologies, Inc., A Division of Clifford Electronics Part Number: 32-6501/AviStart6501IM/0999 AviStart 6501 Installation Manual...
