Summary of Contents for Avital AviStart 6500

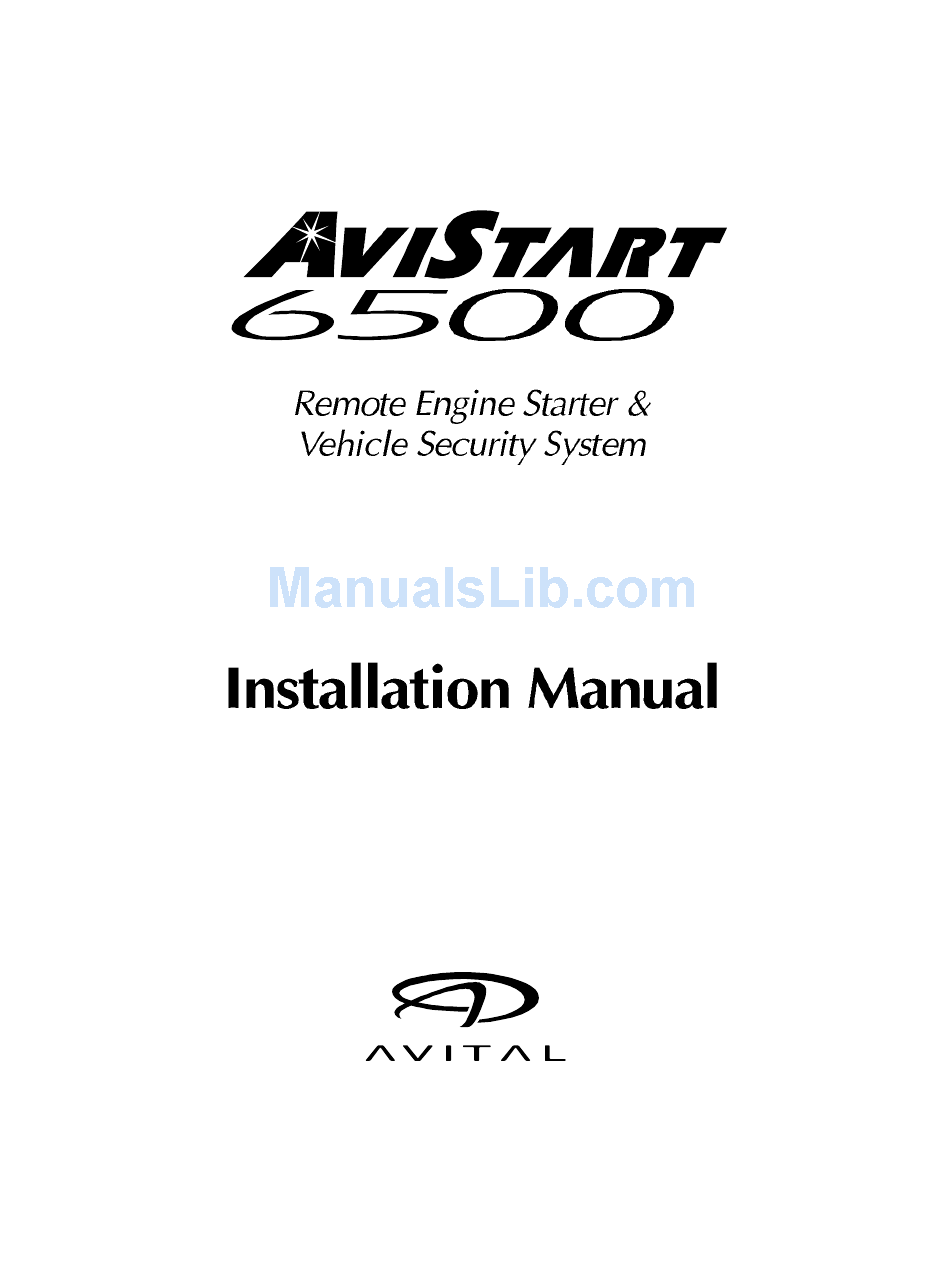

  • Page 1 AviStart 6500 Installation Manual...
  • Page 2: Table Of Contents

    Programming Table for System Features ....24 Programming Table for Remote Controls ....25 AviStart 6500 Installation Manual...
  • Page 3: Important Information

    7. Turn off dome light or remove dome light fuse to prevent battery drain. This device complies with Part 15 of the FCC rules. Any changes or modifications made to the system without the express approval of Avital Technologies, Inc. could void the user’s authority to operate this equipment.
  • Page 4: Main Wiring Diagrams

    Main Wiring Diagram - 16 Pin AviStart 6500 Installation Manual...
  • Page 5 Main Wiring Diagram - 12 Pin AviStart 6500 Installation Manual...
  • Page 6: Satellite Relay Module Diagram

    Satellite Relay Module Diagram AviStart 6500 Installation Manual...
  • Page 7: Pin Connectors

    Channel 6 (-) Output BLUE / YELLOW Channel 9 (-) Output Battery (+) WHITE Door Trigger VIOLET Siren (-) Output WHITE / BLACK Door Trigger Input Polarity (+) or (-) Select BLACK Battery (-) ORANGE Optional Sensor (-) Input AviStart 6500 Installation Manual...
  • Page 8 6 Pin Connector Pin Number Wire Color Description YELLOW Starter Interrupt Switch Side GRAY Heater / AC Output VIOLET Starter Interrupt Starter Side PINK Ignition Output Battery (+) PINK Ignition Output AviStart 6500 Installation Manual...
  • Page 9: Installation Procedures

    4. Sleeve these wires with vinyl tubing or electrical tape and route them through an existing rubber grommet into the engine compartment. 5. If an existing grommet is not available, drill a hole and install a snap grommet. AviStart 6500 Installation Manual...
  • Page 10: Led Indicator

    The GRAY wire will provide a continual 300 M.A. output whenever the alarm is armed. This output can be used for voice modules, window roll-up modules and any other optional accessory that requires a (-) output when the alarm is armed. AviStart 6500 Installation Manual...
  • Page 11: Brake Lights (Mandatory)

    2. Turn the ignition key to the "ON" position and adjust the gear shift selector to "Reverse." 3. Use a voltmeter to find the wire that will show +12 volts in "Reverse" and 0 volts in "Park." 4. Connect the YELLOW/BLACK wire to the vehicle’s reverse light wire. AviStart 6500 Installation Manual...
  • Page 12: Interior Light Illumination

    The GRAY/BLACK wire will provide a continual ground output for as long as the vehicle is in the remote start mode. This output can be used for additional ignition, starter or heater/AC relays, as well as VATS, Passlok and Passkey bypass. AviStart 6500 Installation Manual...
  • Page 13: Factory Alarm Disarm (-) Output

    The satellite relay module has two onboard 30-amp relays. Most vehicles have only one ignition wire necessary to start the vehicle. Some vehicles have two ignition wires. Make all wire connections at the ignition switch wire harness. (Con tin ued on next page) AviStart 6500 Installation Manual...
  • Page 14 If it will not crank, you have the correct wire. 3. Connect the YELLOW wire to the ignition switch side of the starter wire. 4. Connect the VIOLET wire to the starter solenoid side of the starter wire. AviStart 6500 Installation Manual...
  • Page 15: Remote Engine Start Neutral Safety Switch Bulletin

    Currently, the only vehicles with the combined neutral safety switch that Avital is aware of are General Motors trucks, GM sport utility vehicles, GM column shift passenger cars and Dodge Dakota pickup trucks. There may be additional vehicles with the combined neutral safety switch that require the additional relay.
  • Page 16 The wire color codes are subject to change. Check all wires with a volt/ohmmeter. If you have any questions, please contact the Avital Technical Support Department. AviStart 6500 Installation Manual...
  • Page 17 Gen eral Mo tors Sport Util ity Ve hi cles, Trucks and Col umn Shift Pas sen ger Ve hi cles Dodge Da kota Pickup Trucks AviStart 6500 Installation Manual...
  • Page 18: Door Lock/Unlock

    Door Lock/Unlock The system has onboard door lock relays to lock and unlock all of the doors as well as a two-stage unlock. The diagrams on pages 17-20 will illustrate standard lock/unlock and two-stage unlock. AviStart 6500 Installation Manual...
  • Page 19 AviStart 6500 Installation Manual...
  • Page 20 AviStart 6500 Installation Manual...
  • Page 21 AviStart 6500 Installation Manual...
  • Page 22: Tach Wire (Rpm Monitoring)

    On most vehicles, the tach wire is easily accessible. If the tach wire is not accessible, there are several alternative choices. Contact Avital Technical Support Department for alternate choices. The following procedure for testing the vehicle tach wire is not exact and may vary with different vehicle make, model and year.
  • Page 23: Si Ren

    11. Install the 5 amp fuse in the 18 ga RED wire fuse assembly. 12. Install the 20 amp fuse in the RED/WHITE wire fuse assembly. 13. Install the two 20 amp fuses in the 10 ga RED wire fuse assemblies. AviStart 6500 Installation Manual...
  • Page 24: Mandatory Rpm Programming

    Features" on page 24. 5. Press and hold the remote START button. 6. The parking lights will flash two times to confirm the RPMs have been memorized. 7. Release the START button. 8. Turn the engine off. AviStart 6500 Installation Manual...
  • Page 25: Programmable Features

    6. Follow the "Secondary Action." You will hear a number of chirps to confirm that you have changed the setting of that feature. 7. Turn the ignition key "OFF." 8. Repeat steps 1-7 for any other feature you wish to program. AviStart 6500 Installation Manual...
  • Page 26: Programming Table For System Features

    -7 F (-20 C), twice for -22 F (-30 C). -7 F (-20 C) or -22 F (-30 C) Wait 3 seconds, the siren will chirp once Security Start Locks™ for OFF, twice for ON. AviStart 6500 Installation Manual...
  • Page 27: Programming Table For Remote Controls

    One-Step Remote Code ARM/DISARM Press ARM/DISARM Button, the siren Learning Button will chirp 1 time. Wait 3 seconds, the siren will chirp Instant Remote Control — twice, all codes are erased Code Deletion out of memory. AviStart 6500 Installation Manual...
  • Page 28 AviStart 6500 Installation Manual...
