Summary of Contents for Avital Avistart 6001

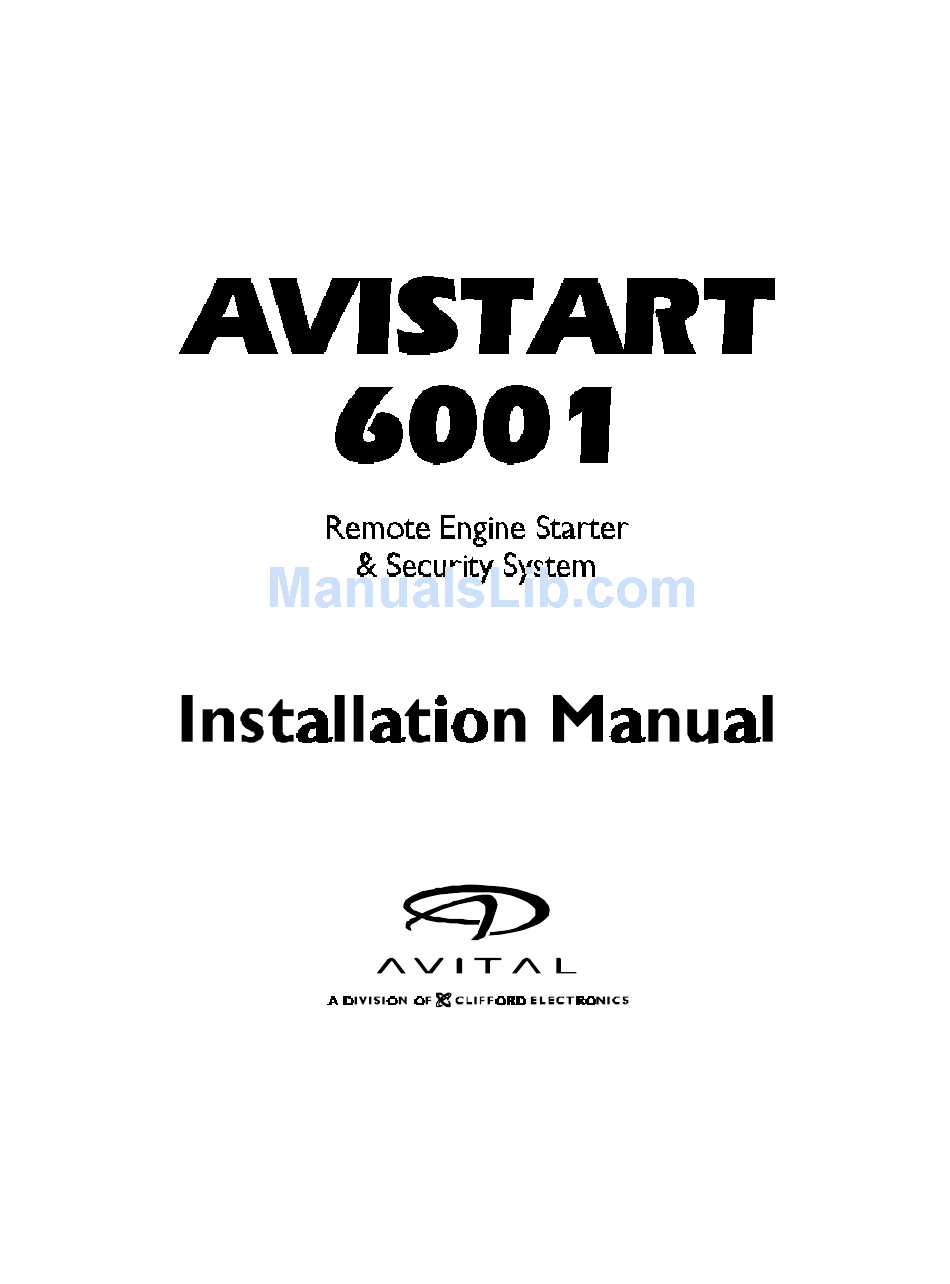

- Page 1 AviStart 6001 Installation Manual - 0999...
- Page 2 Keep the AviStart remote controls out of the reach of children. Whenever the vehicle is being serviced or valet parked, the system should be placed in Protected Valet Mode to prevent accidental or unauthorized remote starting. AviStart 6001 Installation Manual - 0999...
-
Page 3: Table Of Contents
Programming Table for System Features ....2 3 Programming Table for Remote Controls ....2 4 AviStart 6001 Installation Manual - 0999... -
Page 4: Important Information
7. Turn off dome light or remove dome light fuse to prevent battery drain. This device complies with Part 15 of the FCC rules. Any changes or modifications made to the system without the express approval of Avital Technologies, Inc. could void the user’s authority to operate this equipment. -
Page 5: Wiring Diagrams
Main Wiring Diagram AviStart 6001 Installation Manual - 0999... -
Page 6: Satellite Relay Module Diagram
Satellite Relay Module Diagram AviStart 6001 Installation Manual - 0999... -
Page 7: Pin Connectors
Glow Plug Light (+) Input 6 Pin Connector Pin Number Wire Color Description YELLOW Starter Interrupt Switch Side GRAY Heater / AC Output VIOLET Starter Interrupt Starter Side PINK Ignition Output Battery (+) PINK/BLACK Selectable 2nd Ignition/Heater Output AviStart 6001 Installation Manual - 0999... -
Page 8: Installation Procedures
4. Sleeve these wires with vinyl tubing or electrical tape and route them through an existing rubber grommet into the engine compartment. 5. If an existing grommet is not available, drill a hole and install a snap grommet. AviStart 6001 Installation Manual - 0999... -
Page 9: Led Indicator
The GRAY wire will provide a continual 300 mA output when the alarm is armed. This output can be used for voice modules, window roll-up modules and any other optional accessory that requires a (-) output when the alarm is armed. AviStart 6001 Installation Manual - 0999... -
Page 10: Brake Lights (Mandatory)
2. Turn the ignition key to the "ON" position and adjust the gear shift selector to "Reverse." 3. Use a voltmeter to find the wire that will show +12 volts in "Reverse" and 0 volts in "Park." 4. Connect the YELLOW/BLACK wire to the vehicle’s reverse light wire. AviStart 6001 Installation Manual - 0999... -
Page 11: Interior Light Illumination
A few vehicle disarm wires will rest at a neutral state while armed. Regardless of type, both types will change to ground when the key cylinder is turned to unlock. 3. Connect the GRAY/WHITE wire to the factory alarm disarm wire. AviStart 6001 Installation Manual - 0999... -
Page 12: Factory Alarm Rearm
2. Connect the alarm module TAN/BLACK wire to the vehicle trunk switch wire. 3. If the vehicle does not have a trunk switch, install a pin switch and connect it to the alarm module TAN/BLACK wire. AviStart 6001 Installation Manual - 0999... -
Page 13: Ignition Switch Connections
PINK/BLACK wire from ignition to heater/AC, follow the procedure below. • Open the satellite relay module (2 screws). • Remove the jumper termial from "IGN" terminal. • Insert the jumper terminal to the "HTR" terminal. AviStart 6001 Installation Manual - 0999... -
Page 14: Starter
At the same time, the GREEN/WHITE wire provides a 300 mA positive output. When the alarm is remotely disarmed, the GREEN/WHITE wire provides a negative output. At the same time the BLUE/WHITE wire provides a 300 mA positive output. AviStart 6001 Installation Manual - 0999... -
Page 15: Remote Engine Start Neutral Safety Switch Bulletin
Currently, the only vehicles with the combined neutral safety switch that Avital is aware of are General Motors trucks, GM sport utility vehicles, GM column shift passenger cars and Dodge Dakota pickup trucks. There may be additional vehicles with the combined neutral safety switch that require the additional relay. - Page 16 The wire color codes are subject to change. Check all wires with a volt/ohmmeter. If you have any questions, please contact the Technical Support Department. AviStart 6001 Installation Manual - 0999...
- Page 17 Gen eral Mo tors Sport Util ity Ve hi cles, Trucks and Col umn Shift Pas sen ger Ve hi cles Dodge Da kota Pickup Trucks AviStart 6001 Installation Manual - 0999...
- Page 18 AviStart 6001 Installation Manual - 0999...
- Page 19 AviStart 6001 Installation Manual - 0999...
-
Page 20: Glow Plug Light Input
2. Connect the AviStart ORANGE/BLACK wire to the vehicle glow plug might wire. NOTE: Do not use both "pre-ignition" and "glow plug light monitoring" at the same time (use one or the other). AviStart 6001 Installation Manual - 0999... -
Page 21: Tach Wire (Rpm Monitoring)
5. Mount the hood switch. 6. Connect the TAN wire to the hood switch. 7. Make sure the hood makes contact with hood switch when closed and presses the hood switch straight down to prevent wear. AviStart 6001 Installation Manual - 0999... -
Page 22: Siren
11. Install the 5 amp fuse in the 18 ga RED wire fuse assembly. 12. Install the 20 amp fuse in the RED/WHITE wire fuse assembly. 13. Install the two 20 amp fuses in the 10 ga RED wire fuse assemblies. AviStart 6001 Installation Manual - 0999... -
Page 23: Mandatory Rpm Programming
NOTE: Stop on the 17th chirp. See the "Programming Table for System Features" on page 23. 5. Press and hold the remote s button. 6. The parking lights will flash two times to confirm the RPMs have been memorized. 7. Release the s button. AviStart 6001 Installation Manual - 0999... -
Page 24: Programmable Features
6. Follow the "Secondary Action." You will hear a number of chirps to confirm that you have changed the setting of that feature. 7. Turn the ignition key "OFF." 8. Repeat steps 1-7 for any other feature you wish to program. AviStart 6001 Installation Manual - 0999... -
Page 25: Programming Table For System Features
Wait 3 seconds, the siren will chirp once -7°F (-20°C) or -22°F (-30°C) – for -7°F (-20°C), twice for -22° (-30°C) Wait 3 seconds, the siren will chirp once Security Start Locking for Off, twice for On AviStart 6001 Installation Manual - 0999... -
Page 26: Programming Table For Remote Controls
Press the A button, the siren will A Button Learning chirp 1 time. Wait 3 seconds, the siren will Instant Remote Control Code — chirp twice, all codes are erased Deletion out of memory. AviStart 6001 Installation Manual - 0999... - Page 27 AviStart 6001 Installation Manual - 0999...
- Page 28 © 1999 Avital Technologies, Inc., A Division of Clifford Electronics Part Num ber: 32- 6001/AviStart 6001IM/ 0999 AviStart 6001 Installation Manual - 0999...
