Hanna Instruments HI 99163 Instruction Manual

Instruction Manual
HI 99163
Portable Waterproof
Meat pH Meter
w w w . h a n n a i n s t . c o m
WARRANTY
All Hanna Instruments meters are warranted
for two years against defects in workmanship
and materials when used for their intended pur-
pose and maintained according to instructions.
The probes are warranted for a period of
six months.
This warranty is limited to repair or replacement
free of charge. Damage due to accidents, misuse,
tampering or lack of prescribed maintenance are
not covered.
If service is required, contact the dealer from
whom you purchased the instrument. If under
warranty, report the model number, date of pur-
chase, serial number and the nature of the prob-
lem. If the repair is not covered by the warranty,
you will be notified of the charges incurred. If the
instrument is to be returned to Hanna Instruments,
first obtain a Returned Goods Authorization Num-
ber from the Customer Service department and
then send it with shipment costs prepaid. When
shipping any instrument, make sure it is properly
packaged for complete protection.
All rights are reserved. Reproduction in whole or in
part is prohibited without the written consent of the
copyright owner.
Dear Customer,
Thank you for choosing a Hanna Instruments
Product.
Please read this instruction manual carefully
before using the instrument.
If you need additional technical information,
do not hesitate to e-mail us
tech@hannainst.com
This instrument is in compliance with the
directives.
PRELIMINARY EXAMINATION
Remove the instrument from the packing ma-
terial and examine it carefully to make sure
that no damage has occurred during ship-
ment. If noticeable damage is evident, notify
your dealer.
Note: Save all packing material until you
are sure that the instrument func-
tions correctly. All defective items
must be returned in the original pack-
ing together with the supplied ac-
cessories.
GENERAL DESCRIPTION

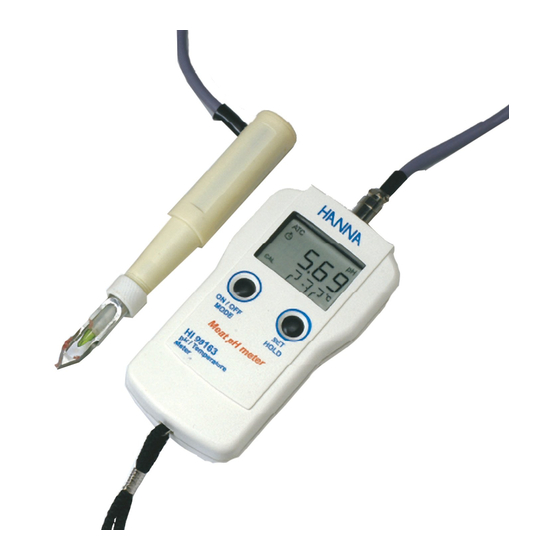

HI 99163 is a portable pH and temperature
meter with a special probe, dedicated to
the application in slaughter houses.
The FC 232D probe has been specially de-
signed with a stainless steel blade tip for
meat penetration.
Moreover, a built-in temperature sensor al-
lows simultaneous pH and temperature
readings and a mini amplifier renders mea-
surements impervious to noise and electri-
cal interferences.
The meter is supplied in a rugged carrying
case, complete with:
•
FC 232D amplified pH/temperature probe
with FC 099 stainless steel blade, DIN
connector and 1 m (3.3') cable
•
HI 70004 pH 4.01 buffer, 20 mL sachet
•
HI 70007 pH 7.01 buffer, 20 mL sachet
•
HI 700630 Acid cleaning solution for meat
grease and fats, 20 mL sachet (2 pcs.)
•
batteries and instructions
LCD DESCRIPTION
at
1. Automatic Temperature Compensation
indicator
2. Stability indicator
3. Battery percentage
4. pH calibration indicator
5. Low battery indicator
6. Selectable temperature unit
7. Secondary display
8. Primary display
SPECIFICATIONS
Range -2.00 to 16.00 pH
-5.0 to 105.0°C / 23.0 to 221.0°F
Resolution 0.01 pH / 0.1°C / 0.1°F
Accuracy ±0.02 pH
±0.5°C up to 60°C; ±1°C outside
(@20°C/68°F)
±1°F up to 140°F; ±2°F outside
Typical EMC
Deviation ±0.2°C or ±0.4°F
Temp. Compensation
pH Calibration Automatic, 1 or 2 point
with 2 sets of standardized buffers
(4.01/7.01/10.01 or 4.01/6.86/9.18)
Probe (included)
amplified pH/temperature probe
Battery Type 3 x 1.5V AA / IEC LR6
Battery Life Approx. 1500 hours
Auto-off After 8 minutes of non-use
Environment 0 to 50°C; RH 100%
Dimensions150 x 80 x 36 mm (5.9 x 3.2 x 1.4")
Weight
ACCESSORIES
FC 232D Amplified pH probe with stain-
less steel blade tip, built-in
temperature sensor, DIN con-
nector and 1 m (3.3') cable
FC 098 20 mm stainless steel blade
FC 099 35 mm stainless steel blade
HI 70004P pH 4.01 buffer solution, 20 mL
sachet (25 pcs.)
HI 7004L pH 4.01 buffer solution, 500 mL
HI 70006P pH 6.86 buffer solution, 20 mL
sachet (25 pcs.)
HI 7006L pH 6.86 buffer solution, 500 mL
HI 70007P pH 7.01 buffer solution, 20 mL
sachet (25 pcs.)
HI 7007L pH 7.01 buffer solution, 500 mL
HI 70300M Storage solution, 230 mL bottle
HI 70300L Storage solution, 500 mL bottle
HI 7061M General purpose cleaning so-
lution, 230 mL bottle
HI 7061L General purpose cleaning so-
lution, 500 mL bottle
HI 700630P Acid cleaning solution for meat
grease and fats, 20 mL sachet
(25 pcs.)
HI 70630M Acid cleaning solution for meat
grease and fats, 230 mL bottle
HI 70630L Acid cleaning solution for meat
grease and fats, 500 mL bottle
HI 70631M Alkaline cleaning sol. for meat
grease and fats, 230 mL bottle
HI 70631L Alkaline cleaning sol. for meat
grease and fats, 500 mL bottle
±0.02 pH
HI 70632M Cleaning & disinfection solu-
tion for blood products, 230 mL
Automatic
HI 70632L Cleaning & disinfection solu-
tion for blood products, 500 mL
HI 710007 Blue shockproof rubber boot
HI 710008 Orange shockproof rubber boot
FC 232D
HI 721312 Hard carrying case
Hanna Instruments reserves the right to
modify the design, construction and appear-
ance of its products without advance notice.
210 g (7.4 oz.)
IST99163R1 05/05
