INSTRUCTION MANUAL
HI99165
pH / Temperature
Meter for Cheese Products
Thank You
Thank you for choosing a Hanna Instruments product.
Please read this instruction manual carefully before
using the instrument.
For more information about Hanna and our
products, visit www.hannainst.com or e-mail
us at sales@hannainst.com.
For technical support, contact your local Hanna
office or email us at tech@hannainst.com
Find your local Hanna office on www.hannainst.com

Preliminary Examination

Remove the instrument from the packing material
and examine it carefully to make sure that no damage
has occurred during shipment. If noticeable damage
is evident, contact your local Hanna office.
Note: Save all packing material until you are
sure that the instrument functions correctly. All
defective items must be returned in the original
packing together with the supplied accessories.

General Description

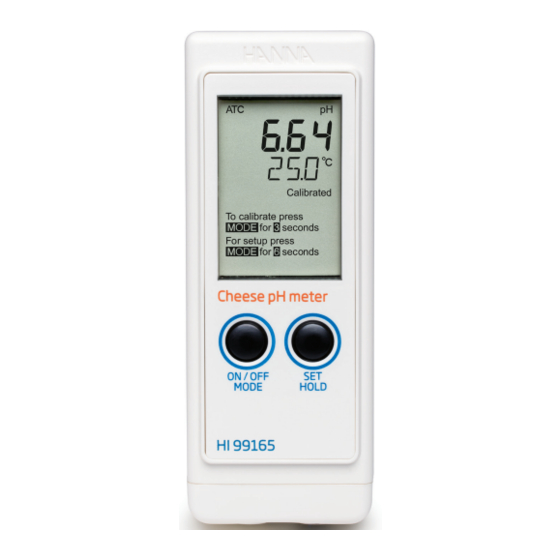

The HI99165 is a portable pH and temperature
meter designed for pH measurement in cheese.
Throughout the cheese making process, pH control is
critical to ensure consistent fermentation and food safety.
If the pH is too low, the cheese may be prone to a brittle or
pasty texture, as well as growth of mold after packaging. If
the pH is too high, the cheese may become too firm, and can
potentially be dangerous for consumption due to the risk of
pathogen formation. The pH must be carefully monitored to
detect deviation from the optimal range, which can create
problems with texture, taste, and public safety of cheese.
FC242D electrode has a stainless steel sheath and
conical tip to ensure quick, easy measurements and
fast response. FC242D pH electrode features a built-
in temperature sensor and is ideal for measurements
in semi-solid samples such as cheeses.
Each meter is supplied with:
• FC242D pH/temperature probe with DIN
connector and 1 m (3.3') cable
• pH 4.01 & 7.01 Buffer sachets
• HI700642 Electrode cleaning solution
sachets for cheese deposits (2)
• 100 mL Beaker (1)
• 1.5V AAA Batteries (3)
• Rugged carrying case
• Instruction manual and visual quick start guide
Hanna Instruments reserves the right to modify the design, construction, or
appearance of its products without advance notice.
LCD Description
1. Automatic Temperature 6. Calibration indicator
Compensation indicator
7. Selectable
2. Battery percentage temperature unit
(visible at power up)
8. Primary display
3. Secondary display
9. Measuring unit for
4. Low battery indicator primary display
5. Stability indicator
Maintenance:
• While unpacking, the appearance of salt deposits
around the protective cap is normal. The salt deposits
will dissolve when rinsed with water.
• After use, rinse the electrode with water and replace the
protective cap filled with a few drops of HI70300 storage
solution. If HI70300 is not available, use pH buffer.
DO NOT USE DISTILLED OR DEIONIZED WATER FOR
STORAGE PURPOSES.
Warranty
The meter is warranted for a period of two years against defects in
workmanship and materials when used for their intended purpose
and maintained according to instructions. The electrode is warranted
for a period of six months. This warranty is limited to repair or
replacement free of charge. Damage due to accidents, misuse,
tampering or lack of prescribed maintenance is not covered. If service
is required, contact your local Hanna office. If under warranty, report
the model number, date of purchase, serial number and the nature of
the problem. If the repair is not covered by the warranty, you will be
notified of the charges incurred. If the instrument is to be returned
to Hanna Instruments, first obtain a Returned Goods Authorization
(RGA) number from the Technical Service department and then
send it with shipping costs prepaid. When shipping any instrument,
make sure it is properly packaged for complete protection.
All rights are reserved. Reproduction in whole or in part is prohibited without the
written consent of the copyright owner.

Specifications

Range* -2.00 to 16.00 pH
Resolution 0.01 pH
Accuracy ±0.02 pH
automatic, one or two-point
pH
calibration, with two sets of
Calibration
buffers (standard: pH 4.01, 7.01,
10.01 or NIST: 4.01, 6.86, 9.18)
Temperature
automatic
Compensation
Range* -5.0 to 105.0 °C/23.0 to 221.0 °F
Resolution 0.1 °C/0.1 °F
Temperature
±0.5 °C up to 60 °C; ±1.0 °C outside
Accuracy
±1.0 °F up to 140 °C; ±2.0 °C outside
FC242D preamplified pH/
Probe
temperature probe with DIN
(included)
connector and 1 m (3.3') cable
Battery Type/ 1.5V AAA (3) / approximately
Life 1200 hours of continuous use
Additional
Auto-Off after 8 minutes of non-use
Specifications
0 to 50 °C (32 to 122 °F);
Environment
RH max. 100%
Dimensions 152 x 58 x 30 mm (6.0 x 2.3 x 1.2")
Weight 205 g (7.2 oz)
* The sensor is rated 0 to 12 pH and 0 to 70 °C (32 to 158 °F).
Accessories
Code Description
Combination preamplified pH electrode with built-in
temperature sensor, DIN connector and 1 m (3.3')
FC242D
cable, stainless steel body and conic tip for use in the
food industry
HI7004L pH 4.01 buffer solution, 500 mL
HI7006L pH 6.86 buffer solution, 500 mL
HI7007L pH 7.01 buffer solution, 500 mL
HI7009L pH 9.18 buffer solution, 500 mL
HI7010L pH 10.01 buffer solution, 500 mL
HI70300L Electrode storage solution, 500 mL
HI7061L General purpose cleaning solution, 500 mL
HI70630L Grease and fats acid cleaning solution, 500 mL
HI70631L Grease and fats alkaline cleaning solution, 500 mL
HI70641L Cleaning and disinfection solution for dairy products, 500 mL
HI70642L Cleaning solution for cheese deposits, 500 mL
HI710023 Shockproof rubber boot (orange)
HI710024 Shockproof rubber boot (blue)
HI72099111 Rugged carrying case
