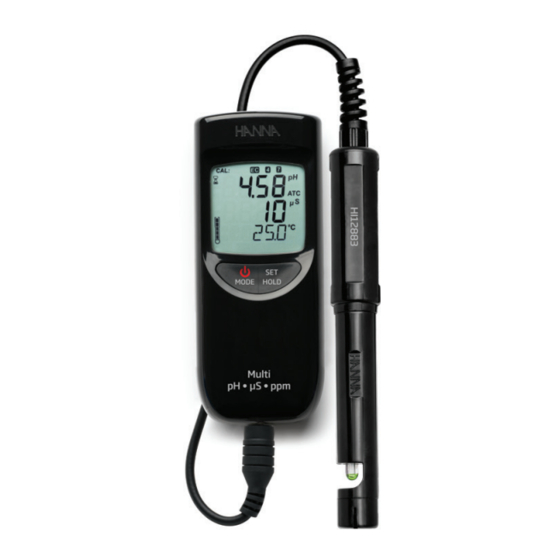

Hanna Instruments HI991300 Instruction Manual
Waterproof ph, ec, tds & temperature meter with advanced features
Hide thumbs
Also See for HI991300:
- Instruction manual (2 pages) ,
- Instruction manual (2 pages) ,
- Instruction manual (20 pages)
Related Manuals for Hanna Instruments HI991300
Summary of Contents for Hanna Instruments HI991300
- Page 1 HI991300 • HI991301 Waterproof pH, EC, TDS & Temperature Meter with Advanced Features...
- Page 2 Dear Thank you for choosing a Hanna Instruments product. Please read this instruction manual carefully before Customer, using this meter. This manual will provide you with the necessary information for correct use of this meter, as well as a precise idea of its versatility.
-
Page 3: Table Of Contents
Preliminary examination ........... General description and Intended use ......Main features ............Specifications ............Display description ........... Operational guide ............. Meter setup.............. Battery replacement..........Accessories ............... Electrode maintenance ..........Certification .............. Recommendations for users ........Warranty .............. -
Page 4: Preliminary Examination
Notify your nearest Hanna Instruments Customer Service Center if damage is observed. Each HI991300 is delivered in a rugged carrying case and is supplied with: •... -
Page 5: General Description And Intended Use
GENERAL DESCRIPTION AND INTENDED USE HI991300 HI991301 are lightweight, portable pH, conductivity (or total dissolved solids) and temperature meters for portable applications requiring both pH and conductivity (or TDS) measurement. To increase conductivity accuracy, two models are available, with different conductivity ranges, for applications from purified to brackish waters. -
Page 6: Main Features
MAIN FEATURES • Simultaneous pH, EC or TDS and temperature measurements on a large three line LCD display • Selectable temperature unit (°C or °F) • pH electrode condition indicator • mV of pH measurement for electrode check • Last calibration points pH and EC •... -
Page 7: Specifications
SPECIFICATIONS HI991300 ‑2.00 to 16.00 pH / ‑2.0 to 16.0 pH ±825 mV (pH‑mV) Range* 0 to 3999 μS/cm** 0 to 2000 ppm ‑5.0 to 105.0 °C / 23.0 to 221.0 °F 0.01 pH / 0.1 pH 1 mV Resolution 1 μS/cm... - Page 8 HI991301 ‑2.00 to 16.00 pH / ‑2.0 to 16.0 pH ±825 mV (pH‑mV) Range* 0.00 to 20.00 mS/cm** 0.00 to 10.00 ppt ‑5.0 to 105.0 °C / 23.0 to 221.0 °F 0.01 pH / 0.1 pH 1 mV Resolution 0.01 mS/cm 0.01 ppt (g/L) 0.1 °C / 0.1 °F ±0.02 pH / ±0.1 pH...
-
Page 9: Display Description
DISPLAY DESCRIPTION 1 EC calibration tag 2 Stability indicator 3 Primary LCD 4 Battery percentage 5 Secondary LCD 6 Electrode condition indicator 7 TDS conversion factor 8 Low battery indicator 9 pH calibration buffer(s) used 10 Automatic Temperature Compensation indicator 11 Measurement unit 12 Temperature unit 13 Tertiary LCD... -
Page 10: Operational Guide
OPERATIONAL GUIDE Each meter is supplied with batteries. Before using the meter for the first time, open the battery compartment and insert batteries, observing the polarity (see “Battery Replacement“). CONNECTING THE ELECTRODE With the meter turned off, connect the HI12883 probe to the DIN socket on the bottom of the meter by aligning the pins and pushing in the plug firmly. - Page 11 - Compatible pH probe: HI12963, HI12943, HI10483 probes and HI763003 EC probe. If one of the probes is detected “NoEC“ message is displayed or if HI763003 connected “NopH“ message is displayed at start-up and “---“ message is displayed on the secondary LCD for the pH probes or on the primary LCD for the EC probe.
- Page 12 pH MEASUREMENT & CALIBRATION Make sure the meter has been calibrated before use. If the probe is dry, soak it in HI70300 storage solution for 30 minutes to reactivate it. If soiled, clean the electrode by soaking in cleaning solution for 20 minutes, then rinse the tip and soak in storage solution at least 30 minutes before use.
- Page 13 is out of the accepted range “---- WRONG“ is displayed. 3. If the buffer is recognized “REC“ is displayed then “WAIT“ until the calibration is accepted. If using pH 7.01 (or pH 6.86 for NIST), after acceptance of the buffer press any key to exit. The ”SAVE” message is displayed and the meter returns to pH measurement mode.
- Page 14 pH ELECTRODE CONDITION The display is provided with a probe icon (unless the feature is disabled from setup) which indicates the pH electrode status after calibration. The “condition” remains active for 12 hours (unless the batteries are removed). The electrode condition is evaluated only if the current pH calibration has two points.
- Page 15 Select calibration type “EC STD“ . The meter enters the calibration mode and “μS 1.41 USE” (HI991300) or “mS 12.88 USE“ (HI991301) is displayed with blinking. Immerse the probe in calibration solution. If the standard value is recognized “REC“...
-
Page 16: Meter Setup
METER SETUP Setup mode allows the selection of the Temperature unit, Auto‑off, Beep confirmation tone, the type of pH buffer set, the pH Resolution, enable/disable calibration information display, temperature compensation factor for EC and TDS conversion factor. To enter Setup mode press and hold button until “EC STD“... - Page 17 • To switch the electrode condition indicator ON or OFF on the LCD, press the SET button; press confirm and to enter temperature compensation factor “BETA“. • “BETA“ is displayed on the third LCD line with the current temperature compensation factor (e.g. “1.9“), use SET button to modify the value.
-
Page 18: Battery Replacement
BATTERY REPLACEMENT When the remaining battery life is less than 10% the battery tag blinks on the display to warn the user. Battery Error Prevention System (BEPS) If the battery is too weak (“0%”) the display shows “bAtt“, “DEAD“ for a few seconds then the meter powers off. Immediately replace the batteries with new ones. -
Page 19: Accessories
ACCESSORIES pH and Conductivity (EC & TDS) probe with HI12883 built‑in temperature sensor, DIN connector and 1 m (3.3’) cable HI7004M pH 4.01 buffer solution, 230 mL HI7006M pH 6.86 buffer solution, 230 mL pH 7.01 buffer solution, 230 mL HI7007M HI7009M pH 9.18 buffer solution, 230 mL... - Page 20 Code and serial number on the other side Quick connector with Rubber protection, and 1 meter cable Reference Temperature sensor junction pH bulb EC/TDS cell...
-
Page 21: Electrode Maintenance
ELECTRODE MAINTENANCE PREPARATION • Remove the protective cap. Do not be alarmed if salt deposits are present. Rinse with water. • Shake the electrode down as you would do with a clinical thermometer to eliminate any air bubbles inside the glass tip. •... -
Page 22: Certification
CERTIFICATION All Hanna Instruments conform to the CE European Directives. RoHS compliant Disposal of Electrical & Electronic Equipment. The product should not be treated as household waste. Instead hand it over to the appropriate collection point for the recycling of electrical and electronic equipment which will conserve natural resources. -
Page 23: Recommendations For Users
When shipping any meter, make sure it is properly packed for complete protection. Hanna Instruments reserves the right to modify the design, construction or appearance of its products without advance notice. - Page 24 World Headquarters Hanna Instruments Inc. Highland Industrial Park 584 Park East Drive Woonsocket, RI 02895 USA www.hannainst.com MAN991300 Printed in ROMANIA...
