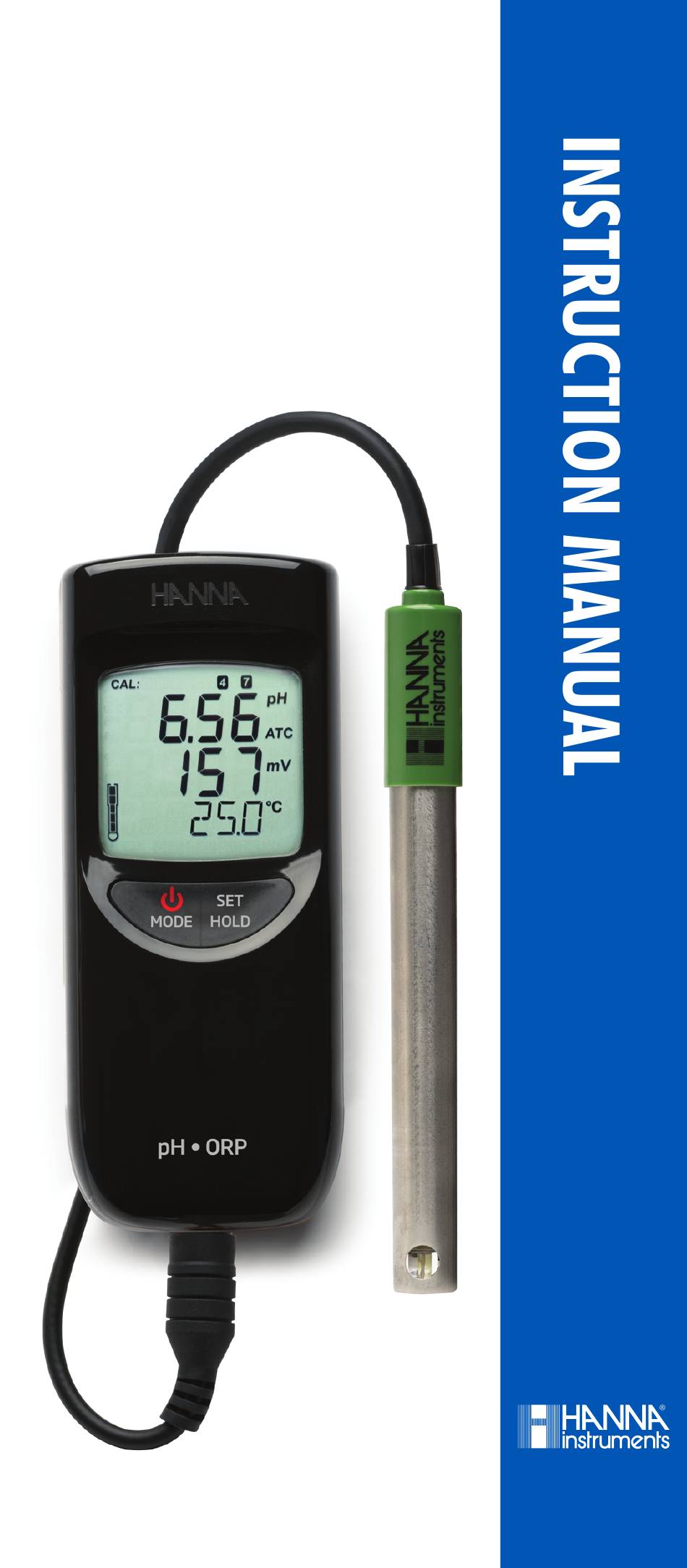

- Page 1 HI991003 Extended Range Waterproof pH, ORP & Temperature Meter...
- Page 2 Dear Thank you for choosing a Hanna Instruments product. Please read this instruction manual carefully before Customer, using this meter. This manual will provide you with the necessary information for correct use of this meter, as well as a precise idea of its versatility.
-
Page 3: Table Of Contents
Preliminary examination ........... General description and Intended use ......Main features ............Specifications ............Display description ........... Operational guide ............. Meter setup.............. Battery replacement..........Accessories ............... Electrode maintenance ..........Certification .............. Recommendations for users ........Warranty .............. -
Page 4: Preliminary Examination
Notify your nearest Hanna Instruments Customer Service Center if damage is observed. Each HI991003 is delivered in a rugged carrying case and is supplied with: •... -
Page 5: General Description And Intended Use

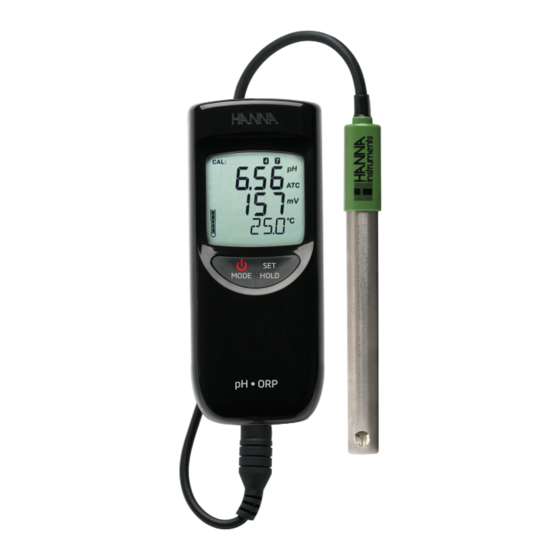

GENERAL DESCRIPTION AND INTENDED USE HI991003 portable pH and ORP meter together with HI12973 pH electrode is designed to measure pH and ORP in manufacturing and environmental testing protocols. HI991003 is a lightweight, portable meter. It features a two button operation system and is simple to use. It has a waterproof and compact casing, large three‑line display,... -
Page 6: Main Features
MAIN FEATURES • Simultaneous pH, ORP and temperature measurements on a large three‑line LCD display • Automatic pH calibration at one or two points within two memorized buffer sets (standard or NIST) • Selectable temperature unit (°C or °F) • Electrode condition indicator •... -
Page 7: Specifications
SPECIFICATIONS ‑2.00 to 16.00 pH / ‑2.0 to 16.0 pH ±825 mV (pH‑mV) Range* ±1999 mV (ORP) ‑5.0 to 105.0 °C / 23.0 to 221.0 °F 0.01 pH / 0.1 pH Resolution 1 mV 0.1 °C / 0.1 °F ±0.02 pH / ±0.1 pH ±1 mV (pH‑mV) Accuracy ±2 mV (ORP) -
Page 8: Display Description
DISPLAY DESCRIPTION 1 pH calibration buffer(s) used 2 Stability indicator 3 Primary LCD 4 Battery percentage 5 Secondary LCD 6 Electrode condition indicator 7 Low battery indicator 8 Measurement unit 9 Automatic Temperature Compensation indicator 10 Tertiary LCD 11 Temperature unit 12 Meter modes indicator... -
Page 9: Operational Guide
OPERATIONAL GUIDE Each meter is supplied with batteries. Before using the meter for the first time, open the battery compartment and insert batteries, observing the polarity (see “Battery Replacement“). CONNECTING THE ELECTRODE With the meter turned off, connect the HI12973 probe to the DIN socket on the bottom of the meter by aligning the pins and pushing in the plug firmly. - Page 10 - If the readings are out of range, the nearest range limits are displayed blinking (e.g. -2.00 pH -5.0 °C). SELECTING MEASUREMENT RANGE While in measurement mode, press the SET button to select pH or pH‑mV measurement on the first LCD line. FREEZING MEASUREMENT VALUES While in measurement mode, press and hold the SET button until “HOLD“...
- Page 11 The LCD displays the pH value (automatically compensated for temperature) on the primary LCD, the ORP value on the secondary LCD, while the tertiary LCD line displays the sample temperature. If measurements are taken in different samples successively, rinse the probe tip thoroughly in distilled or deionized water to eliminate cross‑...
- Page 12 Two-point calibration Proceed with steps 1 through 3 under single‑point calibration using 7.01 pH (pH 6.86 for NIST) buffer first. Then follow steps below: The ”pH 4.01 USE” message is then displayed. Place the probe in the second calibration buffer (pH 4.01 or 10.01, or, if using NIST, pH 4.01 or 9.18).
- Page 13 5 bars: excellent condition 4 bars: very good condition 3 bars: good condition 2 bars: fair condition 1 bar: poor condition 1 bar blinking: very poor condition With 1 bar it is recommended to clean the electrode and recalibrate. If there is still only 1 bar or 1 bar blinking replace the probe.
-
Page 14: Meter Setup
METER SETUP Setup mode allows the selection of the Temperature unit, Auto‑off, Beep confirmation tone, the type of pH buffer set, the pH Resolution and Information. To enter Setup mode press and hold button until “STD“ and tag is replaced by “SETUP“ and tag. -
Page 15: Battery Replacement
• To switch the electrode condition indicator on the LCD ON or OFF, press the SET button; press to exit setup options. Change the set with the SET button, then press to confirm and to return to normal mode. BATTERY REPLACEMENT When the remaining battery life is less than 10% the battery tag blinks on the display to warn the user. -
Page 16: Accessories
ACCESSORIES Combination preamplified pH/ORP/ HI12973 temperature probe with cloth junction, DIN connector and 1 m (3.3’) cable HI7004L pH 4.01 buffer solution, 500 mL HI7006L pH 6.86 buffer solution, 500 mL HI7007L pH 7.01 buffer solution, 500 mL HI7009L pH 9.18 buffer solution, 500 mL HI7010L pH 10.01 buffer solution, 500 mL HI7021L... -
Page 17: Electrode Maintenance
ELECTRODE MAINTENANCE PREPARATION • Remove the protective cap. Do not be alarmed if any salt deposits are present. Rinse with water. • Shake the electrode down as you would do with a clinical thermometer to eliminate any air bubbles inside the glass tip. -
Page 18: Certification
CERTIFICATION All Hanna Instruments conform to the CE European Directives. RoHS compliant Disposal of Electrical & Electronic Equipment. The product should not be treated as household waste. Instead hand it over to the appropriate collection point for the recycling of electrical and electronic equipment which will conserve natural resources. -
Page 19: Recommendations For Users
When shipping any meter, make sure it is properly packed for complete protection. Hanna Instruments reserves the right to modify the design, construction or appearance of its products without advance notice. - Page 20 World Headquarters Hanna Instruments Inc. Highland Industrial Park 584 Park East Drive Woonsocket, RI 02895 USA www.hannainst.com MAN991003 Printed in ROMANIA...
