Amana UXT4030AY Product Dimensions

30" (76.2 cm) and 36" (91.4 cm) Range Hood
PRODUCT MODEL NUMBERS
UXT4030AY UXT4036AY
Electrical:
A 120 volt, 60 Hz., AC only, 15-amp, fused electrical circuit is required.
If the house has aluminum wiring, follow the procedure below:
1. Connect a section of solid copper wire to the pigtail leads.
2. Connect the aluminum wiring to the added section of copper wire
using special connectors and/or tools designed and UL listed for
joining copper to aluminum.
Follow the electrical connector manufacturer's recommended
procedure. Aluminum/copper connection must conform with local
codes and industry accepted wiring practices.
Wire sizes and connections must conform with the rating of the
appliance as specified on the model/serial rating plate. The model/serial
plate is located behind the filter on the rear wall of the range hood.
Wire sizes must conform to the requirements of the National Electrical
Code, ANSI/NFPA 70 (latest edition), or CSA Standards C22. 1-94,
Canadian Electrical Code, Part 1 and C22.2 No. 0-M91 (latest edition)
and all local codes and ordinances.
Because Whirlpool Corporation policy includes a continuous commitment to improve
our products, we reserve the right to change materials and specifications without notice.

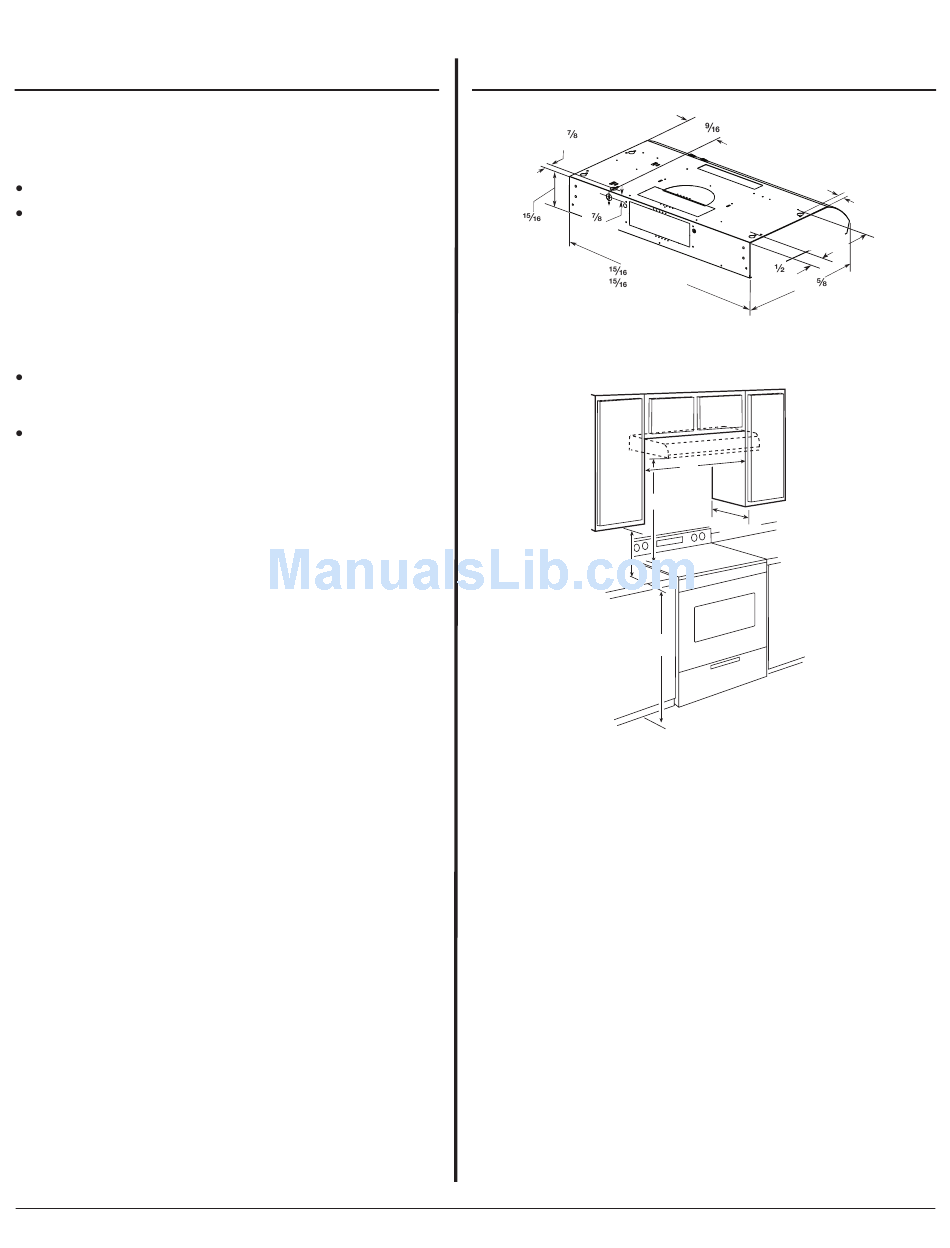

PRODUCT DIMENSIONS
"
(2.2 cm)
"
4 "
(2.2 cm)
(12.5 cm)
29
35
Installation Clearances
A
A. 18" (45.7 cm) min. clearance - upper cabinet to countertop
B. 18" (45.7 cm) to 24" (61.0 cm) suggested max. - bottom of range
hood to cooking surface
C. 30" (76.2 cm) min. cabinet opening width for 30" (76.2 cm)
models and 36" (91.4 cm) min. cabinet width for 36" (91.4 cm)
models
D. 13" (33.0 cm) cabinet depth
E. 36" (91.4 cm) base cabinet height
Dimensions are for planning purposes only. For complete details, see Installation
Instructions packed with product. Specifications subject to change without notice.
6 " (16.7 cm)
(22.9 cm)
1 "
" (76.0 cm) or
(3.8 cm)
" (91.0 cm) 18 "
(47.3 cm)
C
B
D
E
1"
(2.5 cm)
9"
Ref. W10400319B
