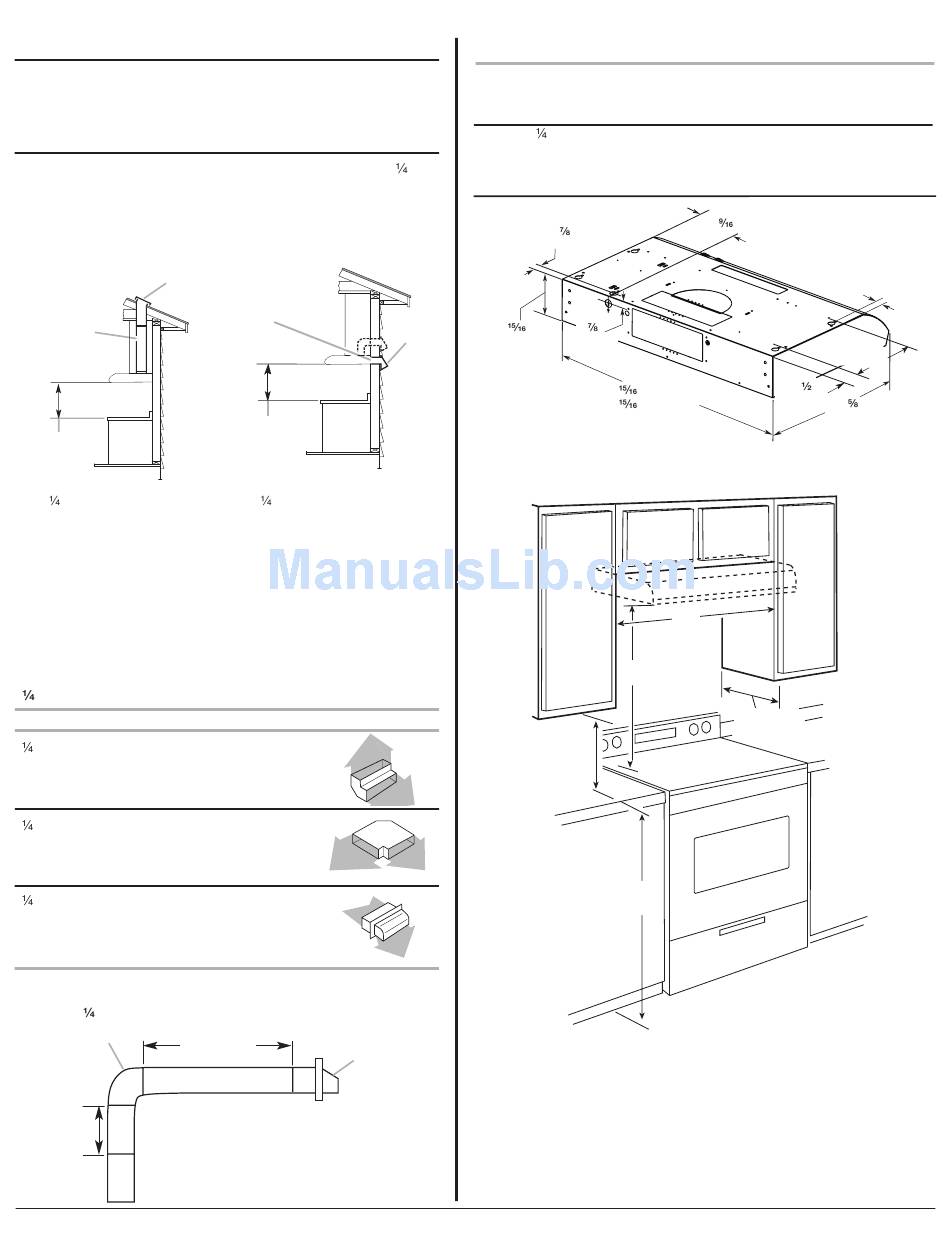

Amana UXT3030AY Product Dimensions

30" (76.2 cm) and 36" (91.4 cm) Range Hood
PRODUCT MODEL NUMBERS
UXT3030AY UXT3036AY
Electrical: A 120 volt, 60 Hz, AC only, 15-amp electrical supply is
required.
VENTING METHODS
Vent system can terminate either through the roof or wall. Use 3 " x
10" (8.3 x 25.4 cm) rectangular with a maximum vent length of 35 ft
(10.7 m) for vent system.
NOTE: Flexible vent is not recommended. Flexible vent creates both
back pressure and air turbulence that greatly reduce performance.
Roof Venting
B
A
C
A. 3 " x 10" (8.3 x 25.4 cm)
rectangular vent through the
roof (purchased separately)
B. Roof cap with damper
(purchased separately)
C. 18" (45.7 cm) min. to
24" (61.0 cm) max. above the
cooking surface
Calculating Vent System Length
To calculate the length of the system you need, add the equivalent feet
(meters) for each vent piece used in the system.
3 " x 10" (8.3 cm x 25.4 cm) Vent System
Vent Piece
3 " x 10" (8.3 cm x 25.4 cm) 5.0 ft
90° elbow (1.5 m)
3 " x 10" (8.3 cm x 25.4 cm) 12.0 ft
flat elbow (3.7 m)
3 " x 10" (8.3 cm x 25.4 cm) 0.0 ft
wall cap (0.0 m)
Example vent system
3 " x 10"
(8.3 x 25.4 cm)
elbow
6 ft (1.8 m)
2 ft
(0.6 m)
Because Whirlpool Corporation policy includes a continuous commitment to improve
our products, we reserve the right to change materials and specifications without notice.
Wall Venting
A
B
C
A. 3 " x 10" (8.3 x 25.4 cm)
rectangular vent through the
wall or out the top (purchased
separately)
B. Wall cap with damper
(purchased separately)
C. 18" (45.7 cm) min. to
24" (61.0 cm) max. above the
cooking surface
Wall cap
Maximum Recommended Length
1 - 90° elbow
8 ft (2.4 m) straight
1 - wall cap
Length of 3 " x 10" (8.3 cm x 25.4 cm)
system
PRODUCT DIMENSIONS
"
(2.2 cm)
4 " "
(2.2 cm)
(12.5 cm)
29
35
Installation Clearances
A
A. 18" (45.7 cm) min. clearance - upper cabinet to countertop
B. 18" (45.7 cm) to 24" (61.0 cm) suggested max. - bottom of range
hood to cooking surface
C. 30" (76.2 cm) min. cabinet opening width for 30" (76.2 cm)
models and 36" (91.4 cm) min. cabinet width for 36" (91.4 cm)
models
D. 13" (33.0 cm) cabinet depth
E. 36" (91.4 cm) base cabinet height
Dimensions are for planning purposes only. For complete details, see Installation
Instructions packed with product. Specifications subject to change without notice.
= 35 ft (10.7 m)
= 5.0 ft (1.5 m)
= 8.0 ft (2.4 m)
= 0.0 ft (0.0 m)
= 13.0 ft (3.9 m)
6 " (16.7 cm)
1 "
" (76.0 cm) or
(3.8 cm)
" (91.0 cm)
C
B
D
E
1"
(2.5 cm)
9"
(22.9 cm)
18 "
(47.3 cm)
Ref. W10400321C
