Amana UXT5530AA Installation Manual

Range Hood - 30" (76.2 cm) and 36" (91.4 cm)

PRODUCT MODEL NUMBERS

UXT5530AA UXT5536AA
Electrical: A 120 volt, 60 Hz, AC only, 15- or 20-amp,
fused electrical circuit is required. A time-delay fuse or
circuit breaker is also recommended. It is recommended
that a separate circuit serving only this range hood be
provided.

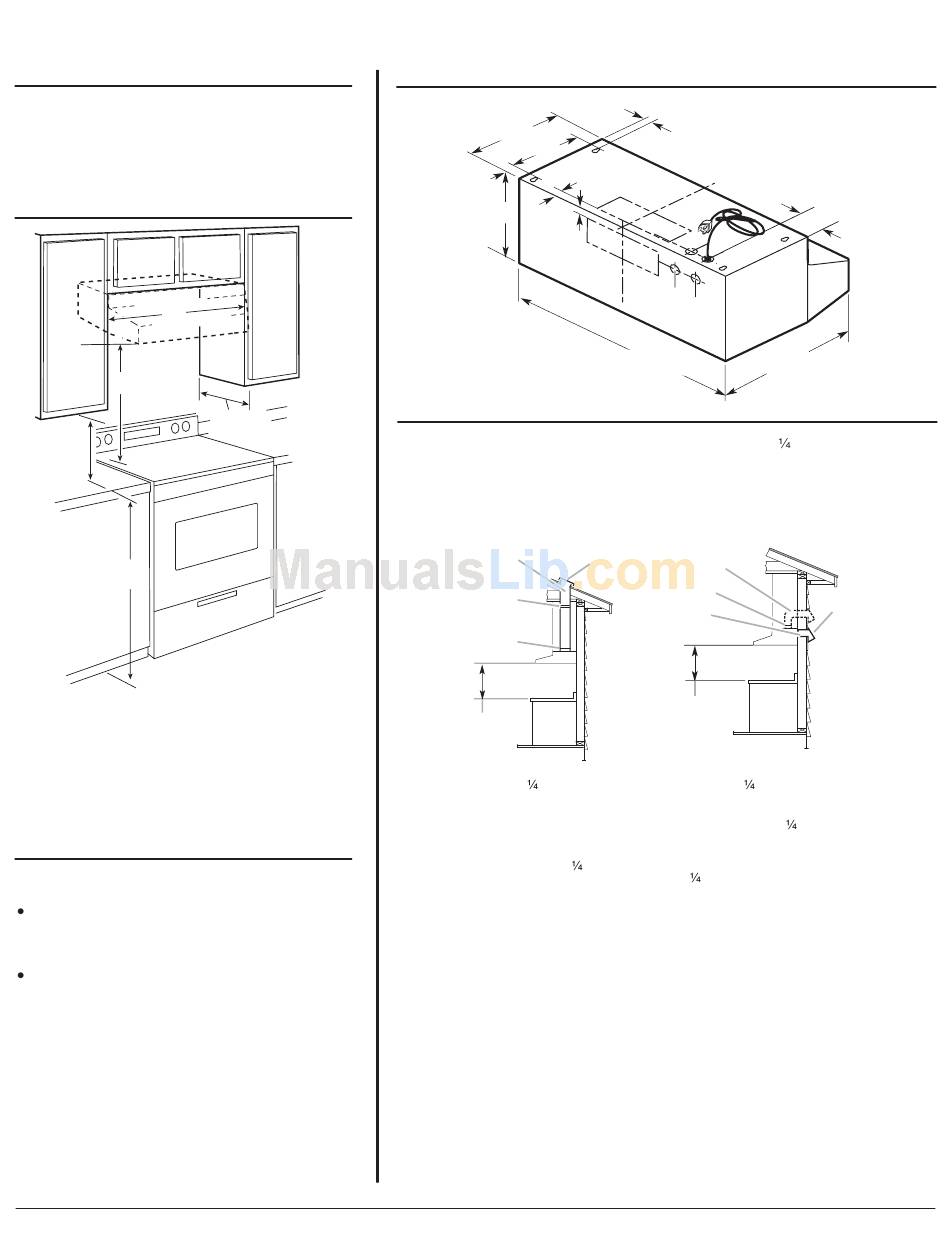

CABINET OPENING DIMENSIONS

C
B
A
E
A. 18" (45.7 cm) min. clearance - upper cabinet to countertop
B. 24" (61.0 cm) min. for electric cooking surfaces
27" (68.6 cm) min. for gas cooking surfaces
30" (76.2 cm) suggested max. - bottom of range hood to
cooking surface
C. 30" (76.2 cm) or 36" (91.4 cm) min. cabinet opening width
D. 13" (33.0 cm) cabinet depth
E. 36" (91.4 cm) base cabinet height

LOCATION REQUIREMENTS

IMPORTANT: Observe all governing codes and
ordinances.
It is the installer's responsibility to comply with
installation clearances specified on the model/serial
rating plate. The model/serial rating plate is located
inside the range hood on the left wall.
Range hood location should be away from strong draft
areas, such as windows, doors and strong heating
vents.

For Mobile Home Installations

The installation of this range hood must conform to the
Manufactured Home Construction Safety Standards,
Title 24 CFR, Part 328 (formerly the Federal Standard
for Mobile Home Construction and Safety, title 24, HUD,
Part 280) or when such standard is not applicable, the
standard for Manufactured Home Installation 1982
(Manufactured Home Sites, Communities and Setups)
ANSI A225.1/NFPA 501A*, or latest edition, or with
local codes.
Because Whirlpool Corporation policy includes a continuous commitment to improve
our products, we reserve the right to change materials and specifications without notice.

PRODUCT DIMENSIONS

VENTING REQUIREMENTS

D
Vent system can terminate either through the roof or wall. Use 3 " x 10" (8.3 x 25.4 cm)
with a maximum vent length of 35 ft (10.7 m) or 6" (15.2 cm) or larger round vent with a
maximum length of 50 ft (15.2 m) for vent system.
NOTE: Flexible vent is not recommended. Flexible vent creates back pressure and air
turbulence that gently reduce performance.
12"
(30.5 cm)
7¹⁄₄"
(18.4 cm)
⁵⁄₈"
2"
(1.6 cm)
(5.1 cm)
9"
(22.9 cm)
⁵⁄₈"
(1.6 cm)
29 ⁷⁄₈" (75.9 cm) - 30" (76.2 cm) model
35 ⁷⁄₈" (91.1 cm) - 36" (91.4 cm) model
Roof Venting
A
E
B
C
D
A. 6" (15.2 cm) or larger round
vent or a 3 " x 10" (8.3 x
25.4 cm) rectangular vent
through roof
B. Round vent: use 6" (15.2 cm)
or larger round damper
(purchased separately)
C. Round vent: use 3 " x 10"
(8.3 x 25.4 cm) to 6" (15.2 cm)
or larger diameter transition
piece
(purchased separately)
D. 24" (61.0 cm) - 30" (76.2 cm)
above electric cooking surface
27" (68.6 cm) - 30" (76.2 cm)
above gas cooking surface
E. Roof cap
Dimensions are for planning purposes only. For complete details, see Installation
Instructions packed with product. Specifications subject to change without notice.
1³⁄₁₆"
(3.0 cm)
3" (7.6 cm) -
30" (76.2 cm) model
5³⁄₄" (14.6 cm) -
36" (91.4 cm) model
³⁄₄
19 "
(50.2 cm)
Wall Venting
A
B
C
D
A. 6" (15.2 cm) or larger round
vent or a 3 " x 10" (8.3 x
25.4 cm) rectangular vent
through the wall
B. Round vent: use 3 " x 10" (8.3
x 25.4 cm) to 6" (15.2 cm) or
larger diameter transition piece
(purchased separately)
C. 3 " x 10" (8.3 x 25.4 cm)
through the wall
D. 24" (61.0 cm) - 30" (76.2 cm)
above electric cooking surface
27" (68.6 cm) - 30" (76.2 cm)
above gas cooking surface
E. Wall cap
E
Page 1 of 2
Ref. W10274302B
10/22/09
