4.9.3

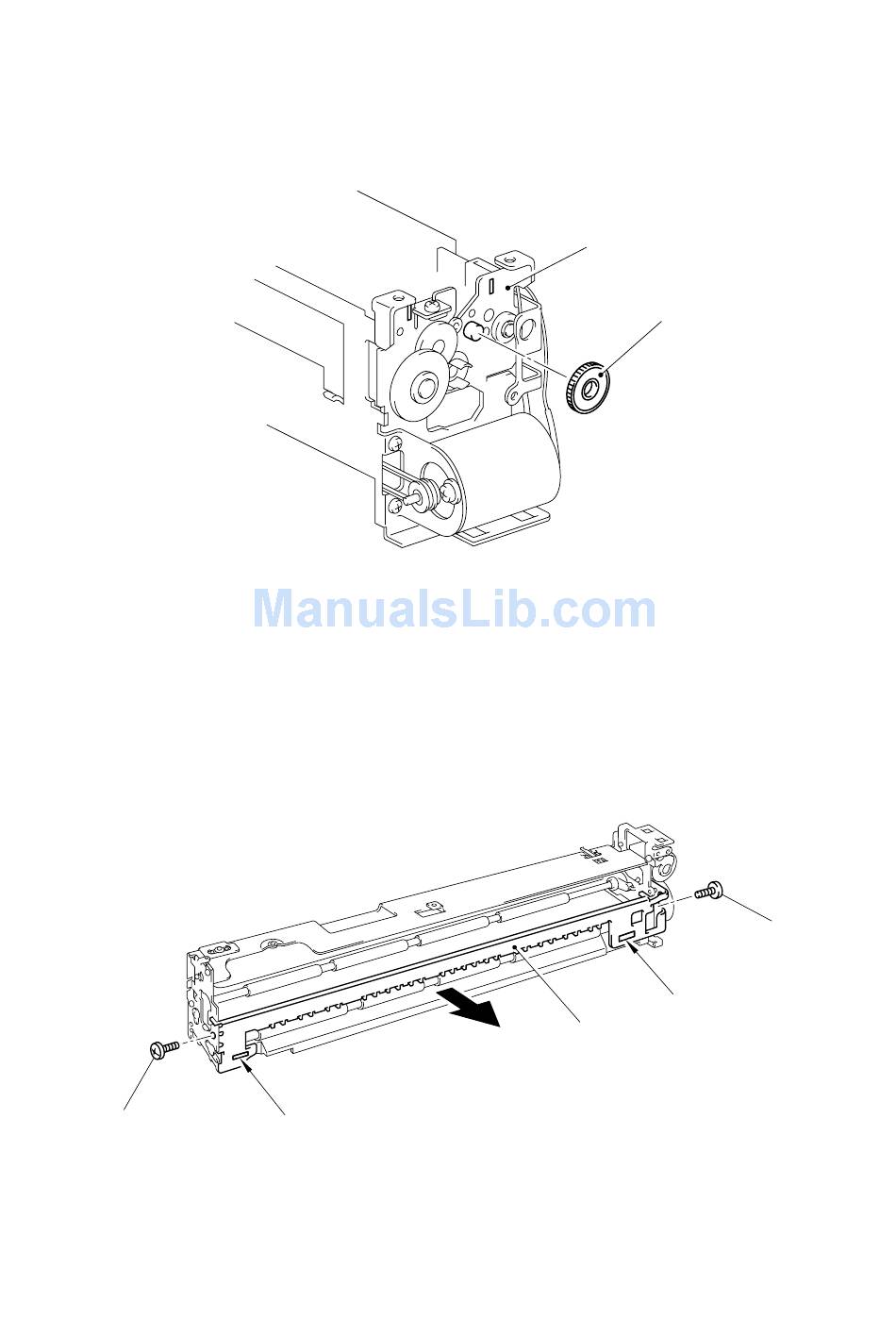

Paper Eject Idle Gear 25

<Disassembly>
(1) Remove the Paper eject idle gear 25 from the shaft on the Chassis R.
4.9.4

Carriage Guide

Note: The carriage speed auto-adjustment must be done when the Carriage
guide is replaced. See 3.2.5 Carriage Control Parameter Adjustment
Mode in Chapter 4.
<Disassembly>
(1) Remove the screws from Chassis L and Chassis R.
(2) Remove the Carriage guide.
Taptite, bind M26x4
Fig. 3.32
Boss
Fig. 3.33
III-24
Chassis R
Paper eject idle gear 25
Boss
Carriage guide
Taptite, bind M26x4
