Amana NFW5700B Installation

PRODUCT MODEL NUMBERS
NFW5700B

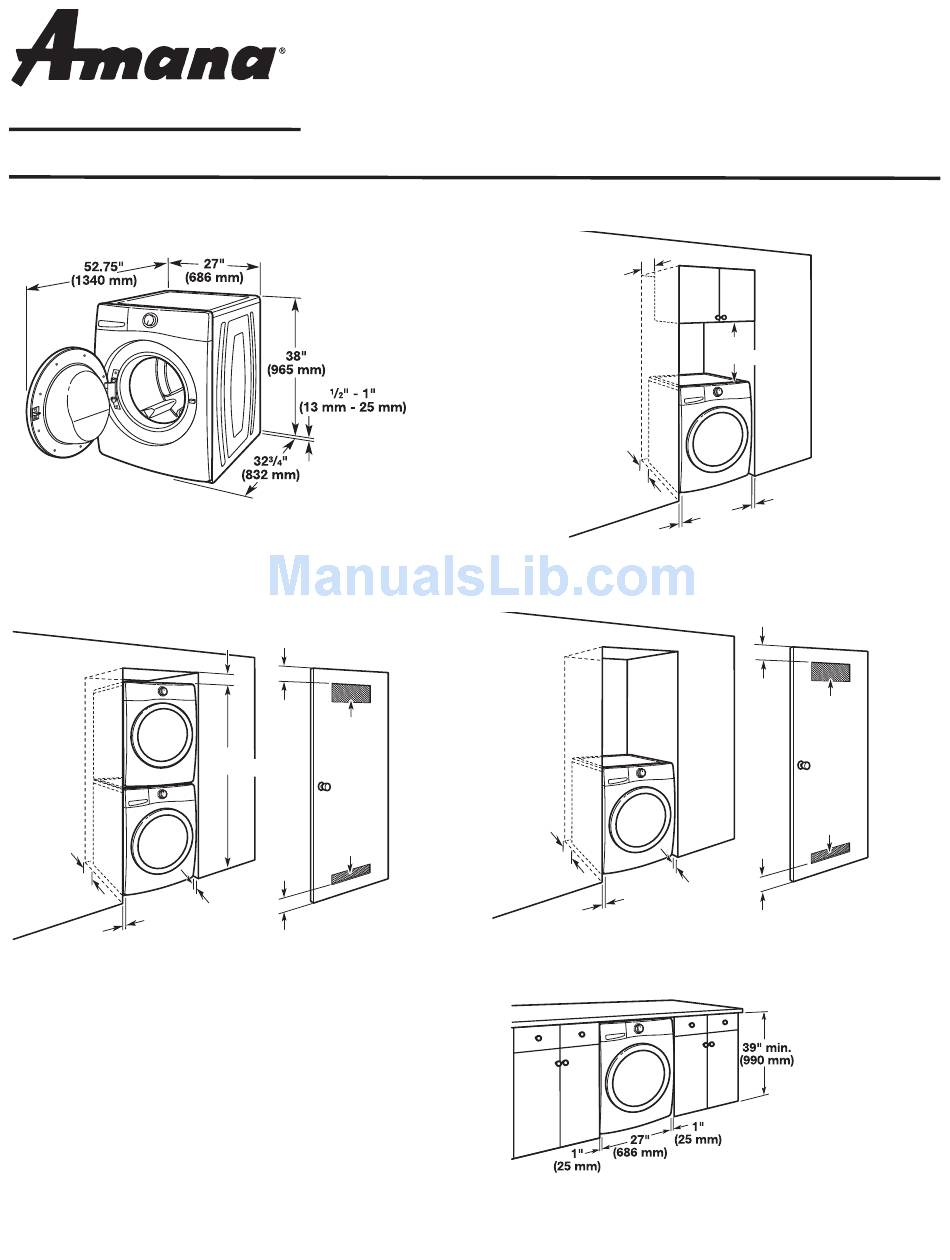

Washer Dimensions:
Recessed area or closet installation
(stacked washer and dryer):
5"
(127 mm)
1"
(25 mm)
Installation spacing for recessed area or closet
installation
The dimensions shown below are the recommended spacing
for this washer.
■ Additional spacing should be considered for ease of
installation and servicing.
■ Additional clearances might be required for wall, door, floor
moldings, and dryer venting.
■ Additional spacing of 1" (25 mm) on all sides of the dryer is
recommended to reduce noise transfer.
■ For closet installation, with a door, minimum ventilation openings
in the top and bottom of the door are required. Louvered doors
with equivalent ventilation openings are acceptable. Companion
appliance spacing should also be considered.
6"
(152 mm)
3"
(76 mm)
48 in.
2
(310 cm )
2
76.5"
(1943 mm)
24 in.
2
(155 cm )
2
3"
(76 mm)
1"
(25 mm)
Front-Loading Washer
Custom cabinet installation:
7"
(178 mm)
4"
(102 mm)
Recessed area or closet installation (washer only):
4"
(102 mm)
1"
(25 mm)
Custom under counter installation:
14"
(356 mm)
1"
(25 mm)
1"
(25 mm)
3"
(76 mm)
48 in.
2
(310 cm )
2
24 in.
2
(155 cm )
2
3"
(76 mm)
1"
(25 mm)
