System Board - HP ProDesk 600 Illustrated Parts & Service Map

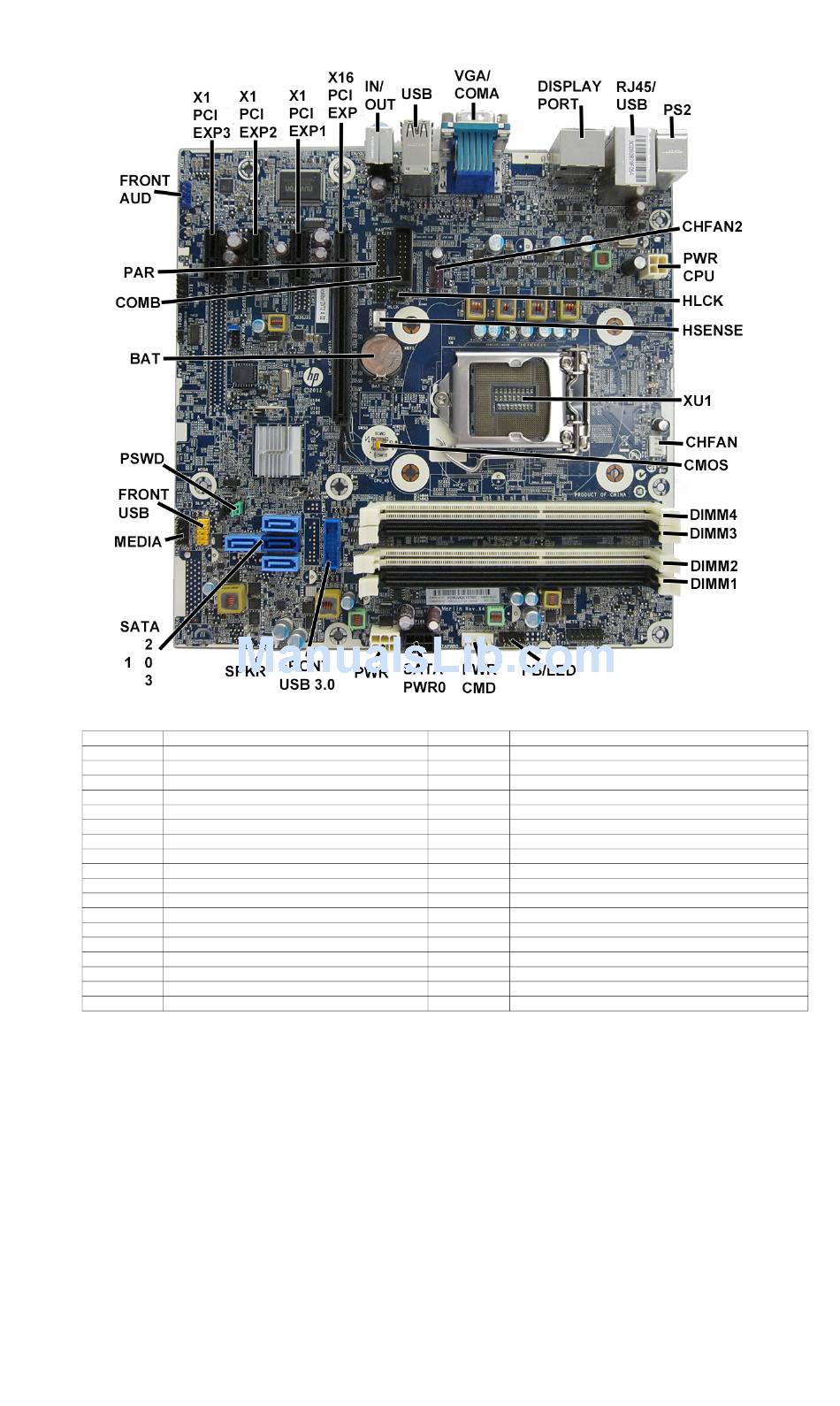

System Board Connectors and Jumpers (component location may vary)
X1PCIEXP3
X1PCIEXP2
X!PCIEXP1
X16PCIEXP
IN//OUT
USB
VGA/COMA
DISPLAYPORT
RJ45/USB
PS2
CHFAN2
PWRCPU
HLOCK
HSENSE
XU1
CHFAN
CMOS
DIMM4
DIMM3
HP ProDesk 600 G1, SFF Chassis
PCI Express x1 slot
PCI Express x1 slot
PCI Express x1 slot
PCI Express x16 slot
Audio connectors
USB connectors
Monitor connector/serial port
DisplayPort connector
Network/USB connectors
PS/2 keyboard/mouse connectors
System fan connector
CPU power connector
Hood lock connector
Hood sensor connector
Processor socket
Fan connector
CMOS header
Memory socket - Channel A
Memory socket - Channel A

System Board

DIMM2 Memory socket - Channel B
DIMM1 Memory socket - Channel B
PB/LED Power switch connector
PWR CMD Power connector
SATA PWR0 Optical drive power connector
PWR Main power connector
FRONT USB 3.0 Front USB 3.0 port connector
SPKR Speaker connector
SATA0 Primary hard drive
SATA1 Any SATA Device other than the primary hard drive
SATA2 Any SATA Device other than the primary hard drive
SATA3 Any SATA Device other than the primary hard drive
MEDIA Media card reader connector
FRONT_USB 1st USB connector
PSWD Password header
BAT RTC battery socket
COMB Serial port
PAR Parallel port connector
FRNT AUD Front panel connector
723285-001 page 4
