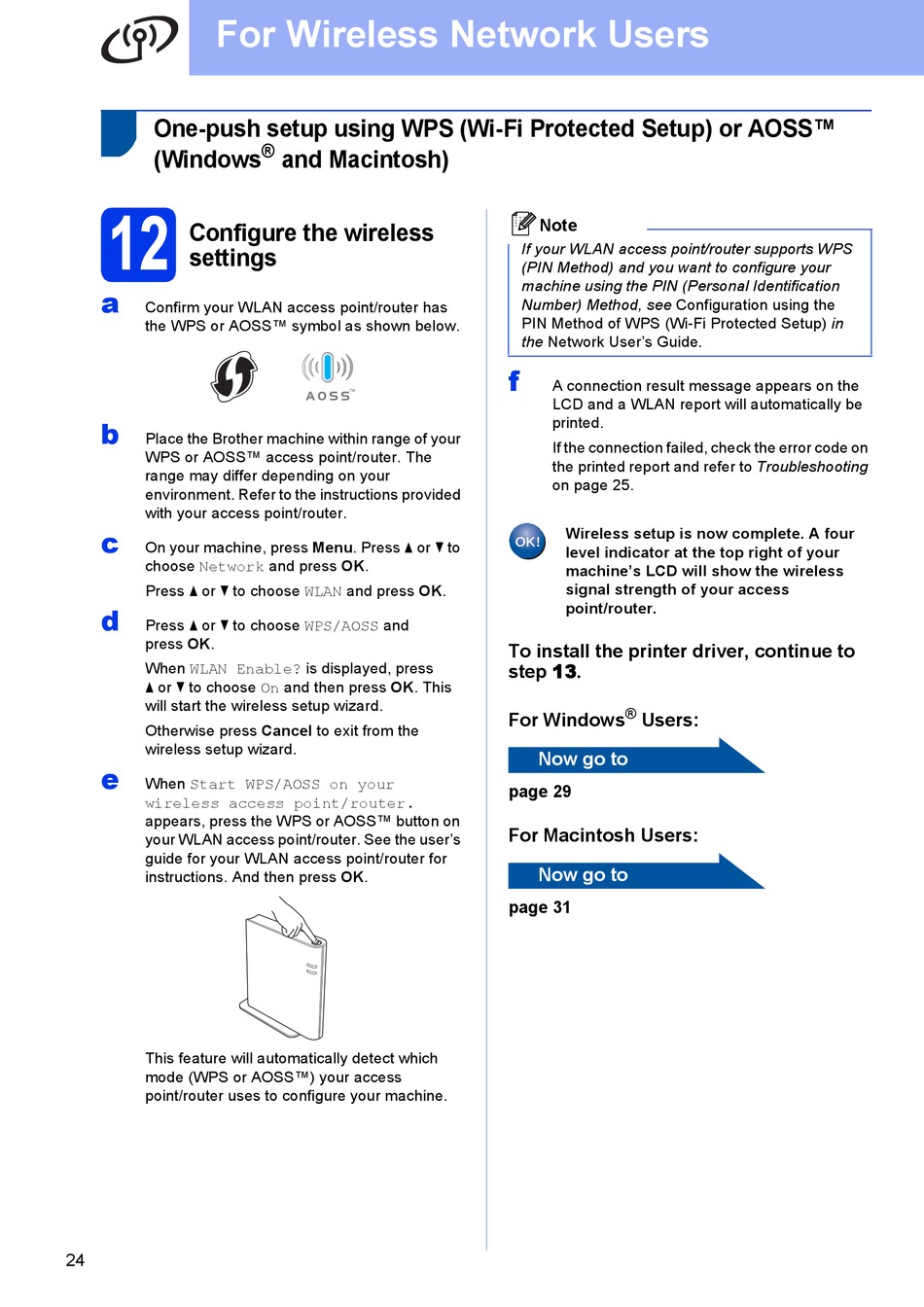

Brother HL-S7000DN Quick Setup Manual Page 24

Quick setup guide - english.
Hide thumbs


For Wireless Network Users
One-push setup using WPS (Wi-Fi Protected Setup) or AOSS™
Configure the wireless
Confirm your WLAN access point/router has
the WPS or AOSS™ symbol as shown below.
Place the Brother machine within range of your
WPS or AOSS™ access point/router. The
range may differ depending on your
environment. Refer to the instructions provided
with your access point/router.
On your machine, press Menu. Press a or b to
choose Network and press OK.
Press a or b to choose WLAN and press OK.
Press a or b to choose WPS/AOSS and
press OK.
When WLAN Enable? is displayed, press
a or b to choose On and then press OK. This
will start the wireless setup wizard.
Otherwise press Cancel to exit from the
wireless setup wizard.
When Start WPS/AOSS on your
wireless access point/router.
appears, press the WPS or AOSS™ button on
your WLAN access point/router. See the user's
guide for your WLAN access point/router for
instructions. And then press OK.
This feature will automatically detect which
mode (WPS or AOSS™) your access
point/router uses to configure your machine.
and Macintosh)
If your WLAN access point/router supports WPS
(PIN Method) and you want to configure your
machine using the PIN (Personal Identification
Number) Method, see Configuration using the
PIN Method of WPS (Wi-Fi Protected Setup) in
the Network User's Guide.
A connection result message appears on the
LCD and a WLAN report will automatically be
If the connection failed, check the error code on
the printed report and refer to Troubleshooting
on page 25.
Wireless setup is now complete. A four
level indicator at the top right of your
machine's LCD will show the wireless
signal strength of your access
To install the printer driver, continue to
step 13.
For Windows
Now go to
page 29
For Macintosh Users:
Now go to
page 31
